蓝屏0x9F Debug 实例

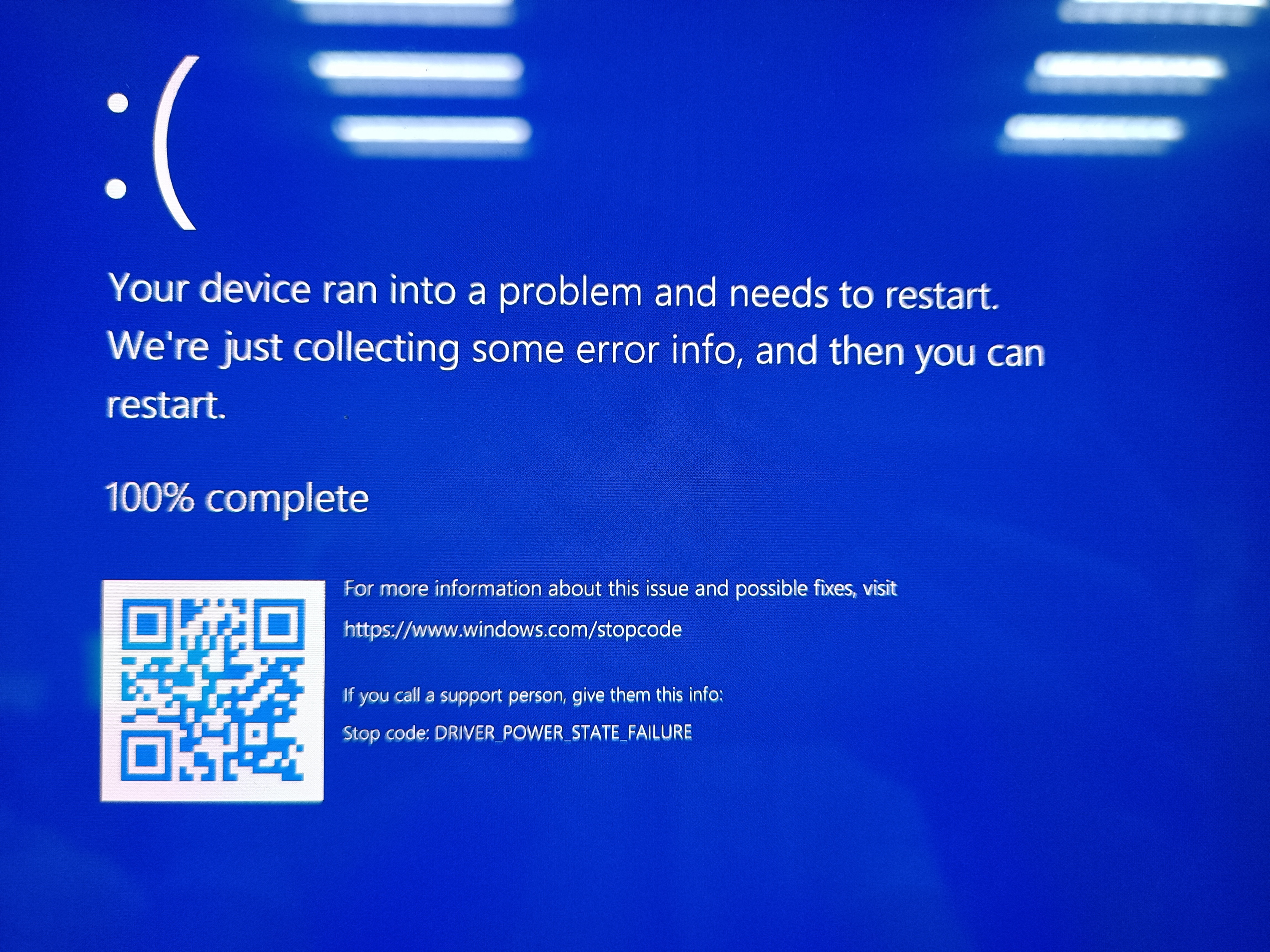

今天遇到蓝屏code DRIVER POWER STATE FALURE (0x9F) 以下是我详细Debug得过程:

4: kd> !analyze -v
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************

DRIVER_POWER_STATE_FAILURE (9f)
A driver has failed to complete a power IRP within a specific time.
Arguments:
Arg1: 0000000000000004, The power transition timed out waiting to synchronize with the Pnp
subsystem.
Arg2: 000000000000012c, Timeout in seconds.
Arg3: ffffa90135c59040, The thread currently holding on to the Pnp lock.
Arg4: ffff8080d665f740, nt!TRIAGE_9F_PNP on Win7 and higher

Debugging Details:
------------------

Page 102c88 not present in the dump file. Type ".hh dbgerr004" for details
Implicit thread is now ffffa901`35c59040

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 4311

Key : Analysis.DebugAnalysisManager
Value: Create

Key : Analysis.Elapsed.mSec
Value: 4310

Key : Analysis.Init.CPU.mSec
Value: 4890

Key : Analysis.Init.Elapsed.mSec
Value: 24707

Key : Analysis.Memory.CommitPeak.Mb
Value: 103

Key : Hardware.BusType
Value: PCI

Key : Hardware.HardwareID
Value: PCI\VEN_8086&DEV_15EF&SUBSYS_0467103C&REV_06

Key : WER.OS.Branch
Value: co_release

Key : WER.OS.Timestamp
Value: 2021-06-04T16:28:00Z

Key : WER.OS.Version
Value: 10.0.22000.1

FILE_IN_CAB: MEMORY.DMP

TAG_NOT_DEFINED_202b: *** Unknown TAG in analysis list 202b

DUMP_FILE_ATTRIBUTES: 0x1800

BUGCHECK_CODE: 9f

BUGCHECK_P1: 4

BUGCHECK_P2: 12c

BUGCHECK_P3: ffffa90135c59040

BUGCHECK_P4: ffff8080d665f740

DRVPOWERSTATE_SUBCODE: 4

HARDWARE_ID_BUS_TYPE: PCI

HARDWARE_VENDOR_ID: VEN_8086

HARDWARE_DEVICE_ID: DEV_15EF

HARDWARE_SUBSYS_ID: SUBSYS_0467103C

HARDWARE_REV_ID: REV_06

HARDWARE_ID: PCI\VEN_8086&DEV_15EF&SUBSYS_0467103C&REV_06

IMAGE_NAME: UsbHub3.sys

MODULE_NAME: UsbHub3

FAULTING_MODULE: fffff80552000000 UsbHub3

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

PROCESS_NAME: System

STACK_TEXT:
ffff8080`d665f708 fffff805`1f95cf06 : 00000000`0000009f 00000000`00000004 00000000`0000012c ffffa901`35c59040 : nt!KeBugCheckEx
ffff8080`d665f710 fffff805`1fe68f06 : ffff8080`d665fa30 ffff8080`d665f869 ffff9480`12880180 ffff9480`12880100 : nt!PnpBugcheckPowerTimeout+0x76
ffff8080`d665f770 fffff805`1f645664 : ffff8080`d73772b0 00000000`00000000 ffff8080`d665fa38 00000000`00000000 : nt!PopBuildDeviceNotifyListWatchdog+0x16
ffff8080`d665f7a0 fffff805`1f643c54 : 00000000`00000008 ffff8080`d665f9d0 ffff9480`12880180 fffff805`1a7bbca8 : nt!KiProcessExpiredTimerList+0x204
ffff8080`d665f8d0 fffff805`1f81a8ee : 00000000`00000000 ffff9480`12880180 ffff9480`1288c340 ffffa901`37488080 : nt!KiRetireDpcList+0x714
ffff8080`d665fb80 00000000`00000000 : ffff8080`d6660000 ffff8080`d6659000 00000000`00000000 00000000`00000000 : nt!KiIdleLoop+0x9e

IMAGE_VERSION: 10.0.22000.65

STACK_COMMAND: .cxr; .ecxr ; kb

FAILURE_BUCKET_ID: 0x9F_4_PCI_rtump64x64_IMAGE_UsbHub3.sys

OS_VERSION: 10.0.22000.1

BUILDLAB_STR: co_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {dcccd1ac-8608-c8dc-cd4b-6bd240807ddf}

Followup: MachineOwner
---------

4: kd> !locks
**** DUMP OF ALL RESOURCE OBJECTS ****
KD: Scanning for held locks..

Resource @ nt!IopDeviceTreeLock (0xfffff805200460e0) Shared 1 owning threads
Contention Count = 83
Threads: ffffa90135c59040-01<*>
KD: Scanning for held locks.

Resource @ nt!PiEngineLock (0xfffff80520045fc0) Exclusively owned
Contention Count = 679
NumberOfExclusiveWaiters = 2
Threads: ffffa90135c59040-01<*>

Threads Waiting On Exclusive Access:
ffffa9012f66a080 ffffa9013090c040
KD: Scanning for held locks.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
22286 total locks, 2 locks currently held
4: kd> !thread ffffa90135c59040
THREAD ffffa90135c59040 Cid 0004.2df0 Teb: 0000000000000000 Win32Thread: 0000000000000000 WAIT: (Executive) KernelMode Non-Alertable
ffff8080dc1375b0 SynchronizationEvent
IRP List:
ffffa90131036010: (0006,06b8) Flags: 00000000 Mdl: 00000000
Not impersonating
DeviceMap ffffce825403d460
Owning Process ffffa90116efe040 Image: System
Attached Process N/A Image: N/A
Wait Start TickCount 296400 Ticks: 19201 (0:00:05:00.015)
Context Switch Count 104891 IdealProcessor: 6 NoStackSwap
UserTime 00:00:00.000
KernelTime 00:00:02.203
Win32 Start Address nt!ExpWorkerThread (0xfffff8051f753160)
Stack Init ffff8080dc137bb0 Current ffff8080dc137180
Base ffff8080dc138000 Limit ffff8080dc131000 Call 0000000000000000
Priority 15 BasePriority 12 PriorityDecrement 0 IoPriority 2 PagePriority 5
Child-SP RetAddr : Args to Child : Call Site
ffff8080`dc1371c0 fffff805`1f7337a7 : ffff9480`00000000 00000000`00000000 00000000`00000000 ffffa901`35c59040 : nt!KiSwapContext+0x76
ffff8080`dc137300 fffff805`1f735659 : 00000001`00000002 00000000`00000000 ffff8080`dc1374e0 fffff805`00000000 : nt!KiSwapThread+0x3a7
ffff8080`dc1373e0 fffff805`1f72f574 : 00000000`00000000 ffff8080`00000000 00000000`00000000 00000000`00000000 : nt!KiCommitThreadWait+0x159
ffff8080`dc137480 fffff805`1fbafe25 : ffff8080`dc1375b0 ffffa901`00000000 00000000`00000000 00000000`00000000 : nt!KeWaitForSingleObject+0x234
ffff8080`dc137570 fffff805`1fbdb9c8 : 00000000`00000017 ffffa901`36a5b540 ffffa901`31ff1cb0 ffffa901`36a5b540 : nt!IopSynchronousCall+0x159
ffff8080`dc1375e0 fffff805`1fbf97dc : ffffce82`61c036e0 00000000`00000000 00000000`0000030c 00000000`0000030a : nt!IopRemoveDevice+0x108
ffff8080`dc137690 fffff805`1fbdb538 : ffffa901`31ff1cb0 00000000`00000000 00000000`00000000 fffff805`1fbdb47b : nt!PnpSurpriseRemoveLockedDeviceNode+0xb0
ffff8080`dc1376f0 fffff805`1fbdb263 : ffffa901`31ff1cb0 ffff8080`dc137770 ffffa901`36a5b540 00000000`00000004 : nt!PnpDeleteLockedDeviceNode+0x8c
ffff8080`dc137730 fffff805`1fbd9c3e : ffffa901`365d7060 0000002c`00000002 00000000`00000000 00000000`00000003 : nt!PnpDeleteLockedDeviceNodes+0xcf
ffff8080`dc1377b0 fffff805`1fbad9bd : ffff8080`dc1378f0 ffffa901`37c50500 ffffa901`3124c300 ffffce82`0000002a : nt!PnpProcessQueryRemoveAndEject+0x1de
ffff8080`dc137890 fffff805`1fbb5cb5 : ffffce82`61c036e0 ffffce82`5e803620 ffffa901`16eceb00 00000000`00000000 : nt!PnpProcessTargetDeviceEvent+0x109
ffff8080`dc1378c0 fffff805`1f7532af : ffffa901`16eceb40 ffffa901`35c59040 ffffa901`3124c340 00000000`00000000 : nt!PnpDeviceEventWorker+0x2c5
ffff8080`dc137940 fffff805`1f6dc855 : ffffa901`35c59040 ffff9480`12b8f000 ffffa901`35c59040 006fe47f`b19bbdff : nt!ExpWorkerThread+0x14f
ffff8080`dc137b30 fffff805`1f81aa54 : ffff9480`12b80180 ffffa901`35c59040 fffff805`1f6dc800 bc5c43ff`3c4992d3 : nt!PspSystemThreadStartup+0x55
ffff8080`dc137b80 00000000`00000000 : ffff8080`dc138000 ffff8080`dc131000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x34

4: kd> !irp ffffa90131036010
Irp is active with 21 stacks 21 is current (= 0xffffa90131036680)
No Mdl: No System Buffer: Thread ffffa90135c59040: Irp stack trace.
cmd flg cl Device File Completion-Context
[N/A(0), N/A(0)]
0 0 00000000 00000000 00000000-00000000

Args: 00000000 00000000 00000000 00000000
[N/A(0), N/A(0)]
0 0 00000000 00000000 00000000-00000000

Args: 00000000 00000000 00000000 00000000
>[IRP_MJ_PNP(1b), IRP_MN_SURPRISE_REMOVAL(17)]
0 1 ffffa901279e5050 00000000 00000000-00000000 pending
Unable to load image \SystemRoot\System32\drivers\rtump64x64.sys, Win32 error 0n2
\Driver\rtump64x64
Args: 00000000 00000000 00000000 00000000

4: kd> !devstack ffffa901279e5050
!DevObj !DrvObj !DevExt ObjectName
> ffffa901279e5050 \Driver\rtump64x64 ffffa901279e51a0 NDMP55
ffffa90136a5b540 \Driver\USBHUB3 ffffa90136321c20 USBPDO-15
!DevNode ffffa90131ff1cb0 :
DeviceInst is "USB\VID_0BDA&PID_8153\000001000000"
ServiceName is "rtump64x64"
