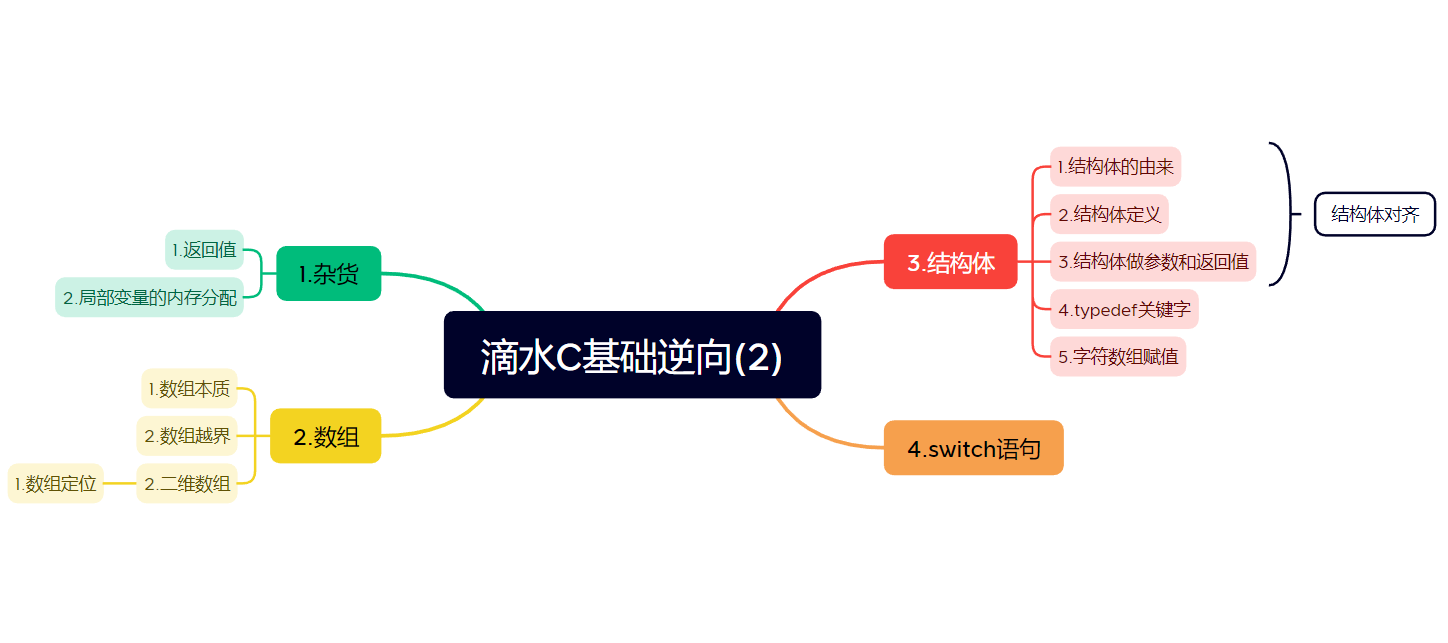

滴水C逆向(2)

 内容:

1.返回值 一般通过eax传递

return 1;
  mov         eax,1

64位
return 1.3;
 fld         qword ptr ds:[0097ABD0h]
FLD是Intel的指令集协处理器的汇编指令，用于把浮点数字传送入和传送出FPU寄存器。
0x0097ABD0        1.3000000000000000

二.数组本质

1.数组本质

14:     int a = 1;
 mov         dword ptr [ebp-8],1
    15:     int a2 = 2;
 mov         dword ptr [ebp-14h],2
    16:     int a3 = 3;
 mov         dword ptr [ebp-20h],3
    17:     int arr[3] = { 0,0x1,0x2 };
 mov         dword ptr [ebp-34h],0
 mov         dword ptr [ebp-30h],1
 mov         dword ptr [ebp-2Ch],2

汇编地址根据下标的增大地址是变大的

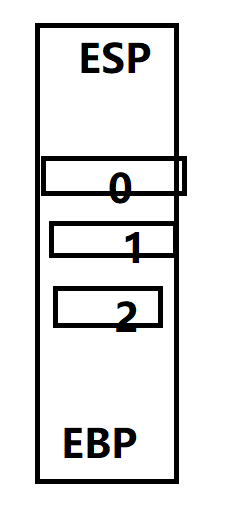

非常的丑陋的图

2.数组越界分析

19:     int arr[3] = { 0,0x1,0x2 };
 mov         dword ptr [ebp-10h],0
 mov         dword ptr [ebp-0Ch],1
 mov         dword ptr [ebp-8],2
    20:     arr[3] = (int)HelloWord;
 mov         eax,4
 imul        ecx,eax,3
 mov         dword ptr [ebp+ecx-10h],0DC1663h

&arr看内存 照样能往里写入数据


所谓的数组越界是出于安全考虑 ，但是不代表我们不可以向里面写

3.二维数组

例子比如：一年有12个月，每个月都有一个平均气温，存储5年的数据

    int arr[5][12] = {

        {1,2,1,4,5,6,7,8,9,1,2,3}            //0

        {1,2,1,4,5,6,7,8,9,1,2,3}            //1

        {1,2,1,4,5,6,7,8,9,1,2,3}            //2

        {1,2,1,4,5,6,7,8,9,1,2,3}            //3

        {1,2,1,4,5,6,7,8,9,1,2,3}            //4

    }

汇编

 int arr[5][12] = {
    20:
    21:      {1,2,1,4,5,6,7,8,9,1,2,3},            //0
 mov         dword ptr [ebp+FFFFFF0Ch],1
 mov         dword ptr [ebp+FFFFFF10h],2
 mov         dword ptr [ebp+FFFFFF14h],1
 mov         dword ptr [ebp+FFFFFF18h],4
 mov         dword ptr [ebp+FFFFFF1Ch],5
 mov         dword ptr [ebp+FFFFFF20h],6
 mov         dword ptr [ebp+FFFFFF24h],7
 mov         dword ptr [ebp+FFFFFF28h],8
 mov         dword ptr [ebp+FFFFFF2Ch],9
 mov         dword ptr [ebp+FFFFFF30h],1
 mov         dword ptr [ebp+FFFFFF34h],2
 mov         dword ptr [ebp+FFFFFF38h],3
    22:
    23:      {1,2,1,4,5,6,7,8,9,1,2,3} ,           //1
 mov         dword ptr [ebp+FFFFFF3Ch],1
 mov         dword ptr [ebp+FFFFFF40h],2
 mov         dword ptr [ebp+FFFFFF44h],1
 mov         dword ptr [ebp+FFFFFF48h],4
 mov         dword ptr [ebp+FFFFFF4Ch],5
 mov         dword ptr [ebp+FFFFFF50h],6
 mov         dword ptr [ebp+FFFFFF54h],7
 mov         dword ptr [ebp+FFFFFF58h],8
 mov         dword ptr [ebp+FFFFFF5Ch],9
 mov         dword ptr [ebp+FFFFFF60h],1
 mov         dword ptr [ebp+FFFFFF64h],2
 mov         dword ptr [ebp+FFFFFF68h],3
    24:
    25:      {1,2,1,4,5,6,7,8,9,1,2,3} ,           //2
 mov         dword ptr [ebp+FFFFFF6Ch],1
 mov         dword ptr [ebp+FFFFFF70h],2
 mov         dword ptr [ebp+FFFFFF74h],1
 mov         dword ptr [ebp+FFFFFF78h],4
 mov         dword ptr [ebp+FFFFFF7Ch],5
 mov         dword ptr [ebp-80h],6
 mov         dword ptr [ebp-7Ch],7
 mov         dword ptr [ebp-78h],8
 mov         dword ptr [ebp-74h],9
 mov         dword ptr [ebp-70h],1
 mov         dword ptr [ebp-6Ch],2
 mov         dword ptr [ebp-68h],3
    26:
    27:      {1,2,1,4,5,6,7,8,9,1,2,3} ,           //3
 mov         dword ptr [ebp-64h],1
 mov         dword ptr [ebp-60h],2
 mov         dword ptr [ebp-5Ch],1
 mov         dword ptr [ebp-58h],4
 mov         dword ptr [ebp-54h],5
 mov         dword ptr [ebp-50h],6
 mov         dword ptr [ebp-4Ch],7
 mov         dword ptr [ebp-48h],8
 mov         dword ptr [ebp-44h],9
 mov         dword ptr [ebp-40h],1
 mov         dword ptr [ebp-3Ch],2
 mov         dword ptr [ebp-38h],3
    28:
    29:      {1,2,1,4,5,6,7,8,9,1,2,3}            //4
 mov         dword ptr [ebp-34h],1
 mov         dword ptr [ebp-30h],2
 mov         dword ptr [ebp-2Ch],1
 mov         dword ptr [ebp-28h],4
 mov         dword ptr [ebp-24h],5
 mov         dword ptr [ebp-20h],6
 mov         dword ptr [ebp-1Ch],7
 mov         dword ptr [ebp-18h],8
 mov         dword ptr [ebp-14h],9
 mov         dword ptr [ebp-10h],1
 mov         dword ptr [ebp-0Ch],2
 mov         dword ptr [ebp-8],3
    30:
    31:     };
    32: }

其实也是简单的开辟空间//不简单

三.结构体

1.结构体由来
比如怪物 这个结构 内有生命 坐标等等 对此 我们创建了一个容器来保持
这就是结构体

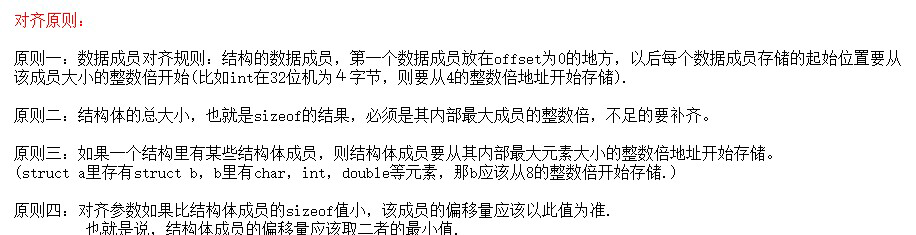

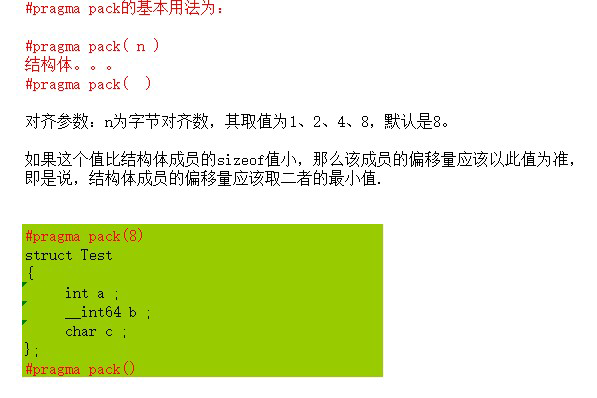

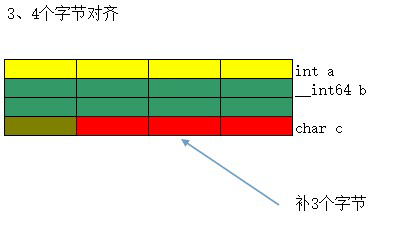

 2.结构体 对齐
保效率丢空间

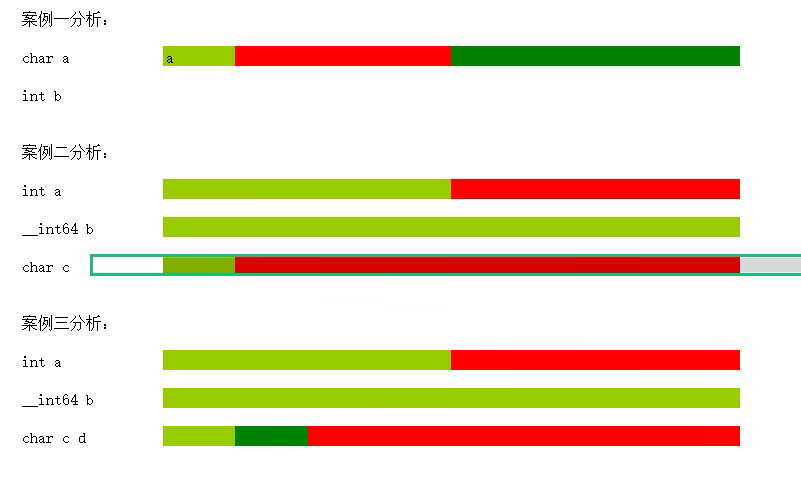

 三个案例

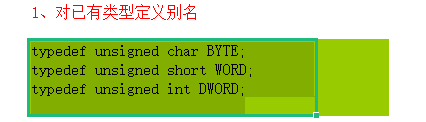

 五.typedef

六.case 语句分析（中)



    switch(表达式)
    {
             case 常量表达式1：
            语句;
            break;
        case 常量表达式2：
            语句;
            break;
        case 常量表达式3：
            语句;
            break;
        case 常量表达式3：
            语句;
            break;
        default:
            语句;
            break;
    }



 19:     switch (3)
 mov         dword ptr [ebp+FFFFFF3Ch],3
 mov         eax,dword ptr [ebp+FFFFFF3Ch]
 sub         eax,1
 mov         dword ptr [ebp+FFFFFF3Ch],eax
 cmp         dword ptr [ebp+FFFFFF3Ch],5
 ja          00501CAC
 mov         ecx,dword ptr [ebp+FFFFFF3Ch]
 jmp         dword ptr [ecx*4+00501CC4h]
    20:     {
    21:     case 1:
    22:         printf("Hello World");
 push        50ABD8h
 call        0050165E
 add         esp,4
    23:         break;
 jmp         00501CAC
    24:     case 2:
    25:         printf("Hello World");
 push        50ABD8h
 call        0050165E
 add         esp,4

这里有个计算公式 包括为了节省资源会生成大表 小表 我忘了 不会
