SpringCloud整合SkyWalking

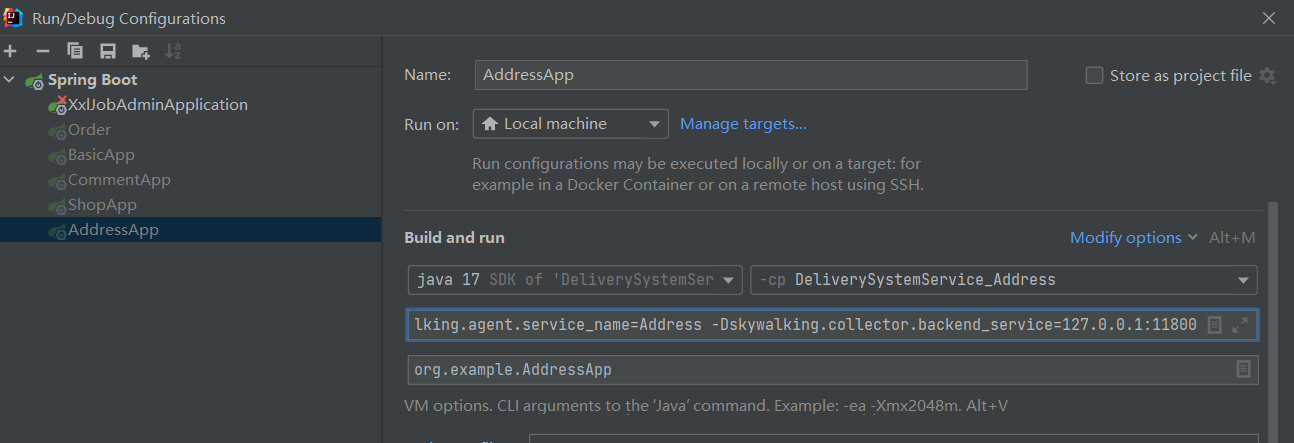

1.idea配置启动参数
、
第一个是本地jar包位置
第三个在application.yml的gRPCPort
-javaagent:D:\Code\SkyWalking\apache-skywalking-apm-bin\agent\skywalking-agent.jar
-Dskywalking.agent.service_name=Address
-Dskywalking.collector.backend_service=127.0.0.1:11800

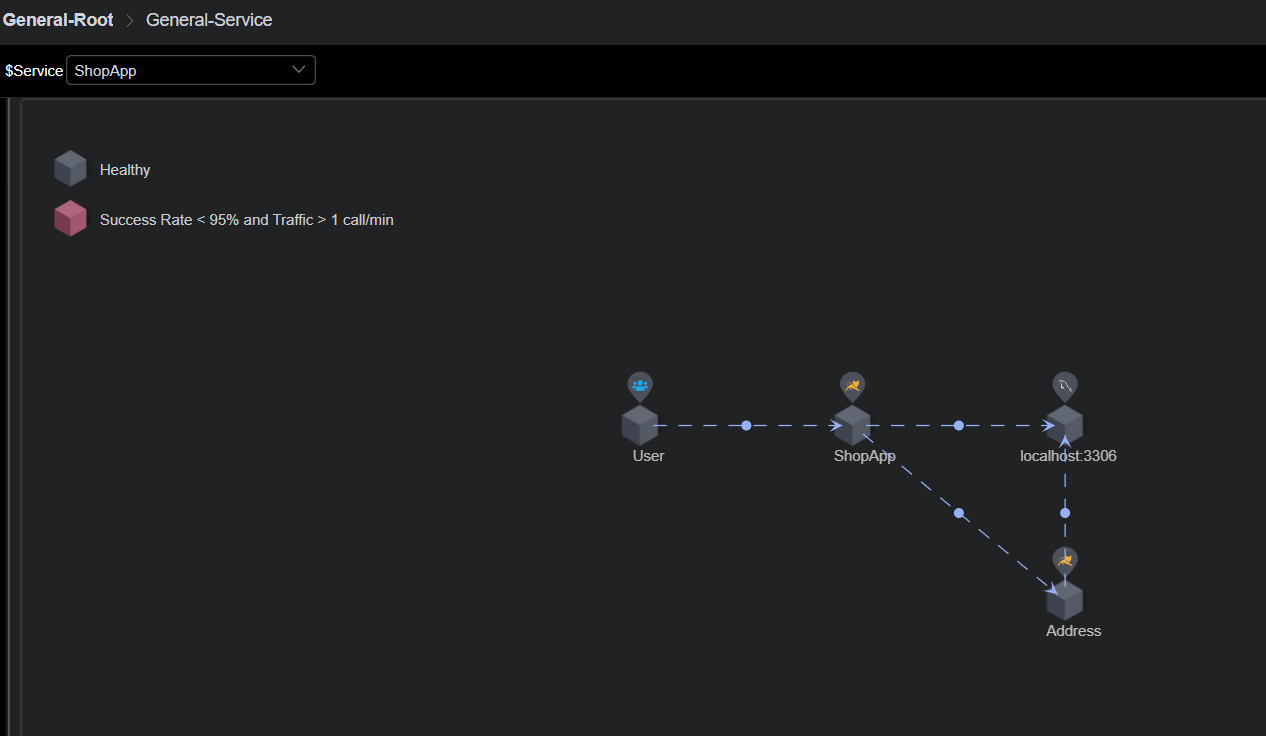

2.测试结果
3.日志输出traceId
3.1 依赖
<dependency>
<groupId>org.apache.skywalking</groupId>
<artifactId>apm-toolkit-logback-1.x</artifactId>
<version>8.7.0</version>
</dependency>
3.2 resource/logback.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration scan="true" scanPeriod="60 seconds" debug="false">
<!--scan: 当此属性设置为true时，配置文件如果发生改变，将会被重新加载，默认值为true。-->
<!--scanPeriod: 设置监测配置文件是否有修改的时间间隔，如果没有给出时间单位，默认单位是毫秒。当scan为true时，此属性生效。默认的时间间隔为1分钟。-->
<!--debug: 当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。默认值为false。-->
<!-- 配置控制台的输出日志 -->
<!-- 引入spirng boot默认的logback配置文件 -->
<include resource="org/springframework/boot/logging/logback/defaults.xml"/>
<!--<springProperty scope="context" name="app_name" source="spring.application.name"/>
<springProperty scope="context" name="app_namespace" source="logstash.namespace"/>
<springProperty scope="context" name="LOGBACK_URL" source="logstash.url"/>
<springProperty scope="context" name="LOGBACK_PORT" source="logstash.port"/>-->
<!-- 引入日志易 -->
<springProperty scope="context" name="appName" source="spring.application.name" defaultValue="d-space-business"/>
<springProfile name="!local">
<property name="log.path" value="/data/applogs"/>
</springProfile>
<springProfile name="local">
<property name="log.path" value="logs"/>
</springProfile>
<appender name="consoleLog" class="ch.qos.logback.core.ConsoleAppender">
<!-- <encoder>：对日志进行格式化：负责写日志的组件 -->
<encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
<!-- 定义日志输出的格式 -->
<layout class="ch.qos.logback.classic.PatternLayout">
<!-- <pattern>
%d - [%thread] %-5level %logger{35} - [%line] - %msg%n
</pattern>-->
<pattern>${CONSOLE_LOG_PATTERN}</pattern>
</layout>
</encoder>
</appender>
<!-- <appender>：负责写日志的组件 -->
<!-- logstash配置-->
<!--<appender name="LOGSTASH" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
<destination>${LOGBACK_URL:- }:${LOGBACK_PORT:- }</destination>
<!– 日志输出编码 –>
<encoder charset="UTF-8" class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers>
<timestamp>
<timeZone>UTC</timeZone>
</timestamp>
<pattern>
<pattern>
{
"logLevel": "%level",
"namespace": "${app_namespace}",
"serviceName": "${app_name}",
"pid": "${PID:-}",
"thread": "%thread",
"class": "%logger{40}",
"message": "%message"
}
</pattern>
</pattern>
<stackTrace>
<throwableConverter class="net.logstash.logback.stacktrace.ShortenedThrowableConverter">
<maxDepthPerThrowable>50</maxDepthPerThrowable>
<maxLength>4048</maxLength>
<shortenedClassNameLength>50</shortenedClassNameLength>
<exclude>^sun\.reflect\..*\.invoke</exclude>
<exclude>^net\.sf\.cglib\.proxy\.MethodProxy\.invoke</exclude>
<rootCauseFirst>true</rootCauseFirst>
</throwableConverter>
</stackTrace>
</providers>
</encoder>
</appender>-->
<!--2. 输出到文档-->
<!-- 2.1 level为 DEBUG 日志，时间滚动输出 -->
<appender name="DEBUG_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${appName}-debug.log</file>
<!--日志文档输出格式-->
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} [%tid] - %msg%n</pattern>
<charset>UTF-8</charset> <!-- 设置字符集 -->
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<!-- 日志归档 -->
<fileNamePattern>${log.path}/${appName}-debug-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档只记录debug级别的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>debug</level>
<onMatch>ACCEPT</onMatch>
<onMismatch>DENY</onMismatch>
</filter>
</appender>
<!-- 2.2 level为 INFO 日志，时间滚动输出 -->
<appender name="INFO_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${appName}-info.log</file>
<!--日志文档输出格式-->
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} [%tid] - %msg%n</pattern>
<charset>UTF-8</charset>
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<!-- 每天日志归档路径以及格式 -->
<fileNamePattern>${log.path}/${appName}-info-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档只记录info级别的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>info</level>
<onMatch>ACCEPT</onMatch>
<onMismatch>DENY</onMismatch>
</filter>
</appender>
<!-- 2.3 level为 WARN 日志，时间滚动输出 -->
<appender name="WARN_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${appName}-warn.log</file>
<!--日志文档输出格式-->
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} [%tid] - %msg%n</pattern>
<charset>UTF-8</charset> <!-- 此处设置字符集 -->
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${log.path}/${appName}-warn-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档只记录warn级别的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>warn</level>
<onMatch>ACCEPT</onMatch>
<onMismatch>DENY</onMismatch>
</filter>
</appender>
<!-- 2.4 level为 ERROR 日志，时间滚动输出 -->
<appender name="ERROR_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${appName}-error.log</file>
<!--日志文档输出格式-->
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} [%tid] - %msg%n</pattern>
<charset>UTF-8</charset> <!-- 此处设置字符集 -->
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${log.path}/${appName}-error-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档只记录ERROR级别的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>ERROR</level>
<onMatch>ACCEPT</onMatch>
<onMismatch>DENY</onMismatch>
</filter>
</appender>
<!-- 2.5 所有 除了DEBUG级别的其它高于DEBUG的 日志，记录到一个文件 -->
<appender name="ALL_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${appName}.log</file>
<!--日志文档输出格式-->
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} [%tid] - %msg%n</pattern>
<charset>UTF-8</charset> <!-- 此处设置字符集 -->
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${log.path}/${appName}-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档记录除了DEBUG级别的其它高于DEBUG的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>DEBUG</level>
<onMatch>DENY</onMatch>
<onMismatch>ACCEPT</onMismatch>
</filter>
</appender>
<!--<root level="info">
<appender-ref ref="LOGSTASH"/>
<appender-ref ref="consoleLog"/>
</root>-->
<appender name="console" class="ch.qos.logback.core.ConsoleAppender">
<layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
<pattern>
%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] [%-5level] [%logger{36}] [%tid] %msg%n
</pattern>
</layout>
</appender>
<!-- 4 最终的策略：
基本策略(root级) + 根据profile在启动时, logger标签中定制化package日志级别(优先级高于上面的root级)-->
<root level="info">
<appender-ref ref="consoleLog"/>
<appender-ref ref="ALL_FILE"/>
<appender-ref ref="console"/>
</root>
<logger name="com.byd.rental.dspacebusiness" level="info"/>
</configuration>
3.3 拦截器加响应体
@Component
public class RequestLogFilter extends OncePerRequestFilter {
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
response.setHeader("Trace-Id", TraceContext.traceId());
filterChain.doFilter(request, response);
}
}
