台标识别新能测试











命令-y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=0:object_detect_request=henan_50_mosaic:skip_frame=1 -vcodec nvenc_h264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats

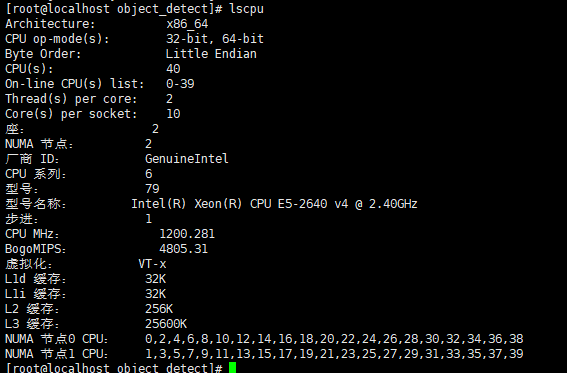

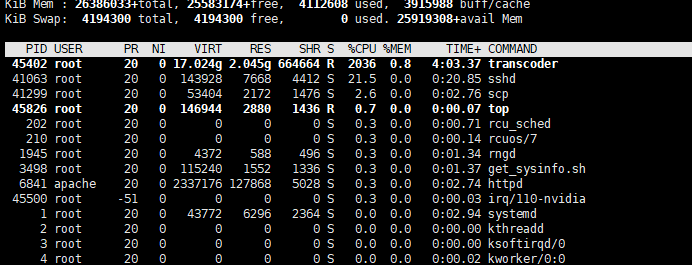

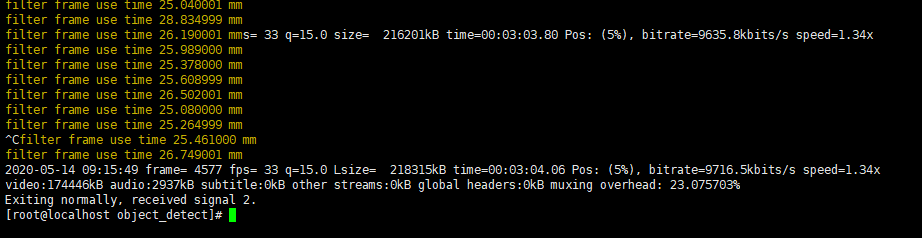

在189上测试结果cpu进行识别，gpu进行编码  fps == 34

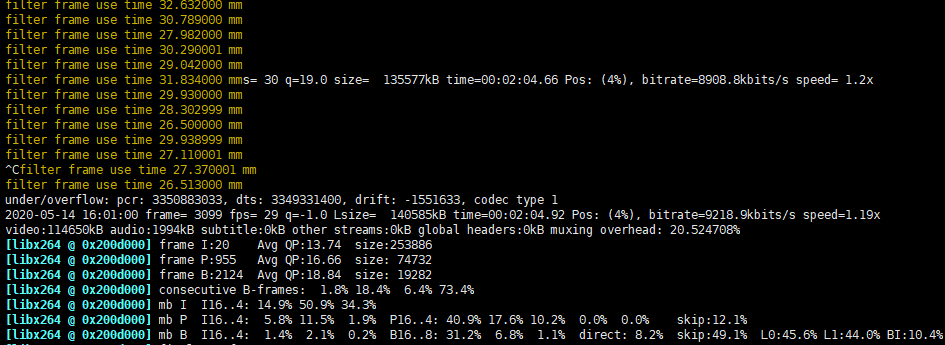

 //纯cpu编码检测 fps   30

 -y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=0:object_detect_request=henan_50_mosaic:skip_frame=1 -vcodec libx264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats

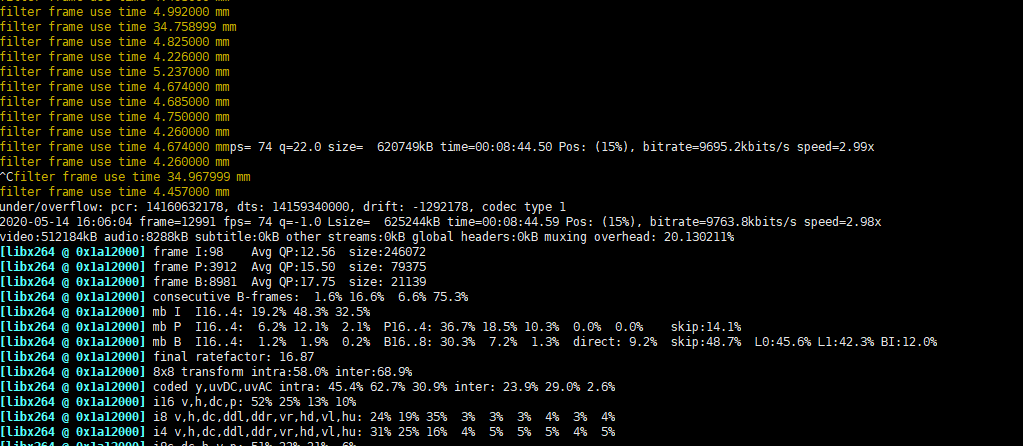

 //cpu 识别 每隔10帧进行一次检测   fps 75

-y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=0:object_detect_request=henan_50_mosaic:skip_frame=10 -vcodec libx264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats

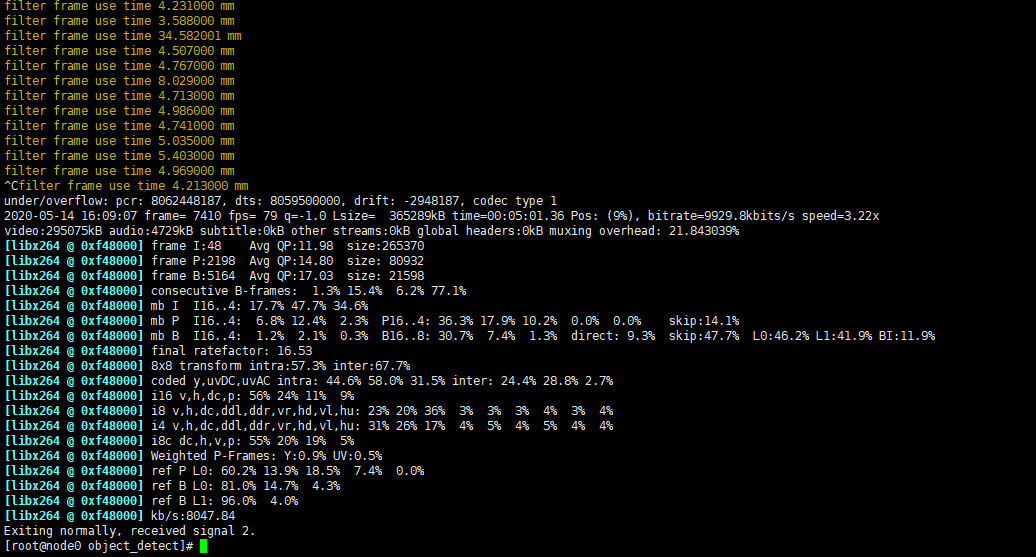

 cpu 每隔50帧检测一次 fps == 80

-y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=0:object_detect_request=henan_50_mosaic:skip_frame=50 -vcodec libx264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats

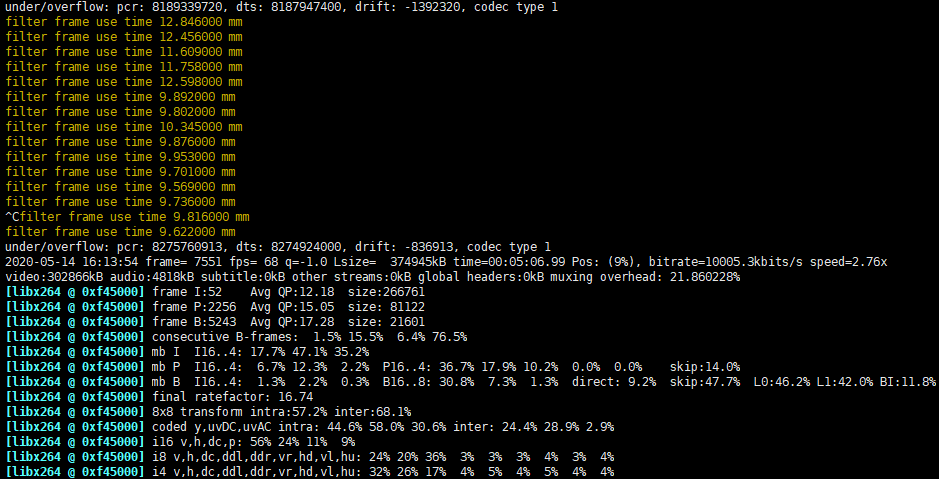

gpu识别 cpu编码  fps 68

 -y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=1:object_detect_request=henan_50_mosaic:skip_frame=1 -vcodec libx264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats









-y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=1:object_detect_request=henan_50_mosaic:skip_frame=1 -vcodec nvenc_h264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegtest_object_detect.ts  -stats

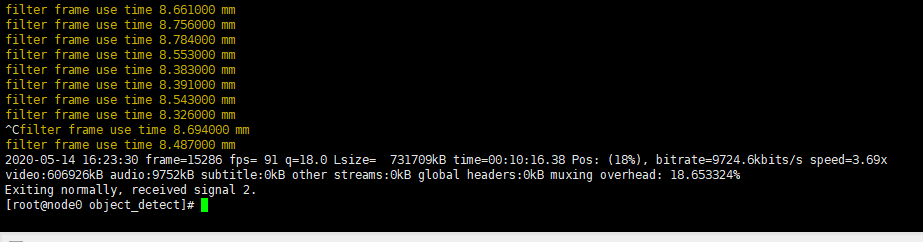

 gpu识别gpu编码  fps 90















每隔50帧进行一次检测  gpu检测，gpu编码

-y -ss 500 -i /home/object_detect/henan.ts -pix_fmt yuv420p -vf object_detect=model_path=//home/object_detect/henan_output_dir/frozen_inference_graph.pb:pbtxt_path=/home/object_detect/henan_output_dir/ssd_mobilenet_v1.pbtxt:object_name_path=//home/object_detect/henan_output_dir/object_detection_classes.txt:min_match_rate=0.1:show_rect=1:use_gpu=1:object_detect_request=henan_50_mosaic:skip_frame=50 -vcodec nvenc_h264 -loglevel debug -loglevel info -b:v 8000k  -acodec copy  -f mpegts test_object_detect.ts  -stats

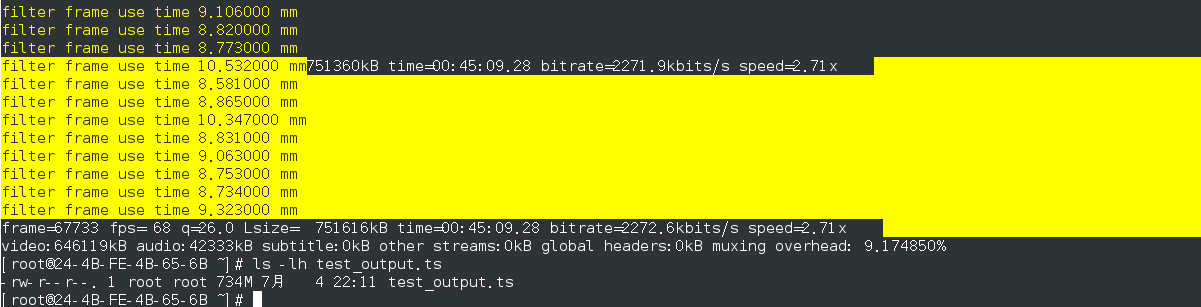

rtx2060
