云原生k8s01 kubeasz搭建k8s, 搭建dashboard, kuboard
1.2：服务器准备：
操作系统都是ubuntu24.04
3个master: master节点4C8G可管理几百个pod; 8C16G可管理上千个pod; 16C24G可管理几千个
| 服务器IP | 备注 | |
|---|---|---|
| K8S Master1 | 10.0.0.101 | 保证主节点时间同步 |
| K8S Master2 | 10.0.0.102 | |
| K8S Master3 | 10.0.0.103 | |
| Node节点1 | 10.0.0.104 | |
| Node节点2 | 10.0.0.105 | |
| Harbor | 10.0.0.106 | 单个harbor |
| Haproxy | 10.0.0.107 |

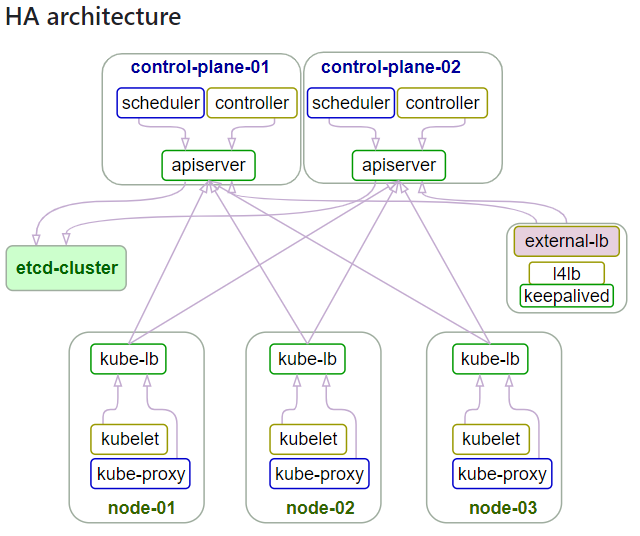

2个Haproxy通过keepalived做高可用, 作为k8s apiserver lb vip用10.0.0.188:6443, 作为k8s的apiserver lb的入口地址 做为k8s主和从节点的部署节点
|
root@harbor:~# mkdir /apps root@harbor:~# cd /apps/ #传入harbor包 harbor-offline-installer-v2.14.1.tgz #解压 root@harbor:/apps# tar xvf harbor-offline-installer-v2.14.1.tgz #安装docker，可以在线安装，这里使用docker安装脚本，传入runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz root@harbor:/apps# mv runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz /usr/local/src/ root@harbor:/apps# cd /usr/local/src/ root@harbor:/usr/local/src# tar xvf runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz root@harbor:/usr/local/src# bash runtime-install.sh docker root@harbor:/usr/local/src# cd /apps/harbor/ #存放现有https证书 (如要自己申请证书可用如下2个网站) #https://certificate-console.jdcloud.com/jsecssl/create?fastConfig=false&certBrand=TrustAsia&certType=domainType&protectionType=DV-1 #3个月免费证书 #https://ssl.spug.cc/ #3个月免费证书,可买商业的比较便宜 root@harbor:/apps/harbor# mkdir certs root@harbor:/apps/harbor# cd certs/ #传入harbor.myarchitect.online_nginx.zip root@harbor:/apps/harbor/certs# unzip harbor.myarchitect.online_nginx.zip Archive: harbor.myarchitect.online_nginx.zip extracting: harbor.myarchitect.online.pem extracting: harbor.myarchitect.online.key root@harbor:/apps/harbor/certs# ll total 24 drwxr-xr-x 2 root root 123 Jan 16 00:05 ./ drwxr-xr-x 3 root root 154 Jan 16 00:02 ../ -rw------- 1 root root 1675 Oct 13 16:48 harbor.myarchitect.online.key #私钥 -rw------- 1 root root 6955 Oct 13 16:48 harbor.myarchitect.online.pem #公钥 -rw-r--r-- 1 root root 8920 Jan 12 20:41 harbor.myarchitect.online_nginx.zip root@harbor:/apps/harbor# cp harbor.yml.tmpl harbor.yml root@harbor:/apps/harbor# vim harbor.yml hostname: harbor.myarchitect.online #使用这个域名,有证书 ... https: # https port for harbor, default is 443 port: 443 # The path of cert and key files for nginx certificate: /apps/harbor/certs/harbor.myarchitect.online.pem #修改公钥地址 private_key: /apps/harbor/certs/harbor.myarchitect.online.key #修改私钥地址 ... harbor_admin_password: 123456 #修改密码 ... data_volume: /data #数据存储位置，建议挂一个存储放里面 #第一次安装要./install.sh root@harbor:/apps/harbor# ./install.sh #查看启动的容器 root@harbor:/apps/harbor# docker-compose ps #测试连接 #在宿主机配置 C:\Windows\System32\drivers\etc\hosts 10.0.0.106 harbor.myarchitect.online #浏览器输入测试 admin/123456 https://harbor.myarchitect.online/ #新建myserver项目，设为公开(下载不需要认证，上传需要认证)，一般都选公开，否则k8s拉取pod还需要secret #新建baseimages项目，放基础镜像
#安装keepalived和haproxy root@k8s-ha1:~# apt update root@k8s-ha1:~# apt install keepalived haproxy #修改配置 root@k8s-ha1:~# cd /etc/keepalived/ root@k8s-ha1:/etc/keepalived# mv keepalived.conf.sample keepalived.conf #配置vip时先ping下看看这个vip有没有人用 root@k8s-ha1:/etc/keepalived# vim keepalived.conf global_defs { notification_email { acassen@firewall.loc failover@firewall.loc sysadmin@firewall.loc } notification_email_from Alexandre.Cassen@firewall.loc smtp_server 192.168.200.1 smtp_connect_timeout 30 router_id LVS_DEVEL vrrp_skip_check_adv_addr #vrrp_strict #这个是禁ping的，注释掉 vrrp_garp_interval 0 vrrp_gna_interval 0 } vrrp_instance VI_1 { state MASTER interface eth0 virtual_router_id 51 priority 100 advert_int 1 authentication { auth_type PASS auth_pass 1111 } virtual_ipaddress { 10.0.0.188 dev eth0 label eth0:0 #vip地址 } root@k8s-ha1:/etc/keepalived# systemctl restart keepalived.service root@k8s-ha1:/etc/keepalived# systemctl enable keepalived.service #编辑负载均衡器 root@k8s-ha1:/etc/keepalived# vim /etc/haproxy/haproxy.cfg ... #下面追加 listen k8s-6443 bind 10.0.0.188:6443 mode tcp #tcp就不用配置https证书之类的 server k8s-master1 10.0.0.101:6443 check inter 3s fall 3 rise 5 server k8s-master2 10.0.0.102:6443 check inter 3s fall 3 rise 5 server k8s-master3 10.0.0.103:6443 check inter 3s fall 3 rise 5 #提示没有后端服务器没事，本来也没有 root@k8s-ha1:/etc/keepalived# systemctl restart haproxy.service Broadcast message from systemd-journald@k8s-ha1 (Fri 2026-01-16 22:59:49 CST): haproxy[23852]: proxy k8s-6443 has no server available! Broadcast message from systemd-journald@k8s-ha1 (Fri 2026-01-16 22:59:49 CST): haproxy[23852]: proxy k8s-6443 has no server available! root@k8s-ha1:/etc/keepalived# systemctl enable haproxy.service
部署项目为kubeasz，https://github.com/easzlab/kubeasz，部署节点需要使用docker下载部署kubernetes过程中 的各种镜像及二进制文件等资源，需要安装docker环境，另外此节点为docker环境但是后期也可能会向harbor上传下 载镜像，因此也需要登录habror并上传下载镜像。
部署节点为10.0.0.107，主要作用如下：
1、从互联网下载安装资源 2、可选将部分镜像修改tag后上传到公司内部镜像仓库服务器 3、对master进行初始化 4、对node进行初始化 5、后期集群维护 添加及删除master节点 添加就删除node节点 etcd数据备份及恢复
部署节点操作
#安装docker(可以选其他安装方法) #传入runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz root@k8s-ha1:~# cd /usr/local/src/ root@k8s-ha1:/usr/local/src# tar xvf runtime-docker_24.0.9-containerd_1.7.20-binary-install.tar.gz root@k8s-ha1:/usr/local/src# bash runtime-install.sh docker #docker可以换源，参考如下: # vim /etc/docker/daemon.json { "registry-mirrors": [ "https://docker.1panel.live", "https://hub.rat.dev", "https://docker.actima.top" ], ... # systemctl restart docker #如果还是下载镜像不了，配置代理 #vim /lib/systemd/system/docker.service [Service] Environment="HTTPS_PROXY=http://10.0.0.1:7890" Environment="NO_PROXY=127.0.0.0/8,localhost,10.0.0.0/21,10.100.0.0/16,10.200.0.0/16,easzlab.io.local,*.cluster.local,harbor.myarchitect.online" Environment="HTTP_PROXY=http://10.0.0.1:7890" #重载配置 systemctl daemon-reload systemctl restart docker #测试镜像下载和上传 root@k8s-deploy:~# docker pull registry.cn-hangzhou.aliyuncs.com/myhubregistry/rockylinux:10.0.20250606 root@k8s-deploy:~# docker tag registry.cn-hangzhou.aliyuncs.com/myhubregistry/rockylinux:10.0.20250606 harbor.myarchitect.online/baseimages/rockylinux:10.0.20250606 #在该机器上改host做域名解析 root@k8s-deploy:~# vim /etc/hosts 10.0.0.106 harbor.myarchitect.online #上传镜像需要登录，下载镜像不需要 root@k8s-deploy:~# docker login harbor.myarchitect.online Username: admin Password: WARNING! Your password will be stored unencrypted in /root/.docker/config.json. Configure a credential helper to remove this warning. See https://docs.docker.com/engine/reference/commandline/login/#credentials-store Login Succeeded #上传镜像 root@k8s-deploy:~# docker push harbor.myarchitect.online/baseimages/rockylinux:10.0.20250606 #harbor.myarchitect.online网页端可以看到对应镜像了 root@k8s-ha1:/usr/local/src# apt install ansible #生成密钥 root@k8s-deploy:~# ssh-keygen -t rsa-sha2-512 -b 4096 #安装sshpass命令用于同步公钥到各k8s服务器 root@k8s-ha1:/usr/local/src# apt install sshpass #把密钥分发过去 root@k8s-ha1:/usr/local/src# cd root@k8s-ha1:~# vim key-ssh.sh #!/bin/bash #目标主机列表 IP=" 10.0.0.101 10.0.0.102 10.0.0.103 10.0.0.104 10.0.0.105 10.0.0.106 " REMOTE_PORT="22" REMOTE_USER="root" REMOTE_PASS="admin123" for REMOTE_HOST in ${IP};do REMOTE_CMD="echo ${REMOTE_HOST} is successfully!" #添加目标远程主机的公钥 ssh-keyscan -p "${REMOTE_PORT}" "${REMOTE_HOST}" >> ~/.ssh/known_hosts #通过sshpass配置免秘钥登录、并创建python3软连接 sshpass -p "${REMOTE_PASS}" ssh-copy-id "${REMOTE_USER}@${REMOTE_HOST}" ssh ${REMOTE_HOST} ln -sv /usr/bin/python3 /usr/bin/python echo ${REMOTE_HOST} 免秘钥配置完成! done #执行脚本同步： root@k8s-ha1:~# bash key-scp.sh
#部署节点操作 root@k8s-ha1:~# apt install git #设置变量，表示克隆哪个版本(具体版本在github上看) root@k8s-ha1:~# export release=3.6.8 #下载安装脚本，这是个shell脚本，可以微调里面的版本信息(如果没有docker会自动安装docker,不如自己装好) root@k8s-ha1:~# wget https://github.com/easzlab/kubeasz/releases/download/${release}/ezdown root@k8s-ha1:~# chmod a+x ezdown #修改版本和删掉下载docker在清华源wget的命令参数 root@k8s-ha1:~# vim ezdown K8S_BIN_VER=v1.34.2 #根据harbor的tag信息，这里修改个版本 ... 163 function download_docker() { ... 170 if [[ -f "$BASE/down/docker-${DOCKER_VER}.tgz" ]];then 171 logger warn "docker binaries already existed" 172 else 173 logger info "downloading docker binaries, arch:$ARCH, version:$DOCKER_VER" 174 if [[ -e /usr/bin/wget ]];then #下面删掉wget的命令参数 175 wget "$DOCKER_URL" || { logger error "downloading docker failed"; exit 1; } #此步骤需要能从docker官方镜像仓库下载镜像、并需要几分钟下载时间(docker开代理否则太慢) root@k8s-deploy:~# ./ezdown -D #会本地起个register为 easzlab.io.local,会把本地镜像传到里面,做本地镜像分发 (docker的NO_PROXY代理要有*.cluster.local) #以后如果其他机器要部署，直接把下载的文件拷贝过去，改下配置文件就行，不用重新拉镜像 #下载项目所在地址 root@k8s-ha1:~# cd /etc/kubeasz #查看ezctl命令(各种k8s管理命令，还能更新证书，管理kubeconfig文件) root@k8s-ha1:/etc/kubeasz# ./ezctl --help
#new一个集群跟集群名称，会拷贝模板文件(example文件夹中)生成初始的配置(哪些主机，什么角色，要改) root@k8s-ha1:/etc/kubeasz# ./ezctl new k8s-cluster1 #进入集群对应配置文件目录 root@k8s-ha1:/etc/kubeasz# cd clusters/k8s-cluster1/ root@k8s-ha1:/etc/kubeasz/clusters/k8s-cluster1# ls config.yml hosts #修改哪些主机，部署哪些角色 root@k8s-ha1:/etc/kubeasz/clusters/k8s-cluster1# vim hosts #先批量替换，执行 :%s/192.168.1/10.0.0/g [etcd] 10.0.0.101 10.0.0.102 10.0.0.103 [kube_master] #节点名称可用ip地址;如用master节点名称,master如解析不了,执行exec进不了节点(要写host) 10.0.0.101 k8s_nodename='10.0.0.101' #这里先写2个，后面演示扩容 10.0.0.102 k8s_nodename='10.0.0.102' #10.0.0.103 k8s_nodename='10.0.0.103' #会在从节点上安装二进制文件,在/etc/kubeasz/bin/路径下 [kube_node] #k8s_nodename是kubectl get node的显示名称 10.0.0.104 k8s_nodename='10.0.0.104' 10.0.0.105 k8s_nodename='10.0.0.105' ... [harbor] #harbor不用他装，不用管 [ex_lb] #不用他部署，也不用改 [chrony] #不用动 ... [all:vars] #和apiserver相关的配置，环境变量传给apiserver的 #K8S里的SVC/POD地址千万不要和其他IDC/其他环境的地址冲突(否则打通通信,写路由不好写) SERVICE_CIDR="10.100.0.0/16" #service的地址 CLUSTER_CIDR="10.200.0.0/16" #pod的地址,尽量要足够大(不够大要扩就麻烦了) NODE_PORT_RANGE="30000-32767" #service的nodeport范围 CLUSTER_DNS_DOMAIN="cluster.local" #service的域名后缀 bin_dir="/usr/local/bin" #往master,node上部署的二进制要拷到哪些目录下 base_dir="/etc/kubeasz" #部署目录，不动 cluster_dir="{{ base_dir }}/clusters/k8s-cluster1" #当前集群配置文件，不动 ca_dir="/etc/kubernetes/ssl" #证书目录，不动 k8s_nodename='' #默认节点名称,没有加这个名称就加下默认的，不动 ansible_python_interpreter=/usr/bin/python3 #python默认路径，看各个节点上是不是这个路径
#类似k8s部署时的剧本 root@k8s-ha1:/etc/kubeasz/clusters/k8s-cluster1# vim config.yml INSTALL_SOURCE: "online" #能上网就选online，如果offline，要把所有的包都传到本地 OS_HARDEN: false #可选进行系统安全加固,一般不做 CA_EXPIRY: "876000h" #ca证书过期时间，小时，这里是100年 CERT_EXPIRY: "438000h" #它会签发cert文件，过期时间，这里是50年 CHANGE_CA: false #强制重新创建ca证书和签发cert，不动。自己给自己创建证书和签发 # kubeconfig 配置参数(下面2个参数) 会自己生成kubeconfig文件 CLUSTER_NAME: "cluster1" #不动 CONTEXT_NAME: "context-{{ CLUSTER_NAME }}" #不动 #自动获取node名称，不用动(在上面配置文件hosts中获取的) K8S_NODENAME: "{%- if k8s_nodename != '' -%} \ {{ k8s_nodename|replace('_', '-')|lower }} \ {%- else -%} \ k8s-{{ inventory_hostname|replace('.', '-') }} \ {%- endif -%}" #打开后会使用nodename去设置主机node名称，这里改false ENABLE_SETTING_HOSTNAME: false ############################ # role:etcd ############################ # 设置不同的wal目录，可以避免磁盘io竞争，提高性能 ETCD_DATA_DIR: "/var/lib/etcd" #etcd数据目录,生成环境放单独挂的固态盘,性能吞吐要快,整个etcd数据也就几个g(数据量很大情况),平时几百兆 ETCD_WAL_DIR: "" INSECURE_REG: #添加信任的私有仓库 - "http://easzlab.io.local:5000" - "https://reg.yourcompany.com" # 所有pod的基础容器镜像pause去初始化运行环境,这里传到自己私有仓库,改私有仓库地址 SANDBOX_IMAGE: "harbor.myarchitect.online/baseimages/pause:3.10" ****************下面为k8s-ha1机器对应操作**************** #打镜像传到自己私有仓库 root@k8s-ha1:~#docker tag easzlab.io.local:5000/easzlab/pause:3.10 harbor.myarchitect.online/baseimages/pause:3.10 root@k8s-ha1:~# docker push harbor.myarchitect.online/baseimages/pause:3.10 ******************************************************* # [containerd]容器持久化存储目录 CONTAINERD_STORAGE_DIR: "/var/lib/containerd" # [docker]开启Restful API (是没有认证的,别人可以通过端口控制docker,千万别开) DOCKER_ENABLE_REMOTE_API: false ############################ # role:kube-master ############################ # k8s 集群 master 节点证书配置，可以添加多个ip和域名（比如增加公网ip和域名） MASTER_CERT_HOSTS: #会生成证书,对哪些ip哪些域名有效,一定要把后期可能用到的域名ip都加上 - "10.0.0.188" - "api.k8s.com" #- "www.test.com" # node 节点上 pod 网段掩码长度（决定每个节点最多能分配的pod ip地址） # 如果flannel 使用 --kube-subnet-mgr 参数，那么它将读取该设置为每个节点分配pod网段 # https://github.com/coreos/flannel/issues/847 NODE_CIDR_LEN: 24 #每个节点分配小的子网，他的长度是多少，24相当于200多个地址 # 是否启用集群审计功能(重要，记录谁什么时候调用master做什么操作) ENABLE_CLUSTER_AUDIT: true # 配置为kube组件（kubelet,kube-proxy,dockerd等）预留的资源量(会给予百分比预留cpu内存) # 数值设置详见templates/kubelet-config.yaml.j2 KUBE_RESERVED_ENABLED: "no" #网络组件单独配置,用flannel就配flannel，用calico就配calico # ------------------------------------------- flannel 不用flannel就忽略 FLANNEL_BACKEND: "vxlan" DIRECT_ROUTING: false #如开启,node在同一个子网用直接路由,不封装,性能强 # [flannel] flannel_ver: "v0.27.3" ############################ # role:cluster-addon 集群组件 ############################ # coredns 自动安装 dns_install: "no" #自己安装，不用他装，体验下自己怎么装 corednsVer: "1.12.4" ENABLE_LOCAL_DNS_CACHE: false #是否开启dns缓存(开启会在每个节点起个localdns做本地缓存,先找localdns再找coredns。但是coredns自身也有缓存) dnsNodeCacheVer: "1.26.4" # 设置 local dns cache 地址 LOCAL_DNS_CACHE: "169.254.20.10" #开启dns缓存时，localdns的地址 # metric server 自动安装 metricsserver_install: "no" #不用装 metricsVer: "v0.8.0" ############################ # role:harbor ############################ HARBOR_SELF_SIGNED_CERT: false #harbor自签发证书,不不用他装,也不需要了 #配置文件都好了,可以反复部署k8s,如果部署错了,铲掉重新部署
通过ansible脚本初始化环境及部署k8s 高可用集群
1.6.4.1：环境初始化
root@k8s-ha1:~# cd /etc/kubeasz/ #查看命令说明 root@k8s-ha1:/etc/kubeasz# ./ezctl --help #参数集群名,步骤号 01表示环境初始化(会坚持节点是否通,然后签发证书) root@k8s-ha1:/etc/kubeasz# ./ezctl setup k8s-cluster1 01 #如果要修改步骤里面的操作,可以修改下方文件,如01.prepare.yml #root@k8s-ha1:~# ls /etc/kubeasz/playbooks/
#部署etcd集群 root@k8s-ha1:/etc/kubeasz# ./ezctl setup k8s-cluster1 02 #可以进到一个etcd服务器上看etcd进程在不在 10.0.0.101上看 root@ubuntu101:~# ps -ef|grep etcd #各etcd服务器验证etcd服务：检查etcd心跳信息,etcd默认就支持 root@ubuntu101:~# export NODE_IPS="10.0.0.101 10.0.0.102 10.0.0.103" #看到3个successfully就没问题 root@ubuntu101:~# for ip in ${NODE_IPS}; do /usr/local/bin/etcdctl --endpoints=https://${ip}:2379 --cacert=/etc/kubernetes/ssl/ca.pem --cert=/etc/kubernetes/ssl/etcd.pem --key=/etc/kubernetes/ssl/etcd-key.pem endpoint health; done https://10.0.0.101:2379 is healthy: successfully committed proposal: took = 13.195276ms https://10.0.0.102:2379 is healthy: successfully committed proposal: took = 14.404572ms https://10.0.0.103:2379 is healthy: successfully committed proposal: took = 12.877453ms 注：以上返回信息表示etcd集群运行正常，否则异常！
由证书签发机构签发的证书不需要执行分发步骤，证书可被信任。
# 验证基础容器镜像 root@k8s-ha1:/etc/kubeasz# grep SANDBOX_IMAGE ./clusters/* -R #使用私有仓库pause镜像 ./clusters/k8s-cluster1/config.yml:SANDBOX_IMAGE: "harbor.myarchitect.online/baseimages/pause:3.10" 1):配置基础镜像 #这个上面已修改 root@k8s-ha1:/etc/kubeasz# vim ./clusters/k8s-cluster1/config.yml # [containerd]基础容器镜像 SANDBOX_IMAGE: "harbor.myarchitect.online/baseimages/pause:3.10" 2):配置harbor镜像仓库域名解析-公司有DNS服务器进行域名解析：#每添加一个node会自动添加域名解析 root@k8s-ha1:/etc/kubeasz# vim roles/containerd/tasks/main.yml ... #在 创建 containerd 配置文件 步骤下面 - name: 添加域名解析 shell: "echo '10.0.0.106 harbor.myarchitect.online' >> /etc/hosts" 4):配置nerdctl客户端:#containerd客户端不好用,这里用nerdctl客户端(和docker一样),每个节点部署 #传入nerdctl-2.2.1-linux-amd64.tar.gz #/etc/kubeasz/bin/containerd-bin/ 为默认放containedrd相关命令的路径 root@k8s-ha1:/etc/kubeasz# tar xvf nerdctl-2.2.1-linux-amd64.tar.gz -C /etc/kubeasz/bin/containerd-bin/ nerdctl containerd-rootless-setuptool.sh containerd-rootless.sh #要把nerdctl配置文件分发到每个节点上,编辑 root@k8s-ha1:/etc/kubeasz# vim roles/containerd/tasks/main.yml - name: 准备containerd相关目录 file: name={{ item }} state=directory with_items: - "{{ bin_dir }}/containerd-bin" - "/etc/containerd" - "/etc/containerd/certs.d/docker.io" - "/etc/containerd/certs.d/easzlab.io.local:5000" - "/etc/containerd/certs.d/{{ HARBOR_REGISTRY }}" - "/etc/nerdctl/" #追加,创建nerdctl配置文件目录 ... - name: 创建 nerdctl 配置文件 template: src=nerdctl.toml.j2 dest=/etc/nerdctl/nerdctl.toml #添加分发nerdctl配置文件 tags: upgrade 5):nerdctl配置文件：#准备下上面的nerdctl配置文件 root@k8s-deploy:/etc/kubeasz# vim roles/containerd/templates/nerdctl.toml.j2 namespace = "k8s.io" #containerd容器和镜像所在默认的名称空间 debug = false #不可以debug模式 debug_full = false #不可以debug模式 insecure_registry = true #是否信任insecure_registry,有时候是自建仓库要true 6):可选自定义containerd 配置文件： root@k8s-deploy:/etc/kubeasz# vim roles/containerd/templates/config.toml.j2 ... [plugins.'io.containerd.transfer.v1.local'] max_concurrent_downloads = 10 #containerd下镜像默认3并发,如镜像layer多,同一时刻只能下3个layer max_concurrent_uploaded_layers = 10 #上传并发 7):执行部署运行时： root@k8s-deploy:/etc/kubeasz# ./ezctl setup k8s-cluster1 03 #找一个node节点看下 root@ubuntu104:~# cat /etc/hosts ... 10.0.0.106 harbor.myarchitect.online root@ubuntu104:~# ll /usr/local/bin/containerd-bin/ total 128104 ... -rwxr-xr-x 1 root root 30355640 Jan 18 01:58 nerdctl* #做个软链接,就可以使用nerdctl命令了 root@ubuntu104:~# ln -sv /usr/local/bin/containerd-bin/* /usr/bin/ root@ubuntu104:~# nerdctl images REPOSITORY TAG IMAGE ID CREATED PLATFORM SIZE BLOB SIZE root@ubuntu104:~# crictl images IMAGE TAG IMAGE ID SIZE
#root@k8s-ha1:/etc/kubeasz# vim roles/kube-master/tasks/main.yml #可自定义配置 root@k8s-ha1:/etc/kubeasz# ./ezctl setup k8s-cluster1 04 #此时可以执行kubectl命令看节点了,默认master不调度业务容器所以SchedulingDisabled root@k8s-ha1:/etc/kubeasz# kubectl get nodes NAME STATUS ROLES AGE VERSION 10.0.0.101 Ready,SchedulingDisabled master 39s v1.34.2 10.0.0.102 Ready,SchedulingDisabled master 39s v1.34.2
#root@k8s-ha1:/etc/kubeasz# vim roles/kube-node/tasks/main.yml #可自定义配置 root@k8s-ha1:/etc/kubeasz# ./ezctl setup k8s-cluster1 05 root@k8s-ha1:/etc/kubeasz# kubectl get nodes NAME STATUS ROLES AGE VERSION 10.0.0.101 Ready,SchedulingDisabled master 3m11s v1.34.2 10.0.0.102 Ready,SchedulingDisabled master 3m11s v1.34.2 10.0.0.104 Ready node 36s v1.34.2 10.0.0.105 Ready node 36s v1.34.2
#calico可以不用它来部署,它部署拉的镜像都是它自己的(本地),这里自己部署,可换成自己的镜像 #用它自己的方式使用06也可以 #上传calico的yaml，calico_v3.28.1-k8s_1.30.1-ubuntu2404.yaml(在kubeasz-20260111.zip中) root@k8s-ha1:/etc/kubeasz# vim calico_v3.28.1-k8s_1.30.1-ubuntu2404.yaml ... #修改了image地址 image: registry.cn-hangzhou.aliyuncs.com/myhubregistry/calico:cni-v3.28.4 ... #自定义Pod子网掩码 - name: CALICO_IPV4POOL_CIDR #calico地址池一定要等于安装时hosts的地址池(否则pod通讯问题) value: "10.200.0.0/16" #自定义node节点子网范围 - name: CALICO_IPV4POOL_BLOCK_SIZE #calico每个主机的子网范围，24是200多个地址 value: "24" ... - name: CLUSTER_TYPE value: "k8s,bgp" #一般不用动 ... - name: IP_AUTODETECTION_METHOD #相互发现使用的网卡(默认情况使用第一块网卡) value: "interface=eth0" #指定使用eth0网卡(如果网卡不固定就指定网卡,有时第一块网卡docker0那就要指定) root@k8s-ha1:/etc/kubeasz# kubectl apply -f calico_v3.28.1-k8s_1.30.1-ubuntu2404.yaml #查看 root@k8s-ha1:/etc/kubeasz# kubectl get pod -A NAMESPACE NAME READY STATUS RESTARTS AGE kube-system calico-kube-controllers-695bf6cc9d-6z5lr 1/1 Running 0 5m50s kube-system calico-node-8kpvs 1/1 Running 0 5m50s kube-system calico-node-d4blr 1/1 Running 0 5m50s kube-system calico-node-l44tb 1/1 Running 0 5m50s kube-system calico-node-r2w6n 1/1 Running 0 5m50s
1.7：部署kubernetes 内部域名解析服务-CoredDNS:
#传入coredns的yaml, coredns-v1.9.4.yaml root@k8s-ha1:/etc/kubeasz/20260111# vim coredns-v1.9.4.yaml ... kubernetes cluster.local in-addr.arpa ip6.arpa { #k8s后缀域名如果改了，这里要改 pods insecure fallthrough in-addr.arpa ip6.arpa ttl 30 } #forward . /etc/resolv.conf { #默认国外的dns forward . 223.6.6.6 { #这里改成forward到国内的dns max_concurrent 1000 } ... #下面镜像也改到国内了 image: registry.cn-hangzhou.aliyuncs.com/myhubregistry/coredns:1.9.4 ... #下面指定了service地址段，要和配置的一致，不能被使用 clusterIP: 10.100.0.2 root@k8s-ha1:/etc/kubeasz/20260111# kubectl apply -f coredns-v1.9.4.yaml #如果上面calico没起来，coredns是起不来的 root@k8s-ha1:/etc/kubeasz/20260111# kubectl get pods -A NAMESPACE NAME READY STATUS RESTARTS AGE kube-system calico-kube-controllers-695bf6cc9d-6z5lr 1/1 Running 0 30m kube-system calico-node-8kpvs 1/1 Running 0 30m kube-system calico-node-d4blr 1/1 Running 0 30m kube-system calico-node-l44tb 1/1 Running 0 30m kube-system calico-node-r2w6n 1/1 Running 0 30m kube-system coredns-68cf8f8659-fgfpg 1/1 Running 0 3m25s kube-system coredns-68cf8f8659-s94b9 1/1 Running 0 3m25s
1.8：部署dashboard：
#传入文件如下 root@k8s-ha1:/etc/kubeasz/20260111/dashboard-v2.7.0# ls admin-secret.yaml admin-user.yaml dashboard-v2.7.0.yaml #镜像有问题，先自己拉镜像传到harbor上 root@k8s-ha1:/etc/kubeasz# docker pull kubernetesui/dashboard:v2.7.0 root@k8s-ha1:/etc/kubeasz# docker pull kubernetesui/metrics-scraper:v1.0.8 root@k8s-ha1:/etc/kubeasz# docker tag kubernetesui/dashboard:v2.7.0 harbor.myarchitect.online/myserver/dashboard:v2.7.0 root@k8s-ha1:/etc/kubeasz# docker push harbor.myarchitect.online/myserver/dashboard:v2.7.0 root@k8s-ha1:/etc/kubeasz# docker tag kubernetesui/metrics-scraper:v1.0.8 harbor.myarchitect.online/myserver/metrics-scraper:v1.0.8 root@k8s-ha1:/etc/kubeasz# docker push harbor.myarchitect.online/myserver/metrics-scraper:v1.0.8 #部署 root@k8s-ha1:/etc/kubeasz/20260111/dashboard-v2.7.0# vim dashboard-v2.7.0.yaml image: harbor.myarchitect.online/myserver/dashboard:v2.7.0 image: harbor.myarchitect.online/myserver/metrics-scraper:v1.0.8 root@k8s-ha1:/etc/kubeasz/20260111/dashboard-v2.7.0# kubectl apply -f . Error from server (NotFound): error when creating "admin-secret.yaml": namespaces "kubernetes-dashboard" not found Error from server (NotFound): error when creating "admin-user.yaml": namespaces "kubernetes-dashboard" not found #有报错，因为没有顺序执行，再次执行就行 root@k8s-ha1:/etc/kubeasz/20260111/dashboard-v2.7.0# kubectl apply -f . root@k8s-ha1:/etc/kubeasz/20260111/dashboard-v2.7.0# kubectl get pods -A NAMESPACE NAME READY STATUS RESTARTS AGE ... kubernetes-dashboard dashboard-metrics-scraper-7f8cd5bf5-vtdvr 1/1 Running 0 32m kubernetes-dashboard kubernetes-dashboard-785cd4cd59-pz6px 1/1 Running 0 32m root@k8s-ha1:/etc/kubeasz/20260111# kubectl get svc -A NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE default kubernetes ClusterIP 10.100.0.1 <none> 443/TCP 19h kube-system kube-dns ClusterIP 10.100.0.2 <none> 53/UDP,53/TCP,9153/TCP 62m kubernetes-dashboard dashboard-metrics-scraper ClusterIP 10.100.173.19 <none> 8000/TCP 56m kubernetes-dashboard kubernetes-dashboard NodePort 10.100.23.71 <none> 443:30000/TCP 56m #访问任意节点的30000端口 https://10.0.0.104:30000/ #登录要token，获取token root@k8s-ha1:/etc/kubeasz/20260111# kubectl get secrets -A|grep admin kubernetes-dashboard dashboard-admin-user kubernetes.io/service-account-token 3 5m15 root@k8s-ha1:/etc/kubeasz/20260111# kubectl get secrets -n kubernetes-dashboard dashboard-admin-user NAME TYPE DATA AGE dashboard-admin-user kubernetes.io/service-account-token 3 7m9s root@k8s-ha1:/etc/kubeasz/20260111# kubectl get secrets -n kubernetes-dashboard dashboard-admin-user -o yaml ... token: ZXlKaGJHY2lPaUpTVXpJMU5pSXNJbXRwWkNJNklucENNbFpHYnpac1gzQk9Ta2hLYkU1VVJsSlJOalJFTlZSUk0wYzJUamhIZGtsclRrWnBSV2R4ZHpBaWZRLmV5SnBjM01pT2lKcmRXSmxjbTVsZEdWekwzTmxjblpwWTJWaFkyTnZkVzUwSWl3aWEzVmlaWEp1WlhSbGN5NXBieTl6WlhKMmFXTmxZV05qYjNWdWRDOXVZVzFsYzNCaFkyVWlPaUpyZFdKbGNtNWxkR1Z6TFdSaGMyaGliMkZ5WkNJc0ltdDFZbVZ5Ym1WMFpYTXVhVzh2YzJWeWRtbGpaV0ZqWTI5MWJuUXZjMlZqY21WMExtNWhiV1VpT2lKa1lYTm9ZbTloY21RdFlXUnRhVzR0ZFhObGNpSXNJbXQxWW1WeWJtVjBaWE11YVc4dmMyVnlkbWxqWldGalkyOTFiblF2YzJWeWRtbGpaUzFoWTJOdmRXNTBMbTVoYldVaU9pSmhaRzFwYmkxMWMyVnlJaXdpYTNWaVpYSnVaWFJsY3k1cGJ5OXpaWEoyYVdObFlXTmpiM1Z1ZEM5elpYSjJhV05sTFdGalkyOTFiblF1ZFdsa0lqb2laakF5TXpCbU5XWXRNalk1WXkwMFpHSTFMVGs0TlRjdFpUbGlOMlJsT0dJMk1qZ3pJaXdpYzNWaUlqb2ljM2x6ZEdWdE9uTmxjblpwWTJWaFkyTnZkVzUwT210MVltVnlibVYwWlhNdFpHRnphR0p2WVhKa09tRmtiV2x1TFhWelpYSWlmUS5NZmxLTUZ4OGhfSWVCQmxrVTByQmp1dmJGbm5FbXYyTElkTHl1LXZleEYtMmhvdFByNmUyeVFkLWZpQ3pqTmVMaENCY0JpWkExeUNRTmZzajBSODRPQS1rbFRzaGJHLVFQQWtUSTUtTDJ0RVdFV05PZnhEZ3dibFE5ejJhV0xuVzZ5Z0plVHJzcnV0X3cxSWRwZEZ1bGVlNGZWWWk2OWZVUmJpOFZORlpuYVZzT0ttTGFoWmFCRHVpZEo5NDl6S25ybmI3Yl9GSWdmbFlCaHl1bVpqUnFyWnZSS2pXTnJCSm5pVjdTRE1nOVlETGlfNUpGcjZOUkVPWWR1Z2pBalFYbVN3eHBJY1BHa2pvZGlqVDBVOW8zR0FjWHN5eWwtV1ItaDAtd2dQX3I1M19INXpYdVpha21WcjRMUUJSazFZbGhGeE0zSFpYUzBGWFFEVWJEZ2ZMVGc= ... #下面进行解密，获取token，登录 https://10.0.0.104:30000/ root@k8s-ha1:/etc/kubeasz/20260111# echo ZXlKaGJHY2lPaUpTVXpJMU5pSXNJbXRwWkNJNklucENNbFpHYnpac1gzQk9Ta2hLYkU1VVJsSlJOalJFTlZSUk0wYzJUamhIZGtsclRrWnBSV2R4ZHpBaWZRLmV5SnBjM01pT2lKcmRXSmxjbTVsZEdWekwzTmxjblpwWTJWaFkyTnZkVzUwSWl3aWEzVmlaWEp1WlhSbGN5NXBieTl6WlhKMmFXTmxZV05qYjNWdWRDOXVZVzFsYzNCaFkyVWlPaUpyZFdKbGNtNWxkR1Z6TFdSaGMyaGliMkZ5WkNJc0ltdDFZbVZ5Ym1WMFpYTXVhVzh2YzJWeWRtbGpaV0ZqWTI5MWJuUXZjMlZqY21WMExtNWhiV1VpT2lKa1lYTm9ZbTloY21RdFlXUnRhVzR0ZFhObGNpSXNJbXQxWW1WeWJtVjBaWE11YVc4dmMyVnlkbWxqWldGalkyOTFiblF2YzJWeWRtbGpaUzFoWTJOdmRXNTBMbTVoYldVaU9pSmhaRzFwYmkxMWMyVnlJaXdpYTNWaVpYSnVaWFJsY3k1cGJ5OXpaWEoyYVdObFlXTmpiM1Z1ZEM5elpYSjJhV05sTFdGalkyOTFiblF1ZFdsa0lqb2laakF5TXpCbU5XWXRNalk1WXkwMFpHSTFMVGs0TlRjdFpUbGlOMlJsT0dJMk1qZ3pJaXdpYzNWaUlqb2ljM2x6ZEdWdE9uTmxjblpwWTJWaFkyTnZkVzUwT210MVltVnlibVYwWlhNdFpHRnphR0p2WVhKa09tRmtiV2x1TFhWelpYSWlmUS5NZmxLTUZ4OGhfSWVCQmxrVTByQmp1dmJGbm5FbXYyTElkTHl1LXZleEYtMmhvdFByNmUyeVFkLWZpQ3pqTmVMaENCY0JpWkExeUNRTmZzajBSODRPQS1rbFRzaGJHLVFQQWtUSTUtTDJ0RVdFV05PZnhEZ3dibFE5ejJhV0xuVzZ5Z0plVHJzcnV0X3cxSWRwZEZ1bGVlNGZWWWk2OWZVUmJpOFZORlpuYVZzT0ttTGFoWmFCRHVpZEo5NDl6S25ybmI3Yl9GSWdmbFlCaHl1bVpqUnFyWnZSS2pXTnJCSm5pVjdTRE1nOVlETGlfNUpGcjZOUkVPWWR1Z2pBalFYbVN3eHBJY1BHa2pvZGlqVDBVOW8zR0FjWHN5eWwtV1ItaDAtd2dQX3I1M19INXpYdVpha21WcjRMUUJSazFZbGhGeE0zSFpYUzBGWFFEVWJEZ2ZMVGc= | base64 -d eyJhbGciOiJSUzI1NiIsImtpZCI6InpCMlZGbzZsX3BOSkhKbE5URlJRNjRENVRRM0c2TjhHdklrTkZpRWdxdzAifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdXNlciIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJhZG1pbi11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiZjAyMzBmNWYtMjY5Yy00ZGI1LTk4NTctZTliN2RlOGI2MjgzIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmFkbWluLXVzZXIifQ.MflKMFx8h_IeBBlkU0rBjuvbFnnEmv2LIdLyu-vexF-2hotPr6e2yQd-fiCzjNeLhCBcBiZA1yCQNfsj0R84OA-klTshbG-QPAkTI5-L2tEWEWNOfxDgwblQ9z2aWLnW6ygJeTrsrut_w1IdpdFulee4fVYi69fURbi8VNFZnaVsOKmLahZaBDuidJ949zKnrnb7b_FIgflYBhyumZjRqrZvRKjWNrBJniV7SDMg9YDLi_5JFr6NREOYdugjAjQXmSwxpIcPGkjodijT0U9o3GAcXsyyl-WR-h0-wgP_r53_H5zXuZakmVr4LQBRk1YlhFxM3HZXS0FXQDUbDgfLTg

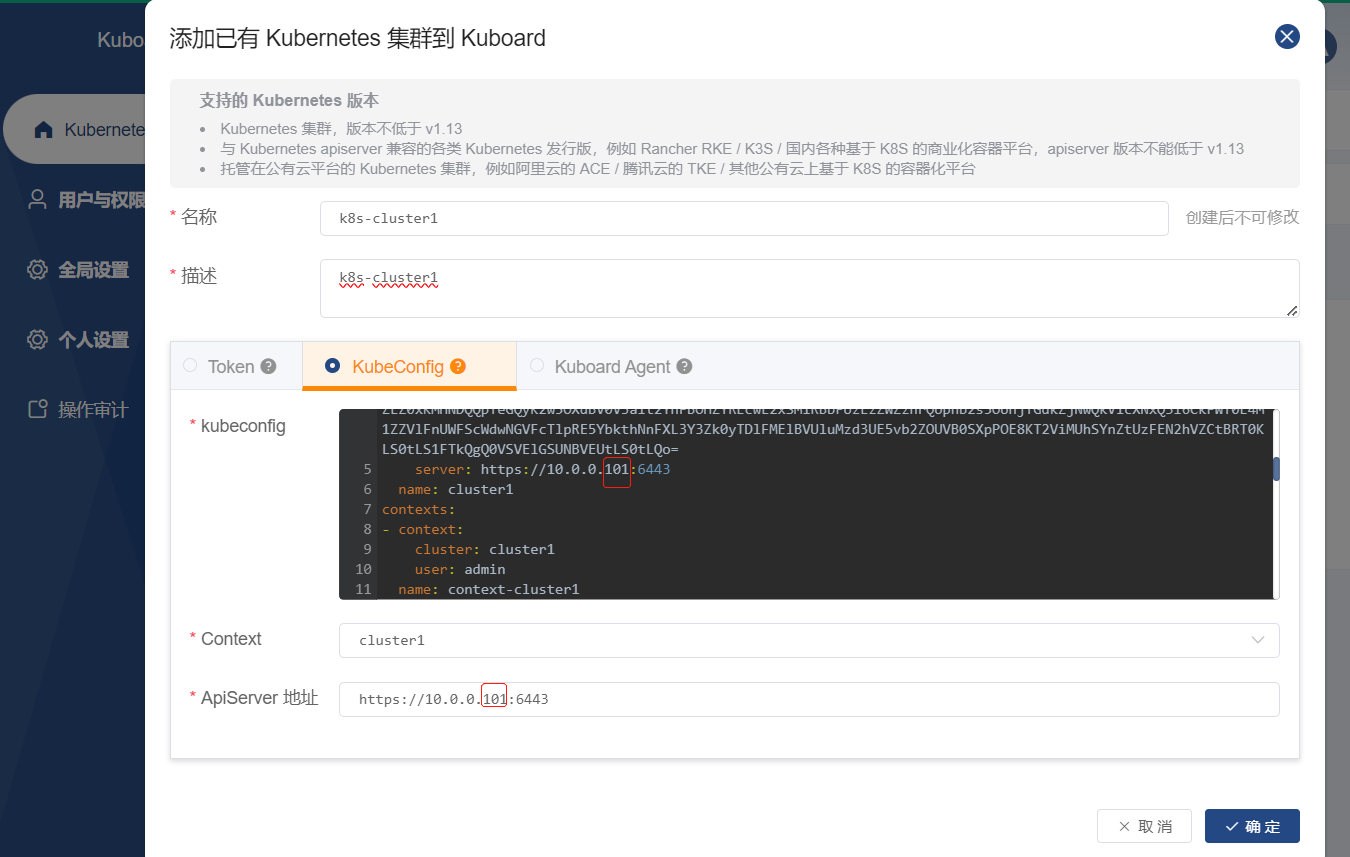

推荐使用kuboard，比dashboard好用些
#kuboard存储需要nfs服务 root@k8s-ha1:~# apt install nfs-server #这里简单用个目录代替存储类，把目录共享出去 root@k8s-ha1:~# mkdir -p /data/k8sdata/kuboard root@k8s-ha1:~# vim /etc/exports /data/k8sdata *(rw,no_root_squash) root@k8s-ha1:~# systemctl restart nfs-server root@k8s-ha1:~# systemctl enable nfs-server #在k8s环境里，查看目录是否共享出来，下面在从节点查看 root@ubuntu104:~# showmount -e 10.0.0.107 Export list for 10.0.0.107: /data/k8sdata * #传入kuboard-all-in-one.yaml root@k8s-ha1:/etc/kubeasz/20260111/kuboard# vim kuboard-all-in-one.yaml ...#下面为挂载地址 volumes: - name: kuboard-data nfs: server: 10.0.0.107 path: /data/k8sdata/kuboard root@k8s-ha1:/etc/kubeasz/20260111/kuboard# kubectl apply -f kuboard-all-in-one.yaml #查看 root@k8s-ha1:/etc/kubeasz/20260111/kuboard# kubectl get pods -A NAMESPACE NAME READY STATUS RESTARTS AGE ... kuboard kuboard-v3-78f6bc89dc-6dkqf 1/1 Running 0 2m57s root@k8s-ha1:/etc/kubeasz/20260111/kuboard# kubectl get svc -A NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE default kubernetes ClusterIP 10.100.0.1 <none> 443/TCP 21h kube-system kube-dns ClusterIP 10.100.0.2 <none> 53/UDP,53/TCP,9153/TCP 164m kuboard kuboard-v3 NodePort 10.100.5.249 <none> 80:30080/TCP,10081:30081/TCP,10081:30081/UDP 67s #登录 10.0.0.104:30080 用户名： admin 密 码： Kuboard123 #第一次登录导入k8s集群，一般选kubeconfig，这种对集群的侵入性比较小 #把下面的内容完整的复制进去，一行不要多，一行不要少 root@k8s-ha1:/etc/kubeasz/20260111/kuboard# cat /root/.kube/config #如下图，可以该master地址，也可把红框圈出的master地址改成188，走vip连接后面的master #连接上后，管理k8s选kuboard-admin账号，点集群概要进入
