Springboot整合SwaggerBootStrapUI

第一步：Pom依赖

<!--增强swagger-bootstrap-ui-->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>swagger-bootstrap-ui</artifactId>
    <version>1.9.3</version>
</dependency>
<!-- # 增加两个配置解决 NumberFormatException -->
<dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-annotations</artifactId>
    <version>1.5.22</version>
</dependency>
<dependency>
    <groupId>io.swagger</groupId>
    <artifactId>swagger-models</artifactId>
    <version>1.5.22</version>
</dependency>

第二步：swagger配置

package com.mp.core.config;

import com.github.xiaoymin.swaggerbootstrapui.annotations.EnableSwaggerBootstrapUI;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 * @version: V1.0
 * @description: TODO SwaggerBootstrapUI
 * @date 2021/5/14 9:12
 * copyright(c) 深圳市同讯信息技术有限公司 http://www.toncentsoft.com/  Inc. All rights reserved.
 */
@Slf4j
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class Swagger2Config implements WebMvcConfigurer {

    /**
     * 显示swagger-ui.html文档展示页，还必须注入swagger资源：
     *
     * @param registry
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

    /**
     * 帮助中心 (不同的模块这里分不同的包扫描basePackage)
     * Docket 可以配置多个
     *
     * @return
     */
    @Bean
    public Docket assist() {
        return new Docket(DocumentationType.SWAGGER_2)
                .globalOperationParameters(setRequestHeaders())
                //.apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.mp"))
                //加了ApiOperation注解的类，才生成接口文档
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build()
                .groupName("帮助中心");
    }
    /**
     * 设置请求头
     *
     * @return
     */
    private List<Parameter> setRequestHeaders() {
        ParameterBuilder ticketPar = new ParameterBuilder();
        List<Parameter> pars = new ArrayList<Parameter>();
        ticketPar.name("token").description("用户token")
                .modelRef(new ModelRef("string")).parameterType("header")
                .required(false).build(); //header中的ticket参数非必填，传空也可以
        pars.add(ticketPar.build());      //根据每个方法名也知道当前方法在设置什么参数
        return pars;
    }
}

三：启动类描述

import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.Environment;
import org.springframework.scheduling.annotation.EnableScheduling;

import java.net.InetAddress;
import java.net.UnknownHostException;

/**
 * @description: TODO 后台用户权限模块
 * @date 2019/5/7 9:15
 */
@SpringBootApplication(scanBasePackages = "com.mp")
@EnableScheduling
@EnableCaching
@EnableConfigurationProperties
@Slf4j
public class SpringbootMpApplication {

    public static void main(String[] args) throws UnknownHostException {
        ConfigurableApplicationContext application = SpringApplication.run(SpringbootMpApplication.class, args);
        Environment env = application.getEnvironment();
        String ip = InetAddress.getLocalHost().getHostAddress();
        String port = env.getProperty("server.port");
        //String path = env.getProperty("server.servlet.context-path");
        String active = env.getProperty("spring.profiles.active");
        String maxFileSize = env.getProperty("spring.servlet.multipart.max-file-size"); //最大文件大小
        String maxRequestSize = env.getProperty("spring.servlet.multipart.max-request-size"); //最大请求大小
        log.info("\n----------------------------------------------------------\n\t" +
                "Application is running! Access URLs:\n\t" +
                "Doc: \t\thttp://" + ip + ":" + port + "/doc.html\n\t" +
                "spring-profiles-active: \t\t" + active + "\n\t" +
                "max-file-size: \t\t" + maxFileSize + "\n\t" +
                "max-request-size: \t\t" + maxRequestSize + "\n" +
                "----------------------------------------------------------");
    }

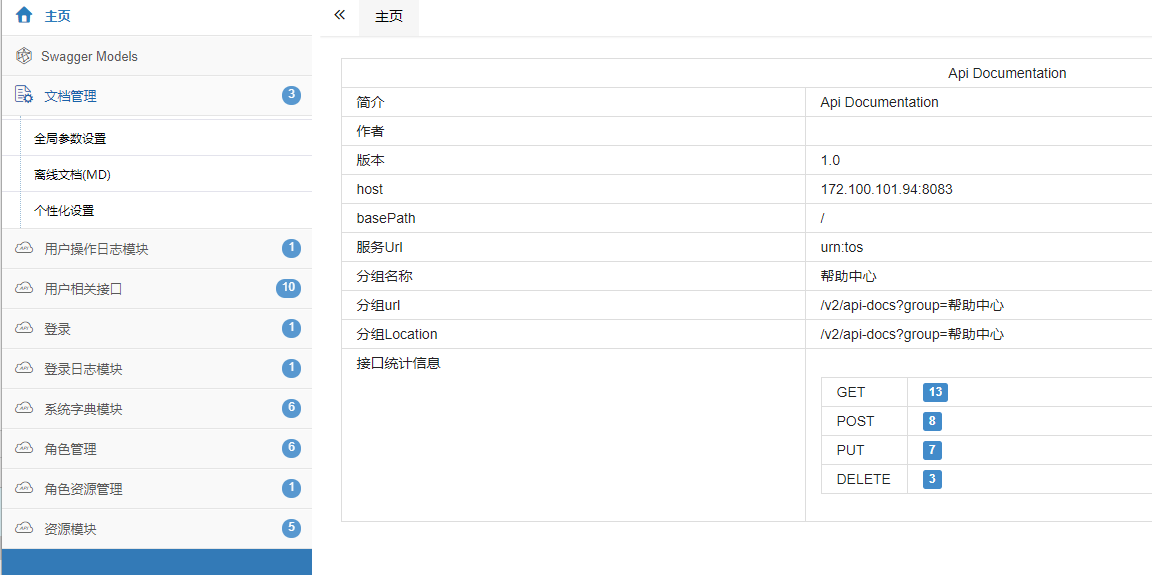

四：访问
