Flex数据交互之WebService

用Flex做Web应用程序定要与服务端程序进行交互

第一种(WebService)

1.首选实现一个可以供外部访问的WebService

using System;
using System.Collections.Generic;
using System.Web;
using System.Web.Services;
using System.Data;

using System.IO;
using System.Xml;

namespace WebServicesDemo
{
    /**//// <summary>
    /// Summary description for Service1
    /// </summary>
    [WebService(Namespace = "http://tempuri.org/")]
    [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
    [System.ComponentModel.ToolboxItem(false)]
    public class DemoDataForFlex : System.Web.Services.WebService
    {
        //第一种,简单测试
        [WebMethod]
        public string SimpleTest()
        {
            return "dy first Test!";
        }


        //带参数的Web方法
        [WebMethod]
        public string HaveParamMethod(string inputVal)
        {
            return "dy" + inputVal;
        }

        //返回XML字符串数据
        [WebMethod]
        public string ReutrnStringXmlData()
        {
            DataTable dt = new DataTable();

            dt.Columns.Add(new DataColumn("Name"));
            dt.Columns.Add(new DataColumn("Sex"));
            dt.Columns.Add(new DataColumn("Age"));
            dt.Columns.Add(new DataColumn("Address"));

            for (int i = 0; i < 10; i++)
            {
                dt.Rows.Add(new object[] { "LJ" + i.ToString(), i % 2 == 0 ? "女" : "男", i * 10, "深圳" });
            }//添加十行数据

            DataSet ds = new DataSet();
            ds.Tables.Add(dt);
            return ds.GetXml();

        }

        //返回XmlDocument数据
        [WebMethod]
        public XmlDocument ReturnXmlDocumentData()
        {
            DataTable dt = new DataTable();

            dt.Columns.Add(new DataColumn("Name"));
            dt.Columns.Add(new DataColumn("Sex"));
            dt.Columns.Add(new DataColumn("Age"));
            dt.Columns.Add(new DataColumn("Address"));

            for (int i = 0; i < 10; i++)
            {
                dt.Rows.Add(new object[] { "DY" + i.ToString(), i % 2 == 0 ? "女" : "男", i * 10, "深圳" });
            }//添加十行数据

            DataSet ds = new DataSet();
            ds.Tables.Add(dt);
           // ds.GetXml();
            XmlDocument xml = new XmlDocument();
            xml.LoadXml(ds.GetXml());
            return xml;
        }
    }
}

Build成功后,在IE中输入:http://192.168.2.8/DemoDataForFlex.asmx测试你的WebService是否已通.

如果WebService访问可以通过,Flex就可以访用了.

2.新建一个Flex项目



<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
               xmlns:s="library://ns.adobe.com/flex/spark"
               xmlns:mx="library://ns.adobe.com/flex/halo" minWidth="1024" minHeight="768">

    <fx:Script>
        <![CDATA[
            import mx.controls.Alert;
            import mx.rpc.AbstractOperation;
            import mx.rpc.events.FaultEvent;
            import mx.rpc.events.ResultEvent;
            import mx.rpc.soap.WebService;


            //定义一个WebService
            private var ws:WebService;
            //定义一个抽象操作
            private var oper:AbstractOperation;



            //初始货WebServices
            public function InitWebServices()
            {
                ws=new WebService();
                ws.wsdl="http://192.168.2.8:80/DemoDataForFlex.asmx?wsdl";
                ws.loadWSDL();
            }


            //调用无法方法
            protected function btnCallNoParam_clickHandler(event:MouseEvent):void
            {

                //初始货WebServices
                  if(ws==null)
                  {
                      InitWebServices();
                  }
                 oper=ws.getOperation("SimpleTest");
                 oper.addEventListener(FaultEvent.FAULT,OnFault);
                 oper.addEventListener(ResultEvent.RESULT,OnResult);
                 oper.send();


            }

            //失败结果
            private function OnFault(event:FaultEvent):void
            {
                mx.controls.Alert.show(event.message.toString(),"失败了");
            }

            //成功结果
            private function OnResult(event:ResultEvent):void{

                mx.controls.Alert.show(event.result.toString(),"成功啦!");
            }


            //调用带参方法
            protected function btnCallByParam_clickHandler(event:MouseEvent):void
            {
                //初始货WebServices
                if(ws==null)
                {
                    InitWebServices();
                }
                oper=ws.getOperation("HaveParamMethod");
                oper.addEventListener(FaultEvent.FAULT,OnFault);
                oper.addEventListener(ResultEvent.RESULT,OnResult);
                oper.send(this.txtParam.text);//添加参数
            }


            //调用XML数据
            protected function btnCallXml_clickHandler(event:MouseEvent):void
            {
                //初始货WebServices
                if(ws==null)
                {
                    InitWebServices();
                }
                oper=ws.getOperation("ReturnXmlDocumentData");//服务器方法名
                oper.addEventListener(FaultEvent.FAULT,OnFault);//调用失败
                oper.addEventListener(ResultEvent.RESULT,OnXMLDocumentResult);//调用成功
                oper.send();
            }


            //处理服务器反回XMLDocument的结果
            private function OnXMLDocumentResult(event:ResultEvent):void
            {
                dgData.dataProvider=oper.lastResult.NewDataSet.Table1;
            }

            //调用返回XML字符串的主法
            protected function btnStringXml_clickHandler(event:MouseEvent):void
            {
                //初始货WebServices
                if(ws==null)
                {
                    InitWebServices();
                }
                oper=ws.getOperation("ReutrnStringXmlData");//服务端方法名
                oper.addEventListener(FaultEvent.FAULT,OnFault);//调用失败回调
                oper.addEventListener(ResultEvent.RESULT, OnStringXMLResult);//调用成功回调
                oper.send();
            }

            //处理服务器返回字符串的XML结果
            private function OnStringXMLResult(event:ResultEvent):void
            {
                //处理 字符串的返回结果
                var xml:XML=new XML(oper.lastResult.toString());
                dgData.dataProvider=xml.children();
            }


        ]]>
    </fx:Script>

    <fx:Declarations>
        <!-- Place non-visual elements (e.g., services, value objects) here -->
    </fx:Declarations>
    <mx:HBox width="100%" height="30" top="10" paddingLeft="10">
    <s:Button label="调无参函数" id="btnCallNoParam" click="btnCallNoParam_clickHandler(event)"/>
    <s:Label text="参数输入"/>
    <s:TextInput x="197" y="20" id="txtParam"/>
    <s:Button label="调带参函数" id="btnCallByParam" click="btnCallByParam_clickHandler(event)"/>
    </mx:HBox>
    <s:Panel x="6" y="88" width="426" height="247" id="pnlXml" title="返回的XML结果">
        <mx:DataGrid x="0" y="0" height="100%" width="100%" id="dgData">
            <mx:columns>
                <mx:DataGridColumn headerText="姓名" dataField="Name"/>
                <mx:DataGridColumn headerText="性别" dataField="Sex"/>
                <mx:DataGridColumn headerText="年龄" dataField="Age"/>
                <mx:DataGridColumn dataField="Address" headerText="所在地"/>
            </mx:columns>
        </mx:DataGrid>
    </s:Panel>
    <s:Button x="10" y="59" label="服务端返回XMLDocument" id="btnCallXml" click="btnCallXml_clickHandler(event)"/>
    <s:Button x="232" y="60" label="服务端返回String的XML串" id="btnStringXml" click="btnStringXml_clickHandler(event)"/>

</s:Application>

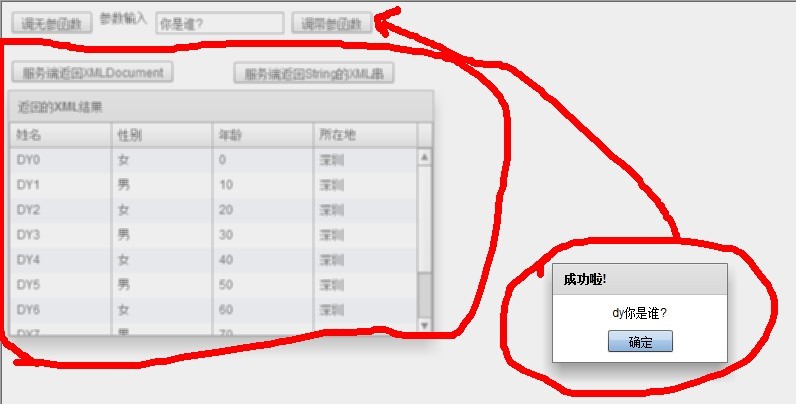

测试通过,全部代码都贴上来了







 有表达不清的地方，望大家指出，谢谢！
