springboot配置rabbitmq（经典队列）
一、添加依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
二、队列和交换机配置（将durable设置成false，方便修改测试，重启rabbitmq-server服务可以直接清空交换机和队列）
1、生产者统一接口
import java.nio.charset.StandardCharsets;
import java.util.Map;
import org.pro.config.DirectConfig;
import org.pro.config.FanoutConfig;
import org.pro.config.HeadersConfig;
import org.pro.config.TopicConfig;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;
/**
* @author Administrator
*/
@RestController
public class RabbitmqController {
private RabbitTemplate rabbitTemplate;
@PostMapping("/direct")
public String direct(@RequestBody String data) {
MessageProperties properties = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
rabbitTemplate.send(DirectConfig.DIRECT_EXCHANGE, DirectConfig.ROUTING_KEY,
new Message(data.getBytes(StandardCharsets.UTF_8), properties));
return "已加入队列";
}
@PostMapping("/fanout")
public String fanout(@RequestBody String data) {
MessageProperties properties = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
rabbitTemplate.send(FanoutConfig.FANOUT_EXCHANGE, "",
new Message(data.getBytes(StandardCharsets.UTF_8), properties));
return "已加入队列";
}

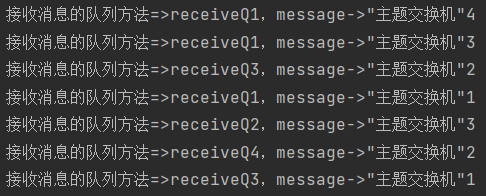

@PostMapping("/topic")
public String topic(@RequestBody String data) {
MessageProperties properties = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
// 配置的路由键 #可代表0或多个单词，*代表一个单词
// 可匹配到1，3
String data1 = data + "1";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "topic",
new Message(data1.getBytes(StandardCharsets.UTF_8), properties));
// 可匹配到3，4
String data2 = data + "2";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "my.topic",
new Message(data2.getBytes(StandardCharsets.UTF_8), properties));
// 可匹配到1，2
String data3 = data + "3";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "topic.test",
new Message(data3.getBytes(StandardCharsets.UTF_8), properties));
// 可匹配到1
String data4 = data + "4";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "topic.test.hello",
new Message(data4.getBytes(StandardCharsets.UTF_8), properties));
// 无匹配
String data5 = data + "4";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "my.topic.test",
new Message(data5.getBytes(StandardCharsets.UTF_8), properties));
// 无匹配
String data6 = "#" + data + "5";
rabbitTemplate.send(TopicConfig.TOPIC_EXCHANGE, "my.topic.test.hello",
new Message(data6.getBytes(StandardCharsets.UTF_8), properties));
return "已加入队列";
}

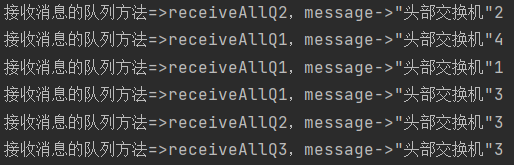

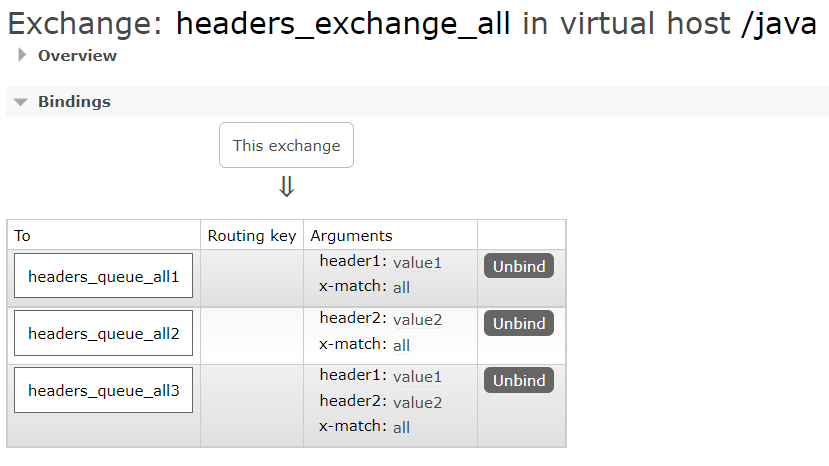

@PostMapping("/headers/all")
public String headersAll(@RequestBody String data) {
MessageProperties properties1 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties1.getHeaders().putAll(Map.of("header1", "value1"));
String data1 = data + "1";
// 可匹配到1
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ALL, "",
new Message(data1.getBytes(StandardCharsets.UTF_8), properties1));
MessageProperties properties2 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties2.getHeaders().putAll(Map.of("header2", "value2"));
String data2 = data + "2";
// 可匹配到2
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ALL, "",
new Message(data2.getBytes(StandardCharsets.UTF_8), properties2));
MessageProperties properties3 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties3.getHeaders().putAll(Map.of("header1", "value1", "header2", "value2"));
String data3 = data + "3";
// 可匹配到1，2，3
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ALL, "",
new Message(data3.getBytes(StandardCharsets.UTF_8), properties3));
MessageProperties properties4 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties4.getHeaders().putAll(Map.of("header1", "value1", "header3", "value3"));
String data4 = data + "4";
// 可匹配到1
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ALL, "",
new Message(data4.getBytes(StandardCharsets.UTF_8), properties4));
return "已加入队列";
}

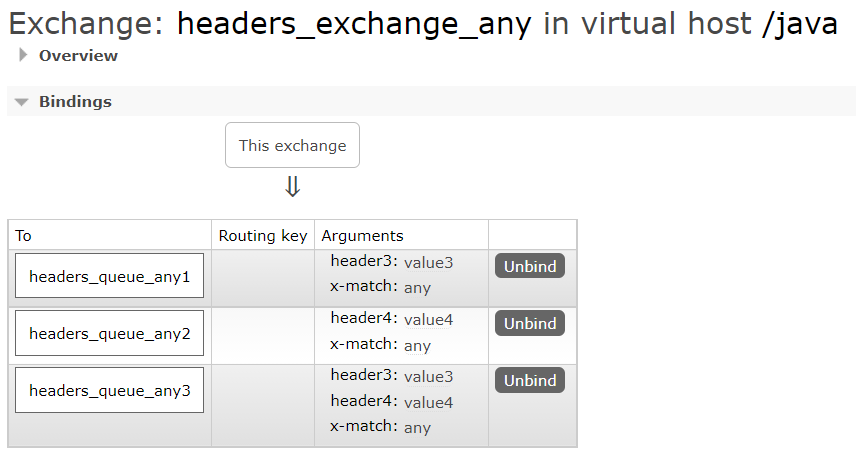

@PostMapping("/headers/any")
public String headersAny(@RequestBody String data) {
MessageProperties properties1 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties1.getHeaders().putAll(Map.of("header3", "value3"));
String data1 = data + "1";
// 可匹配到1，3
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ANY, "",
new Message(data1.getBytes(StandardCharsets.UTF_8), properties1));
MessageProperties properties2 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties2.getHeaders().putAll(Map.of("header4", "value4"));
String data2 = data + "2";
// 可匹配到2，3
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ANY, "",
new Message(data2.getBytes(StandardCharsets.UTF_8), properties2));
MessageProperties properties3 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties3.getHeaders().putAll(Map.of("header3", "value3", "header4", "value4"));
String data3 = data + "3";
// 可匹配到1，2，3
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ANY, "",
new Message(data3.getBytes(StandardCharsets.UTF_8), properties3));
MessageProperties properties4 = setProperties();
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
properties4.getHeaders().putAll(Map.of("header3", "value3", "header4", "value4", "header1", "value2"));
String data4 = data + "4";
// 可匹配到1，2，3
rabbitTemplate.send(HeadersConfig.HEADERS_EXCHANGE_ANY, "",
new Message(data4.getBytes(StandardCharsets.UTF_8), properties4));
return "已加入队列";
}
private MessageProperties setProperties() {
MessageProperties properties = new MessageProperties();
// 内容类型
properties.setContentType(MessageProperties.DEFAULT_CONTENT_TYPE);
// 消息优先级
properties.setPriority(5);
return properties;
}
@Autowired
public void setRabbitTemplate(RabbitTemplate rabbitTemplate) {
this.rabbitTemplate = rabbitTemplate;
}
}

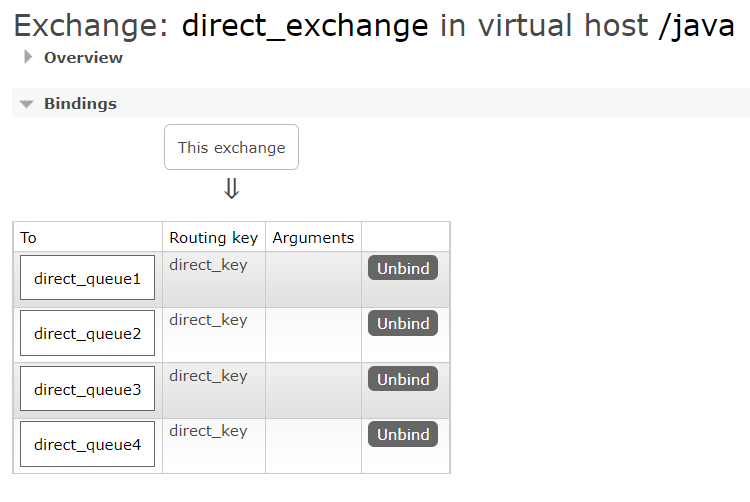

2、direct 直连交换机，多个队列绑定相同的路由键，消息会发给每一个队列
交换机、队列的配置和绑定：
import org.springframework.amqp.core.Binding; import org.springframework.amqp.core.BindingBuilder; import org.springframework.amqp.core.DirectExchange; import org.springframework.amqp.core.Queue; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; /** * @author Administrator */ @Configuration public class DirectConfig { public static final String DIRECT_EXCHANGE = "direct_exchange"; public static final String DIRECT_QUEUE1 = "direct_queue1"; public static final String DIRECT_QUEUE2 = "direct_queue2"; public static final String DIRECT_QUEUE3 = "direct_queue3"; public static final String DIRECT_QUEUE4 = "direct_queue4"; public static final String ROUTING_KEY = "direct_key"; @Bean public DirectExchange setDirectExchange() { return new DirectExchange(DIRECT_EXCHANGE); } @Bean public Queue directQ1() { return new Queue(DIRECT_QUEUE1); } @Bean public Queue directQ2() { return new Queue(DIRECT_QUEUE2); } @Bean public Queue directQ3() { return new Queue(DIRECT_QUEUE3); } @Bean public Queue directQ4() { return new Queue(DIRECT_QUEUE4); } @Bean public Binding directB1() { return BindingBuilder.bind(directQ1()).to(setDirectExchange()).with(ROUTING_KEY); } @Bean public Binding directB2() { return BindingBuilder.bind(directQ2()).to(setDirectExchange()).with(ROUTING_KEY); } @Bean public Binding directB3() { return BindingBuilder.bind(directQ3()).to(setDirectExchange()).with(ROUTING_KEY); } @Bean public Binding directB4() { return BindingBuilder.bind(directQ4()).to(setDirectExchange()).with(ROUTING_KEY); } }
消费者：
import java.util.Collections;
import org.pro.config.DirectConfig;
import org.pro.util.TransportConst;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestTemplate;
import com.alibaba.fastjson2.JSONObject;
import com.rabbitmq.client.Channel;
import io.swagger.annotations.ApiOperation;
/**
* @author Administrator
*/
@Component
public class DirectConsumer {
private RestTemplate restTemplate;
@ApiOperation(value = "消息接收方法",
notes = "org.springframework.amqp.core.Message接收字符串、数字类的简单消息,"
+ "org.springframework.messaging.Message接收对象类复杂消息")
@RabbitListener(queues = DirectConfig.DIRECT_QUEUE1)
public void receiveQ1(Message message1, org.springframework.messaging.Message message2, Channel channel) {
System.out.println("接收消息的队列方法=>receiveQ1，message->" + new String(message1.getBody()));
// commonHandle(message1);
}
@RabbitListener(queues = DirectConfig.DIRECT_QUEUE2)
public void receiveQ2(Message message) {
System.out.println("接收消息的队列方法=>receiveQ2，message->" + new String(message.getBody()));
// commonHandle(message);
}
@RabbitListener(queues = DirectConfig.DIRECT_QUEUE3)
public void receiveQ3(Message message) {
System.out.println("接收消息的队列方法=>receiveQ3，message->" + new String(message.getBody()));
// commonHandle(message);
}
@RabbitListener(queues = DirectConfig.DIRECT_QUEUE4)
public void receiveQ4(Message message) {
System.out.println("接收消息的队列方法=>receiveQ4，message->" + new String(message.getBody()));
// commonHandle(message);
}
private void commonHandle(Message message) {
// 解析message1中的信息
String data = new String(message.getBody());
JSONObject jsonObject = JSONObject.parseObject(data);
// 获取资源路径和传递方法
String url = jsonObject.getString(TransportConst.TRANSMISSION_URL);
String httpMethod = jsonObject.getString(TransportConst.TRANSMISSION_HTTP_METHOD);
// 构建消息主体
HttpHeaders httpHeaders = new HttpHeaders();
httpHeaders.setContentType(MediaType.APPLICATION_JSON);
httpHeaders.setAccept(Collections.singletonList(MediaType.APPLICATION_JSON));
HttpEntity<String> httpEntity = new HttpEntity<>(data, httpHeaders);
// 调用接口
ResponseEntity<String> exchange =
restTemplate.exchange(url, HttpMethod.valueOf(httpMethod), httpEntity, String.class);
System.out.println(exchange.getBody());
}
@Autowired
public void setRestTemplate(RestTemplate restTemplate) {
this.restTemplate = restTemplate;
}
}

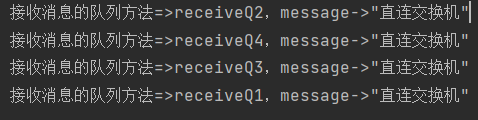

结果，所有队列都接收到消息

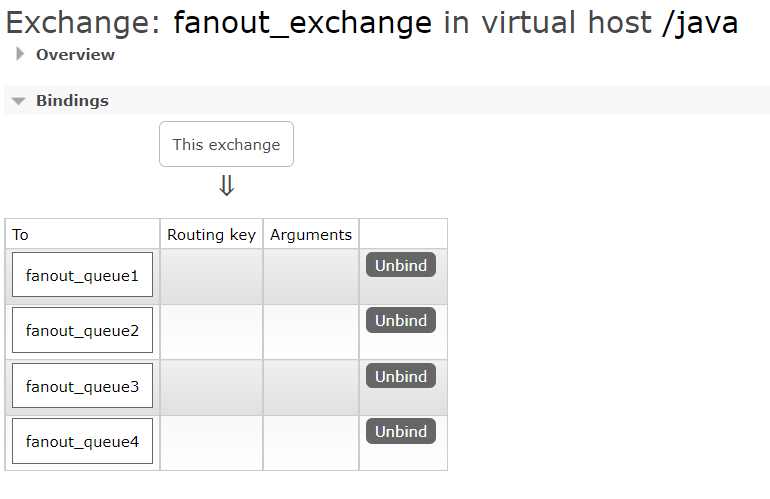

3、扇形交换机，不考虑路由键，消息直接广播到所有绑定交换机的队列
交换机、队列的配置和绑定：
import org.springframework.amqp.core.Binding; import org.springframework.amqp.core.BindingBuilder; import org.springframework.amqp.core.FanoutExchange; import org.springframework.amqp.core.Queue; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; /** * @author Administrator */ @Configuration public class FanoutConfig { public static final String FANOUT_EXCHANGE = "fanout_exchange"; public static final String FANOUT_QUEUE1 = "fanout_queue1"; public static final String FANOUT_QUEUE2 = "fanout_queue2"; public static final String FANOUT_QUEUE3 = "fanout_queue3"; public static final String FANOUT_QUEUE4 = "fanout_queue4"; @Bean public FanoutExchange setFanoutExchange() { return new FanoutExchange(FANOUT_EXCHANGE, false, true); } @Bean public Queue fanoutQ1() { return new Queue(FANOUT_QUEUE1, false); } @Bean public Queue fanoutQ2() { return new Queue(FANOUT_QUEUE2, false); } @Bean public Queue fanoutQ3() { return new Queue(FANOUT_QUEUE3, false); } @Bean public Queue fanoutQ4() { return new Queue(FANOUT_QUEUE4, false); } @Bean public Binding fanoutB1() { return BindingBuilder.bind(fanoutQ1()).to(setFanoutExchange()); } @Bean public Binding fanoutB2() { return BindingBuilder.bind(fanoutQ2()).to(setFanoutExchange()); } @Bean public Binding fanoutB3() { return BindingBuilder.bind(fanoutQ3()).to(setFanoutExchange()); } @Bean public Binding fanoutB4() { return BindingBuilder.bind(fanoutQ4()).to(setFanoutExchange()); } }
消费者：
import java.util.Collections; import org.pro.config.FanoutConfig; import org.pro.util.TransportConst; import org.springframework.amqp.core.Message; import org.springframework.amqp.rabbit.annotation.RabbitListener; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.http.HttpEntity; import org.springframework.http.HttpHeaders; import org.springframework.http.HttpMethod; import org.springframework.http.MediaType; import org.springframework.http.ResponseEntity; import org.springframework.stereotype.Component; import org.springframework.web.client.RestTemplate; import com.alibaba.fastjson2.JSONObject; import com.rabbitmq.client.Channel; /** * @author Administrator */ @Component public class FanoutConsumer { private RestTemplate restTemplate; @RabbitListener(queues = FanoutConfig.FANOUT_QUEUE1) public void receiveQ1(Message message1, org.springframework.messaging.Message message2, Channel channel) { System.out.println("接收消息的队列方法=>receiveQ1，message->" + new String(message1.getBody())); // commonHandle(message1); } @RabbitListener(queues = FanoutConfig.FANOUT_QUEUE2) public void receiveQ2(Message message) { System.out.println("接收消息的队列方法=>receiveQ2，message->" + new String(message.getBody())); // commonHandle(message); } @RabbitListener(queues = FanoutConfig.FANOUT_QUEUE3) public void receiveQ3(Message message) { System.out.println("接收消息的队列方法=>receiveQ3，message->" + new String(message.getBody())); // commonHandle(message); } @RabbitListener(queues = FanoutConfig.FANOUT_QUEUE4) public void receiveQ4(Message message) { System.out.println("接收消息的队列方法=>receiveQ4，message->" + new String(message.getBody())); // commonHandle(message); } private void commonHandle(Message message) { // 解析message1中的信息 String data = new String(message.getBody()); JSONObject jsonObject = JSONObject.parseObject(data); // 获取资源路径和传递方法 String url = jsonObject.getString(TransportConst.TRANSMISSION_URL); String httpMethod = jsonObject.getString(TransportConst.TRANSMISSION_HTTP_METHOD); // 构建消息主体 HttpHeaders httpHeaders = new HttpHeaders(); httpHeaders.setContentType(MediaType.APPLICATION_JSON); httpHeaders.setAccept(Collections.singletonList(MediaType.APPLICATION_JSON)); HttpEntity<String> httpEntity = new HttpEntity<>(data, httpHeaders); // 调用接口 ResponseEntity<String> exchange = restTemplate.exchange(url, HttpMethod.valueOf(httpMethod), httpEntity, String.class); System.out.println(exchange.getBody()); } @Autowired public void setRestTemplate(RestTemplate restTemplate) { this.restTemplate = restTemplate; } }
结果：消息广播到每个绑定交换机的队列

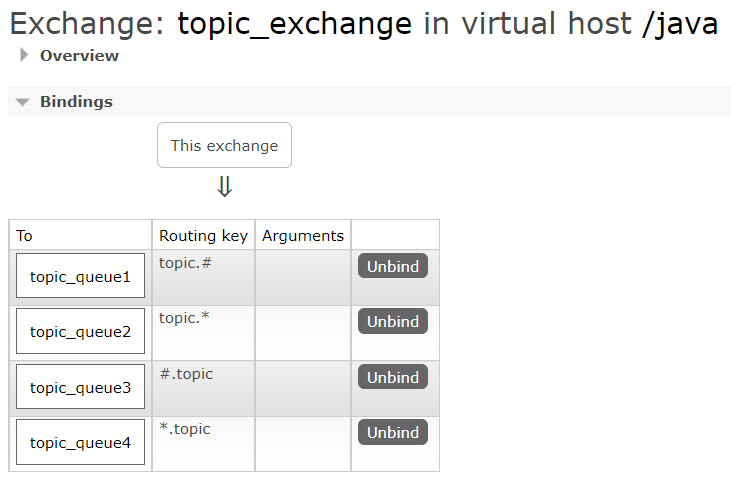

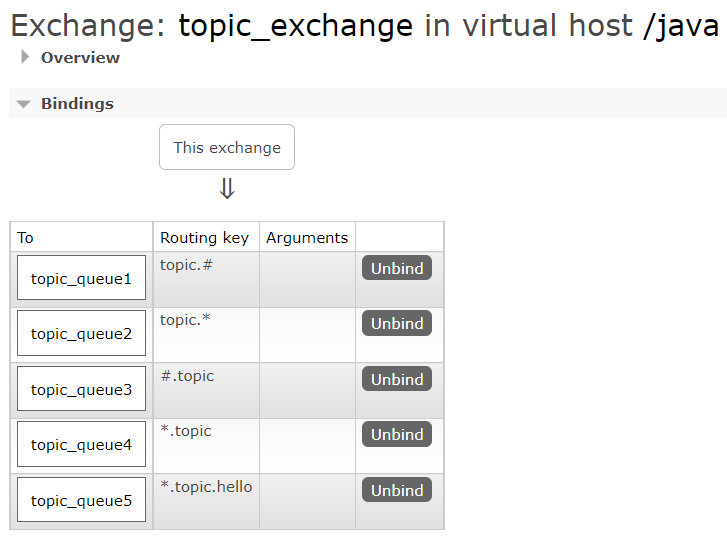

4、主题交换机，根据路由键的模式匹配规则将消息发送到队列
交换机、队列的配置和绑定：
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author Administrator
*/
@Configuration
public class TopicConfig {
public static final String TOPIC_EXCHANGE = "topic_exchange";
public static final String TOPIC_QUEUE1 = "topic_queue1";
public static final String TOPIC_QUEUE2 = "topic_queue2";
public static final String TOPIC_QUEUE3 = "topic_queue3";
public static final String TOPIC_QUEUE4 = "topic_queue4";
public static final String TOPIC_QUEUE5 = "topic_queue5";
public static final String TOPIC_ROUTING_KEY1 = "topic.#";
public static final String TOPIC_ROUTING_KEY2 = "topic.*";
public static final String TOPIC_ROUTING_KEY3 = "#.topic";
public static final String TOPIC_ROUTING_KEY4 = "*.topic";
public static final String TOPIC_ROUTING_KEY5 = "*.topic.hello";
@Bean
public TopicExchange setTopicExchange() {
return new TopicExchange(TOPIC_EXCHANGE, false, true);
}
@Bean
public Queue topicQ1() {
return new Queue(TOPIC_QUEUE1, false);
}
@Bean
public Queue topicQ2() {
return new Queue(TOPIC_QUEUE2, false);
}
@Bean
public Queue topicQ3() {
return new Queue(TOPIC_QUEUE3, false);
}
@Bean
public Queue topicQ4() {
return new Queue(TOPIC_QUEUE4, false);
}
@Bean
public Queue topicQ5() {
return new Queue(TOPIC_QUEUE5, false);
}
@Bean
public Binding topicB1() {
return BindingBuilder.bind(topicQ1()).to(setTopicExchange()).with(TOPIC_ROUTING_KEY1);
}
@Bean
public Binding topicB2() {
return BindingBuilder.bind(topicQ2()).to(setTopicExchange()).with(TOPIC_ROUTING_KEY2);
}
@Bean
public Binding topicB3() {
return BindingBuilder.bind(topicQ3()).to(setTopicExchange()).with(TOPIC_ROUTING_KEY3);
}
@Bean
public Binding topicB4() {
return BindingBuilder.bind(topicQ4()).to(setTopicExchange()).with(TOPIC_ROUTING_KEY4);
}
@Bean
public Binding topicB5() {
return BindingBuilder.bind(topicQ5()).to(setTopicExchange()).with(TOPIC_ROUTING_KEY5);
}
}
消费者：
import java.util.Collections;
import org.pro.config.TopicConfig;
import org.pro.util.TransportConst;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestTemplate;
import com.alibaba.fastjson2.JSONObject;
import com.rabbitmq.client.Channel;
/**
* @author Administrator
*/
@Component
public class TopicConsumer {
private RestTemplate restTemplate;
@RabbitListener(queues = TopicConfig.TOPIC_QUEUE1)
public void receiveQ1(Message message1, org.springframework.messaging.Message message2, Channel channel) {
System.out.println("接收消息的队列方法=>receiveQ1，message->" + new String(message1.getBody()));
// commonHandle(message1);
}
@RabbitListener(queues = TopicConfig.TOPIC_QUEUE2)
public void receiveQ2(Message message) {
System.out.println("接收消息的队列方法=>receiveQ2，message->" + new String(message.getBody()));
// commonHandle(message);
}
@RabbitListener(queues = TopicConfig.TOPIC_QUEUE3)
public void receiveQ3(Message message) {
System.out.println("接收消息的队列方法=>receiveQ3，message->" + new String(message.getBody()));
// commonHandle(message);
}
@RabbitListener(queues = TopicConfig.TOPIC_QUEUE4)
public void receiveQ4(Message message) {
System.out.println("接收消息的队列方法=>receiveQ4，message->" + new String(message.getBody()));
// commonHandle(message);
}
@RabbitListener(queues = TopicConfig.TOPIC_QUEUE5)
public void receiveQ5(Message message) {
System.out.println("接收消息的队列方法=>receiveQ5，message->" + new String(message.getBody()));
// commonHandle(message);
}
private void commonHandle(Message message) {
// 解析message1中的信息
String data = new String(message.getBody());
JSONObject jsonObject = JSONObject.parseObject(data);
// 获取资源路径和传递方法
String url = jsonObject.getString(TransportConst.TRANSMISSION_URL);
String httpMethod = jsonObject.getString(TransportConst.TRANSMISSION_HTTP_METHOD);
// 构建消息主体
HttpHeaders httpHeaders = new HttpHeaders();
httpHeaders.setContentType(MediaType.APPLICATION_JSON);
httpHeaders.setAccept(Collections.singletonList(MediaType.APPLICATION_JSON));
HttpEntity<String> httpEntity = new HttpEntity<>(data, httpHeaders);
// 调用接口
ResponseEntity<String> exchange =
restTemplate.exchange(url, HttpMethod.valueOf(httpMethod), httpEntity, String.class);
System.out.println(exchange.getBody());
}
@Autowired
public void setRestTemplate(RestTemplate restTemplate) {
this.restTemplate = restTemplate;
}
}
结果：“.”是分隔符，“*”可匹配一个，“#”可匹配多个，路由键以消费者为主，即配置，生产者发送时会带路由键进行匹配，匹配的位置也有讲究，交换固定的单词位置匹配不到
5、头部交换机，根据消息头部的属性而不是路由键来决定消息的路由
交换机、队列的配置和绑定：
import java.util.Map; import org.springframework.amqp.core.Binding; import org.springframework.amqp.core.BindingBuilder; import org.springframework.amqp.core.HeadersExchange; import org.springframework.amqp.core.Queue; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; /** * @author Administrator */ @Configuration public class HeadersConfig { public static final String HEADERS_EXCHANGE_ALL = "headers_exchange_all"; public static final String HEADERS_QUEUE_ALL1 = "headers_queue_all1"; public static final String HEADERS_QUEUE_ALL2 = "headers_queue_all2"; public static final String HEADERS_QUEUE_ALL3 = "headers_queue_all3"; public static final Map<String, Object> allMap1 = Map.of("header1", "value1"); public static final Map<String, Object> allMap2 = Map.of("header2", "value2"); public static final Map<String, Object> allMap3 = Map.of("header1", "value1", "header2", "value2"); public static final String HEADERS_EXCHANGE_ANY = "headers_exchange_any"; public static final String HEADERS_QUEUE_ANY1 = "headers_queue_any1"; public static final String HEADERS_QUEUE_ANY2 = "headers_queue_any2"; public static final String HEADERS_QUEUE_ANY3 = "headers_queue_any3"; public static final Map<String, Object> anyMap1 = Map.of("header3", "value3"); public static final Map<String, Object> anyMap2 = Map.of("header4", "value4"); public static final Map<String, Object> anyMap3 = Map.of("header3", "value3", "header4", "value4"); @Bean public HeadersExchange headersExchangeAll() { return new HeadersExchange(HEADERS_EXCHANGE_ALL, false, true); } @Bean public Queue headersAllQ1() { return new Queue(HEADERS_QUEUE_ALL1, false); } @Bean public Queue headersAllQ2() { return new Queue(HEADERS_QUEUE_ALL2, false); } @Bean public Queue headersAllQ3() { return new Queue(HEADERS_QUEUE_ALL3, false); } @Bean public Binding headersAllB1() { return BindingBuilder.bind(headersAllQ1()).to(headersExchangeAll()).whereAll(allMap1).match(); } @Bean public Binding headersAllB2() { return BindingBuilder.bind(headersAllQ2()).to(headersExchangeAll()).whereAll(allMap2).match(); } @Bean public Binding headersAllB3() { return BindingBuilder.bind(headersAllQ3()).to(headersExchangeAll()).whereAll(allMap3).match(); } @Bean public HeadersExchange headersExchangeAny() { return new HeadersExchange(HEADERS_EXCHANGE_ANY, false, true); } @Bean public Queue headersAnyQ1() { return new Queue(HEADERS_QUEUE_ANY1, false); } @Bean public Queue headersAnyQ2() { return new Queue(HEADERS_QUEUE_ANY2, false); } @Bean public Queue headersAnyQ3() { return new Queue(HEADERS_QUEUE_ANY3, false); } @Bean public Binding headersAnyB1() { return BindingBuilder.bind(headersAnyQ1()).to(headersExchangeAny()).whereAny(anyMap1).match(); } @Bean public Binding headersAnyB2() { return BindingBuilder.bind(headersAnyQ2()).to(headersExchangeAny()).whereAny(anyMap2).match(); } @Bean public Binding headersAnyB3() { return BindingBuilder.bind(headersAnyQ3()).to(headersExchangeAny()).whereAny(anyMap3).match(); } }
消费者：
import java.util.Collections; import org.pro.config.HeadersConfig; import org.pro.util.TransportConst; import org.springframework.amqp.core.Message; import org.springframework.amqp.rabbit.annotation.RabbitListener; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.http.HttpEntity; import org.springframework.http.HttpHeaders; import org.springframework.http.HttpMethod; import org.springframework.http.MediaType; import org.springframework.http.ResponseEntity; import org.springframework.stereotype.Component; import org.springframework.web.client.RestTemplate; import com.alibaba.fastjson2.JSONObject; import com.rabbitmq.client.Channel; /** * @author Administrator */ @Component public class HeadersConsumer { private RestTemplate restTemplate; @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ALL1) public void receiveAllQ1(Message message1, org.springframework.messaging.Message message2, Channel channel) { System.out.println("接收消息的队列方法=>receiveAllQ1，message->" + new String(message1.getBody())); // commonHandle(message1); } @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ALL2) public void receiveAllQ2(Message message) { System.out.println("接收消息的队列方法=>receiveAllQ2，message->" + new String(message.getBody())); // commonHandle(message); } @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ALL3) public void receiveAllQ3(Message message) { System.out.println("接收消息的队列方法=>receiveAllQ3，message->" + new String(message.getBody())); // commonHandle(message); } @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ANY1) public void receiveAnyQ1(Message message1, org.springframework.messaging.Message message2, Channel channel) { System.out.println("接收消息的队列方法=>receiveAnyQ1，message->" + new String(message1.getBody())); // commonHandle(message1); } @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ANY2) public void receiveAnyQ2(Message message) { System.out.println("接收消息的队列方法=>receiveAnyQ2，message->" + new String(message.getBody())); // commonHandle(message); } @RabbitListener(queues = HeadersConfig.HEADERS_QUEUE_ANY3) public void receiveAnyQ3(Message message) { System.out.println("接收消息的队列方法=>receiveAnyQ3，message->" + new String(message.getBody())); // commonHandle(message); } private void commonHandle(Message message) { // 解析message1中的信息 String data = new String(message.getBody()); JSONObject jsonObject = JSONObject.parseObject(data); // 获取资源路径和传递方法 String url = jsonObject.getString(TransportConst.TRANSMISSION_URL); String httpMethod = jsonObject.getString(TransportConst.TRANSMISSION_HTTP_METHOD); // 构建消息主体 HttpHeaders httpHeaders = new HttpHeaders(); httpHeaders.setContentType(MediaType.APPLICATION_JSON); httpHeaders.setAccept(Collections.singletonList(MediaType.APPLICATION_JSON)); HttpEntity<String> httpEntity = new HttpEntity<>(data, httpHeaders); // 调用接口 ResponseEntity<String> exchange = restTemplate.exchange(url, HttpMethod.valueOf(httpMethod), httpEntity, String.class); System.out.println(exchange.getBody()); } @Autowired public void setRestTemplate(RestTemplate restTemplate) { this.restTemplate = restTemplate; } }

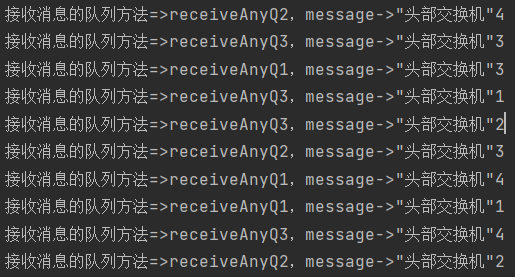

结果：匹配头部以配置为主，all匹配所有才能接收到消息，可以比配置多，不能比配置少，any部分匹配，只要有一条匹配上就可以接收到消息
浙公网安备 33010602011771号
