Spring Cloud Config Git身份验证模式

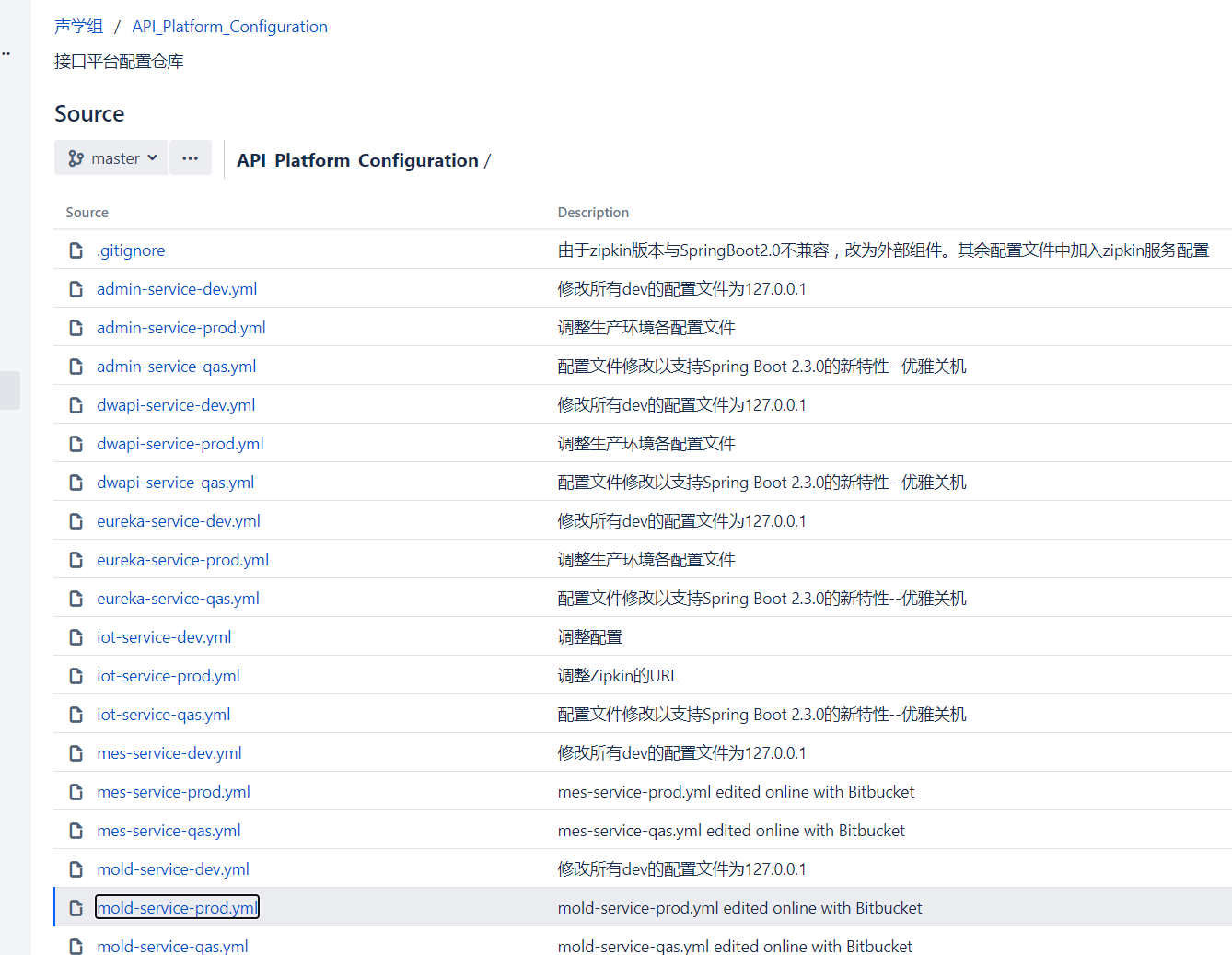

Spring Cloud Config的配置是存储在公共仓库的，我们目前的配置托管在BitBucket上的一个仓库中：



在程序访问仓库获取配置的过程中有两种身份验证模式，一种是基于用户名密码的身份验证，一种是基于SSH Key的身份验证。

常规可选基于用户名密码的身份验证模式，仅需在配置文件中指定username和password即可：

spring:
  application:
    name: config-server

  cloud:
    config:
      server:
        git:
          uri: https://bitbucket.aac.com/scm/aco/api_platform_configuration.git
          username: 60054814
          password: xxxxxx



但在账户密码变更之后必须同步更新配置文件中的密码，略微麻烦。因此，在内网域账号要求定期更换密码的情况下，建议采用基于SSH Key的身份验证。

基于SSH Key的身份验证首先要求生成密钥（以下操作针对CentOS 7）。

在任意Linux机器上运行如下指令：

ssh-keygen -t rsa -C "QAS of API"

 -C是密钥标识，可以填邮箱，或者一些具有标志性的短语。

[root@VLXCNECZ01APIQ2 .ssh]# ssh-keygen -t rsa -C "QAS of API"
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
/root/.ssh/id_rsa already exists.
Overwrite (y/n)? y
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:G+bx0Afv/8e689BbygDTotYsyJz1maCLfVDxQdLMU4Q QAS of API
The key's randomart image is:
+---[RSA 2048]----+
|        .=.+o    |
|        ..E      |
|         o.o     |
|        ...+     |
|       .S = +    |
|     o.B % O   . |
|      *.* B o ..o|
|     o o..   +.o=|
|    . o.      *B+|
+----[SHA256]-----+



完整的指令输出如上，可以按照实际的要求来填写。

填写完成之后，进入上述提示的密钥存储的路径，而后使用Cat指令查看公钥：

[root@VLXCNECZ01APIQ2 .ssh]# ls
authorized_keys  id_rsa  id_rsa.pub  known_hosts
[root@VLXCNECZ01APIQ2 .ssh]# cat id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCgXMPeViknsXXXXXXXXXXXXXXXXXXXXXXXXXXX QAS of API

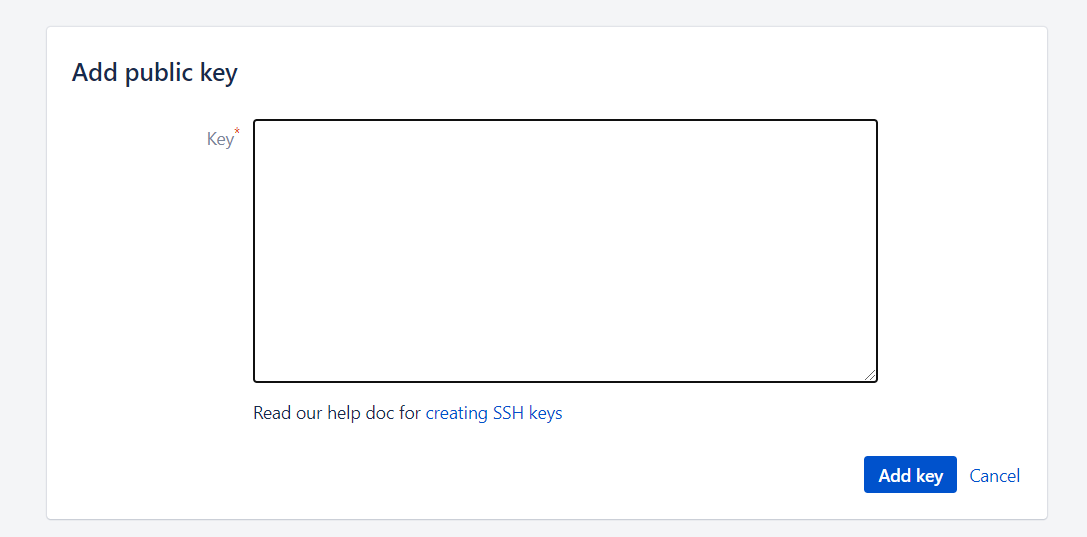

 将公钥复制，在BitBucket中打开Account-SSH Keys，点击Add Key来添加Key：



添加完成后，重新回到生成SSH Key的服务器，获取私钥：

[root@VLXCNECZ01APIQ2 .ssh]# cat id_rsa
-----BEGIN RSA PRIVATE KEY-----
Proc-Type: 4,ENCRYPTED
DEK-Info: AES-128-CBC,XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Drur2vNmhaECewGDzggAaJemX89ymIRWt4aKORIuGxy8MDFpi9TGpEfrvFzzyB7E
58RlWOjQ7sOZiz8jF1fAoSlY4sjYn5JqsOoV8HlVJzqt0PJvOrDavqUR1/wJgr20
1LU2HjPuZx2pLX0rnhDBhJQ6AqT34Q2ISEaG2+c6pDG+oEVt+Y1pYKPS6sAqVZeU
oMWGzsMLI62nT5dnd3nZAps1cPuJXaW6Sgj0M/gmWYk8NeMpd75KYvxWR/wIMptc
ZX5xOr1/jYmM5a4Ru9cxKIPjUTMKXpGjLASZ1jcc6N1BRXBLB8TZuzKLYd1CGZ+t
t5/WrJe981RMXZk1uJSwpez6R2TU4RthB7b99sBPI1OSdOfgS+4KznpTBqvE3VL6
njmTy4xSmUAPdzpOAZ1qeaQkp4a5coGPkQblxRYYABfu71QWqqsC5liq6bFDqvvB
sCUC8VmLb6xyGVrE3WEGCqRMJWIHCE1FwTwNal42R2TLhfz100jyUtCBCZGTrYbu
w+jQaycm7Vfks7MZ0pAxgmnfvKl2O3hRD1C50X2cRDCWunOAzhCs9rRMVtLSTlQg
iOOw9cLR1KnU834pH2wRHv2PM6eZ00KL+Whgh/uIqYPPCMOC7S6Tka1qNIGXTeiA
uLDQ25/I+SKZw2Zm0kPIEDi2ulcBkmWCLat4+mRpMrtmfBfVTX+hc9EPjETAUoGm
X9gO3ipe0CujMqA0qltYKlNC5U1xM8qWgt2mgI8JIw+aQXJ4sCESuVGxgw0rDz3v
gychkX+VGHAIRQIE/vjapUmJRNMyjd+riIGyCZU3hEWl3z8TGj6Y7R6wlMaVnGoE
xUP9htc5qb6r3/hlOpahwNEbO1Z3RowdZmzgYbm4VdtQWuLW8TmrA4IDUCcNYzrN
T+cX1DAR3TCo+bsk4Q5Z2gJP6nx7mcuEbyE7aNwe47IDPa8r1E0OZK4dEueiwArT
v/W+ey82JVgBZthhSTCuEd6LW5rxaKVU54GOqEwBqzHRrZ4bKbjAh+Rx616LLzB2
ZQAj3p3MZ4XkW+ReN4fl+49vebtRsGbyfyWxNwCRdYzDB6id44LbYHE2dkN26/xD
oF+TWsq1/2Lza/goO/UWE8GKvu8FvVpCbZ/6d8wBqQ8POISQ2+jZYXxW5tLmBbZu
IRroAp7PMBMgEVE7qaNP9w374r6srt3pkZFxlcNU6GMmZ0sqYLz0caejPJXCFNJF
grcna8Lvav0vu5MLb1J8ljyV0Yl465RQzSOVhBGp6/wPM8oCltZuA769sem7NKC+
27Q8EQZhJXZ0aAKCvqx6cfcy4d+OkY1jKyDW7aQB6hVui3/XjD4XzjZyYSm3nI3S
lm0xcMiODcV1lur2GJL74bPorL52B8H0W/xSF75W68zJWvTWGAP8s9e04sGGYO+x
YdAPcSpZPqymGWikOZUOIXx51O1n/iZ748BLvkzzkieimzb5jK2bA466hv5bmprG
xCCmVYa1NkdFaMkxJv1m8KOJmRpIL2NpL0HC/m0v9SY0LUCFpXvzYtqGlG6dKHNv
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
-----END RSA PRIVATE KEY-----

 将私钥部分复制，打开Spring Cloud Config的配置文件，添加如下配置：



spring:
  application:
    name: config-server

  cloud:
    config:
      server:
        git:
          uri: https://bitbucket.aac.com/scm/aco/api_platform_configuration.git
          clone-on-start: true
          force-pull: true
          skip-ssl-validation: true
          default-label: master
          ignoreLocalSshSettings: true
          hostKey: QAS of API
          hostKeyAlgorithm: ssh-rsa
          privateKey: |
                        Drur2vNmhaECewGDzggAaJemX89ymIRWt4aKORIuGxy8MDFpi9TGpEfrvFzzyB7E
                        58RlWOjQ7sOZiz8jF1fAoSlY4sjYn5JqsOoV8HlVJzqt0PJvOrDavqUR1/wJgr20
                        1LU2HjPuZx2pLX0rnhDBhJQ6AqT34Q2ISEaG2+c6pDG+oEVt+Y1pYKPS6sAqVZeU
                        oMWGzsMLI62nT5dnd3nZAps1cPuJXaW6Sgj0M/gmWYk8NeMpd75KYvxWR/wIMptc
                        ZX5xOr1/jYmM5a4Ru9cxKIPjUTMKXpGjLASZ1jcc6N1BRXBLB8TZuzKLYd1CGZ+t
                        t5/WrJe981RMXZk1uJSwpez6R2TU4RthB7b99sBPI1OSdOfgS+4KznpTBqvE3VL6
                        njmTy4xSmUAPdzpOAZ1qeaQkp4a5coGPkQblxRYYABfu71QWqqsC5liq6bFDqvvB
                        sCUC8VmLb6xyGVrE3WEGCqRMJWIHCE1FwTwNal42R2TLhfz100jyUtCBCZGTrYbu
                        w+jQaycm7Vfks7MZ0pAxgmnfvKl2O3hRD1C50X2cRDCWunOAzhCs9rRMVtLSTlQg
                        iOOw9cLR1KnU834pH2wRHv2PM6eZ00KL+Whgh/uIqYPPCMOC7S6Tka1qNIGXTeiA
                        uLDQ25/I+SKZw2Zm0kPIEDi2ulcBkmWCLat4+mRpMrtmfBfVTX+hc9EPjETAUoGm
                        X9gO3ipe0CujMqA0qltYKlNC5U1xM8qWgt2mgI8JIw+aQXJ4sCESuVGxgw0rDz3v
                        gychkX+VGHAIRQIE/vjapUmJRNMyjd+riIGyCZU3hEWl3z8TGj6Y7R6wlMaVnGoE
                        xUP9htc5qb6r3/hlOpahwNEbO1Z3RowdZmzgYbm4VdtQWuLW8TmrA4IDUCcNYzrN
                        T+cX1DAR3TCo+bsk4Q5Z2gJP6nx7mcuEbyE7aNwe47IDPa8r1E0OZK4dEueiwArT
                        v/W+ey82JVgBZthhSTCuEd6LW5rxaKVU54GOqEwBqzHRrZ4bKbjAh+Rx616LLzB2
                        ZQAj3p3MZ4XkW+ReN4fl+49vebtRsGbyfyWxNwCRdYzDB6id44LbYHE2dkN26/xD
                        oF+TWsq1/2Lza/goO/UWE8GKvu8FvVpCbZ/6d8wBqQ8POISQ2+jZYXxW5tLmBbZu
                        IRroAp7PMBMgEVE7qaNP9w374r6srt3pkZFxlcNU6GMmZ0sqYLz0caejPJXCFNJF
                        grcna8Lvav0vu5MLb1J8ljyV0Yl465RQzSOVhBGp6/wPM8oCltZuA769sem7NKC+
                        27Q8EQZhJXZ0aAKCvqx6cfcy4d+OkY1jKyDW7aQB6hVui3/XjD4XzjZyYSm3nI3S
                        lm0xcMiODcV1lur2GJL74bPorL52B8H0W/xSF75W68zJWvTWGAP8s9e04sGGYO+x
                        YdAPcSpZPqymGWikOZUOIXx51O1n/iZ748BLvkzzkieimzb5jK2bA466hv5bmprG
                        xCCmVYa1NkdFaMkxJv1m8KOJmRpIL2NpL0HC/m0v9SY0LUCFpXvzYtqGlG6dKHNv
                        XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

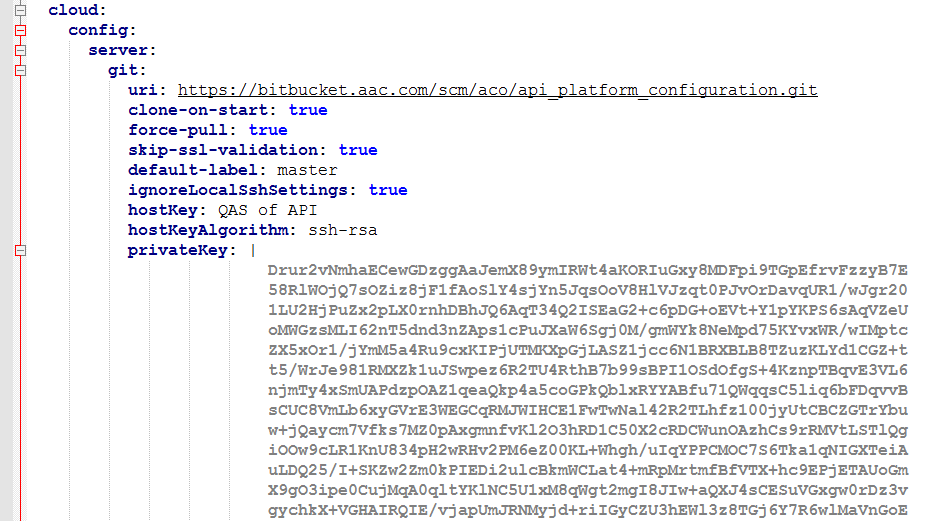

 这里关于如何写这部分私钥是一个问题，按照Spring Cloud Config文档中的解释，需要用一个竖线符号标识，而后粘贴，注意每一行需要用Tab键对齐，并且符合规范之后，在Notepad++中字体会变成灰色：



如此配置之后，启动Spring Cloud Config时，便会以SSH的方式从Git仓库进行配置获取，也就不用再考虑域账号密码变更的问题。
