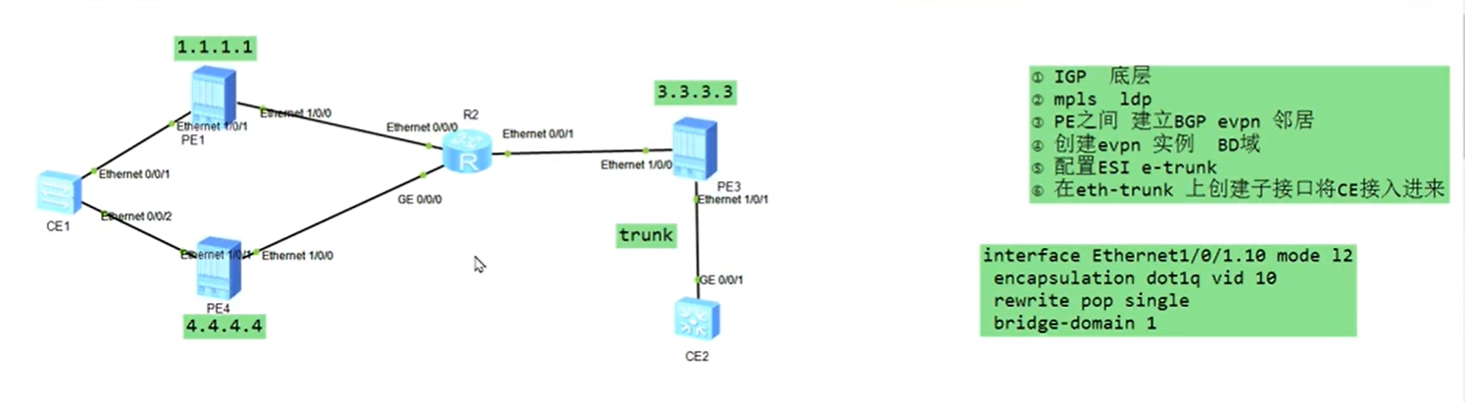

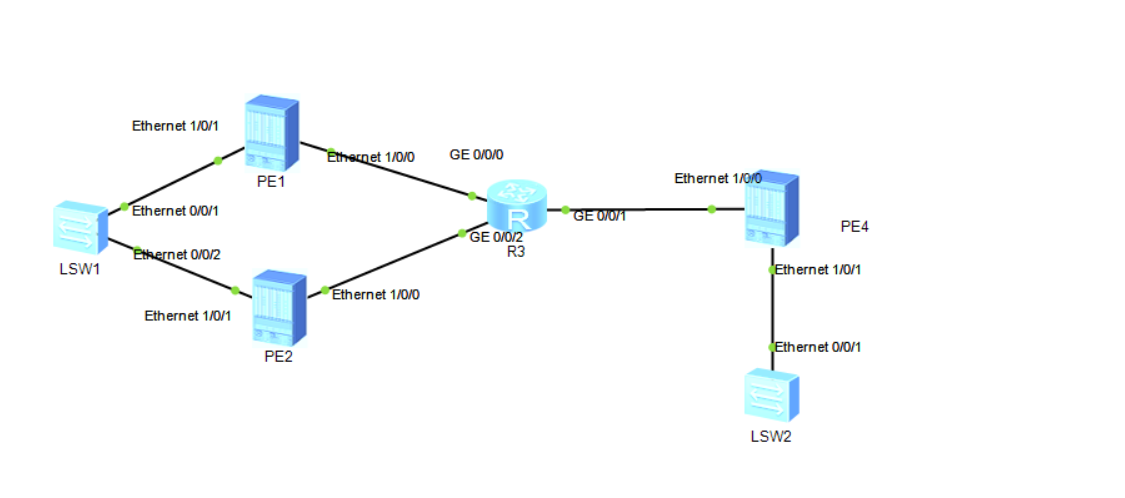

CE双活实验







 PE1,PE2配置：

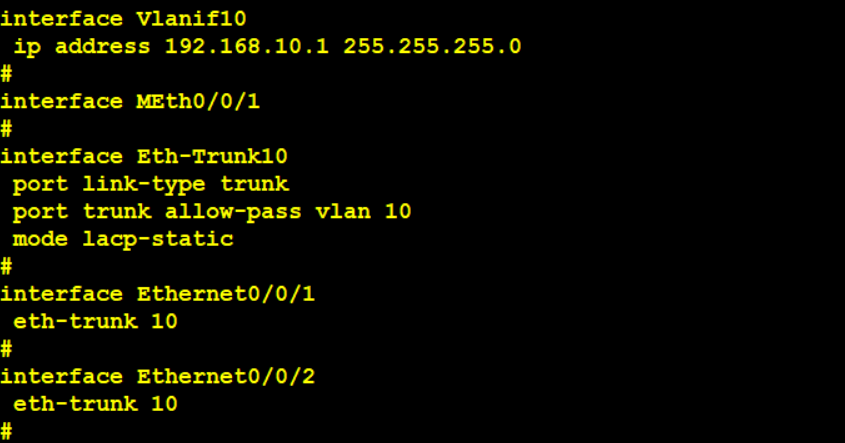

CE1配置：

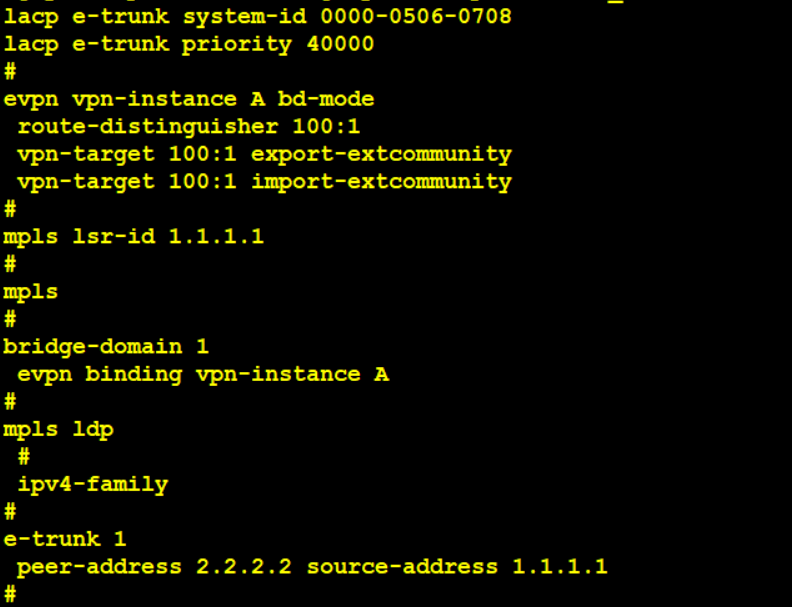

 PE1配置：









sysname PE1

evpn vpn-instance A bd-mode
route-distinguisher 100:1
vpn-target 100:1 export-extcommunity
vpn-target 100:1 import-extcommunity
#

bridge-domain 1
evpn binding vpn-instance A
#

lacp e-trunk system-id 0000-0506-0708
lacp e-trunk priority 40000
#
e-trunk 1
peer-address 2.2.2.2 source-address 1.1.1.1
#

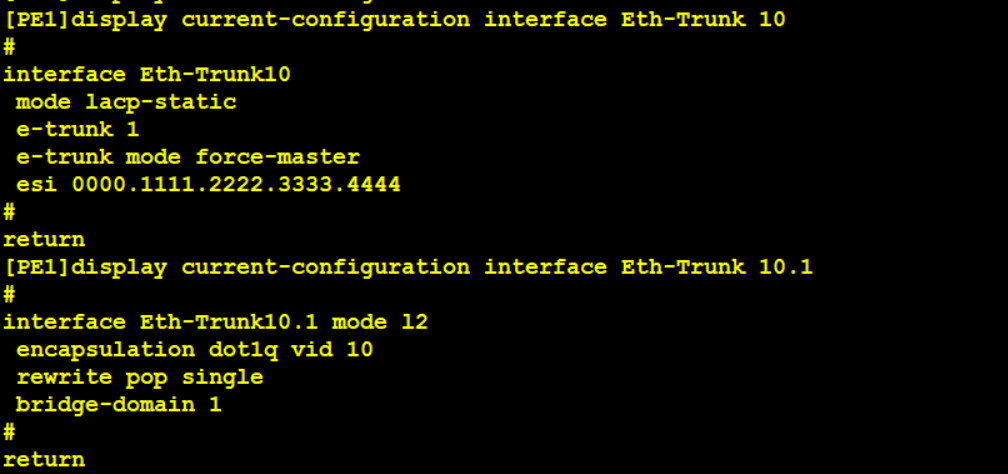

interface Eth-Trunk10
mode lacp-static
e-trunk 1
e-trunk mode force-master

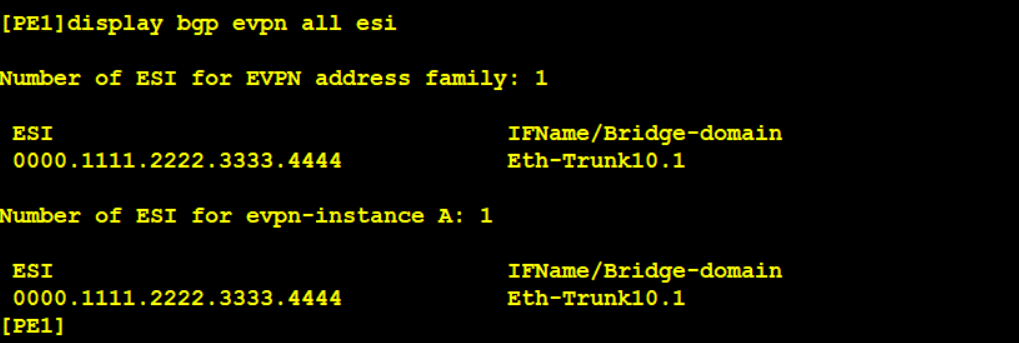

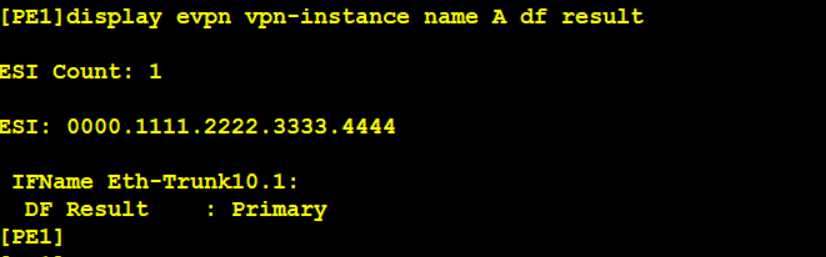

esi 0000.1111.2222.3333.4444
#
interface Eth-Trunk10.1 mode l2
encapsulation dot1q vid 10
rewrite pop single
bridge-domain 1
#

interface Ethernet1/0/1
eth-trunk 10

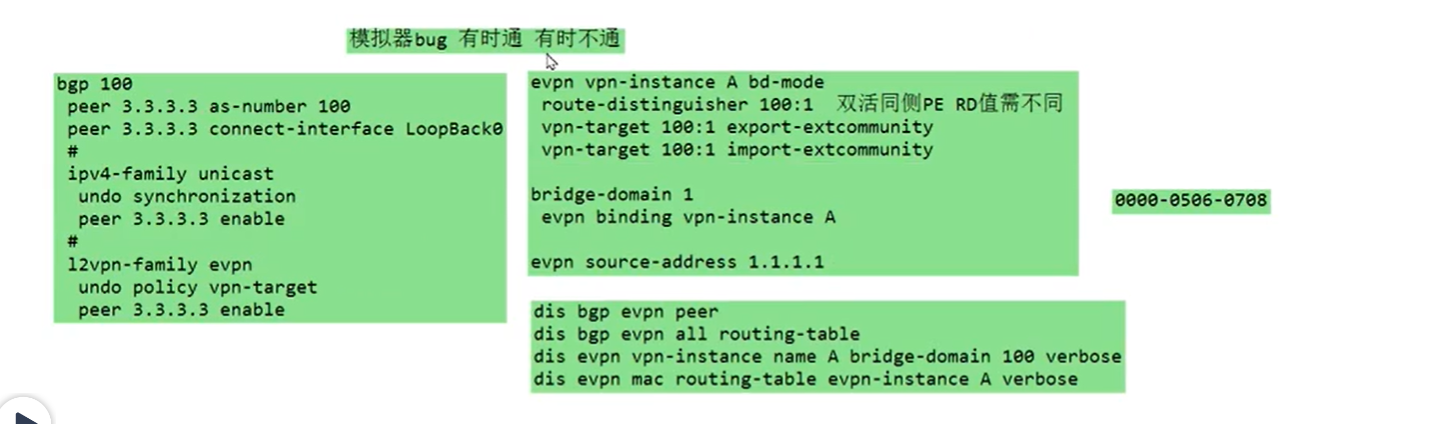

bgp 100
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0
peer 4.4.4.4 as-number 100
peer 4.4.4.4 connect-interface LoopBack0
#
ipv4-family unicast
undo synchronization
peer 2.2.2.2 enable
peer 4.4.4.4 enable
#
l2vpn-family evpn
undo policy vpn-target
peer 2.2.2.2 enable
peer 4.4.4.4 enable
#
ospf 1 router-id 1.1.1.1
area 0.0.0.0
network 0.0.0.0 255.255.255.255
#
evpn source-address 1.1.1.1
#

-------------------------------------------------------------------------------------------------------------------

PE2 配置：



sysname PE2
#
lacp e-trunk system-id 0000-0506-0708
lacp e-trunk priority 40000
#
evpn vpn-instance A bd-mode
route-distinguisher 100:2
vpn-target 100:1 export-extcommunity
vpn-target 100:1 import-extcommunity
#



bridge-domain 1
evpn binding vpn-instance A
#



e-trunk 1
peer-address 1.1.1.1 source-address 2.2.2.2
#
interface Eth-Trunk10
mode lacp-static
e-trunk 1
e-trunk mode force-master
esi 0000.1111.2222.3333.4444
#
interface Eth-Trunk10.1 mode l2
encapsulation dot1q vid 10
rewrite pop single
bridge-domain 1
#



interface Ethernet1/0/1
eth-trunk 10



#
bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
peer 4.4.4.4 as-number 100
peer 4.4.4.4 connect-interface LoopBack0
#
ipv4-family unicast
undo synchronization
peer 1.1.1.1 enable
peer 4.4.4.4 enable
#
l2vpn-family evpn
undo policy vpn-target
peer 1.1.1.1 enable
peer 4.4.4.4 enable
#



#
evpn source-address 2.2.2.2
#
return



------------------------------------------------------------------------------------------------------------------------------------

PE4 配置：



<PE4>display cu
sysname PE4
#
evpn vpn-instance A bd-mode
route-distinguisher 100:4
vpn-target 100:1 export-extcommunity
vpn-target 100:1 import-extcommunity
#
bridge-domain 1
evpn binding vpn-instance A
#



interface Eth-Trunk10
mode lacp-static
esi 0000.4444.4444.4444.4444
#
interface Eth-Trunk10.1 mode l2
encapsulation dot1q vid 10
rewrite pop single
bridge-domain 1
#
interface Ethernet1/0/1
eth-trunk 10
#
bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0
#
ipv4-family unicast
undo synchronization
peer 1.1.1.1 enable
peer 2.2.2.2 enable
#
l2vpn-family evpn
undo policy vpn-target
peer 1.1.1.1 enable
peer 2.2.2.2 enable
#



evpn source-address 4.4.4.4
#
return

---------------------------------------------------------------------------------------------------------

CE2配置:



vlan batch 10

interface Vlanif10
ip address 192.168.10.2 255.255.255.0
#
interface Eth-Trunk10
port link-type trunk
port trunk allow-pass vlan 10
mode lacp-static
#
interface Ethernet0/0/1
eth-trunk 10
