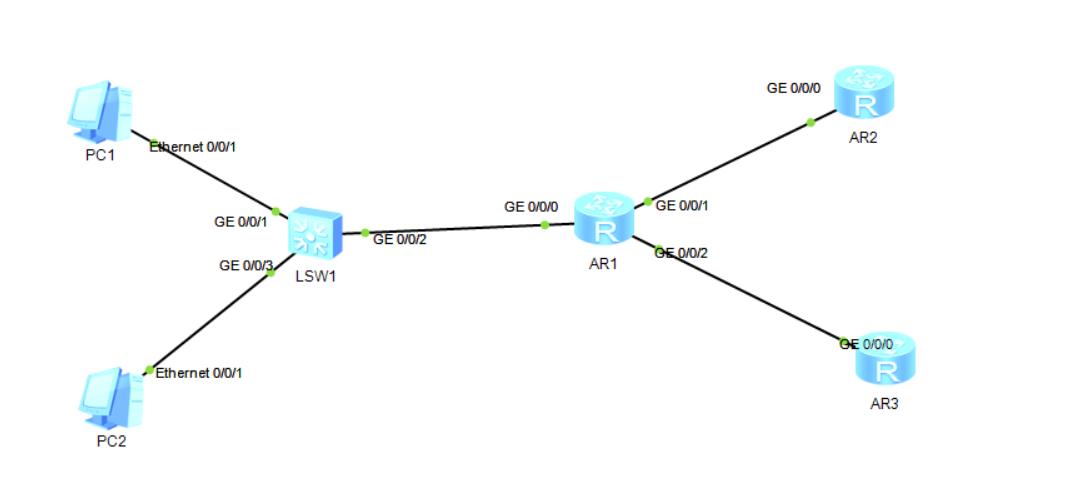

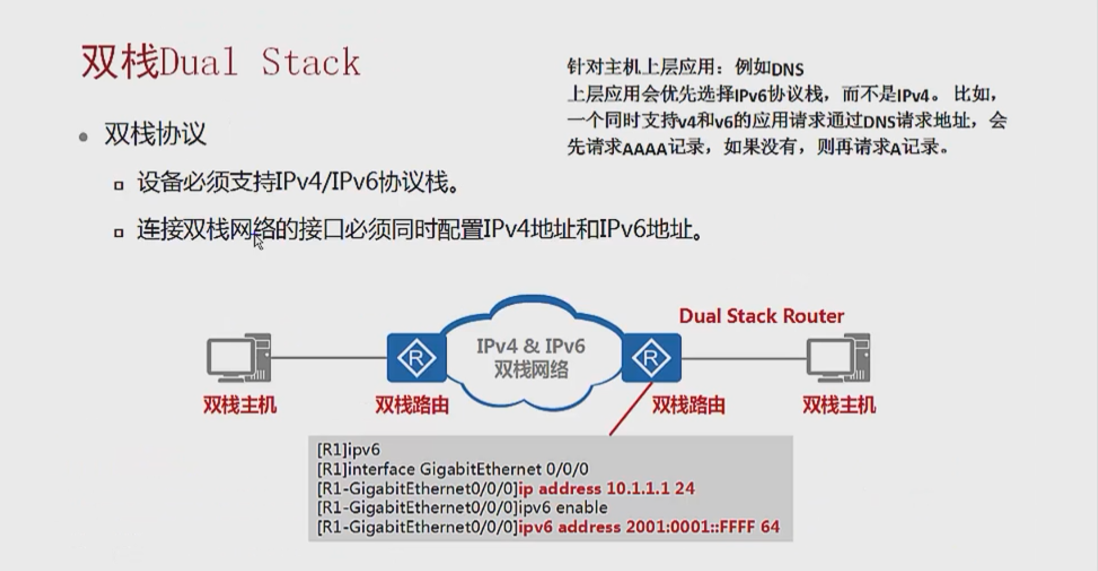

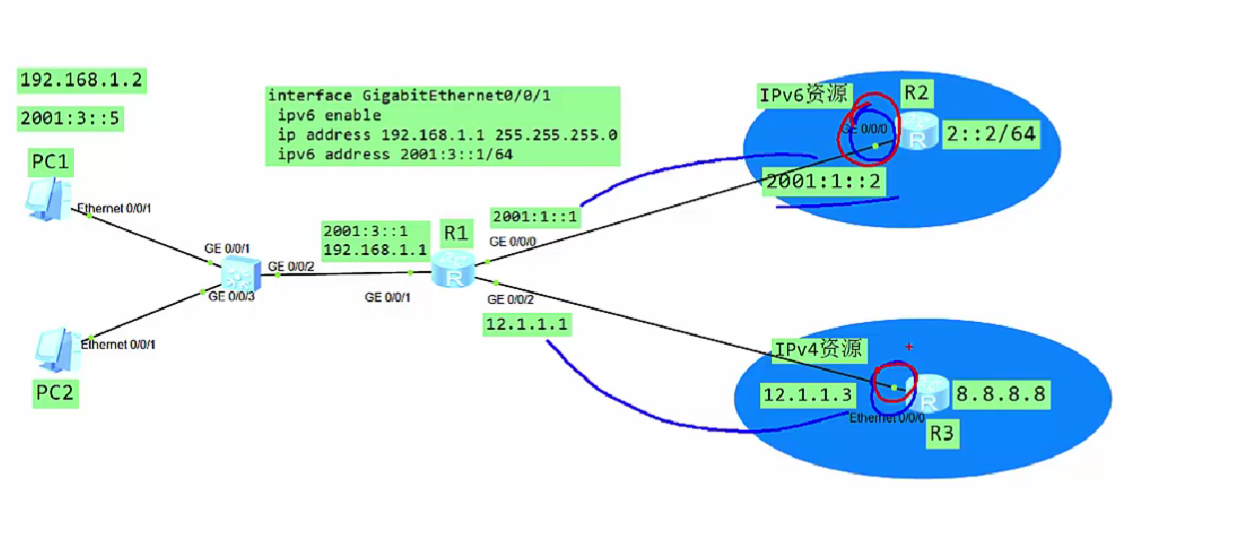

IPV6双栈

















<R1>display current-configuration
interface GigabitEthernet0/0/0
ipv6 enable
ip address 192.168.1.1 255.255.255.0
ipv6 address 2001::1/64
#
interface GigabitEthernet0/0/1
ipv6 enable
ipv6 address 2002::1/64
#
interface GigabitEthernet0/0/2
ip address 13.0.0.1 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 13.0.0.3
#
ipv6 route-static :: 0 2002::2
#
----------------------------------------------------------------------------------------------

<R2>display cu
sysname R2
ipv6

interface GigabitEthernet0/0/0
ipv6 enable
ipv6 address 2002::2/64
#
interface LoopBack0
ipv6 enable
ipv6 address 2::2/64
#
ipv6 route-static 2001:: 64 2002::1
#

----------------------------------------------------------------------------------



<R3>display cu
sysname R3

interface GigabitEthernet0/0/0
ip address 13.0.0.3 255.255.255.0
#
interface LoopBack0
ip address 8.8.8.8 255.255.255.255
#
ip route-static 192.168.1.0 255.255.255.0 13.0.0.1
#
