一、 saltstack 的api接口使用
1）检查saltstack的环境
[root@master ~]# salt-key Accepted Keys: master node01 node02 Denied Keys: Unaccepted Keys: Rejected Keys: [root@master ~]# salt '*' test.ping node02: True master: True node01: True
2）salt-api介绍
saltsatck本身就提供了一套算完整的api，使用 CherryPy 来实现 restful 的 api，供外部的程序调用。
3）api安装
3.1）yum安装方式，需要的依赖包cherry也会被安装上
yum -y install salt-api pyOpenSSL
systemctl enable salt-api
3.2）pip安装，首先要确认机器上有没有安装pip模块。
rpm -ivh https://mirrors.aliyun.com/epel/7/x86_64/s/salt-api-2015.5.10-2.el7.noarch.rpm pip install cherrypy==3.2.3 pip install cherrypy pip install salt-api
测试使用的yum安装
4）配置证书
4.1）生成的key文件
[root@master ~]# cd /etc/pki/tls/certs/ [root@master certs]# make testcert Enter pass phrase: ===> 输入加密短语，这里我使用salt2018 Verifying - Enter pass phrase: ===> 确认加密短语 umask 77 ; \ /usr/bin/openssl req -utf8 -new -key /etc/pki/tls/private/localhost.key -x509 -days 365 -out /etc/pki/tls/certs/localhost.crt -set_serial 0 Enter pass phrase for /etc/pki/tls/private/localhost.key: ===> 再次输入相同的加密短语 You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [XX]:CN State or Province Name (full name) []:BeiJing Locality Name (eg, city) [Default City]:BeiJing Organization Name (eg, company) [Default Company Ltd]: Organizational Unit Name (eg, section) []: Common Name (eg, your name or your server's hostname) []: Email Address []: [root@master certs]# pwd /etc/pki/tls/certs [root@master certs]# cd /etc/pki/tls/private/ [root@master private]# ls localhost.key =====> 生成的key文件
4.2）解密证书
[root@master private]# ls localhost.key [root@master private]# openssl rsa -in localhost.key -out localhost_nopass.key Enter pass phrase for localhost.key: ===> 输入加密短语 writing RSA key [root@master private]# ls localhost.key localhost_nopass.key
4.3）给相关的证书文件授权
chmod 755 /etc/pki/tls/certs/localhost.crt chmod 755 /etc/pki/tls/private/localhost.key chmod 755 /etc/pki/tls/private/localhost_nopass.key
5）添加用于api调用的用户
[root@master private]# useradd -M -s /sbin/nologin saltapi [root@master private]# passwd saltapi Changing password for user saltapi. New password: BAD PASSWORD: The password is shorter than 8 characters Retype new password: passwd: all authentication tokens updated successfully. 备注：此处用户名密码一样
6）修改 salt的master配置文件
[root@master private]# sed -i '/#default_include/s/#default/default/g' /etc/salt/master [root@master private]# mkdir -p /etc/salt/master.d/ [root@master private]# cd /etc/salt/master.d/ [root@master master.d]# touch eauth.conf [root@master master.d]# touch api.conf [root@master master.d]# cat api.conf rest_cherrypy: port: 8001 ssl_crt: /etc/pki/tls/certs/localhost.crt ssl_key: /etc/pki/tls/private/localhost_nopass.key [root@master master.d]# cat eauth.conf external_auth: pam: saltapi: - .* ============== 备注 saltapi # 为用户 - .* # 该配置文件给予saltapi用户所有模块使用权限，出于安全考虑一般只给予特定模块使用权限
7）启动api
systemctl restart salt-master systemctl start salt-api ps -ef|grep salt-api netstat -lnput|grep 8001
8）验证api服务
获得token [root@master ~]# curl -k https://192.168.1.5:8001/login -H "Accept: application/x-yaml" -d username='saltapi' -d password='saltapi' -d eauth='pam' return: - eauth: pam expire: 1567273181.979035 perms: - .* start: 1567229981.979034 token: e051574e03848d949650549a2ed859e4d92d8dad user: saltapi 调用test.ping [root@master ~]# curl -k https://192.168.1.5:8001/ -H "Accept: application/x-yaml" -H "X-Auth-Token: e051574e03848d949650549a2ed859e4d92d8dad" -d client='local' -d tgt='*' -d fun='test.ping' return: - master: true node01: true node02: true
二、python代码调用api接口
1）python代码调用接口
#!/usr/bin/env python # _*_ coding:utf-8 _*_ import requests import json try: import cookielib except: import http.cookiejar as cookielib # 使用urllib2请求https出错，做的设置 import ssl context = ssl._create_unverified_context() # 使用requests请求https出现警告，做的设置 from requests.packages.urllib3.exceptions import InsecureRequestWarning requests.packages.urllib3.disable_warnings(InsecureRequestWarning) salt_api = "https://192.168.1.5:8001/" class SaltApi: """ 定义salt api接口的类 初始化获得token """ def __init__(self, url): self.url = url self.username = "saltapi" self.password = "saltapi" self.headers = { "User-Agent": "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/50.0.2661.102 Safari/537.36", "Content-type": "application/json" # "Content-type": "application/x-yaml" } self.params = {'client': 'local', 'fun': '', 'tgt': ''} # self.params = {'client': 'local', 'fun': '', 'tgt': '', 'arg': ''} self.login_url = salt_api + "login" self.login_params = {'username': self.username, 'password': self.password, 'eauth': 'pam'} self.token = self.get_data(self.login_url, self.login_params)['token'] self.headers['X-Auth-Token'] = self.token def get_data(self, url, params): send_data = json.dumps(params) request = requests.post(url, data=send_data, headers=self.headers, verify=False) # response = request.text # response = eval(response) 使用x-yaml格式时使用这个命令把回应的内容转换成字典 # print response # print request # print type(request) response = request.json() result = dict(response) # print result return result['return'][0] def salt_command(self, tgt, method, arg=None): """远程执行命令，相当于salt 'client1' cmd.run 'free -m'""" if arg: params = {'client': 'local', 'fun': method, 'tgt': tgt, 'arg': arg} else: params = {'client': 'local', 'fun': method, 'tgt': tgt} print ('命令参数: ', params) result = self.get_data(self.url, params) return result def main(): print ('==================') print ('同步执行命令') salt = SaltApi(salt_api) print (salt.token) salt_client = '*' salt_test = 'test.ping' salt_method = 'cmd.run' salt_params = 'free -m' # print salt.salt_command(salt_client, salt_method, salt_params) # 下面只是为了打印结果好看点 result1 = salt.salt_command(salt_client, salt_test) for i in result1.keys(): print (i, ': ', result1[i]) result2 = salt.salt_command(salt_client, salt_method, salt_params) for i in result2.keys(): print(i) print(result2[i]) if __name__ == '__main__': main()
2）异步执行salt命令后的jid结果，首先要修改/etc/salt/master.d/eauth.conf 配置文件，增加权限，然后重启salt-master和salt-api。
[root@master master.d]# cat eauth.conf external_auth: pam: saltapi: - .* - '@runner' - '@wheel'
重启相关服务

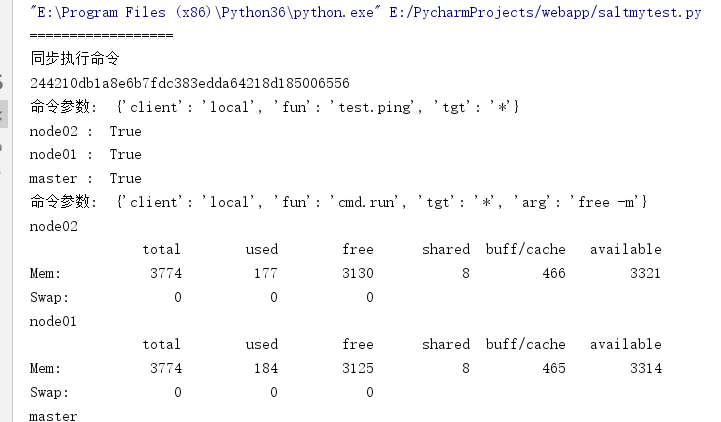

python代码调用
#!/usr/bin/env python # _*_ coding:utf-8 _*_ import requests import json try: import cookielib except: import http.cookiejar as cookielib # 使用urllib2请求https出错，做的设置 import ssl context = ssl._create_unverified_context() # 使用requests请求https出现警告，做的设置 from requests.packages.urllib3.exceptions import InsecureRequestWarning requests.packages.urllib3.disable_warnings(InsecureRequestWarning) salt_api = "https://192.168.1.5:8001/" class SaltApi: """ 定义salt api接口的类 初始化获得token """ def __init__(self, url): self.url = url self.username = "saltapi" self.password = "saltapi" self.headers = { "User-Agent": "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/50.0.2661.102 Safari/537.36", "Content-type": "application/json" # "Content-type": "application/x-yaml" } self.params = {'client': 'local', 'fun': '', 'tgt': ''} # self.params = {'client': 'local', 'fun': '', 'tgt': '', 'arg': ''} self.login_url = salt_api + "login" self.login_params = {'username': self.username, 'password': self.password, 'eauth': 'pam'} self.token = self.get_data(self.login_url, self.login_params)['token'] self.headers['X-Auth-Token'] = self.token def get_data(self, url, params): send_data = json.dumps(params) request = requests.post(url, data=send_data, headers=self.headers, verify=False) # response = request.text # response = eval(response) 使用x-yaml格式时使用这个命令把回应的内容转换成字典 # print response # print request # print type(request) response = request.json() result = dict(response) # print result return result['return'][0] def salt_command(self, tgt, method, arg=None): """远程执行命令，相当于salt 'client1' cmd.run 'free -m'""" if arg: params = {'client': 'local', 'fun': method, 'tgt': tgt, 'arg': arg} else: params = {'client': 'local', 'fun': method, 'tgt': tgt} print ('命令参数: ', params) result = self.get_data(self.url, params) return result def salt_async_command(self, tgt, method, arg=None): # 异步执行salt命令，根据jid查看执行结果 """远程异步执行命令""" if arg: params = {'client': 'local_async', 'fun': method, 'tgt': tgt, 'arg': arg} else: params = {'client': 'local_async', 'fun': method, 'tgt': tgt} jid = self.get_data(self.url, params)['jid'] return jid def look_jid(self, jid): # 根据异步执行命令返回的jid查看事件结果 params = {'client': 'runner', 'fun': 'jobs.lookup_jid', 'jid': jid} print(params) result = self.get_data(self.url, params) return result def main(): print ('==================') print ('异步执行命令') salt1 = SaltApi(salt_api) salt_client = '*' salt_method = 'cmd.run' salt_params = 'df -hT' # 下面只是为了打印结果好看点 salt_test = 'network.arp' jid1 = salt1.salt_async_command(salt_client, salt_test) result1 = salt1.look_jid(jid1) for i in result1.keys(): print (i, ': ', result1[i]) jid2 = salt1.salt_async_command(salt_client, salt_method, salt_params) result2 = salt1.look_jid(jid2) for i in result2.keys(): print (i) print (result2[i]) if __name__ == '__main__': main()
3）salt-api二次开发遇到的问题
对salt-api进行了二次开发，通过api控制minion，可能会遇到发送命令线程就进入了等待，然后就是超时。 解决方法：salt.netapi.rest_cherrypy包里面有一个app.py方法，修改'server.thread_pool': self.apiopts.get('thread_pool', 100)为200，修改'server.socket_queue_size': self.apiopts.get('queue_size', 30)为300 。重启salt-api 再次测试，OK。
修改位置
vi /usr/lib/python2.7/site-packages/salt/netapi/rest_cherrypy/app.py 修改下面两行内容 'server.thread_pool': self.apiopts.get('thread_pool', 100), 'server.socket_queue_size': self.apiopts.get('queue_size', 30), 为 'server.thread_pool': self.apiopts.get('thread_pool', 200), 'server.socket_queue_size': self.apiopts.get('queue_size', 300),
重启salt-api 服务 systemctl restart salt-api
原文链接：https://www.jianshu.com/p/012ccdff93cc
