idea搭建spring boot 整合cxf开发webService

1.新建spring boot工程



2.创建实体类User

package com.lhw.vo;

import java.io.Serializable;
import java.util.Date;

/**
 * Created by lin.hongwen@ztesoft.com
 *
 * @date 2018年04月22日
 */
public class User implements Serializable{
    private static final long serialVersionUID = -5939599230753662529L;
    private String userId;
    private String username;
    private String age;

    public String getUserId() {
        return userId;
    }

    public void setUserId(String userId) {
        this.userId = userId;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getAge() {
        return age;
    }

    public void setAge(String age) {
        this.age = age;
    }
}



3.编写服务接口

package com.lhw.service;

import com.lhw.vo.User;

import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebService;

/**
 * Created by lin.hongwen@ztesoft.com
 *
 * @date 2018年04月23日
 */
@WebService
public interface UserService {
    @WebMethod
    public String getName (@WebParam(name = "userId") String userId);

    @WebMethod
    public User getUser(String userId);
}





4.编写接口实现类

package com.lhw.service;

import com.lhw.vo.User;

import javax.jws.WebService;

/**
 * Created by lin.hongwen@ztesoft.com
 *
 * @date 2018年04月24日
 */

//注意 这里的targetNamespace 要以/结尾 否则会找不到方法
@WebService(targetNamespace = "http://service.lhw.com/", endpointInterface = "com.lhw.service.UserService")
public class UserServiceImpl implements UserService{
    @Override
    public String getName(String userId) {
        return "hello lhw:"+userId;
    }

    @Override
    public User getUser(String userId) {
        User user = new User();
        user.setAge("24");
        user.setUserId("100");
        user.setUsername("linhw");
        return user;
    }
}





5.配置类CxfConfig

package com.lhw.config;

import com.lhw.service.UserService;
import com.lhw.service.UserServiceImpl;
import org.apache.cxf.Bus;
import org.apache.cxf.bus.spring.SpringBus;
import org.apache.cxf.jaxws.EndpointImpl;
import org.apache.cxf.transport.servlet.CXFServlet;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.xml.ws.Endpoint;

/**
 * Created by lin.hongwen@ztesoft.com
 *
 * @date 2018年04月22日
 */
@Configuration
public class CxfConfig {

    @Bean
    public ServletRegistrationBean dispatcherServlet() {
        return new ServletRegistrationBean(new CXFServlet(), "/service/*");
    }

    @Bean(name = Bus.DEFAULT_BUS_ID)
    public SpringBus springBus() {
        return new SpringBus();
    }

    @Bean
    public UserService userService() {
        return new UserServiceImpl();
    }

    @Bean
    public Endpoint endpoint() {
        EndpointImpl endpoint = new EndpointImpl(springBus(), userService());
        endpoint.publish("/user");
        return endpoint;
    }
}



6.编写启动程序

package com.lhw;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * Created by lin.hongwen@ztesoft.com
 *
 * @date 2018年04月22日
 */
@SpringBootApplication
public class start {
    public static void main(String[] args){
        SpringApplication.run(start.class);
    }
}

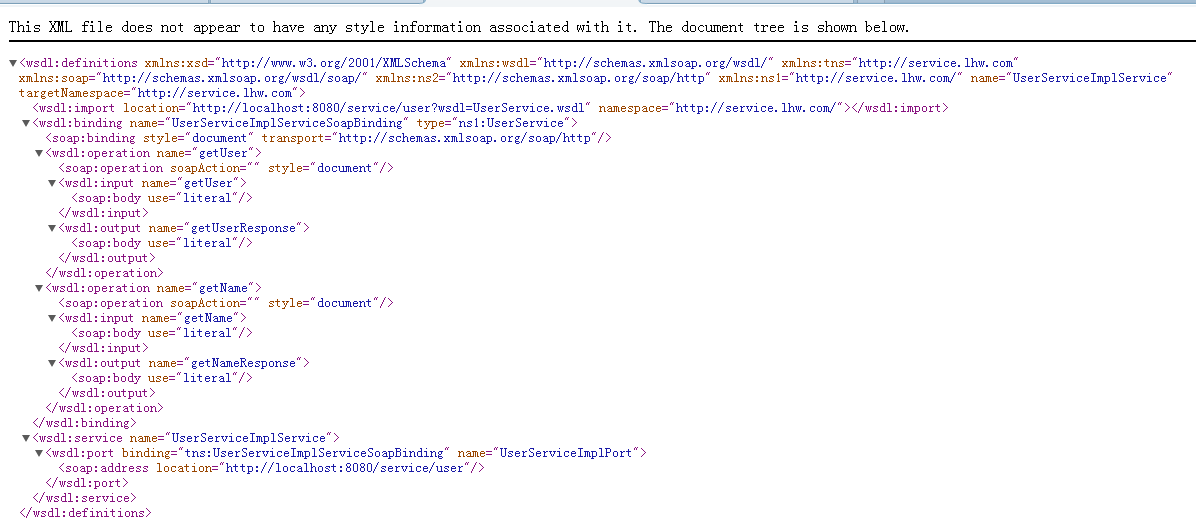

启动项目后。根据配置类的配置路径  这里是：http://localhost:8080/service/user?wsdl

即可看到wsdl信息







7.编写客户端代码

package com.lhw.service;

import org.apache.cxf.endpoint.Client;
import org.apache.cxf.jaxws.endpoint.dynamic.JaxWsDynamicClientFactory;

/**
 * Created by lin.hongwen@ztesoft.com
 *  客户端调用代码
 * @date 2018年04月25日
 */
public class UserClient {

    public static void main(String[] args) throws Exception{
        JaxWsDynamicClientFactory clientFactory = JaxWsDynamicClientFactory.newInstance();
        Client client = clientFactory.createClient("http://localhost:8080/service/user?wsdl");
        Object[] objects = client.invoke("getName","21");
        System.out.println(objects[0].toString());
    }
}

运行main函数就可以看到结果



8.客户端代码2

    @RequestMapping(value = "/test-bssWebService/{infName}", method = RequestMethod.POST)
    public void indexTest(HttpServletRequest request, @RequestBody String xml, @PathVariable String infName) {
        try {

            logger.info("----------------自测自己的webService服务端--------------------"+infName);
            String WSurl  = "http://10.47.248.150:7008/iom-adapter/bss/BSSProcessSheet?wsdl";
            org.apache.axis.client.Service service = new org.apache.axis.client.Service();
            Call call = (Call) service.createCall();
            call.setTargetEndpointAddress(new URL(WSurl));
            call.setOperationName(infName);

            JSONObject jsonObject = JSONObject.parseObject(xml);
            int sheetType = Integer.valueOf(jsonObject.get("sheetType").toString());
            int serviceType = Integer.valueOf(jsonObject.get("serviceType").toString());
            String serialNo = jsonObject.get("serialNo").toString();
            String serSupplier = jsonObject.get("serSupplier").toString();
            String serCaller = jsonObject.get("serCaller").toString();
            String callerPwd = jsonObject.get("callerPwd").toString();
            String callTime = jsonObject.get("callTime").toString();
            String attachRef = jsonObject.get("attachRef").toString();
            String opPerson = jsonObject.get("opPerson").toString();
            String opCorp = jsonObject.get("opCorp").toString();
            String opDepart = jsonObject.get("opDepart").toString();
            String opContact = jsonObject.get("opContact").toString();
            String opTime = jsonObject.get("opTime").toString();
            String opDetail = jsonObject.get("opDetail").toString();

            String retStr = (String) call.invoke(new Object[]{sheetType, serviceType, serialNo, serSupplier, serCaller,
                    callerPwd, callTime, attachRef, opPerson, opCorp, opDepart, opContact, opTime, opDetail});
            System.out.print("------------------调用webService结果:"+retStr);
        } catch (Exception ex) {
            ex.printStackTrace();
        }
    }
