chaosblade-box探针安装



chaosblade-box探针安装

1.kubectl get svc -A获取chaosblade-box的信息；

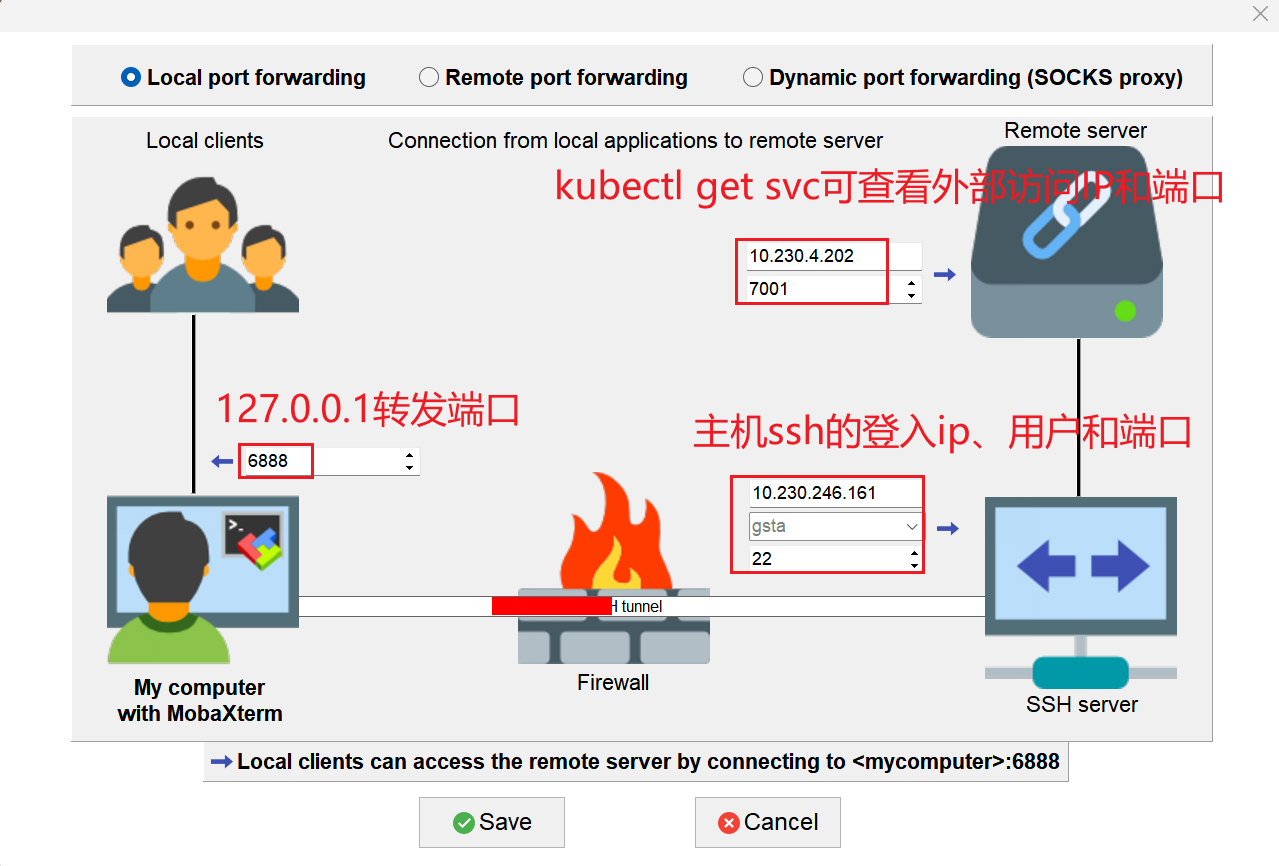

2.配置端口转发；

3.注册账户后，登入账户；

4.下载好软件包chaos-1.7.3-linux-amd64.tar.gz，并将其加压缩在/opt/目录下，然后执行脚本安装探针；

root@dupf101:/home/gsta# kubectl get svc -A
NAMESPACE          NAME                                 TYPE           CLUSTER-IP      EXTERNAL-IP    PORT(S)                                                                                              AGE
chaosblade         chaosblade-box                       LoadBalancer   10.233.26.34    10.230.4.202   7001:31176/TCP                                                                                       29h
chaosblade         chaosblade-box-mysql                 ClusterIP      10.233.43.179   <none>         3306/TCP                                                                                             29h
chaosblade         chaosblade-webhook-server            ClusterIP      10.233.6.65     <none>         443/TCP                                                                                              28h
default            kubernetes                           ClusterIP      10.233.0.1      <none>         443/TCP                                                                                              19d

　　









在集群所有的节点安装agent
root@dupf102:/home/gsta# tar -zxvf chaos-1.7.3-linux-amd64.tar.gz -C /opt/
root@dupf102:/home/gsta# cd /opt/
root@dupf102:/opt#
root@dupf102:/opt# ll
drwxr-xr-x 8 root root 4096 Mar 25 15:01 ./
drwxr-xr-x 24 root root 4096 Mar 6 15:46 ../
drwxr-xr-x 3 502 staff 4096 Jul 29 2024 chaos/
drwxr-xr-x 3 kube root 4096 Mar 6 09:57 cni/
drwx--x--x 4 root root 4096 Mar 6 15:46 containerd/
drwxrwxrwx 3 root root 4096 Mar 6 14:05 kubeinstall/
drwxr-xr-x 2 root root 4096 Mar 6 14:00 kubelet-isolcpus/
drwxr-xr-x 3 root root 4096 Mar 5 21:58 mellanox/
root@dupf102:/opt# cd chaos/
root@dupf102:/opt/chaos#

root@dupf102:/opt/chaos# sh /opt/chaos/chaosctl.sh install -k 073b9e6947be4ed9bc67c0c65eac5ef2 -p  agent -g default -P 6888 -t 10.230.4.202:7001
-e 2025-03-25 15:04:34 [INFO]  [+stop] chaos is stopped.
-e 2025-03-25 15:04:34 [INFO]  [+crontab] add crontab cmd
-e 2025-03-25 15:04:34 [INFO]  [+starting] chaos is starting...
-e 2025-03-25 15:04:35 [INFO]  success
root@dupf102:/opt/chaos#
