.Net MVC 下的图片轮播、图片上传、图片裁剪上传
所用到的工具：layui、cropper.js
一、轮播上传
公司要求做一个主页轮播配置，这个很好做，主要就是建一个图片表用来存图片的信息，然后所使用的就是主页根据所选图片的路径实现图片轮播。
先来看成品图，然后我会从前端到后台再到后台来分解我的项目。
图1 轮播上传

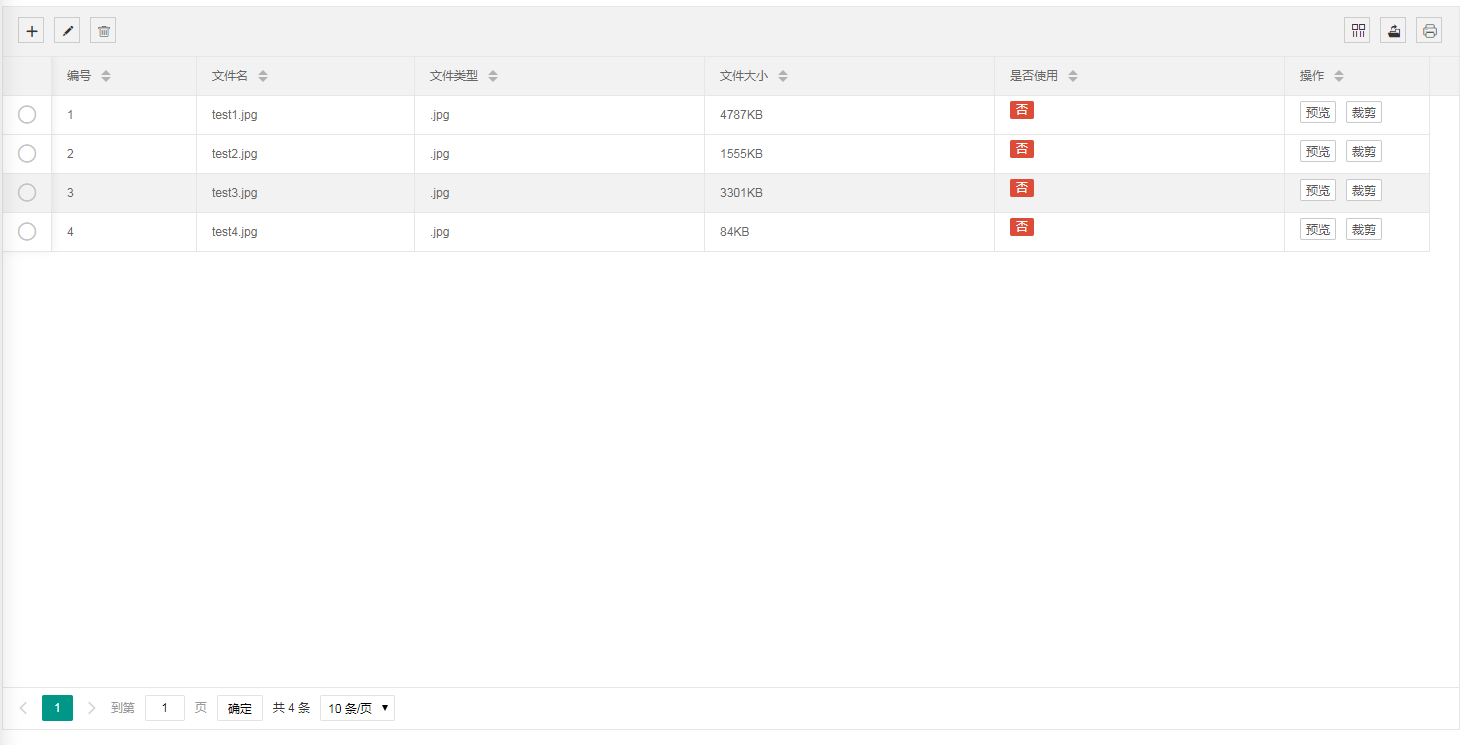

图2 轮播设置

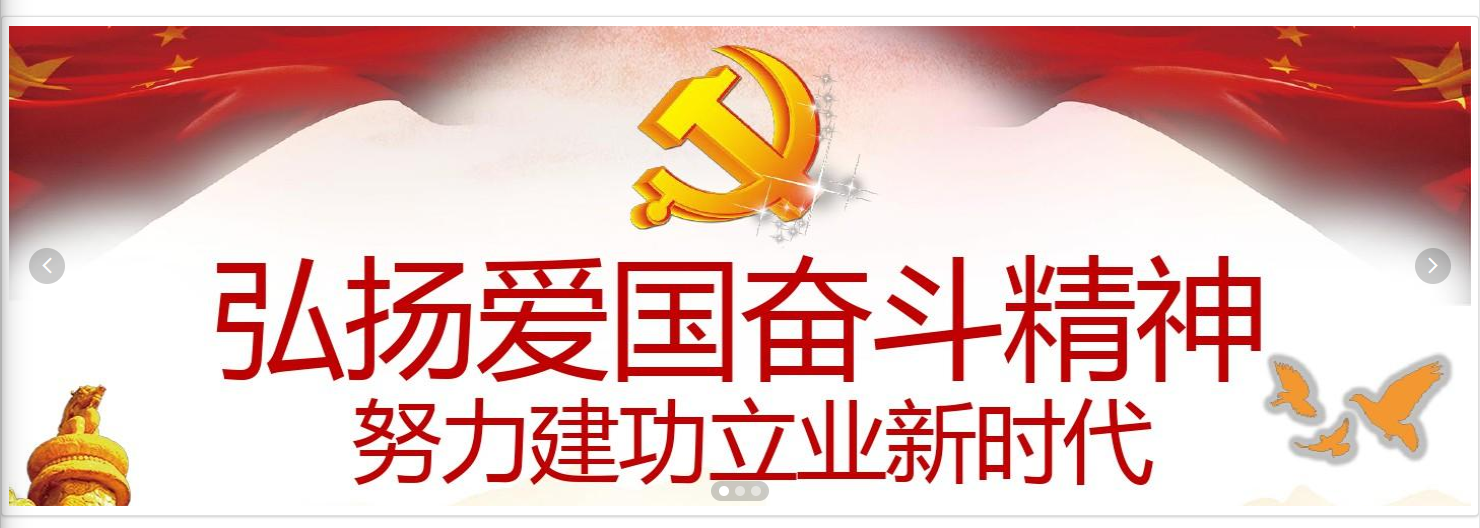

图3 轮播显示
先从数据库设计开始说吧，数据库设计为下图所示：
| 字段名称 | 类型 | 是否为空 | 备注 |
| ID | int | 否 | 文件编号 |
| FileName | varchar(50) | 否 | 文件名称 |
| FileFormat | varchar(10) | 否 | 文件格式 |
| FilePath | varchar(100) | 否 | 文件地址 |
| FileSize | float | 否 | 文件大小 |
| IsUse | int | 是 | 是否使用 |
然后是文件上传处前端实现，前端用的是laiyui，可以到https://www.layui.com/学习使用，这里就不讲了，主要的逻辑就是，前端显示样式，先点击“多图片选择”，选择你想要选的图片，选择完成后，实现轮播图的渲染显示，然后点击“上传”按钮时，将图片上传到后台，因为layui的多图片上传实际就是单图片上传的循环，所以在controller层接收的时候，直接就接收文件对象就行了。
前端代码：
运用了layui的“多图片上传”、“轮播图”加一展示，就是普通的页面渲染。
@{ ViewBag.Title = "CarouselPoster"; } <link rel="stylesheet" href="~/Content/NewMainPage/layui/css/layui.css" /> <body> <fieldset class="layui-elem-field"> <legend>预览展示</legend> <div class="layui-field-box"> <div class="layui-carousel" id="CarouselPoster" lay-filter="CarouselPosterFilter"> <div carousel-item="" id="CarouselPosterItem" class="layui-upload-list"></div> </div> </div> </fieldset> <fieldset class="layui-elem-field"> <legend>图片上传</legend> <div class="layui-field-box"> <div class="layui-upload"> <button type="button" class="layui-btn layui-btn-normal" id="ImgSelect">多图片选择</button> <span style="color:#999999;font-size:12px">建议尺寸:1600 * 500</span> <button type="button" class="layui-btn" id="upload">开始上传</button> <blockquote class="layui-elem-quote layui-quote-nm" style="margin-top: 10px;"> 预览图： <div class="layui-upload-list" id="ImgShow"></div> </blockquote> </div> </div> </fieldset> <script src="~/Scripts/jquery-1.11.1.min.js"></script> <script src="~/Content/NewMainPage/layui/layui.js"></script> <script> layui.use(['carousel', 'form','upload'], function(){ var carousel = layui.carousel ,form = layui.form; var $ = layui.jquery ,upload = layui.upload; var options = { elem: '#CarouselPoster' ,width: '100%' //轮播层宽度 ,height: '500px' //轮播层高度 ,interval: 1000 //时间间隔 }; var ins = carousel.render(options); upload.render({ elem: '#ImgSelect' ,url: '../File/UploadImg' //上传url ,multiple: true ,auto: false ,bindAction: '#upload' ,choose: function(obj){ obj.preview(function(index, file, result){ $('#ImgShow').append('<img src="'+ result +'" alt="'+ file.name +'" style="height:100px;" class="layui-upload-img">') #上传预览的图片 $('#CarouselPosterItem').append('<div><img src="'+ result +'" alt="'+ file.name +'" style="width:100%" class="layui-upload-img"><div>'); #轮播图预览 ins.reload(options); }); } ,before: function(obj){ layer.load(2); } ,done: function(res,index,upload){ layer.closeAll('loading'); if(res.Success || res.flag === "true"){ layer.msg("上传成功！"); }else{ layer.msg("上传失败！"); } } ,error:function(index,upload){ layer.closeAll('loading'); } }); }); </script> </body>
controller层
就是普通的图片存取，和数据存取。
[HttpPost] public ActionResult UploadImg(HttpPostedFileBase file) { if (file != null) { var path = "/uploads/"; var uploadpath = Server.MapPath(path); if (!Directory.Exists(uploadpath)) { Directory.CreateDirectory(uploadpath); } string fileName = Path.GetFileName(file.FileName);// 原始文件名称 string fileExtension = Path.GetExtension(fileName); // 文件扩展名 string saveName = Guid.NewGuid() + fileExtension; // 保存文件名称 float size = file.ContentLength / 1000; try { file.SaveAs(uploadpath + saveName); } catch(Exception e) { return Json(new { Success = false, Message = "文件上传失败！"}, JsonRequestBehavior.AllowGet); } FileItem fileItem = new FileItem { FileName = fileName, FileFormat = fileExtension, FilePath = path + saveName, FileSize = size }; DataBLL _BLL_Data = new DataBLL(); string flag = _BLL_Data.UploadImgToTable(fileItem); return Json(new { Success = true, Message = flag }); } return Json(new { Success = false, Message = "请选择要上传的文件！"}, JsonRequestBehavior.AllowGet); }
文件信息类 FileItem
namespace InternetDataMine.Models.domain { public class FileItem {
//文件名 public string FileName { get; set; } //文件格式 public string FileFormat { get; set; } //文件路径 public string FilePath { get; set; } //文件大小 public float FileSize { get; set; } //是否使用 public int IsUse { get; set; } public string toString() { return "filename: " + FileName + " fileformat: " + FileFormat + " filepath: " + FilePath + " filesize: " + FileSize + " isUse: " + IsUse; } } }
Model层
就是普通插表操作
/// <summary> /// 文件上传 /// </summary> /// <param name="fileItem">文件对象</param> /// <returns></returns> public string UploadImgToTable(FileItem fileItem) { string sql = "insert into [ShineView_Data].[dbo].[RYFile] values('" + fileItem.FileName + "','" + fileItem.FileFormat + "','" + fileItem.FilePath + "','" + fileItem.FileSize + "','" + fileItem.IsUse + "')"; if (dal.ExcuteSql(sql)) { return "true"; } return "false"; }
二、轮播设置
轮播设置主要就是，图片表的删除和修改操作。目前还支持图片的预览和裁剪功能。
2.1 图片表的删除和修改
就是对上面存到表格里面，图片信息的修改和删除操作
前端代码：
图片表格页面：
@{ ViewBag.Title = "PosterSetting"; } <link rel="stylesheet" href="~/Content/layui/css/layui.css" /> <body> <table class="layui-hide" id="test" lay-filter="test"></table> <script src="~/Content/layui/layui.js"></script> <script src="~/Scripts/jquery-1.11.1.min.js"></script> <script src="~/Scripts/jquery.cookie.js"></script> <script src="~/Content/NewMainPage/table_his.js"></script> <script> renderTable(); function renderTable(){ layui.use('table', function () { var table = layui.table; $.ajax({ url: '../File/GetPosterInfo', #图片表格信息获取
dataType: 'json', type: 'post', success: function (result) { table.render({ elem: '#test' , data: result.rows , toolbar: 'default' , page: true , height: document.body.clientHeight - 55 , cols: [[ {type: 'radio', fixed: 'left'} , { field: 'TmpID', width: '10%', title: '编号', sort: true } , { field: 'FileName', width: '15%', title: '文件名', sort: true} , { field: 'FileFormat', width: '20%', title: '文件类型', sort: true } , { field: 'ID', width: '20%', title: 'ID', sort: true ,hide:true} , { field: 'FilePath', width: '20%', title: '文件路径', sort: true ,hide:true} , { field: 'FileSize', width: '20%', title: '文件大小', sort: true , templet: FileSize} , { field: 'IsUse', width: '20%', title: '是否使用', sort: true , templet: IsUse} , { field: 'Operate', width: '10%', title: '操作', sort: true , templet: Operate} ]] }); //监听头工具栏事件 table.on('toolbar(test)', function(obj){ var checkStatus = table.checkStatus(obj.config.id) ,data = checkStatus.data; //获取选中的数据 switch(obj.event){ case 'add': layer.msg('添加操作请在"轮播海报上传"处操作，这里不支持'); break; case 'update': if(data.length === 0){ layer.msg('请选择一行'); } else if(data.length > 1){ layer.msg('只能同时编辑一个'); } else { editlayer(checkStatus.data[0]); } break; case 'delete': if(data.length === 0){ layer.msg('请选择一行'); } else { layer.msg('是否确定删除？', { time: 20000, //20s后自动关闭 btn: ['确定', '取消'], yes: function () { removelayer(checkStatus.data[0]); } }); } break; }; }); } }) }); } function editlayer(row){ var url = encodeURI('/File/PosterEdit?IsUse=' + row.IsUse); #编辑页面url layui.use('layer', function(){ var $ = layui.jquery, layer = layui.layer; var that = this; var index = layer.open({ type: 2 ,title: '<h4>编辑菜单</h4>' ,area: ['550px', '450px'] ,shade: 0 ,offset: [ $(window).height()/2-225 ,$(window).width()/2-275 ] ,content: url ,btn: ['确定', '取消'] ,yes: function (index, layero){ var data = $(layero).find("iframe").contents().find("#add_form").serialize(); $.ajax({ cache: false, method: 'POST', datatype: 'json', url: "../File/editPosterInfo?MineCode=" + row.ID + "&"+data, #修改图片表格信息 success: function (data) { if(data === "true"){ layer.close(index); window.location.reload(); } }, }); } ,btn2: function(){ layer.close(); } ,zIndex: layer.zIndex }); }); } function removelayer(row){ $.ajax({ cache: false, method: 'POST', datatype: 'json', url: "../File/deletePosterInfo&MineCode=" + row.ID, #删除图片表格信息 success: function (data) { if(data === "true"){ $.ajax({ cache: false, method: 'POST', datatype: 'json', url: "../File/RemoveImg?FilePath=" + row.FilePath, #删除图片 success: function (data) { if(data.Success){ window.location.reload(); }else{ layer.msg(data.Message); } } }); } }, }); } function FileSize(data){ return data.FileSize.toString() + "KB"; } function IsUse(data){ var isUse = data.IsUse.toString(); if(isUse === "1"){ return '<span class="layui-badge layui-bg-green">是</span>'; }else{ return '<span class="layui-badge layui-bg-red">否</span>'; } } function Operate(data){ var FilePath = data.FilePath.toString(); var ID = data.ID.toString(); var FileFormat =data.FileFormat.toString(); var str = '<button type="button" class="layui-btn layui-btn-primary layui-btn-xs" onclick="preview(\'' + FilePath + '\')">预览</button>' + '<button type="button" class="layui-btn layui-btn-primary layui-btn-xs" onclick="cropper(\'' + FilePath + '\',\'' + ID + '\',\'' + FileFormat + '\')">裁剪</button>'; return str; } function preview(FilePath){ layui.use('layer', function(){ var $ = layui.jquery, layer = layui.layer; var that = this; var index = layer.open({ type: 1 ,title: '<h4>图片预览</h4>' ,area: ['800px', '500px'] ,shade: 0 ,offset: [ $(window).height()/2-250 ,$(window).width()/2-400 ] ,content: '<img src="' + FilePath + '" style="width:800px">' ,zIndex: layer.zIndex }); }); } function cropper(FilePath,ID,FileFormat){ var url = encodeURI('/File/ImgCropper?FilePath=' + FilePath + '&ID=' + ID + '&FileFormat=' + FileFormat); layui.use('layer', function(){ var $ = layui.jquery, layer = layui.layer; var that = this; var index = layer.open({ type: 2 ,title: '<h4>裁剪图片</h4>' ,area: ['1300px', '650px'] ,shade: 0 ,offset: [ $(window).height()/2-325 ,$(window).width()/2-600 ] ,content: url ,zIndex: layer.zIndex ,cancel: function () { window.location.reload(); } }); }); } </script> </body>
编辑页面：
@{ ViewBag.Title = "PosterEdit"; } <link rel="stylesheet" href="~/Content/layui/css/layui.css" /> <body> <form id="add_form"> <div class="layui-form" style="margin-top:20px;padding-right:15px"> <div class="layui-form-item"> <label class="layui-form-label">是否使用:</label> <div class="layui-input-block"> <select id="IsUse" name="IsUse" lay-search="" lay-filter="IsUsefilter"> <option value="0">否</option> <option value="1">是</option> </select> </div> </div> </div> </form> <script src="~/Content/layui/layui.js"></script> <script src="~/Scripts/jquery-1.11.1.min.js"></script> <script> $(function (){ RenderSelect(); $('#IsUse').val(getQueryString("IsUse")); #获取是否使用，0-否，1-是 }); //获取url的参数 function getQueryString(name) { var reg = new RegExp("(^|&)" + name + "=([^&]*)(&|$)", "i"); var r = window.location.search.substr(1).match(reg); if (r != null) return decodeURI(r[2]); return null; } function RenderSelect(){ layui.use(['form', 'upload', 'layer'], function () { var form = layui.form; form.render("select"); }); } </script> </body>
controller层（只显示图片删除，数据的增删改查，我想大家都会的）
[HttpPost]
#filepath从前端获取的图片路径 public ActionResult RemoveImg(string filepath) { if (filepath != null) { var path = ".."; var uploadpath = Server.MapPath(path); try { System.IO.File.Delete(uploadpath + filepath.Replace(@"/", @"\")); } catch (Exception e) { return Json(new { Success = false, Message = "文件删除失败！" }, JsonRequestBehavior.AllowGet); } return Json(new { Success = true, Message = "文件删除成功！" }, JsonRequestBehavior.AllowGet); } return Json(new { Success = false, Message = "无法获取要删除的文件路径！" }, JsonRequestBehavior.AllowGet); }
图片裁剪
前端代码：
@{ ViewBag.Title = "ImgCropper"; } <head> <link rel="stylesheet" href="~/Content/NewMainPage/plugins/cropper/css/cropper.css"> <link rel="stylesheet" href="~/Content/bootstrap/css/bootstrap.min.css"> <link rel="stylesheet" href="~/Content/layui/css/layui.css"/> <link rel="stylesheet" href="~/Content/NewMainPage/plugins/cropper/css/main.css"/> </head> <body> <!-- Content --> <div class="container"> <div class="row"> <div class="col-md-9"> <!-- <h3>Demo:</h3> --> <div class="img-container"> <img id="image" src="#" alt="Picture"> </div> </div> <div class="col-md-3"> <!-- <h3>Preview:</h3> --> <div class="docs-preview clearfix"> <div class="img-preview preview-lg"></div> <div class="img-preview preview-md"></div> <div class="img-preview preview-sm"></div> <div class="img-preview preview-xs"></div> </div> </div> </div> <div class="row"> <div class="col-md-9 button-container"> <div class="layui-inline"> <label class="layui-form-label">裁剪框高度：</label> <div class="layui-input-inline"> <input id="input_height" type="tel" name="height" class="layui-input"> </div> </div> <div class="layui-inline"> <label class="layui-form-label">裁剪框宽度：</label> <div class="layui-input-inline"> <input id="input_width" type="text" name="width" class="layui-input"> </div> <span style="color:#808080;font-size:12px">（填比例）</span> </div> <div class="layui-inline"> <button id="CropBoxSet" type="button" class="layui-btn">设置裁剪框</button> </div> <div class="layui-inline"> <button id="submit" type="button" class="layui-btn layui-btn-normal">保存</button> </div> </div> </div> </div> <div></div> <script src="~/Scripts/jquery-1.11.1.min.js"></script> <script src="~/Content/NewMainPage/plugins/cropper/js/cropper.js"></script> <script src="~/Content/bootstrap/js/bootstrap.min.js"></script> <script src="~/Content/layui/layui.js"></script> <script> var FilePath = getQueryString("FilePath"); $("#image").attr("src",FilePath); var ID = getQueryString("ID"); var FileFormat = getQueryString("FileFormat"); if (!HTMLCanvasElement.prototype.toBlob) { Object.defineProperty(HTMLCanvasElement.prototype, 'toBlob', { value: function (callback, type, quality) { var canvas = this; setTimeout(function() { var binStr = atob( canvas.toDataURL(type, quality).split(',')[1] ); var len = binStr.length; var arr = new Uint8Array(len); for (var i = 0; i < len; i++) { arr[i] = binStr.charCodeAt(i); } callback(new Blob([arr], { type: type || 'image/png' })); }); } }); } //获取url的参数 function getQueryString(name) { var reg = new RegExp("(^|&)" + name + "=([^&]*)(&|$)", "i"); var r = window.location.search.substr(1).match(reg); if (r != null) return decodeURI(r[2]); return null; } $('#image').cropper({ viewMode:1, preview: '.img-preview', }); $("#CropBoxSet").on("click", function () { var b_height = parseInt($("#input_height").val()); var b_width = parseInt($("#input_width").val()); var width; var height; if(b_height > b_width){ var height = parseInt($('#image').cropper('getCanvasData').height); var width = height * b_width / b_height; }else{ var width = parseInt($('#image').cropper('getCanvasData').width); var height = width * b_height / b_width; } $('#image').cropper('setCropBoxData',{width:width,height:height}); })
# 上传主要分为两步，第一步，文件上传只能传文件，所以就需要两个请求，第一个请求将blob文件传到后台保存，返回文件信息，第二请求就是根据返回信息，修改数据库操作。 $("#submit").on("click", function () { showMsg("上传中....请不要操作"); $('#image').cropper('getCroppedCanvas').toBlob(function (blob) { var formData = new FormData(); formData.append('file', blob); $.ajax('/File/PosterCropper', { method: "POST", data: formData, processData: false, contentType: false, success: function (data) { if(data.Success){ n_filename = data.Message; $.ajax({ url:'/File/UpdatePosterTable?ID=' + ID + '&FilePath=' + FilePath + '&FileFormat=' + FileFormat + '&n_FileName=' + n_filename + '&FileSize=' + data.Size, method: "POST", dataType: "json", success: function (data) { if(data.Success){ showMsg("保存成功"); }else{ showMsg("保存失败"); } }, error: function (data) { showMsg("保存失败"); } }); }else{ showMsg("保存失败"); } }, error: function (data) { showMsg("保存失败"); } }); }); }) function showMsg(msg){ layui.use('layer', function(){ var $ = layui.jquery, layer = layui.layer; layer.msg(msg); }); } </script> </body>
后台代码：
controller层：
[HttpPost] public ActionResult PosterCropper(HttpPostedFileBase file) { if (file != null) { var path = "/uploads/"; var uploadpath = Server.MapPath(path); if (!Directory.Exists(uploadpath)) { Directory.CreateDirectory(uploadpath); } string fileName = Path.GetFileName(file.FileName);// 原始文件名称 string fileExtension = ".jpg"; // 文件扩展名 string saveName = Guid.NewGuid() + fileExtension; // 保存文件名称 float size = file.ContentLength / 1000; try { file.SaveAs(uploadpath + saveName); } catch (Exception e) { return Json(new { Success = false, Message = "文件上传失败！" }, JsonRequestBehavior.AllowGet); } return Json(new { Success = true, Message = saveName , Size = size}); } return Json(new { Success = false, Message = "请选择要上传的文件！" }, JsonRequestBehavior.AllowGet); } public ActionResult UpdatePosterTable(string ID,string FilePath,string FileFormat, string n_FileName, string FileSize) { var d_path = ".."; var d_uploadpath = Server.MapPath(d_path); try { System.IO.File.Delete(d_uploadpath + FilePath.Replace(@"/", @"\")); } catch (Exception e) { return Json(new { Success = false, Message = "文件删除失败！" }, JsonRequestBehavior.AllowGet); } FileItem fileItem = new FileItem { FilePath = "/uploads/" + n_FileName, FileSize = int.Parse(FileSize) / 1000 }; DataBLL _BLL_Data = new DataBLL(); string flag = _BLL_Data.editImgToTable(fileItem, ID); return Json(new { Success = true, Message = "文件上传成功！" }, JsonRequestBehavior.AllowGet); }
model层:
/// <summary> /// 修改海报信息 /// </summary> /// <param name="MineCode">编号</param> /// <param name="isUse">是否使用</param> /// <returns></returns> public string editPosterInfo(string MineCode, string isUse) { string sql = "update [ShineView_Data].[dbo].[RYFile] set IsUse = '" + isUse + "' where ID = '" + MineCode + "'"; if (dal.ExcuteSql(sql)) { return "true"; } return "false"; } /// <summary> /// 删除海报信息 /// </summary> /// <param name="MineCode">编号</param> /// <returns></returns> public string deletePosterInfo(string MineCode) { string sql = "delete from [ShineView_Data].[dbo].[RYFile] where ID = '" + MineCode + "'"; if (dal.ExcuteSql(sql)) { return "true"; } return "false"; }
昨天刚写的代码（前端会出现冗余的情况，还没来的及优化），只提供一个思路给大家。
