WPF学习——基于Mvvm模式下的餐馆订餐系统小示例

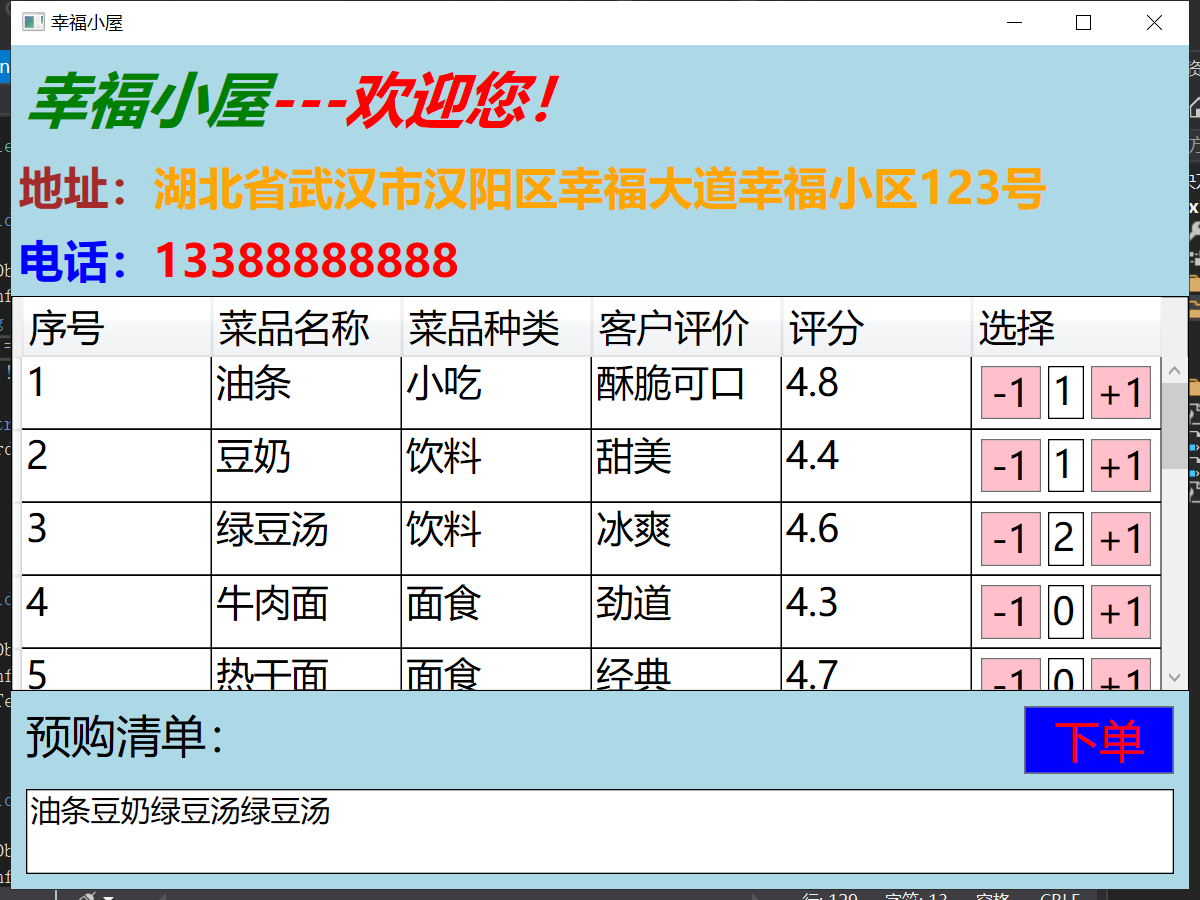

订餐小系统的界面主要内容为餐馆信息显示，菜品表格呈现。选择栏中按钮进行菜品的选择，可以对数量进行加减，并将订单信息实时显示在预购清单中。最后点击下单按钮，将订单信息保存到硬盘orders.txt文本中。界面呈现画面如下图所示。

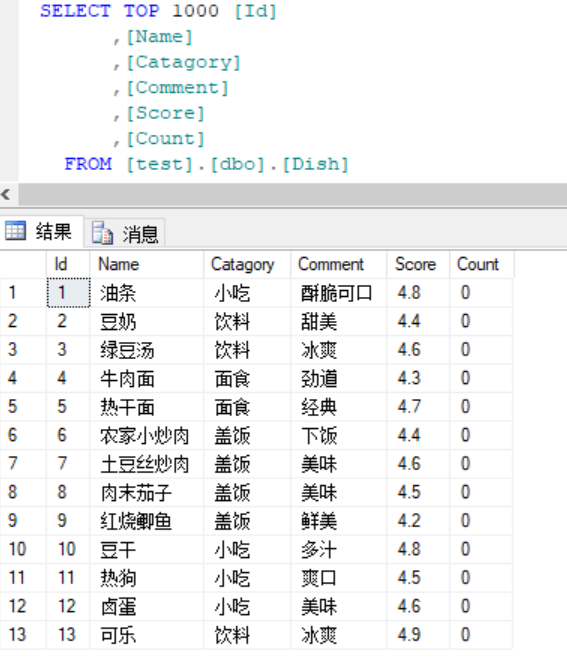

1. 数据库信息，我用的SQLServer。表格如下图所示。
2. 新建Models文件夹，添加Dish与Restaurant类。

       class Dish
       {
           public int Id { get; set; }
           public string  Name { get; set; }
           public string Catagory { get; set; }
           public string  Comment { get; set; }
           public double Score { get; set; }
           public int Count { get; set; }


       }

       class Restaurant
       {
           public string Name { get; set; }
           public string Address { get; set; }
           public string PhoneNumber { get; set; }

       }



3. 新增Db文件夹，添加localDb类。

     class localDb
       {
           public localDb()
           {

           }
           private List<Dish> Dishes;
           private List<Restaurant> Restaurants;
           public List<Dish> GetDishes()
           {
               Dishes = new List<Dish>();
               string connString = Properties.Settings.Default.Database;
               string sql = "SELECT  [Id],[Name],[Catagory],[Comment],[Score],[Count] FROM [test].[dbo].[Dish]";
               using (SqlConnection conn = new SqlConnection(connString))
               {
                   conn.Open();
                   SqlCommand cmd = new SqlCommand(sql, conn);
                   SqlDataReader reader = cmd.ExecuteReader();
                   while (reader.Read())
                   {
                       Dish dish = new Dish() {Id=(int)reader["Id"], Name=(string)reader["Name"],Catagory=(string)reader["Catagory"],
                       Comment=(string)reader["Comment"],Score=(double)reader["Score"],Count=(int)reader["Count"]};
                       Dishes.Add(dish);
                   }
                   return Dishes;
               }
           }
           public List<Restaurant> GetRestaurants()
           {
               Restaurants = new List<Restaurant>();
               string connString = Properties.Settings.Default.Database;
               string sql = "SELECT TOP 1 [Name],[Address],[PhoneNumber] FROM [test].[dbo].[Restaurant]";
               using (SqlConnection conn = new SqlConnection(connString))
               {
                   conn.Open();
                   SqlCommand cmd = new SqlCommand(sql, conn);
                   SqlDataReader reader = cmd.ExecuteReader();
                   while (reader.Read())
                   {
                       Restaurant restaurant = new Restaurant()
                       {
                           Name = (string)reader["Name"],
                           Address = (string)reader["Address"],
                           PhoneNumber = (string)reader["PhoneNumber"]
                       };
                       Restaurants.Add(restaurant);
                   }
                   return Restaurants;

               }
           }
           public string GetNameById(int? id)
           {
               localDb localDb = new localDb();

               string name = localDb.GetDishes().FirstOrDefault(t => t.Id == id).Name;
               return name;
           }

           public void CountAddOne(int? id)
           {
               string connString = Properties.Settings.Default.Database;
               string sql = "update test.dbo.Dish set [Count]=@count where Id=@id";
               localDb localDb = new localDb();
               List<Dish> dishes = localDb.GetDishes();
               var count = dishes.FirstOrDefault(t => t.Id == id).Count+1;
               using (SqlConnection conn=new SqlConnection(connString))
               {
                   conn.Open();
                   SqlCommand cmd = new SqlCommand(sql, conn);
                   cmd.Parameters.Add(new SqlParameter("@count",count));
                   cmd.Parameters.Add(new SqlParameter("@id",id));
                   cmd.ExecuteNonQuery();
               }

           }

           public void CountSubOne(int? id)
           {
               string connString = Properties.Settings.Default.Database;
               string sql = "update test.dbo.Dish set [Count]=@count where Id=@id";
               localDb localDb = new localDb();
               List<Dish> dishes = localDb.GetDishes();
               var count = dishes.FirstOrDefault(t => t.Id == id).Count - 1;
               if (count >= 0)
               {
                   using (SqlConnection conn = new SqlConnection(connString))
                   {
                       conn.Open();
                       SqlCommand cmd = new SqlCommand(sql, conn);
                       cmd.Parameters.Add(new SqlParameter("@count", count));
                       cmd.Parameters.Add(new SqlParameter("@id", id));
                       cmd.ExecuteNonQuery();
                   }
               }
           }
           public void SetCountZero()
           {
               string connString = Properties.Settings.Default.Database;
               string sql = "update test.dbo.Dish set [Count]=0";
               using (SqlConnection conn = new SqlConnection(connString))
               {
                   conn.Open();
                   SqlCommand cmd = new SqlCommand(sql, conn);
                   cmd.ExecuteNonQuery();
               }
           }
       }

   localDb类中主要有6个方法：
   GetDishes方法，用来获取数据库中Dish表内所有数据，返回一个List<Dish>。
   GetRestaurant方法，用来获取数据库中Restaurant表内所有数据，返回一个List<Restaurant>。
   GetNameById方法，根据Id搜索数据库中Dish表内对应的Name。用于在选择点击“+1”“-1”按钮时，通过按钮绑定的Id获取相应菜品的Name，并且附加到预购清单文本框中。
   CountAddOne方法，用于在选择点击“+1”按钮时，将数据库表内对应Count属性值加一。
   CountSubOne方法，用于在选择点击“-1”按钮时，将数据库表内对应Count属性值减一。
   SetCountZero方法，用于在点击“下单”按钮时，将数据库表内所有Count属性值置零。

4. 新增ViewModels文件夹，添加MainWindowViewModel类。

    class MainWindowViewModel:BindableBase
       {
           public MainWindowViewModel()
           {
               localDb = new localDb();
               DishInfo = localDb.GetDishes();
               RestaurantInfo = localDb.GetRestaurants();
               Name = RestaurantInfo.FirstOrDefault().Name;
               Address = RestaurantInfo.FirstOrDefault().Address;
               Phone = RestaurantInfo.FirstOrDefault().PhoneNumber;
               AddOneCommand = new DelegateCommand<int?>(t => AddOne(t));
               SubOneCommand = new DelegateCommand<int?>(t=>SubOne(t));
               OrderFinishCommand = new DelegateCommand(OrderFinish);

           }
           localDb localDb;


           private List<Dish> dishInfo;
           public List<Dish> DishInfo
           {
               get { return dishInfo; }
               set
               {
                   dishInfo = value;
                   RaisePropertyChanged("DishInfo");
               }
           }

           private List<Restaurant> restaurantInfo;

           public List<Restaurant> RestaurantInfo
           {
               get { return restaurantInfo; }
               set
               {
                   restaurantInfo = value;
                   RaisePropertyChanged("RestaurantInfo");
               }
           }
           private string name;

           public string Name
           {
               get { return name; }
               set
               {
                   name = value;
                   RaisePropertyChanged("Name");
               }
           }
           private string address;

           public string Address
           {
               get { return address; }
               set
               {
                   address = value;
                   RaisePropertyChanged("Address");
               }
           }
           private string phone;

           public string Phone
           {
               get { return phone; }
               set
               {
                   phone = value;
                   RaisePropertyChanged("Phone");
               }
           }

           private string  orderText;

           public string  OrderText
           {
               get { return orderText; }
               set
               {
                   orderText = value;
                   RaisePropertyChanged("OrderText");
               }
           }

   public DelegateCommand<int?> SubOneCommand { get; set; }
           public DelegateCommand<int?> AddOneCommand { get; set; }

           public DelegateCommand OrderFinishCommand { get; set; }

           public void SubOne(int? id)
           {
               localDb.CountSubOne(id);
               DishInfo = localDb.GetDishes();
               string name = localDb.GetNameById(id);
               int n = OrderText.IndexOf(name);
               if (n != -1)
               {
                   string s = OrderText.Remove(n, name.Length);
                   OrderText = s;
               }

           }

           public void AddOne(int? id)
           {
               localDb.CountAddOne(id);
               DishInfo = localDb.GetDishes();
               OrderText += localDb.GetNameById(id);
           }

           public void OrderFinish()
           {
               localDb.SetCountZero();
               DishInfo = localDb.GetDishes();
               System.IO.File.WriteAllText(@"D:\orders.txt", OrderText);
               OrderText = string.Empty;
           }

   MainWindowViewModel类中有6各属性：
   DishInfo接受List<Dish>，绑定主界面DataGrid的ItemsSource。
   RestaurantInfo接受List<Restaurant>，将内部值再分给Name、Address、Phone属性，分别绑定到主界面的TextBlock中。
   OrderText接受选择的菜品名称。

   3个命令：
   SubOneCommand，绑定DataGrid中选择栏中的“-1”按钮的Command。
   AddOneCommand，绑定DataGrid中选择栏中的“+1”按钮的Command。
   OrderFinishCommand，绑定“下单”按钮的Command。

   3个方法：
   SubOne，与SubOneCommand关联。SubOneCommand = new DelegateCommand<int?>(t=>SubOne(t));

   AddOne，与AddOneCommand关联。AddOneCommand = new DelegateCommand<int?>(t => AddOne(t));
   OrderFinish，与OrderFinishCommand关联。OrderFinishCommand = new DelegateCommand(OrderFinish);

5. MainWindow.xaml.cs中给DataContext赋值。

   public MainWindow()
           {
               InitializeComponent();
               this.DataContext = new MainWindowViewModel();
           }



6. MainWindow.xaml中创建主画面布局。

      <Border Background="LightBlue">
           <Grid>

               <Grid.RowDefinitions>
                   <RowDefinition Height="auto"/>
                   <RowDefinition Height="auto"/>
                   <RowDefinition Height="auto"/>
                   <RowDefinition Height="2*"/>
                   <RowDefinition Height="*"/>
               </Grid.RowDefinitions>
               <StackPanel Grid.Row="0" Orientation="Horizontal">
                   <TextBlock Text="{Binding Name}" FontSize="40" FontStyle="Italic"
                         Foreground="Green" FontWeight="Bold" Margin="10,10,0,10" VerticalAlignment="Center"/>
                   <TextBlock Text="---欢迎您！" FontSize="40" FontStyle="Italic"
                          Foreground="Red" FontWeight="Bold" Margin="0,10,10,10" VerticalAlignment="Center"/>
               </StackPanel>
               <StackPanel Grid.Row="1" Orientation="Horizontal">
                   <TextBlock Text="地址：" FontSize="30" Margin="5,5,0,5" FontWeight="Black" Foreground="Brown" VerticalAlignment="Center"/>
                   <TextBlock Text="{Binding Address}" FontSize="30" FontWeight="Black" Margin="0,5,5,5" Foreground="Orange" VerticalAlignment="Center" />
               </StackPanel>
               <StackPanel Grid.Row="2" Orientation="Horizontal">
                   <TextBlock Text="电话：" FontSize="30" Margin="5,5,0,5" FontWeight="Black" Foreground="Blue"  VerticalAlignment="Center"/>
                   <TextBlock Text="{Binding Phone}" FontSize="30" FontWeight="Black" Margin="0,5,5,5" Foreground="Red" VerticalAlignment="Center" />
               </StackPanel>
               <DataGrid Grid.Row="3" ColumnWidth="*" AutoGenerateColumns="False" ItemsSource="{Binding DishInfo}"
                     CanUserAddRows="False" FontSize="25" BorderBrush="Black">
                   <DataGrid.Columns>
                       <DataGridTextColumn Header="序号" Binding="{Binding Id}"></DataGridTextColumn>
                       <DataGridTextColumn Header="菜品名称" Binding="{Binding Name}"></DataGridTextColumn>
                       <DataGridTextColumn Header="菜品种类" Binding="{Binding Catagory}"></DataGridTextColumn>
                       <DataGridTextColumn Header="客户评价" Binding="{Binding Comment}"></DataGridTextColumn>
                       <DataGridTextColumn Header="评分" Binding="{Binding Score}"></DataGridTextColumn>
                       <DataGridTemplateColumn Header="选择" >
                           <DataGridTemplateColumn.CellTemplate>
                               <DataTemplate>
                                   <DockPanel LastChildFill="True">
                                       <Button Content="-1" Width="40"
                                              CommandParameter="{Binding Id}"
                                               Command="{Binding DataContext.SubOneCommand,RelativeSource={RelativeSource Mode=FindAncestor,AncestorType=DataGrid}}"
                                              Background="Pink" Margin="5,5,0,5" DockPanel.Dock="Left"/>
                                       <Button Content="+1" Width="40"
                                               CommandParameter="{Binding Id}"
                                               Command="{Binding DataContext.AddOneCommand,RelativeSource={RelativeSource Mode=FindAncestor,AncestorType=DataGrid}}"
                                              Background="Pink" Margin="5" DockPanel.Dock="Right"/>
                                       <TextBox  Margin="5,5,0,5"  BorderBrush="Black" Text="{Binding Count}"/>
                                   </DockPanel>
                               </DataTemplate>
                           </DataGridTemplateColumn.CellTemplate>
                       </DataGridTemplateColumn>
                   </DataGrid.Columns>
               </DataGrid>
               <Grid Grid.Row="4" Margin="5">
                   <Grid.RowDefinitions>
                       <RowDefinition Height="auto"></RowDefinition>
                       <RowDefinition Height="*"></RowDefinition>
                   </Grid.RowDefinitions>
                   <Grid.ColumnDefinitions>
                       <ColumnDefinition></ColumnDefinition>
                       <ColumnDefinition Width="auto"></ColumnDefinition>
                   </Grid.ColumnDefinitions>
                   <TextBlock Grid.Row="0" Grid.Column="0" Text="预购清单：" FontSize="30" Margin="5" />
                   <Button  Grid.Row="0" Grid.Column="1" Content="下单" Width="100" Command="{Binding OrderFinishCommand}"
                        FontSize="30" Margin="5" Height="45" Background="Blue" Foreground="Red"/>
                   <TextBox  Grid.Row="1" Grid.Column="0" Grid.ColumnSpan="2" FontSize="20" TextWrapping="Wrap"
                                BorderBrush="Black" Margin="5" HorizontalAlignment="Stretch" VerticalAlignment="Stretch"
                             Text="{Binding OrderText}"/>
               </Grid>


           </Grid>

       </Border>

   我做的有点花里胡哨，肯定还是可以优化的。我觉得很关键的一点就是选择栏中的“+1”“-1”按钮的属性CommandParameter=“{Binding Id}”。
   在我们触发SubOneCommand<int?>传进来的参数就是CommandParameter。

7. 这样就大功告成了。代码方面应该还是会有一些小bug，一些愚蠢的操作网友也就见笑了，总之一起讨论进步。
   源代码我就发百度网盘了。


   链接：https://pan.baidu.com/s/1xwepaXFXZT-ziHB17z0-cQ
   提取码：b1ft
