Zabbix监控TCP状态

1：环境

Zabbix-server	5.0
Zabbix-agent	5.0

2：实战操作

#!/bin/bash
#TCP连接数及状态

if [ $# -ne 1 ];then
        echo -e "\033[32mUsage: sh $0 {ESTABLISHED|LISTEN|TIME_WAIT|CLOSED|CLOSE_WAIT|CLOSING|FIN_WAIT1|FIN_WAIT2|LAST_ACK|SYN_RECV|SYN_SENT}\033[0m"
        exit 1
fi

case $1 in
        ESTABLISHED)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "ESTABLISHED")
        echo $result
        ;;
        LISTEN)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "LISTEN")
        echo $result
        ;;
        TIME_WAIT)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "TIME_WAIT")
        echo $result
        ;;
        CLOSED)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "CLOSED")
        echo $result
        ;;
        CLOSE_WAIT)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "CLOSE_WAIT")
        echo $result
        ;;
        CLOSING)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "CLOSING")
        echo $result
        ;;
        FIN_WAIT1)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "FIN_WAIT1")
        echo $result
        ;;
        FIN_WAIT2)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "FIN_WAIT2")
        echo $result
        ;;
        LAST_ACK)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "LAST_ACK")
        echo $result
        ;;
        SYN_RECV)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "SYN_RECV")
        echo $result
        ;;
        SYN_SENT)
        result=$(netstat -an | awk '/^tcp/ {print $0}'|grep -wc "SYN_SENT")
        echo $result
        ;;
        *)
        echo -e "\033[32mUsage: sh $0 {ESTABLISHED|LISTEN|TIME_WAIT|CLOSED|CLOSE_WAIT|CLOSING|FIN_WAIT1|FIN_WAIT2|LAST_ACK|SYN_RECV|SYN_SENT}\033[0m"
esac

参数如下：
1：ESTABLISHED   # socket已经建立连接
2：LISTEN        # 监听状态
3：TIME_WAIT     # 表示收到了对方的FIN报文，并发送出了ACK报文，等待2MSL后就可回到CLOSED状态
4：CLOSED        # socket没有被使用，无连接
5：CLOSE_WAIT    # 等待关闭连接
6：CLOSING       # 服务器端和客户端都同时关闭连接
7：FIN_WAIT1     # 套接字已关闭，连接正在关闭
8：FIN_WAIT2     # 连接已关闭，套接字正在等待从远程端关闭
9：LAST_ACK      # 远端关闭，当前socket被动关闭后发送FIN报文，等待对方ACK报文
10：SYN_RECV     # 接收到SYN报文
11：SYN_SENT     # 已经发送SYN报文

[root@zabbix-agent script]# ./check_tcp.sh
Usage: sh ./check_tcp.sh {ESTABLISHED|LISTEN|TIME_WAIT|CLOSED|CLOSE_WAIT|CLOSING|FIN_WAIT1|FIN_WAIT2|LAST_ACK|SYN_RECV|SYN_SENT}

3：配置监控

# 写入脚本到以下路径
# /etc/zabbix/zabbix_agent2.d/script/check_tcp.sh
[root@zabbix-agent script]# chmod +x /etc/zabbix/zabbix_agent2.d/script/check_tcp.sh
[root@zabbix-agent script]# cat /etc/zabbix/zabbix_agent2.d/custom.conf
UserParameter=check_tcp[*],/etc/zabbix/zabbix_agent2.d/script/check_tcp.sh $1
[root@zabbix-agent script]# systemctl restart zabbix-agent2.service

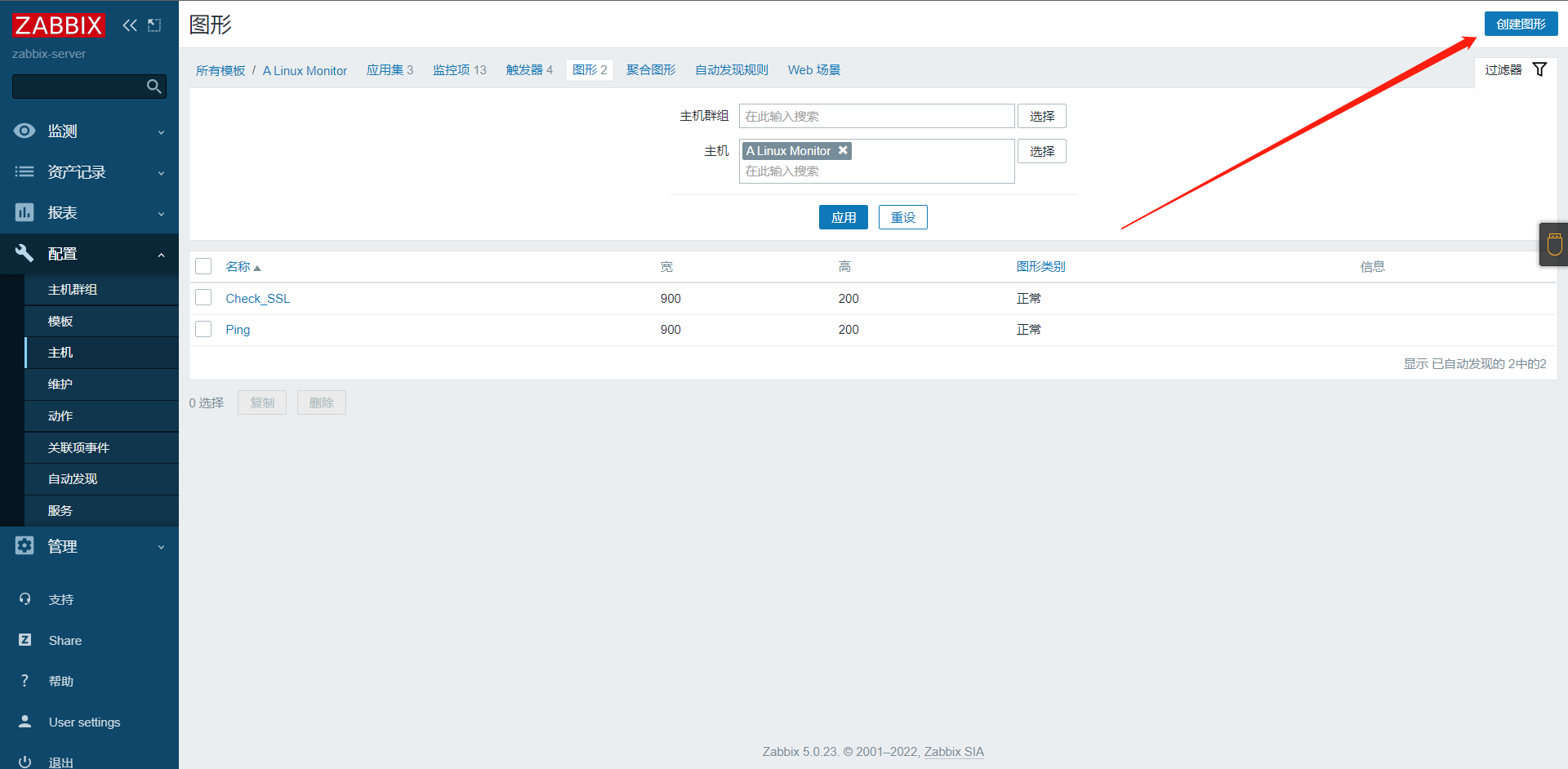

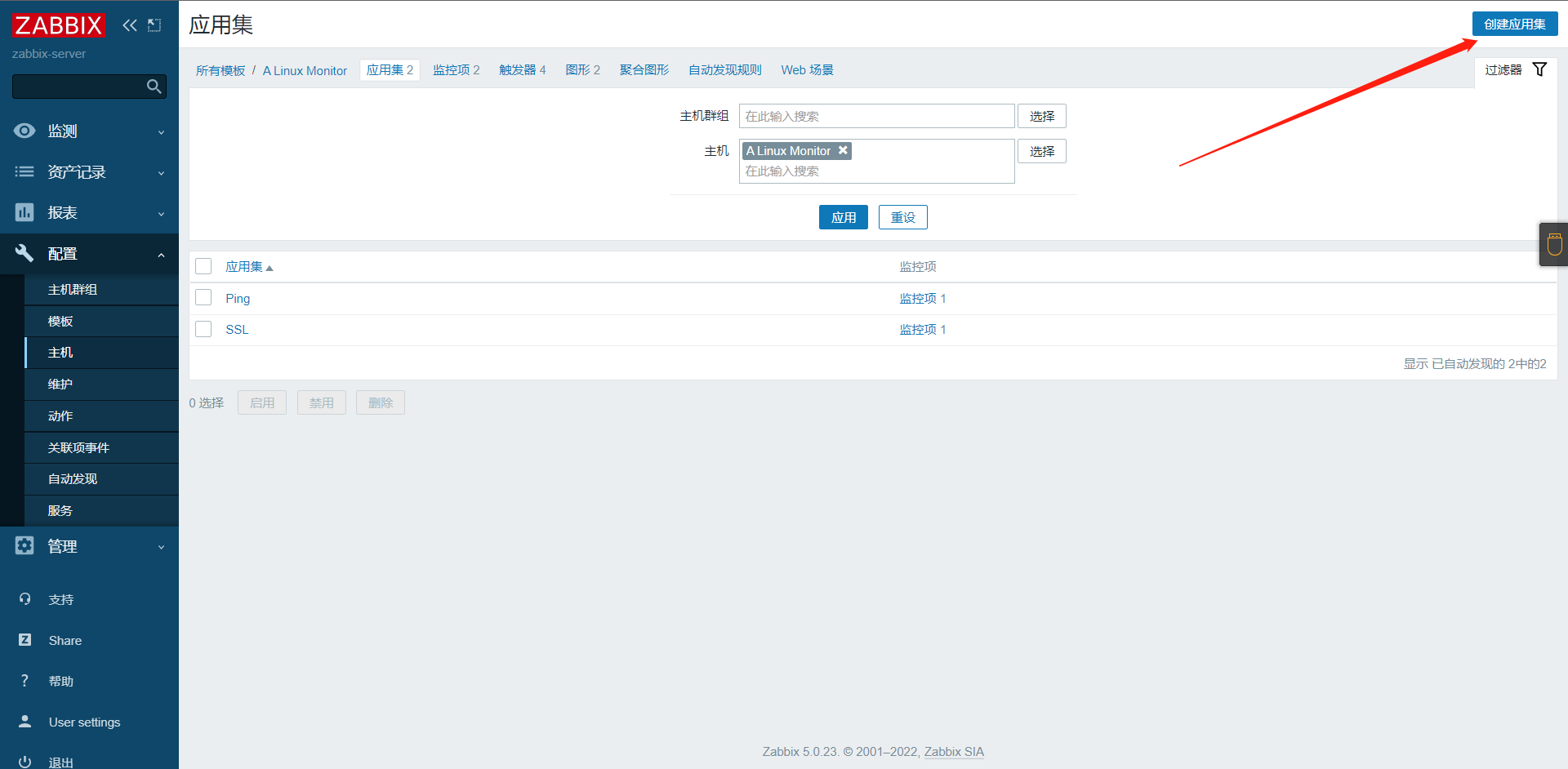

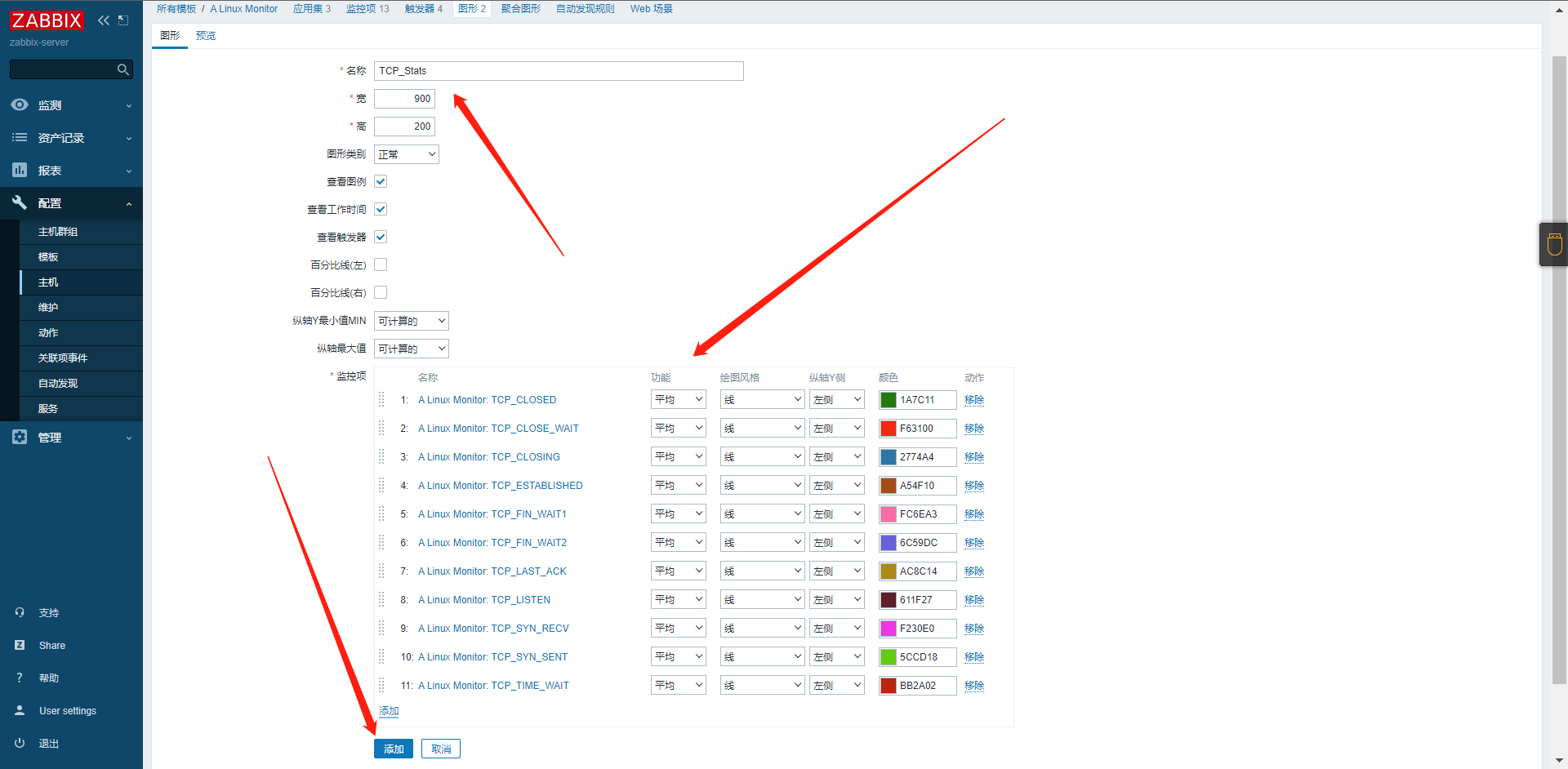

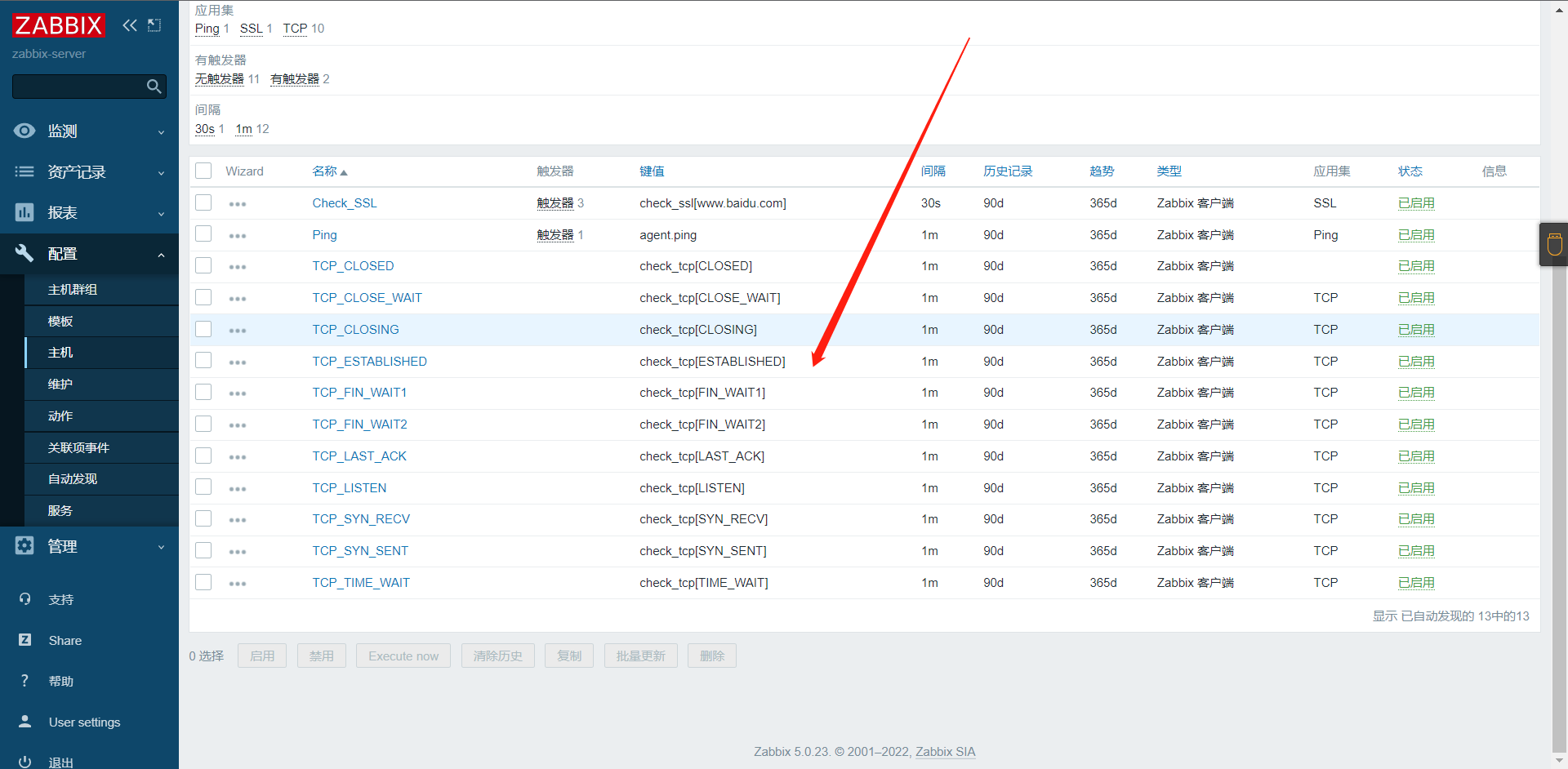

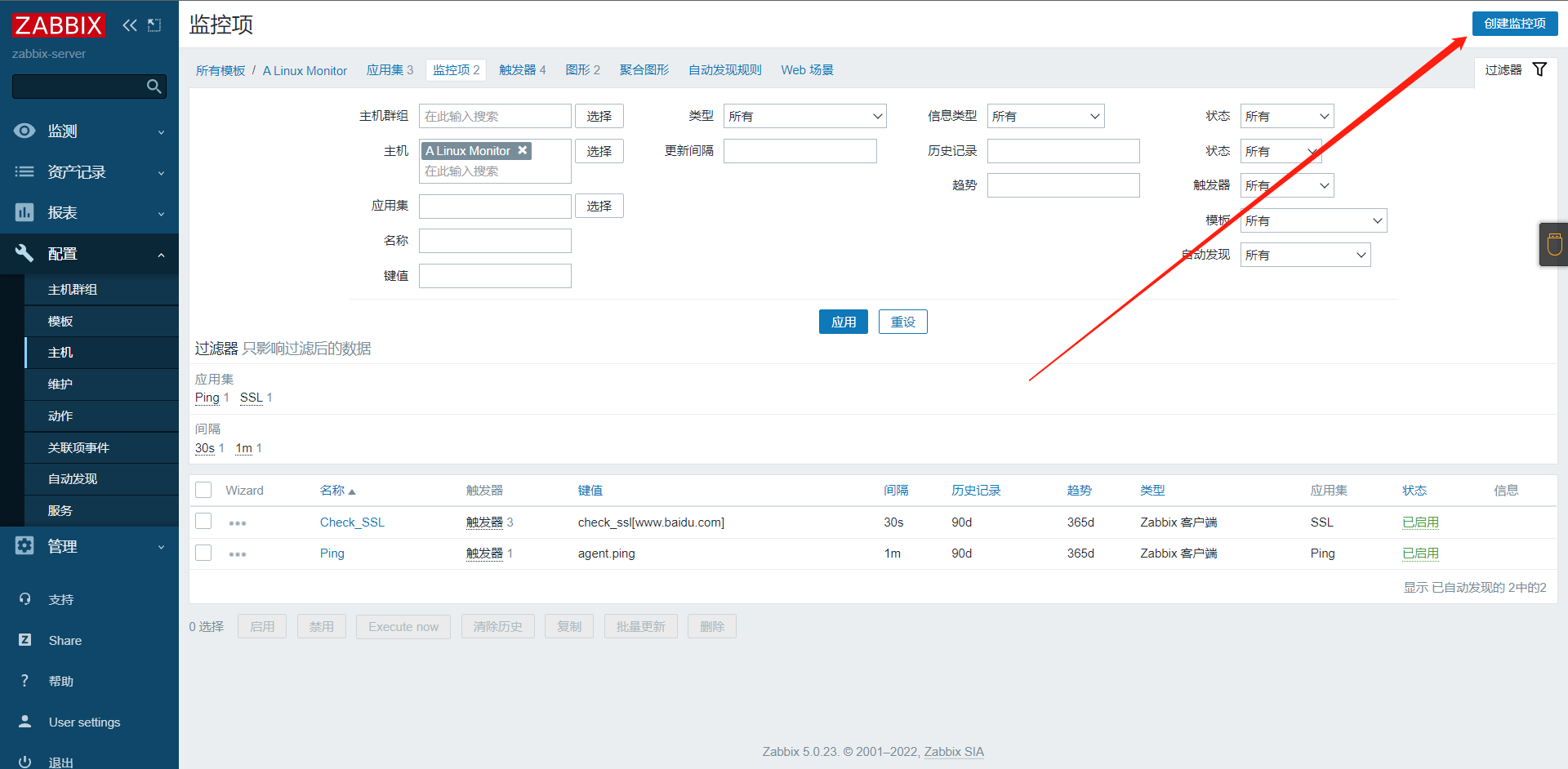

4：dashboard监控配置

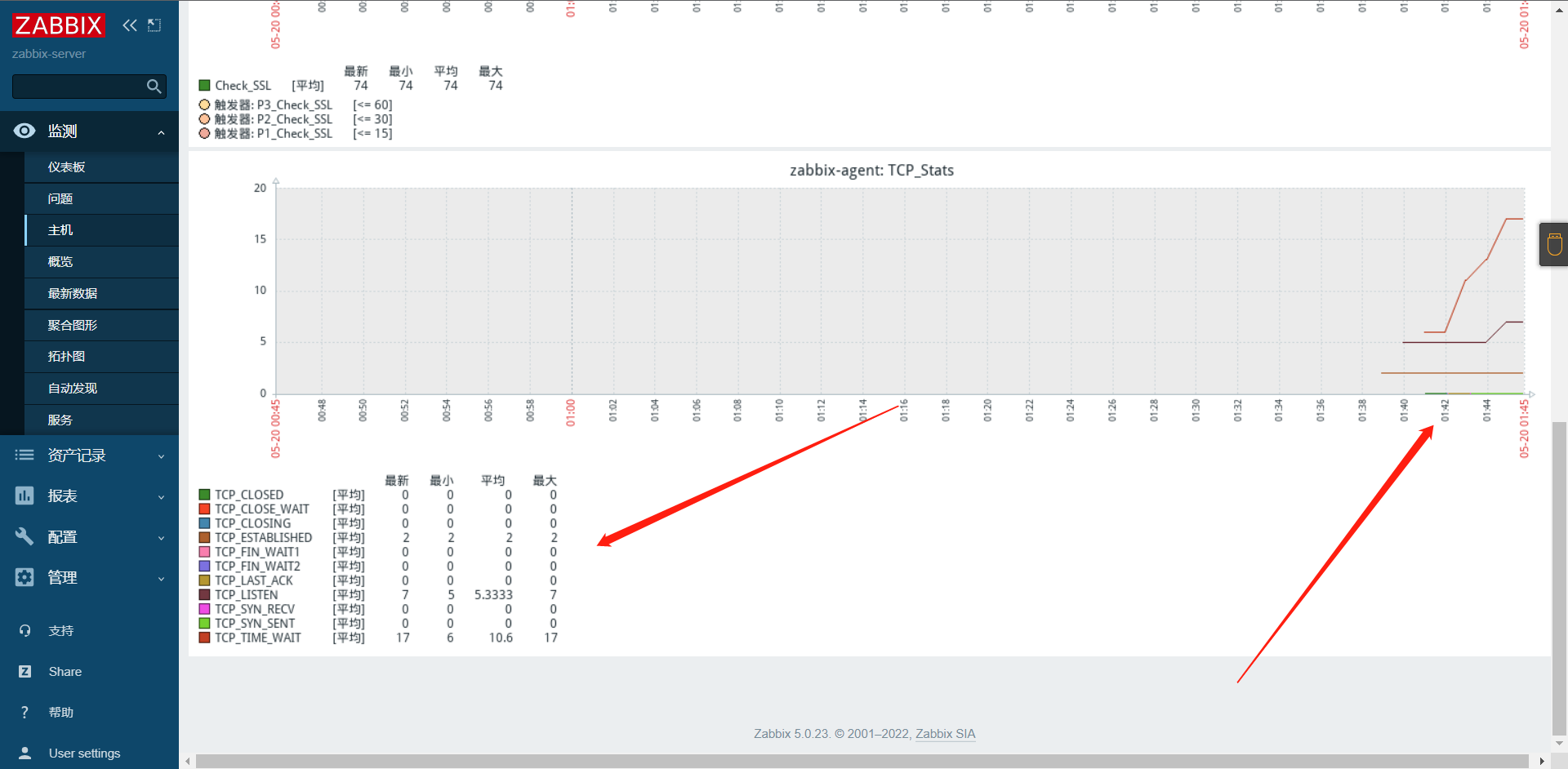

数据慢慢请求上来了数据就出来了
