centos 7.9 安装单机版k8s

我这里提前安装好了 docker ，直接着手安装k8s

[root@zjk ~]# docker -v
Docker version 26.1.4, build 5650f9b

1、关闭防火墙、selinux（减少不必要的麻烦）、交换区（防止k8s对pod内存监控幻觉）

systemctl stop firewalld
systemctl disable firewalld

#永久关闭
sed -i 's/enforcing/disabled/' /etc/selinux/config
#临时关闭
setenforce 0

#临时关闭交换分区
swapoff -a
#永久关闭，注释
vim /etc/fstab
# /dev/mapper/centos-swap swap                    swap    defaults        0 0
##这里如果不设置禁用交换区，后续会出现kubelet起不来
10月 13 09:36:22 zjk kubelet[3760]: E1013 09:36:22.593680 3760 run.go:74] "command failed" err="failed to run Kubelet: running with swap on is not supported, please disable swap! or set --fail-swap-on flag to false. /proc/swaps contained: [Filename\t\t\t\tType\t\tSize\tUsed\tPriority /dev/dm-1

2、将桥接的IPv4流量传递到iptables的链

#确保系统启动时自动加载 br_netfilter模块
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
EOF
#保障同一个结点pod之间访问时，A->B   B->A 数据回包时能准确找到对应pod
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF

#一次性加载并应用系统中所有已知sysctl配置文件
sysctl --system

3、配置k8s的镜像源

cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
EOF

4、修改Centos的镜像源

# 备份原配置文件
cp /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak

# 编辑配置文件
vim /etc/yum.repos.d/CentOS-Base.repo

替换为可用的源
[base]
name=CentOS-7 - Base
baseurl=https://mirrors.aliyun.com/centos-vault/7.9.2009/os/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
enabled=1

[updates]
name=CentOS-7 - Updates
baseurl=https://mirrors.aliyun.com/centos-vault/7.9.2009/updates/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
enabled=1

[extras]
name=CentOS-7 - Extras
baseurl=https://mirrors.aliyun.com/centos-vault/7.9.2009/extras/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
enabled=1

# 清理旧缓存
yum clean all
rm -rf /var/cache/yum

# 重新建立缓存
yum makecache

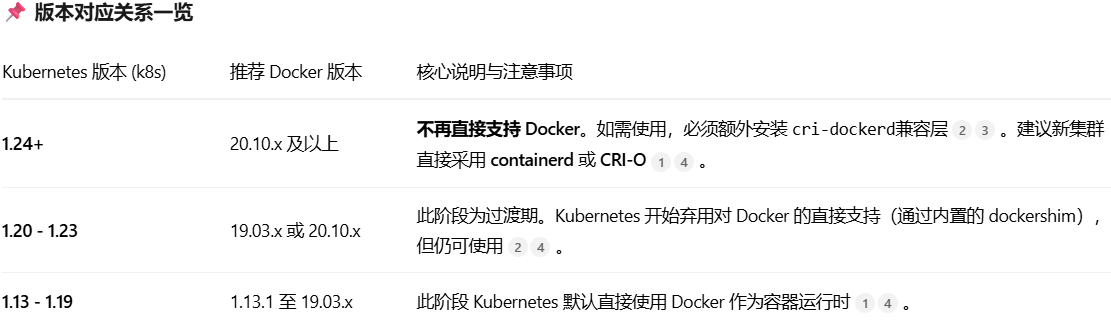

5、安装k8s组件（kubelet、kubeadm、kubectl），如果要使用docker作为k8s的运行时，则需要匹配对应的版本关系，我这里docker版本为26.1.4，所以我安装1.25.0

#此处的--disableexcludes=kubernetes是为了绕过yum安装更新过程中的一些排除规则，只对当前命令有效
yum install -y kubelet-1.25.0 kubeadm-1.25.0 kubectl-1.25.0 --disableexcludes=kubernetes


安装完成，则打印如下内容

------------------------
已安装:
  kubeadm.x86_64 0:1.25.0-0                                            kubectl.x86_64 0:1.25.0-0                                            kubelet.x86_64 0:1.25.0-0

作为依赖被安装:
  conntrack-tools.x86_64 0:1.4.4-7.el7         cri-tools.x86_64 0:1.26.0-0     kubernetes-cni.x86_64 0:1.2.0-0    libnetfilter_cthelper.x86_64 0:1.0.0-11.el7    libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7
  libnetfilter_queue.x86_64 0:1.0.2-2.el7_2    socat.x86_64 0:1.7.3.2-2.el7

完毕！
-------------------------

##查看是否安装成功
[root@zjk yum.repos.d]# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"25", GitVersion:"v1.25.0", GitCommit:"a866cbe2e5bbaa01cfd5e969aa3e033f3282a8a2", GitTreeState:"clean", BuildDate:"2022-08-23T17:43:25Z", GoVersion:"go1.19", Compiler:"gc", Platform:"linux/amd64"}
[root@zjk yum.repos.d]# kubectl version --client
WARNING: This version information is deprecated and will be replaced with the output from kubectl version --short.  Use --output=yaml|json to get the full version.
Client Version: version.Info{Major:"1", Minor:"25", GitVersion:"v1.25.0", GitCommit:"a866cbe2e5bbaa01cfd5e969aa3e033f3282a8a2", GitTreeState:"clean", BuildDate:"2022-08-23T17:44:59Z", GoVersion:"go1.19", Compiler:"gc", Platform:"linux/amd64"}
Kustomize Version: v4.5.7
[root@zjk yum.repos.d]# kubelet --version
Kubernetes v1.25.0

6、查看安装k8s需要哪些镜像

[root@zjk yum.repos.d]# kubeadm config images list --kubernetes-version v1.25.0
registry.k8s.io/kube-apiserver:v1.25.0
registry.k8s.io/kube-controller-manager:v1.25.0
registry.k8s.io/kube-scheduler:v1.25.0
registry.k8s.io/kube-proxy:v1.25.0
registry.k8s.io/pause:3.8
registry.k8s.io/etcd:3.5.4-0
registry.k8s.io/coredns/coredns:v1.9.3

自己组装docker pull 下载镜像
docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v1.25.0
docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v1.25.0
docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v1.25.0
docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.25.0
docker pull registry.aliyuncs.com/google_containers/pause:3.8
docker pull registry.aliyuncs.com/google_containers/etcd:3.5.4-0
# 这个镜像阿里云下不到，从渡渡鸟下
docker pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/registry.k8s.io/coredns/coredns:v1.9.3
#下完后统一标签，方便后面处理
docker tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/registry.k8s.io/coredns/coredns:v1.9.3 registry.aliyuncs.com/google_containers/coredns/coredns:v1.9.3

7、在初始化k8s之前，需要启用cri，看有没有这个文件，是装docker时containerd自带的

cp /etc/containerd/config.toml /etc/containerd/config.toml.bak
vim /etc/containerd/config.toml
注释
#disabled_plugins = ["cri"]
如果没有，则初始化生成这个文件
mkdir -p /etc/containerd
containerd config default |  tee /etc/containerd/config.toml
保证里面disabled_plugins = []
同时要修改里面的sandbox_image镜像地址，之前pull的镜像
sed -i 's|registry.k8s.io/pause:3.6|registry.aliyuncs.com/google_containers/pause:3.9|g' /etc/containerd/config.toml
sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.6"
#修改完后重启containerd
systemctl restart containerd

8、指定镜像仓库和版本初始化

#指定镜像仓库和版本初始化
kubeadm init  --apiserver-advertise-address=192.168.23.134 --image-repository registry.aliyuncs.com/google_containers --kubernetes-version=v1.25.0 --service-cidr=10.1.0.0/16 --pod-network-cidr=10.244.0.0/16
#如果出现端口占用或者其他异常 如果想重新初始化，可以执行 kubeadm reset ，然后重新执行上面的初始化
#设置配置文件环境变量，在master结点执行
/etc/profile
export KUBECONFIG=/etc/kubernetes/admin.conf
source /etc/profile
#重启kubelet
systemctl restart kubelet

9、安装网络插件

##安装网络插件，这一步应用联网配置文件可能要FQ，可以想办法下载下来，放到本地
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
##安装成功后打印如下
[root@zjk manifests]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
namespace/kube-flannel created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

10、过一会，可以查看nodes是否正常

[root@zjk k8s]# kubectl get nodes
NAME   STATUS   ROLES           AGE   VERSION
zjk    Ready    control-plane   50m   v1.25.0

#消除主结点污点
kubectl taint nodes --all node-role.kubernetes.io/control-plane-
到这里，k8s就安装完了

11、用k8s部署一个mysql5.7 ，pod配置文件如下，配置文件中有几样要手动创建、设置

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql5-7
spec:
  serviceName: "mysql-service"  # 必须有一个对应的 Headless Service
  replicas: 1
  selector:
    matchLabels:
      app: mysql5-7
  template:
    metadata:
      labels:
        app: mysql5-7
    spec:
      containers:
      - name: mysql
        image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/ranchercharts/mysql:5.7.14
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: "Spgtest_1"
        ports:
        - containerPort: 3306
        volumeMounts:
        - name: mysql-data
          mountPath: /var/lib/mysql  # MySQL pod内数据目录
  volumeClaimTemplates:  # 核心：存储声明模板
  - metadata:
      name: mysql-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      resources:
        requests:
          storage: 3Gi
      storageClassName: mysql-storage
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mysql-pv
spec:
  capacity:
    storage: 3Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: mysql-storage
  local:
    path: /data/k8s/mysql #宿主机数据存储目录，需手动创建
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: node-type
          operator: In
          values:
          - master   ##本地存储必须设置亲和性 需提前设置标签 kubectl label nodes zjk node-type=master
---
# 配套的 Headless Service，用于提供 DNS 发现
apiVersion: v1
kind: Service
metadata:
  name: mysql-service
spec:
  type: NodePort
  selector:
    app: mysql5-7
  ports:
  - port: 3306
    targetPort: 3306
    nodePort: 30006

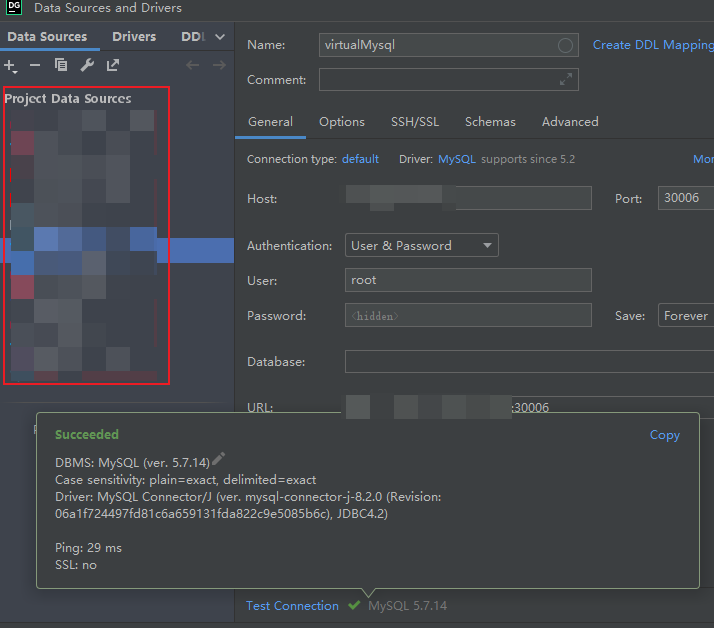

12、kubectl apply -f mysql-deployment.yaml ，服务全部启动后通过client访问

[root@zjk k8s]# kubectl get pv
NAME       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                           STORAGECLASS    REASON   AGE
mysql-pv   3Gi        RWO            Retain           Bound    default/mysql-data-mysql5-7-0   mysql-storage            7m5s
[root@zjk k8s]# kubectl get pvc
NAME                    STATUS   VOLUME     CAPACITY   ACCESS MODES   STORAGECLASS    AGE
mysql-data-mysql5-7-0   Bound    mysql-pv   3Gi        RWO            mysql-storage   10m
[root@zjk k8s]# kubectl get sts
NAME       READY   AGE
mysql5-7   1/1     10m
[root@zjk k8s]# kubectl get pods
NAME         READY   STATUS    RESTARTS   AGE
mysql5-7-0   1/1     Running   0          10m
[root@zjk k8s]# kubectl get svc
NAME            TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE
kubernetes      ClusterIP   10.1.0.1     <none>        443/TCP          30m
mysql-service   NodePort    10.1.236.3   <none>        3306:30006/TCP   10m
