NGFW-ISP选路

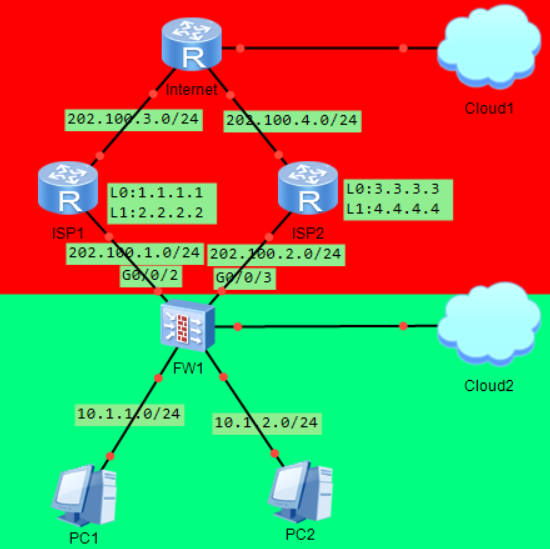

一，拓扑

二，需求说明

　　通过配置运营商地址库，ISP选路时，大量的路由配置可以选择最优路径。1.1.1.1和2.2.2.2下一条ISP1最优，3.3.3.3和4.4.4.4下一跳ISP2最优。在发生链路故障时候，也可以通过备份链路，恢复通信。

三，接口下配置

3.1配置SP地址库

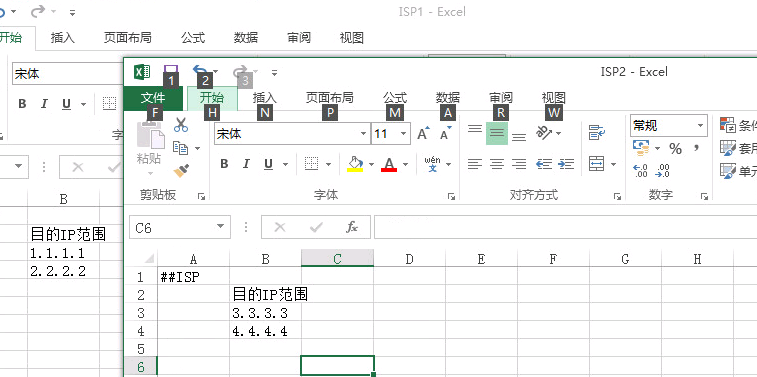

1.编辑地址库文件

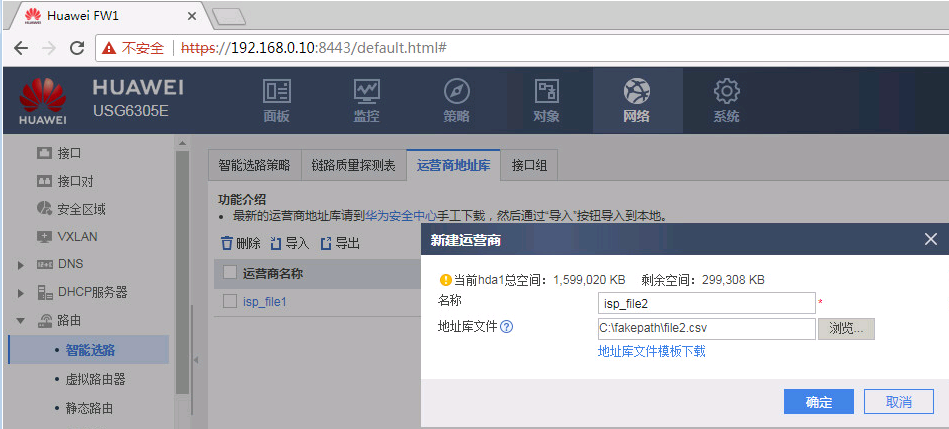

2.上传地址库文件

　　也可以使用命令#ips name isp_file2 set filename file2.csv来指定文件为运营商地址库。

3.2配置健康检查

[FW1]healthcheck  enable
[FW1]healthcheck  name isp1
[FW1-healthcheck-isp1]destination  202.100.1.254 interface  GigabitEthernet  0/0/2 protocol  icmp
[FW1-healthcheck-isp1]tx-interval  3
[FW1-healthcheck-isp1]times 2

[FW1]healthcheck name  isp2
[FW1-healthcheck-isp2]destination  202.100.2.254 interface  GigabitEthernet  0/0/3 protocol  icmp
[FW1-healthcheck-isp2]tx-interval 3
[FW1-healthcheck-isp2]times 2

3.3在接口下配置ISP

[FW1-GigabitEthernet0/0/2]healthcheck  isp1
[FW1-GigabitEthernet0/0/2]gateway  202.100.1.254
[FW1]interface-group  0 isp  isp_file1
[FW1-interface-isp-group-0]add  interface  GigabitEthernet  0/0/2

[FW1-GigabitEthernet0/0/3]healthcheck  isp2
[FW1-GigabitEthernet0/0/3]gateway  202.100.2.254
[FW1]interface-group  1 isp  isp_file2
[FW1-interface-isp-group-1]add  interface  GigabitEthernet  0
face-isp-group-1]add  interface  GigabitEthernet  0/0/3

3.4现象测试

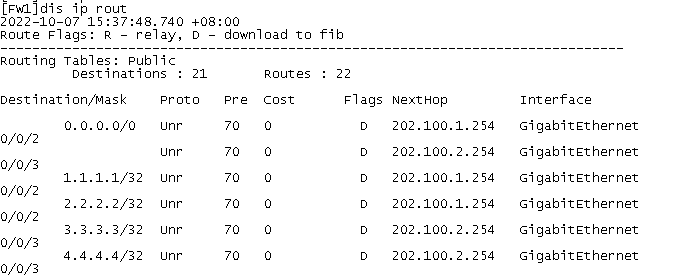

1.查看路由表

2.使用PC1与1.1.1.1通信，PC2与3.3.3.3 通信。查看会话表。访问1.1.1.1的通过ISP1访问。访问2.2.2.2的通过ISP2访问。

 icmp  VPN: public --> public  ID: a587fa5cb1d507f184634049f3
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:17
 Recv Interface: Eth-Trunk1.1
 Interface: GigabitEthernet0/0/2  NextHop: 202.100.1.254
 <==packets: 50 bytes: 3,000 ==> packets: 50 bytes: 3,000
 10.1.1.1:1[202.100.1.10:2049] --> 1.1.1.1:2048 PolicyName: trust_pc

 icmp  VPN: public --> public  ID: a587fa5cb1a508e275634049ec
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:17
 Recv Interface: Eth-Trunk1.2
 Interface: GigabitEthernet0/0/3  NextHop: 202.100.2.254
 <==packets: 57 bytes: 3,420 ==> packets: 57 bytes: 3,420
 10.1.2.1:1[202.100.2.10:2048] --> 3.3.3.3:2048 PolicyName: trust_pc

3.断开FW1与ISP1连接的链路

健康检查：

[FW1]display healthcheck
2022-10-07 15:53:57.920 +08:00
Current Total Healthcheck Number : 2
Name                              Member   State   Up/Down/Init
isp1                              1        down    0  1    0
isp2                              1        up      1  0    0

会话表：

 icmp  VPN: public --> public  ID: a587fa5ca72507f18463404b6a
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:19
 Recv Interface: Eth-Trunk1.1
 Interface: GigabitEthernet0/0/3  NextHop: 202.100.2.254
 <==packets: 60 bytes: 3,600 ==> packets: 60 bytes: 3,600
 10.1.1.1:1[202.100.2.10:2048] --> 1.1.1.1:2048 PolicyName: trust_pc

 icmp  VPN: public --> public  ID: a587fa5cb1a508e275634049ec
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:18
 Recv Interface: Eth-Trunk1.2
 Interface: GigabitEthernet0/0/3  NextHop: 202.100.2.254
 <==packets: 436 bytes: 26,160 ==> packets: 436 bytes: 26,160
 10.1.2.1:1[202.100.2.10:2048] --> 3.3.3.3:2048 PolicyName: trust_pc

路由表：

[FW1]display ip routing-table
2022-10-07 15:56:10.030 +08:00
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 16       Routes : 16

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        0.0.0.0/0   Unr     70   0           D   202.100.2.254   GigabitEthernet0/0/3
        3.3.3.3/32  Unr     70   0           D   202.100.2.254   GigabitEthernet0/0/3
        4.4.4.4/32  Unr     70   0           D   202.100.2.254   GigabitEthernet0/0/3

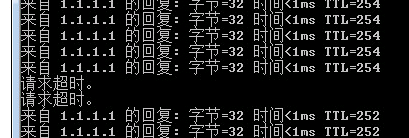

PC1现象：

注意：

　　　　如果FW与ISP并非直连，则配置接口下ISP选路时产生的缺省路由并不会消失，会导致报文丢包。解决方法是使用4.1的配置中静态路由与ip-link绑定。

四，全局下配置

4.1配置

1.将接口下配置是ISP选路配置删除（略）

2.配置IP-Link

[FW1]ip-link  check  enable
[FW1]ip-link  name isp1
[FW1-iplink-isp1]destination  202.100.1.254 interface  GigabitEthernet  0/0/2 mode icmp
[FW1-iplink-isp1]tx-interval  3
[FW1-iplink-isp1]times 2
[FW1]ip-link  name isp2
[FW1-iplink-isp2]destination  202.100.2.254 interface  GigabitEthernet  0/0/3 mode  icmp
[FW1-iplink-isp2]tx-interval 3
[FW1-iplink-isp2]times 2

3.配置缺省路由和ISP路由指向两个ISP指定出接口，联动IP-link

[FW1]ip route-static  0.0.0.0 0 GigabitEthernet 0/0/2 202.100.1.254 track  ip-link  isp1
[FW1]ip route-static  0.0.0.0 0 GigabitEthernet  0/0/3 202.100.2.254 track ip-link isp2
[FW1]ip route-isp  isp_file1 interface  GigabitEthernet  0/0/2 nexthop  202.100.1.254 preference  59 track  ip-link  isp1
  ip-l
[FW1]ip route-isp  isp_file2 interface  GigabitEthernet  0/0/3 nexthop  202.100.2.254 preference  59 track  ip-link  isp2

4.2测试现象

1.查看路由表

[FW1]display ip routing-table
2022-10-07 16:08:37.230 +08:00
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 21       Routes : 22

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        0.0.0.0/0   Static  60   0           D   202.100.2.254   GigabitEthernet0/0/3
                    Static  60   0           D   202.100.1.254   GigabitEthernet0/0/2
        1.1.1.1/32  Unr     59   0           D   202.100.1.254   GigabitEthernet0/0/2
        2.2.2.2/32  Unr     59   0           D   202.100.1.254   GigabitEthernet0/0/2
        3.3.3.3/32  Unr     59   0           D   202.100.2.254   GigabitEthernet0/0/3
        4.4.4.4/32  Unr     59   0           D   202.100.2.254   GigabitEthernet0/0/3

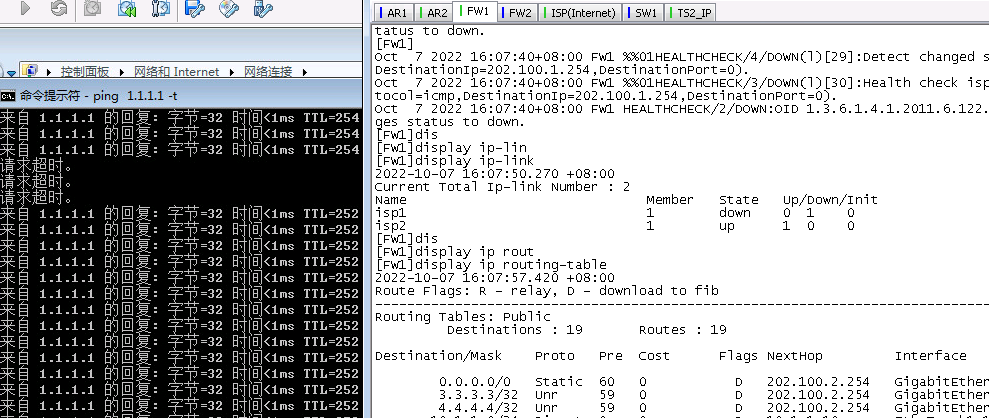

2.断开与ISP1的链路，IP-link一段延迟后状态变为down，联动的静态路由与ISP路由均失效。访问1.1.1.1和2.2.2.2则需要走ISP2，恢复通信。
