Linux基础 - 文件系统 mount挂载



一、挂载硬盘(不超2T)

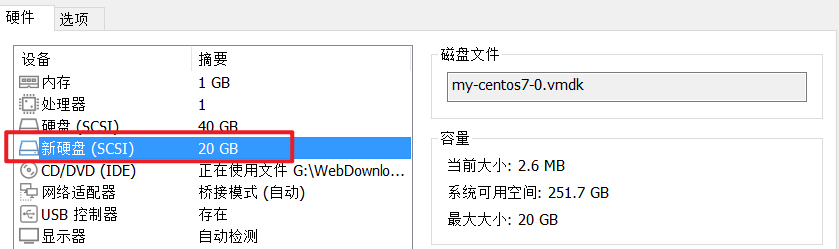

1.1 虚拟机新加一块硬盘



 1.2  查看新增的硬盘

[root@centos78 ~]# fdisk -l

Disk /dev/sda: 42.9 GB, 42949672960 bytes, 83886080 sectors  # 原有的40G盘
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000b63e0

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200    83886079    40893440   8e  Linux LVM

Disk /dev/sdb: 21.5 GB, 21474836480 bytes, 41943040 sectors   # 新增20G硬盘, 盘符为/dev/sdb
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

　　

[root@centos78 ~]#  lsblk
NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda               8:0    0   40G  0 disk
├─sda1            8:1    0    1G  0 part /boot
└─sda2            8:2    0   39G  0 part
  ├─centos-root 253:0    0   37G  0 lvm  /
  └─centos-swap 253:1    0    2G  0 lvm  [SWAP]
sdb               8:16   0   20G  0 disk
sr0              11:0    1  4.5G  0 rom

　　

1.3 硬盘分区

[root@centos78 ~]# fdisk /dev/sdb
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0xe3c58cf4.

Command (m for help): m             # 查看帮助
Command action
   a   toggle a bootable flag
   b   edit bsd disklabel
   c   toggle the dos compatibility flag
   d   delete a partition
   g   create a new empty GPT partition table
   G   create an IRIX (SGI) partition table
   l   list known partition types
   m   print this menu
   n   add a new partition
   o   create a new empty DOS partition table
   p   print the partition table
   q   quit without saving changes
   s   create a new empty Sun disklabel
   t   change a partition's system id
   u   change display/entry units
   v   verify the partition table
   w   write table to disk and exit
   x   extra functionality (experts only)

Command (m for help): n                                  # 新增分区
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p): p                                    # 主分区
Partition number (1-4, default 1): 1                     # 分区号
First sector (2048-41943039, default 2048):              # 起始扇区, 回车使用默认值
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-41943039, default 41943039):       # 结束扇区
Using default value 41943039
Partition 1 of type Linux and of size 20 GiB is set

Command (m for help): w                                  # 保存配置
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.

　　

Disk /dev/sdb: 21.5 GB, 21474836480 bytes, 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0xe3c58cf4

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    41943039    20970496   83  Linux            # 出现分区盘符

　　

 1.4 分区格式化

[root@centos78 ~]# mkfs.
mkfs.btrfs   mkfs.cramfs  mkfs.ext2    mkfs.ext3    mkfs.ext4    mkfs.minix   mkfs.xfs

[root@centos78 ~]# mkfs.xfs /dev/sdb1
meta-data=/dev/sdb1              isize=512    agcount=4, agsize=1310656 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0, sparse=0
data     =                       bsize=4096   blocks=5242624, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal log           bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0

　　

1.5 挂载

[root@centos78 ~]# mkdir /data
[root@centos78 ~]# mount /dev/sdb1 /data
[root@centos78 ~]# df -h
Filesystem               Size  Used Avail Use% Mounted on
devtmpfs                 475M     0  475M   0% /dev
tmpfs                    487M     0  487M   0% /dev/shm
tmpfs                    487M  7.7M  479M   2% /run
tmpfs                    487M     0  487M   0% /sys/fs/cgroup
/dev/mapper/centos-root   37G  1.5G   36G   4% /
/dev/sda1               1014M  137M  878M  14% /boot
tmpfs                     98M     0   98M   0% /run/user/0
/dev/sdb1                 20G   33M   20G   1% /data

　　

1.6 开启自启动挂载

[root@centos78 ~]# blkid
/dev/sda1: UUID="67218b41-d9cc-4aed-b03d-59ffede4be40" TYPE="xfs"
/dev/sda2: UUID="VLE9DP-n2tl-HbKO-QHSb-Hkfl-Y2ul-JEP1Ny" TYPE="LVM2_member"
/dev/sdb1: UUID="1e1bbaac-a773-4c0f-af7e-ed5a3a0d417f" TYPE="xfs"
/dev/sr0: UUID="2020-04-22-00-54-00-00" LABEL="CentOS 7 x86_64" TYPE="iso9660" PTTYPE="dos"
/dev/mapper/centos-root: UUID="7ceacd9a-3cef-42ab-b9a7-50f77ccaeb6e" TYPE="xfs"
/dev/mapper/centos-swap: UUID="6bf5b53d-0b59-4794-bdc2-83ac8d32d6ef" TYPE="swap"

　　

[root@centos78 ~]# vi /etc/fstab
UUID=1e1bbaac-a773-4c0f-af7e-ed5a3a0d417f /data                   xfs     defaults        0 0



二、 挂载U盘

2.1 保证U盘的格式为fat格式
# cd /mnt
# mkdir usb

2.2 插上U盘，使用fdisk -l，查看是否有新的硬盘添加上。
# fdisk -l

2.3 执行挂载
# mount -t vfat /dev/sdb /mnt/usb

2.4 查看分区
# cd /mnt/usb
