03-配置模型

# 前提: settings.py已经配置链接了数据库

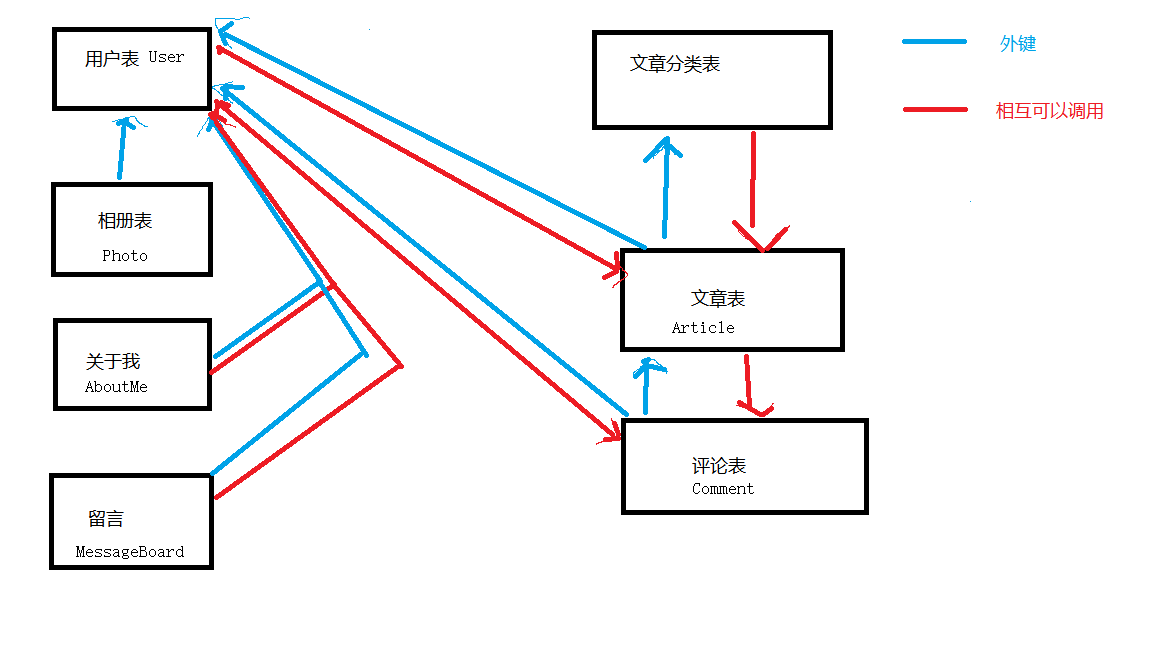

# 两张表想要互相调用 必须定义主外键约束,外键定义在多的一方

1. 配置数据库模型类

# 1 . 编辑apps/user/models.py,创建用户相关模型类
    from datetime import datetime
    from ext import db

    class User(db.Model):
        # 用户表
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        username = db.Column(db.String(15), nullable=False)
        password = db.Column(db.String(128), nullable=False)
        phone = db.Column(db.String(11), unique=True, nullable=False)
        email = db.Column(db.String(30))
        icon = db.Column(db.String(100))
        isdelete = db.Column(db.Boolean, default=False)
        radtetime = db.Column(db.DateTime, default=datetime.now)

        # 代码层次: 不需要迁移,只要建立外键,就需要加relationship
        # 增加一个字段:db.relationship("关联的外键信息表","反向引用:外键能关联到主键信息表")
        articles = db.relationship("Article", backref='user')

        comments = db.relationship('Comment', backref="user")

        def __str__(self):
            return self.username


    class Photo(db.Model):
        # 相册表
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        photo_name = db.Column(db.String(50), nullable=False)
        photo_datetime = db.Column(db.DateTime, default=datetime.now)
        user_id = db.Column(db.Integer, db.ForeignKey('user.id'), nullable=False)

        def __str__(self):
            return self.photo_name


    class AboutMe(db.Model):
        # 关于我页面
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        content = db.Column(db.BLOB, nullable=False)
        pdatetime = db.Column(db.DateTime, default=datetime.now)
        # 要与用户建立联系
        user_id = db.Column(db.Integer, db.ForeignKey('user.id'), unique=True)
        user = db.relationship("User", backref="about")


    class MessageBoard(db.Model):
        # 留言
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        content = db.Column(db.String(255), nullable=False)
        mdatetime = db.Column(db.DateTime, default=datetime.now)
        user_id = db.Column(db.Integer, db.ForeignKey('user.id'))
        # 关系:
        user = db.relationship('User', backref='messages')

2.apps包下创建articie包,新建models.py,编写文章相关模型类

    from datetime import datetime
    from ext import db


    class Article_type(db.Model):
        # 文章分类
        # 生成表的时候提示错误? 可能是因为外键绑定的id内容不存在,还不允许为空
        # __tablename__ = "type"
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        type_name = db.Column(db.String(20), nullable=False)
        articles = db.relationship("Article", backref='article_type')


    class Article(db.Model):
        # 文章表
        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        title = db.Column(db.String(50), nullable=False)
        content = db.Column(db.Text, nullable=False)
        pdatetime = db.Column(db.DateTime, default=datetime.now())
        click_num = db.Column(db.Integer, default=0)
        save_num = db.Column(db.Integer, default=0)
        love_num = db.Column(db.Integer, default=0)

        # 文章定义用户外键
        user_id = db.Column(db.Integer, db.ForeignKey('user.id'), nullable=False)
        # 文章定义分类外键
        type_id = db.Column(db.Integer, db.ForeignKey('article_type.id'), nullable=False)

        # 只是通过文章找评论表中的评论内容
        comments = db.relationship("Comment", backref="article")

    class Comment(db.Model):
        # 评论表
        # 数据库默认表名为小写类名,自定义表名
        # __tablename__ = 'comment'

        id = db.Column(db.Integer, primary_key=True, autoincrement=True)
        comment = db.Column(db.String(255), nullable=False)
        user_id = db.Column(db.Integer, db.ForeignKey('user.id'))
        article_id = db.Column(db.Integer, db.ForeignKey('article.id'))
        cdatetime = db.Column(db.DateTime, default=datetime.now)

        def __str__(self):
            return self.comment

3. 将模型引入app中

# app.py中导入模型类
      from flask_migrate import Migrate, MigrateCommand
      from flask_script import Manager
      'from apps.user.models import *'
      'from apps.articie.models import *'
      from apps import create_app
      from ext import db

      app = create_app()
      manager = Manager(app=app)

      migrate = Migrate(app=app, db=db)
      manager.add_command("db", MigrateCommand)

      if __name__ == '__main__':
          manager.run()

4. 指令生成模型,迁移数据库

    python app.py db init
    python app.py db migrate
    python app.py db upgrade
