SAPUI5 Walkthrough Step 27: Mock Server Configuration

Step 27: Mock Server Configuration

模拟服务器配置



增加webapp/test/mockServer.html 文件，修改其中src的值（这里我们引用1.92.1版本），修改resourceroots

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>SAPUI5 Walkthrough - Test Page</title>
    <script
        id="sap-ui-bootstrap"
        src="https://sapui5.hana.ondemand.com/1.92.1/resources/sap-ui-core.js"
        data-sap-ui-theme="sap_belize"
        data-sap-ui-resourceroots='{
            "sap.ui.demo.walkthrough": "../"
        }'
        data-sap-ui-oninit="module:sap/ui/demo/walkthrough/test/initMockServer"
        data-sap-ui-compatVersion="edge"
        data-sap-ui-async="true">
    </script>
</head>
<body class="sapUiBody" id="content">
    <div data-sap-ui-component data-name="sap.ui.demo.walkthrough" data-id="container" data-settings='{"id" : "walkthrough"}'></div>
</body>
</html>



增加webapp/test/initMockServer.js 文件。

sap.ui.define([
    "../localService/mockserver"
], function (mockserver) {
    "use strict";
    // initialize the mock server
    mockserver.init();
    // initialize the embedded component on the HTML page
    sap.ui.require(["sap/ui/core/ComponentSupport"]);
});



增加webapp/localService/mockdata/Invoices.json 文件

[
  {
    "ProductName": "Pineapple",
    "Quantity": 21,
    "ExtendedPrice": 87.2000,
    "ShipperName": "Fun Inc.",
    "ShippedDate": "2015-04-01T00:00:00",
    "Status": "A"
  },
  {
    "ProductName": "Milk",
    "Quantity": 4,
    "ExtendedPrice": 9.99999,
    "ShipperName": "ACME",
    "ShippedDate": "2015-02-18T00:00:00",
    "Status": "B"
  },
  {
    "ProductName": "Canned Beans",
    "Quantity": 3,
    "ExtendedPrice": 6.85000,
    "ShipperName": "ACME",
    "ShippedDate": "2015-03-02T00:00:00",
    "Status": "B"
  },
  {
    "ProductName": "Salad",
    "Quantity": 2,
    "ExtendedPrice": 8.8000,
    "ShipperName": "ACME",
    "ShippedDate": "2015-04-12T00:00:00",
    "Status": "C"
  },
  {
    "ProductName": "Bread",
    "Quantity": 1,
    "ExtendedPrice": 2.71212,
    "ShipperName": "Fun Inc.",
    "ShippedDate": "2015-01-27T00:00:00",
    "Status": "A"
  }
]

增加webapp/localService/mockserver.js 文件

sap.ui.define([
    "sap/ui/core/util/MockServer",
    "sap/base/util/UriParameters"
], function (MockServer, UriParameters) {
    "use strict";

    return {
        init: function () {
            // create
            var oMockServer = new MockServer({
                rootUri: "https://services.odata.org/V2/Northwind/Northwind.svc/"
            });
            var oUriParameters = new UriParameters(window.location.href);
            // configure mock server with a delay
            MockServer.config({
                autoRespond: true,
                autoRespondAfter: oUriParameters.get("serverDelay") || 500
            });
            // simulate
            var sPath = "../localService";
            oMockServer.simulate(sPath + "/metadata.xml", sPath + "/mockdata");
            // start
            oMockServer.start();
        }
    };
});



增加webapp/localService/metadata.xml 文件

<edmx:Edmx Version="1.0" xmlns:edmx="http://schemas.microsoft.com/ado/2007/06/edmx">
    <edmx:DataServices m:DataServiceVersion="1.0" m:MaxDataServiceVersion="3.0"
            xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata">
        <Schema Namespace="NorthwindModel" xmlns="http://schemas.microsoft.com/ado/2008/09/edm">
            <EntityType Name="Invoice">
                <Key>
                    <PropertyRef Name="ProductName"/>
                    <PropertyRef Name="Quantity"/>
                    <PropertyRef Name="ShipperName"/>
                </Key>
                <Property Name="ShipperName" Type="Edm.String" Nullable="false" MaxLength="40" FixedLength="false"
                            Unicode="true"/>
                <Property Name="ProductName" Type="Edm.String" Nullable="false" MaxLength="40" FixedLength="false"
                            Unicode="true"/>
                <Property Name="Quantity" Type="Edm.Int16" Nullable="false"/>
                <Property Name="ExtendedPrice" Type="Edm.Decimal" Precision="19" Scale="4"/>
                <Property Name="Status" Type="Edm.String" Nullable="false" MaxLength="1" FixedLength="false"
                            Unicode="true"/>
            </EntityType>
        </Schema>
        <Schema Namespace="ODataWebV2.Northwind.Model" xmlns="http://schemas.microsoft.com/ado/2008/09/edm">
            <EntityContainer Name="NorthwindEntities" m:IsDefaultEntityContainer="true" p6:LazyLoadingEnabled="true"
                    xmlns:p6="http://schemas.microsoft.com/ado/2009/02/edm/annotation">
                <EntitySet Name="Invoices" EntityType="NorthwindModel.Invoice"/>
            </EntityContainer>
        </Schema>
    </edmx:DataServices>
</edmx:Edmx>

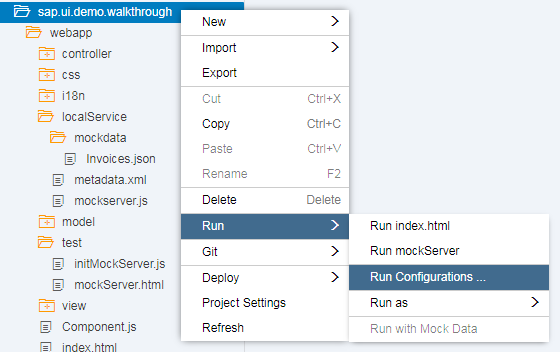

调整完成后使用 mockServer.html 文件执行程序。







Save and Run，查看执行结果
