es安装



 1.下载解压即可5.6.3略

2.es配置说明

配置都在config目录中

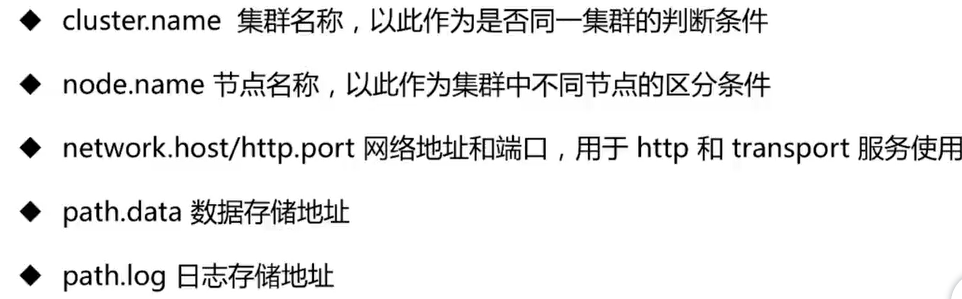

 1）elasticsearch.yml      es的相关配置





 2）jvm.options                jvm的相关参数

配置文件默认如下，如果内存不够运行不起来可以修改。
-Xms2g
-Xmx2g

 3）log4j2.properties       日志相关配置

    //这个日志文件很少修改



1.组件logstash

 解压 logstash-5.6.3.tar.gz

 1）nginx.log   日志测试数据  放到

GET /downloads/product_2 HTTP/1.1" 404 340 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
80.91.33.133 - - [17/May/2015:11:05:09 +0000] "GET /downloads/product_1 HTTP/1.1" 404 338 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.16)"
50.57.209.92 - - [17/May/2015:11:05:15 +0000] "GET /downloads/product_1 HTTP/1.1" 404 334 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
91.239.186.133 - - [17/May/2015:11:05:17 +0000] "GET /downloads/product_2 HTTP/1.1" 404 339 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
144.92.16.161 - - [17/May/2015:11:05:30 +0000] "GET /downloads/product_1 HTTP/1.1" 404 324 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.21)"
62.210.138.59 - - [17/May/2015:11:05:29 +0000] "GET /downloads/product_2 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (1.0.1ubuntu2)"
210.245.80.75 - - [17/May/2015:11:05:05 +0000] "GET /downloads/product_2 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (1.0.1ubuntu2)"
80.91.33.133 - - [17/May/2015:11:05:12 +0000] "GET /downloads/product_1 HTTP/1.1" 404 337 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.16)"
83.161.14.106 - - [17/May/2015:11:05:55 +0000] "GET /downloads/product_2 HTTP/1.1" 404 337 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.22)"
87.233.156.242 - - [17/May/2015:11:05:02 +0000] "GET /downloads/product_2 HTTP/1.1" 404 336 "-" "Debian APT-HTTP/1.3 (1.0.1ubuntu2)"
5.83.131.103 - - [17/May/2015:11:05:49 +0000] "GET /downloads/product_1 HTTP/1.1" 404 338 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.22)"
80.91.33.133 - - [17/May/2015:11:05:05 +0000] "GET /downloads/product_1 HTTP/1.1" 404 341 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.16)"
91.120.61.154 - - [17/May/2015:11:05:48 +0000] "GET /downloads/product_1 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
195.154.233.202 - - [17/May/2015:11:05:55 +0000] "GET /downloads/product_2 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (1.0.1ubuntu2)"
80.91.33.133 - - [17/May/2015:11:05:56 +0000] "GET /downloads/product_1 HTTP/1.1" 404 337 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.22)"
193.192.58.163 - - [17/May/2015:11:05:58 +0000] "GET /downloads/product_2 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
93.190.71.150 - - [17/May/2015:11:05:11 +0000] "GET /downloads/product_2 HTTP/1.1" 404 338 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
144.76.160.62 - - [17/May/2015:11:05:20 +0000] "GET /downloads/product_2 HTTP/1.1" 404 340 "-" "Debian APT-HTTP/1.3 (1.0.1ubuntu2)"
50.57.209.92 - - [17/May/2015:11:05:56 +0000] "GET /downloads/product_1 HTTP/1.1" 404 331 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
62.75.198.179 - - [17/May/2015:11:05:19 +0000] "GET /downloads/product_2 HTTP/1.1" 404 338 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
193.192.59.41 - - [17/May/2015:11:05:55 +0000] "GET /downloads/product_2 HTTP/1.1" 304 0 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
195.154.77.170 - - [17/May/2015:11:05:35 +0000] "GET /downloads/product_2 HTTP/1.1" 404 341 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
80.91.33.133 - - [17/May/2015:11:05:17 +0000] "GET /downloads/product_1 HTTP/1.1" 404 340 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.16)"
200.6.73.40 - - [17/May/2015:11:05:26 +0000] "GET /downloads/product_1 HTTP/1.1" 404 341 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
188.138.60.101 - - [17/May/2015:11:05:56 +0000] "GET /downloads/product_2 HTTP/1.1" 404 336 "-" "Debian APT-HTTP/1.3 (0.9.7.9)"
80.91.33.133 - - [17/May/2015:11:05:53 +0000] "GET /downloads/product_1 HTTP/1.1" 404 339 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.17)"
80.91.33.133 - - [17/May/2015:11:05:42 +0000] "GET /downloads/product_1 HTTP/1.1" 404 339 "-" "Debian APT-HTTP/1.3 (0.8.16~exp12ubuntu10.16)"

  2）nginx_logstash.conf      测试数据放到logstash-5.6.3安装目录下

input {
  stdin { }
}

filter {
  grok {
    match => {
      "message" => '%{IPORHOST:remote_ip} - %{DATA:user_name} \[%{HTTPDATE:time}\] "%{WORD:request_action} %{DATA:request} HTTP/%{NUMBER:http_version}" %{NUMBER:response} %{NUMBER:bytes} "%{DATA:referrer}" "%{DATA:agent}"'
    }
  }

  date {
    match => [ "time", "dd/MMM/YYYY:HH:mm:ss Z" ]
    locale => en
  }

  geoip {
    source => "remote_ip"
    target => "geoip"
  }

  useragent {
    source => "agent"
    target => "user_agent"
  }
}

output {
stdout {
 codec => rubydebug
 }
}

3.运行

[es@hadoop01 logstash-5.6.3]$ head -n 2 /home/es/nginx.log|bin/logstash -f nginx_logstash.conf
