在Ubuntu-22.04中一键复制粘贴脚本部署最新k8s-1.24.2

脚本一键复制粘贴部署最新k8s-1.24.2（ubuntu-22.04版本）

环境：（一主两从）containerd.io-1.6.4 + k8s-1.24.2

1、Ubuntu 22.04 LTS（服务器版本）

2、5.15.0-39-generic（内核版本）

Ubuntu-22.04最小化环境配置（安装服务器的时候提前配置好）

  http://mirrors.aliyun.com/ubuntu
  ​
  sudo -i
  ​
  hostnamectl set-hostname master
  ​
  su
  ​
  passwd
  ​
  echo '192.168.1.201 master' >> /etc/hosts
  ​
  echo "PS1='\[\033[35m\][\[\033[00m\]\[\033[31m\]\u\[\033[33m\]\[\033[33m\]@\[\033[03m\]\[\033[35m\]\h\[\033[00m\] \[\033[5;32m\]\w\[\033[00m\]\[\033[35m\]]\[\033[00m\]\[\033[5;31m\]\\$\[\033[00m\] '" >> ~/.bashrc
  ​
  source ~/.bashrc
  ​
  tzselect
  cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
  ​
  apt-get update
  ​
  apt install ntpdate
  ​
  ntpdate ntp.aliyun.com
  ​
  sed -i "s/#PermitRootLogin prohibit-password/PermitRootLogin yes/" /etc/ssh/sshd_config
  ​
  systemctl restart ssh
  systemctl restart sshd
  ​
  cd ~; echo 'set nu' > .vimrc
  ​
  apt install vim inetutils-ping net-tools ufw git -y
  ​
  [root@ubuntu-01~]# ufw status
  Status: inactive # 关闭
  ​
  ufw enable   --> 启动ufw
  ufw disable  --> 关闭ufw
  ufw status   --> 查看ufw状态
  ​
  #关闭swap
  swapoff -a  # 临时关闭
  sed -i 's/.*swap.*/#&/g' /etc/fstab # 永久关闭
  ​
  systemctl --type swap

master节点：执行这个脚本

  cat > k8s-1.24.2-master.sh << 'eof'
  #!/bin/bash
  startTime=`date +%Y%m%d-%H:%M:%S`
  startTime_s=`date +%s`
  ​
  # 环境准备
  ​
  # 1、关闭防火墙
  ufw disable
  ​
  # 2、关闭swap
  swapoff -a  # 临时关闭
  sed -i 's/.*swap.*/#&/g' /etc/fstab # 永久关闭
  ​
  # 3、加载IPVS模块
  apt install ipset ipvsadm -y
  ​
  cat > /etc/modules-load.d/ipvs.conf << EOF
  modprobe -- ip_vs
  modprobe -- ip_vs_rr
  modprobe -- ip_vs_wrr
  modprobe -- ip_vs_sh
  modprobe -- nf_conntrack
  EOF
  ​
  modprobe -- ip_vs
  modprobe -- ip_vs_rr
  modprobe -- ip_vs_wrr
  modprobe -- ip_vs_sh
  ​
  kernel_version=$(uname -r | cut -d- -f1)
  echo $kernel_version
  ​
  if [ `expr $kernel_version \> 4.19` -eq 1 ]
      then
          modprobe -- nf_conntrack
      else
          modprobe -- nf_conntrack_ipv4
  fi
  ​
  bash /etc/modules-load.d/ipvs.conf && lsmod | grep -e ip_vs -e nf_conntrack
  ​
  # 4、安装container
  curl -fsSL https://download.docker.com/linux/ubuntu/gpg | gpg --dearmor -o /etc/apt/keyrings/docker.gpg
  ​
  echo \
    "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/ubuntu \
    $(lsb_release -cs) stable" | tee /etc/apt/sources.list.d/docker.list > /dev/null

  apt-get update
  ​
  apt-get install containerd.io=1.6.4-1
  ​
  cat <<EOF | sudo tee /etc/modules-load.d/containerd.conf
  overlay
  br_netfilter
  EOF
  ​
  # 1.20+需要开启br_netfilter
  sudo modprobe overlay
  sudo modprobe br_netfilter
  ​
  cat <<EOF | sudo tee /etc/sysctl.d/99-kubernetes-cri.conf
  net.bridge.bridge-nf-call-iptables  = 1
  net.ipv4.ip_forward                 = 1
  net.bridge.bridge-nf-call-ip6tables = 1
  EOF
  ​
  sudo sysctl --system
  ​
  mkdir -p /etc/containerd
  containerd config default | sudo tee /etc/containerd/config.toml
  ​
  # 修改cgroup Driver为systemd
  sed -ri 's#SystemdCgroup = false#SystemdCgroup = true#' /etc/containerd/config.toml
  ​
  # 更改sandbox_image
  sed -ri 's#k8s.gcr.io\/pause:3.6#registry.aliyuncs.com\/google_containers\/pause:3.7#' /etc/containerd/config.toml
  ​
  # endpoint位置添加阿里云的镜像源
  sed -ri 's#https:\/\/registry-1.docker.io#https:\/\/registry.aliyuncs.com#' /etc/containerd/config.toml
  ​
  systemctl daemon-reload
  ​
  systemctl restart containerd
  ​
  # 5、安装k8s-1.24.2
  curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add -
  ​
  cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
  deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF
​
apt-get update
​
apt-get install -y kubelet=1.24.2-00 kubeadm=1.24.2-00 kubectl=1.24.2-00
​
# 设置crictl
cat << EOF >> /etc/crictl.yaml
runtime-endpoint: unix:///var/run/containerd/containerd.sock
image-endpoint: unix:///var/run/containerd/containerd.sock
timeout: 10
debug: false
EOF
​
mkdir ~/kubeadm_init && cd ~/kubeadm_init
​
kubeadm config print init-defaults > kubeadm-init.yaml
​
cat > kubeadm-init.yaml << EOF
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: `hostname -i`  #master_ip
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  imagePullPolicy: IfNotPresent
  name: master
  taints:
  - effect: "NoSchedule"
    key: "node-role.kubernetes.io/master"
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.24.2
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16
scheduler: {}
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd
EOF
​
# 预拉取镜像
kubeadm config images pull --config kubeadm-init.yaml
​
# 初始化集群
kubeadm init --config=kubeadm-init.yaml | tee kubeadm-init.log
​
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
​
kubectl get node -owide
​
# 脚本执行时间
endTime=`date +%Y%m%d-%H:%M:%S`
endTime_s=`date +%s`
sumTime=$[ $endTime_s - $startTime_s ]
echo "$startTime ---> $endTime" "Total:$sumTime seconds"
eof

node节点：执行这个脚本

  cat > k8s-1.24.2-node.sh << 'eof'
  #!/bin/bash
  startTime=`date +%Y%m%d-%H:%M:%S`
  startTime_s=`date +%s`
  ​
  # 环境准备
  ​
  # 1、关闭防火墙
  ufw disable
  ​
  # 2、关闭swap
  swapoff -a  # 临时关闭
  sed -i 's/.*swap.*/#&/g' /etc/fstab # 永久关闭
  ​
  # 3、加载IPVS模块
  apt install ipset ipvsadm -y
  ​
  cat > /etc/modules-load.d/ipvs.conf << EOF
  modprobe -- ip_vs
  modprobe -- ip_vs_rr
  modprobe -- ip_vs_wrr
  modprobe -- ip_vs_sh
  modprobe -- nf_conntrack
  EOF
  ​
  modprobe -- ip_vs
  modprobe -- ip_vs_rr
  modprobe -- ip_vs_wrr
  modprobe -- ip_vs_sh
  ​
  kernel_version=$(uname -r | cut -d- -f1)
  echo $kernel_version
  ​
  if [ `expr $kernel_version \> 4.19` -eq 1 ]
      then
          modprobe -- nf_conntrack
      else
          modprobe -- nf_conntrack_ipv4
  fi
  ​
  bash /etc/modules-load.d/ipvs.conf && lsmod | grep -e ip_vs -e nf_conntrack
  ​
  # 4、安装container
  curl -fsSL https://download.docker.com/linux/ubuntu/gpg | gpg --dearmor -o /etc/apt/keyrings/docker.gpg
  ​
  echo \
    "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/ubuntu \
    $(lsb_release -cs) stable" | tee /etc/apt/sources.list.d/docker.list > /dev/null

  apt-get update
  ​
  apt-get install containerd.io=1.6.4-1
  ​
  cat <<EOF | sudo tee /etc/modules-load.d/containerd.conf
  overlay
  br_netfilter
  EOF
  ​
  # 1.20+需要开启br_netfilter
  sudo modprobe overlay
  sudo modprobe br_netfilter
  ​
  cat <<EOF | sudo tee /etc/sysctl.d/99-kubernetes-cri.conf
  net.bridge.bridge-nf-call-iptables  = 1
  net.ipv4.ip_forward                 = 1
  net.bridge.bridge-nf-call-ip6tables = 1
  EOF
  ​
  sudo sysctl --system
  ​
  mkdir -p /etc/containerd
  containerd config default | sudo tee /etc/containerd/config.toml
  ​
  # 修改cgroup Driver为systemd
  sed -ri 's#SystemdCgroup = false#SystemdCgroup = true#' /etc/containerd/config.toml
  ​
  # 更改sandbox_image
  sed -ri 's#k8s.gcr.io\/pause:3.6#registry.aliyuncs.com\/google_containers\/pause:3.7#' /etc/containerd/config.toml
  ​
  # endpoint位置添加阿里云的镜像源
  sed -ri 's#https:\/\/registry-1.docker.io#https:\/\/registry.aliyuncs.com#' /etc/containerd/config.toml
  ​
  systemctl daemon-reload
  ​
  systemctl restart containerd
  ​
  # 5、安装k8s-1.24.2
  curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add -
  ​
  cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
  deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF
​
apt-get update
​
apt-get install -y kubelet=1.24.2-00 kubeadm=1.24.2-00 kubectl=1.24.2-00
​
# 设置crictl
cat << EOF >> /etc/crictl.yaml
runtime-endpoint: unix:///var/run/containerd/containerd.sock
image-endpoint: unix:///var/run/containerd/containerd.sock
timeout: 10
debug: false
EOF
​
# 预拉取镜像
crictl pull registry.aliyuncs.com/google_containers/kube-proxy:v1.24.2
crictl pull registry.aliyuncs.com/google_containers/pause:3.7
​
# 脚本执行时间
endTime=`date +%Y%m%d-%H:%M:%S`
endTime_s=`date +%s`
sumTime=$[ $endTime_s - $startTime_s ]
echo "$startTime ---> $endTime" "Total:$sumTime seconds"
eof

安装calico

  curl https://docs.projectcalico.org/manifests/calico.yaml -O
  ​
  kubectl apply -f calico.yaml

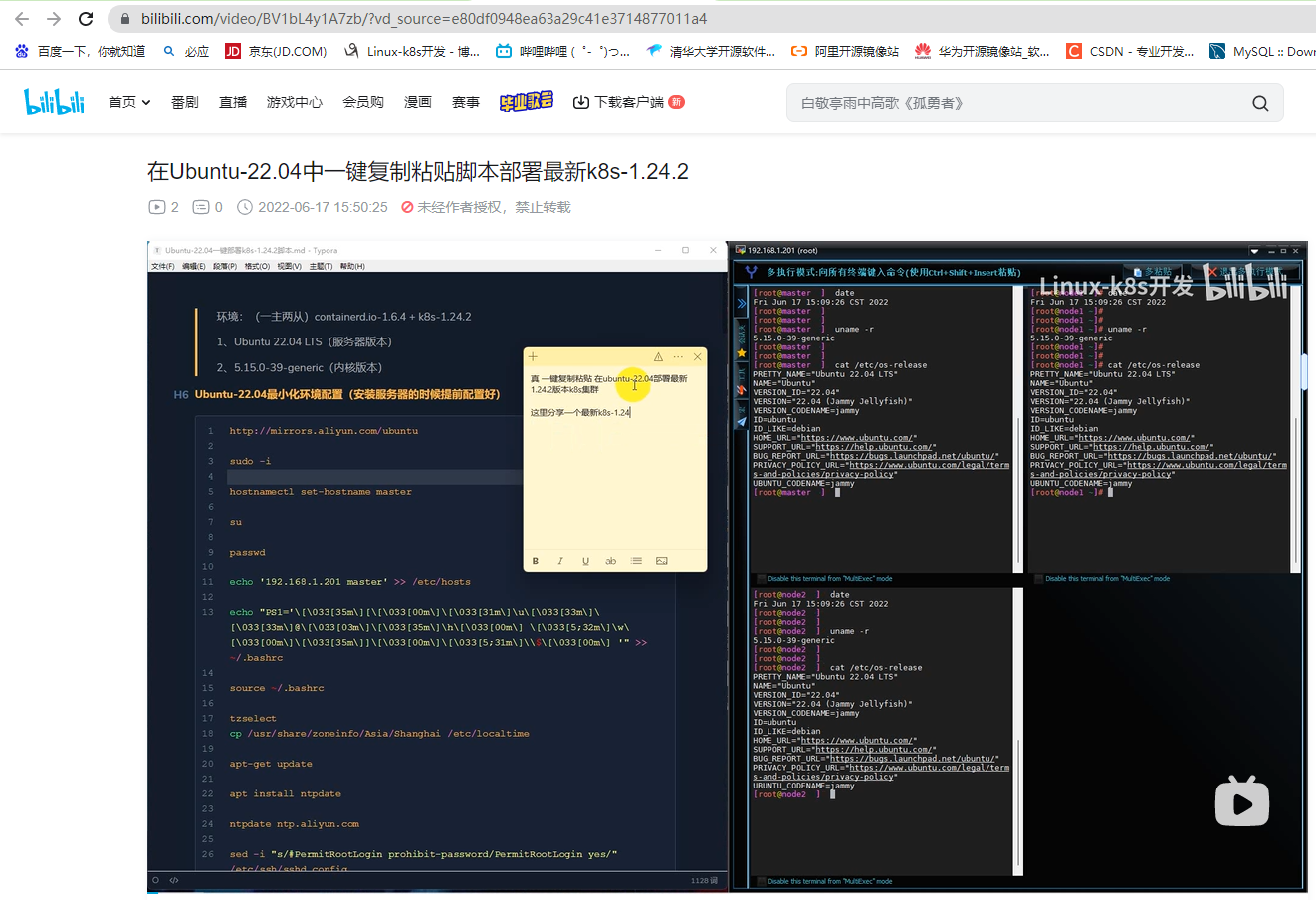

b站配套视频：

地址：https://www.bilibili.com/video/BV1bL4y1A7zb/?vd_source=e80df0948ea63a29c41e3714877011a4
