Unity中在纹理上绘制图形
Unity中在纹理上绘制图形
支持绘制图形:
- 圆形(实心-空心)
- 方形(实心-空心)
- 直线/虚线
- 纹理(贴花)
- 文字
使用如下:
创建3D Plane 并添加 Test.cs脚本
using UnityEngine;
public class Test : MonoBehaviour
{
public Texture2D decal;
public Font font;
Texture2D wallTexture;
// 定义一个图片副本
Texture2D DrawTexture;
RaycastHit hit;
private void Start()
{
// 获取墙贴图
wallTexture = GetComponent<MeshRenderer>().material.mainTexture as Texture2D;
// 备份一个墙的图片
DrawTexture = Instantiate(wallTexture) as Texture2D;
// 将备份赋值回去,做为修改对象
GetComponent<MeshRenderer>().material.mainTexture = DrawTexture;
}
private void Update()
{
if (Input.GetMouseButtonDown(0))
{
Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
if (Physics.Raycast(ray, out hit))
{
if (hit.collider.name == "Plane")
{
Vector2 hitPos = hit.textureCoord;
Vector2Int pos = new Vector2Int((int)(hitPos.x * DrawTexture.width), (int)(hitPos.y * DrawTexture.height));
// 绘制填充圆
//DecalManager.DrawCircleFill(DrawTexture, pos, 50, Color.red);
// 绘制圆环
DecalManager.DrawCircle(DrawTexture, pos, 50, 3, Color.blue);
// 绘制填充矩形
//DecalManager.DrawRectangleFill(DrawTexture, pos + Vector2Int.one * -50, pos + Vector2Int.one * 50, Color.cyan);
// 绘制矩形
DecalManager.DrawRectangle(DrawTexture, pos + Vector2Int.one * -50, pos + Vector2Int.one * 50, 3, Color.cyan);
// 绘制直线
DecalManager.DrawLine(DrawTexture, pos + Vector2Int.one * -50, pos + Vector2Int.one * 50, 3, Color.cyan);
// 绘制纹理(贴花)
DecalManager.DrawTex(DrawTexture, decal, pos);
// 绘制文字
DecalManager.DrawText(DrawTexture, pos, "HelloWorld", font, Color.yellow);
}
}
}
}
}
绘图插件代码:
/*
* 在纹理上绘制图形
*/
using UnityEngine;
public class DecalManager
{
#region 圆
/// <summary>
/// 在纹理上绘制一个实行圆
/// </summary>
/// <param name="texture">要绘制的纹理</param>
/// <param name="Center">圆点纹理像素坐标</param>
/// <param name="r">圆像素半径</param>
/// <param name="color">颜色</param>
public static void DrawCircleFill(Texture2D texture, Vector2Int Center, int r, Color color)
{
for (int x = Center.x - r; x <= Center.x + r; x++)
{
for (int y = Center.y - r; y <= Center.y + r; y++)
{
if (InCircle(x, y, Center, r))
{
texture.SetPixel(x, y, color);
}
}
}
texture.Apply();
}
/// <summary>
/// 在纹理上绘制一个圆不带填充
/// </summary>
/// <param name="texture">要绘制的纹理</param>
/// <param name="Center">圆点纹理像素坐标</param>
/// <param name="r">圆半径纹理像素</param>
/// <param name="border">线宽度</param>
/// <param name="color">绘制颜色</param>
public static void DrawCircle(Texture2D texture, Vector2Int Center, int r, int border, Color color)
{
for (int x = Center.x - r; x <= Center.x + r; x++)
{
for (int y = Center.y - r; y <= Center.y + r; y++)
{
if (InCircle(x, y, Center, r) && !InCircle(x, y, Center, r - border))
{
texture.SetPixel(x, y, color);
}
}
}
texture.Apply();
}
#endregion
#region 方形
/// <summary>
/// 在纹理上绘制一个实心方形
/// </summary>
/// <param name="texture">要绘制的纹理</param>
/// <param name="ld">方形左下角坐标纹理坐标</param>
/// <param name="ru">方形方向右上角纹理坐标</param>
/// <param name="color">填充颜色</param>
public static void DrawRectangleFill(Texture2D texture, Vector2Int ld, Vector2Int ru, Color color)
{
for (int x = ld.x; x <= ru.x; x++)
{
for (int y = ld.y; y <= ru.y; y++)
{
if (InRectangle(x, y, ld, ru))
{
texture.SetPixel(x, y, color);
}
}
}
texture.Apply();
}
/// <summary>
/// 在纹理上绘制一个没有填充的方形
/// </summary>
/// <param name="texture">要绘制的纹理</param>
/// <param name="ld">左下角纹理坐标</param>
/// <param name="ru">右上角纹理坐标</param>
/// <param name="border">方形边界宽度</param>
/// <param name="color">绘制的颜色</param>
public static void DrawRectangle(Texture2D texture, Vector2Int ld, Vector2Int ru, int border, Color color)
{
for (int x = ld.x; x <= ru.x; x++)
{
for (int y = ld.y; y <= ru.y; y++)
{
if (InRectangle(x, y, ld, ru) && !InRectangle(x, y, ld + Vector2Int.one * border, ru - Vector2Int.one * border))
{
texture.SetPixel(x, y, color);
}
}
}
texture.Apply();
}
#endregion
#region 线
/// <summary>
/// 在纹理上绘制一条直线
/// </summary>
/// <param name="texture">要被绘制的纹理</param>
/// <param name="start">起点纹理坐标</param>
/// <param name="end">终点纹理坐标</param>
/// <param name="border">线宽度</param>
/// <param name="color">绘制的颜色</param>
public static void DrawLine(Texture2D texture, Vector2Int start, Vector2Int end, int border, Color color)
{
Vector2Int vector = Vector2Int.zero;
border /= 2;
for (int x = start.x; x <= end.x; x++)
{
for (int y = start.y; y <= end.y; y++)
{
vector.x = x;
vector.y = y;
if (InLine(vector, start, end, border))
{
texture.SetPixel(x, y, color);
}
}
}
texture.Apply();
}
/// <summary>
/// 在纹理上绘制一条虚线
/// </summary>
/// <param name="texture">纹理画布</param>
/// <param name="start">起点</param>
/// <param name="end">终点</param>
/// <param name="radius">线宽度</param>
/// <param name="color">线颜色</param>
/// <param name="gap">线间距</param>
public static void DrawDottedLine(Texture2D texture, Vector2Int start, Vector2Int end, int radius, Color color, int gap = 2)
{
Vector2 center = start;
while (center != end)
{
center = Vector2.MoveTowards(center, end, radius * 2 + gap);
for (int x = (int)(center.x - radius); x <= center.x + radius; x++)
{
for (int y = (int)(center.y - radius); y <= center.y + radius; y++)
{
if (InCircle(x, y, new Vector2Int((int)center.x, (int)center.y), radius))
{
texture.SetPixel(x, y, color);
}
}
}
}
texture.Apply();
}
#endregion
#region 贴花
/// <summary>
/// 在纹理上填充一个纹理
/// </summary>
/// <param name="texture">要处理的纹理</param>
/// <param name="source">贴花纹理</param>
/// <param name="Center">贴花位置</param>
public static void DrawTex(Texture2D texture, Texture2D source, Vector2Int Center)
{
for (int i = 0; i < source.width; i++)
{
for (int j = 0; j < source.height; j++)
{
// 得到texture对应source应该出现的每个像素点
int x = Center.x - source.width / 2 + i;
int y = Center.y - source.height / 2 + j;
// 获取texture每个像素点的颜色
Color texColor = texture.GetPixel(x, y);
// 获取source的对应每个像素点的颜色
Color sourceColor = source.GetPixel(i, j);
// 融合
if (sourceColor.a > 0.1f)
{
//Color r = texColor * sourceColor;
texture.SetPixel(x, y, sourceColor);
}
}
}
//将修改融合的图片应用
texture.Apply();
}
#endregion
#region 文字
/// <summary>
/// 在纹理上绘制文字
/// </summary>
/// <param name="texture">要被处理的纹理</param>
/// <param name="Center">绘制的起点(文字将从左->右,上->下方渲染)</param>
/// <param name="text">要绘制的文字</param>
/// <param name="font">文字使用的字体(动态字体)</param>
/// <param name="color">文字使用的颜色</param>
/// <param name="fontSize">文字尺寸</param>
/// <param name="style">文字使用的样式</param>
public static void DrawText(Texture2D texture, Vector2Int Center, string text, Font font, Color color, int fontSize = 24, FontStyle style = FontStyle.Normal)
{
Texture2D source = TextToTexture(font, fontSize, style, text, color, new Color(0, 0, 0, 0));
DrawTex(texture, source, Center);
}
#endregion
#region Utility
/// <summary>
/// 纹理像素点是否在纹理坐标系指定圆内
/// </summary>
/// <param name="pixelCoordinate">像素坐标</param>
/// <param name="circleCenter">像素圆中心</param>
/// <param name="r">像素圆半径</param>
/// <returns></returns>
private static bool InCircle(int x, int y, Vector2Int circleCenter, int r)
{
return Mathf.Pow(x - circleCenter.x, 2) + Mathf.Pow(y - circleCenter.y, 2) < Mathf.Pow(r, 2);
}
/// <summary>
/// 纹理像素是否在纹理方形内
/// </summary>
/// <param name="x">x坐标</param>
/// <param name="y">y坐标</param>
/// <param name="ld">左下角坐标</param>
/// <param name="ru">右上角左边</param>
/// <returns></returns>
private static bool InRectangle(int x, int y, Vector2Int ld, Vector2Int ru)
{
if (x >= ld.x && x <= ru.x && y >= ld.y && y <= ru.y)
{
return true;
}
else
{
return false;
}
}
private static bool InLine(Vector2Int target, Vector2Int start, Vector2Int end, int border)
{
float length = Vector2.Distance(target, start);
var angle = Vector2.Angle(target - start, end - start) * Mathf.Deg2Rad;
float value = Mathf.Abs(Mathf.Sin(angle) * length);
if (value < border)
{
return true;
}
else
{
return false;
}
}
/// <summary>
/// 将文本转纹理
/// </summary>
/// <param name="font">文本使用的字体</param>
/// <param name="fontSize">文本大小</param>
/// <param name="fontStyle">文本样式</param>
/// <param name="text">要绘制的纹理</param>
/// <param name="textColor">纹理颜色</param>
/// <returns></returns>
private static Texture2D TextToTexture(Font font, int fontSize, FontStyle fontStyle, string text, Color textColor, Color bgColor)
{
// 字体贴图不可读，需要创建一个新的可读的
font.RequestCharactersInTexture(text, fontSize, fontStyle);
var fontTexture = (Texture2D)font.material.mainTexture;
var readableFontTexture = new Texture2D(fontTexture.width, fontTexture.height, fontTexture.format, fontTexture.mipmapCount, true);
Graphics.CopyTexture(fontTexture, readableFontTexture);
// 文字信息
int spaceGap = 10; // 空格
int widthGap = 1; // 字间间隔偏移量
int heightGap = 1; // 行间间隔偏移量
int texWidth = 0;
int texHeight = 0;
int widthTemp = 0;
int heightTemp = 0;
int lineCount = 1; // 行数量
CharacterInfo ci;
foreach (var @char in text)
{
var b = font.GetCharacterInfo(@char, out ci, fontSize, fontStyle);
//print(@char + ":" + b + ":" + ci.glyphWidth + ":" + ci.glyphHeight);
heightTemp = heightTemp > ci.glyphHeight ? heightTemp : ci.glyphHeight;
if (@char == ' ')
{
widthTemp += spaceGap;
}
else if (@char == '\n')
{
// 换行
texWidth = texWidth > widthTemp ? texWidth : widthTemp;
texHeight += heightTemp + heightGap;
widthTemp = 0;
heightTemp = 0;
lineCount++;
}
else
{
widthTemp += ci.glyphWidth + widthGap;
}
}
texWidth = texWidth > widthTemp ? texWidth : widthTemp;
texHeight = texHeight > heightTemp ? texHeight + heightTemp : heightTemp;
// 创建返回的Texture
var textTexture = new Texture2D(texWidth, texHeight, TextureFormat.ARGB32, true);
// 背景颜色
Color[] bgColors = new Color[texWidth * texHeight];
for (int i = 0; i < bgColors.Length; i++)
{
bgColors[i] = bgColor;
}
textTexture.SetPixels(bgColors);
// 调整偏移量
heightTemp = texHeight / lineCount;
int drawOffsetX = 0;
int drawOffsetY = texHeight - heightTemp;
// // 逐个字符绘制
foreach (var @char in text.ToCharArray())
{
var b = font.GetCharacterInfo(@char, out CharacterInfo info, fontSize, fontStyle);
if (@char == ' ')
{
drawOffsetX += spaceGap;
continue;
}
if (@char == '\n')
{
// 换行
drawOffsetX = 0;
drawOffsetY -= heightTemp;
continue;
}
int charWidth, charHeight;// 字符宽高
Color[] charColor;// 字符颜色，数组内颜色的顺序为从左至右，从下至上
if (info.uvTopLeft.x < info.uvBottomRight.x)// 处理被垂直翻转的字符
{
charWidth = info.glyphWidth;
charHeight = info.glyphHeight;
charColor = readableFontTexture.GetPixels((int)(readableFontTexture.width * info.uvTopLeft.x), (int)(readableFontTexture.height * info.uvTopLeft.y), charWidth, charHeight);
for (int j = 0; j < charHeight; j++)
{
for (int i = 0; i < charWidth; i++)
{
if (charColor[j * charWidth + i].a != 0)
{
// 从上往下画，把字符颠倒过来
textTexture.SetPixel(drawOffsetX + i, drawOffsetY + charHeight - j, textColor);
}
}
}
}
else// 处理被顺时针旋转90度的字符
{
charWidth = info.glyphHeight;
charHeight = info.glyphWidth;
charColor = readableFontTexture.GetPixels((int)(readableFontTexture.width * info.uvBottomRight.x), (int)(readableFontTexture.height * info.uvBottomRight.y), charWidth, charHeight);
for (int j = 0; j < charHeight; j++)
{
for (int i = 0; i < charWidth; i++)
{
if (charColor[j * charWidth + i].a != 0)
{
// 旋转
textTexture.SetPixel(drawOffsetX + charHeight - j, drawOffsetY + i, textColor);
}
}
}
}
// 更新偏移
drawOffsetX += charWidth + widthGap;
}
textTexture.Apply();
return textTexture;
}
#endregion
}

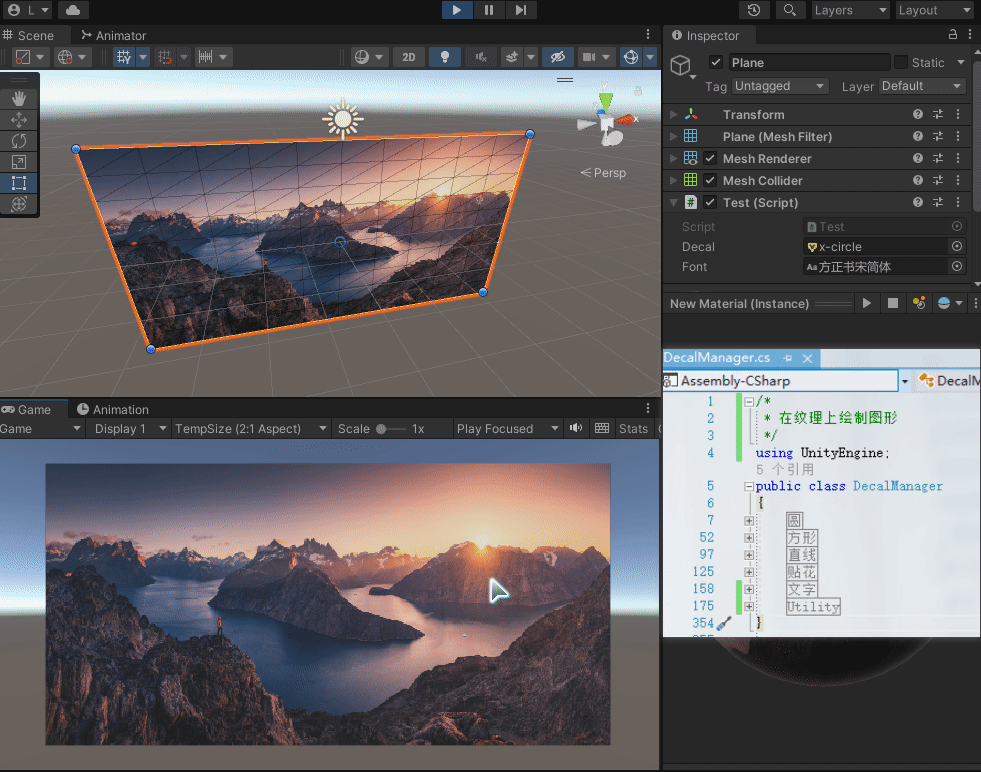

运行效果:
希望可以帮各位伙伴,若有Bug请评论,谢谢
