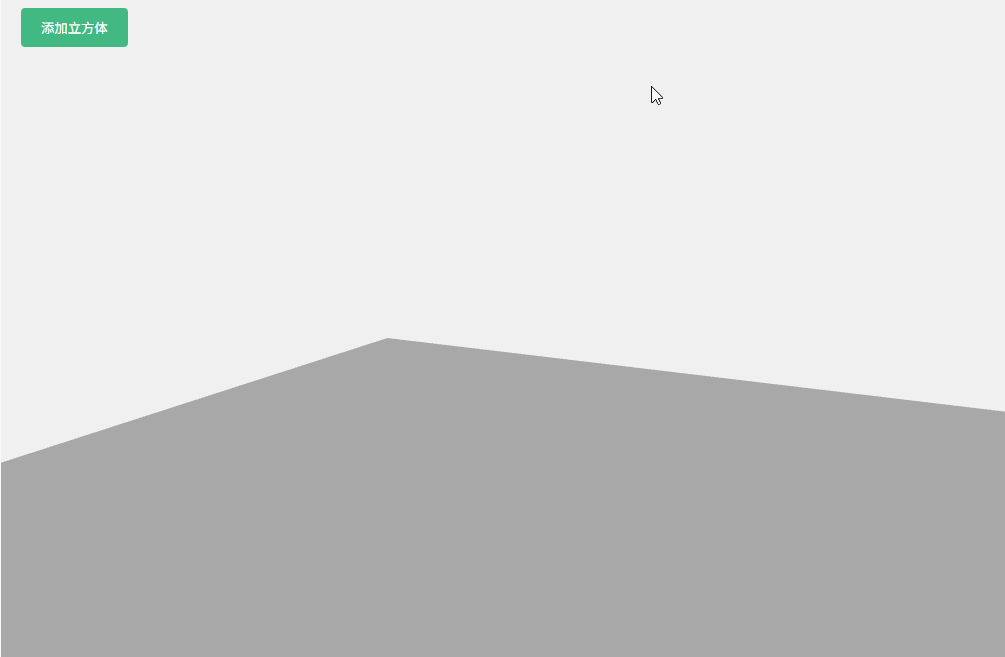

一、示例效果图
二、示例简介
本示例是vue+threeJS计划，实现物体自由落体运动。
- 主要功能：
初始化 Three.js 场景、相机、渲染器和控制器
创建地面作为碰撞检测的基础
提供按钮可以动态添加随机大小和颜色的立方体
搭建了基础的重力模拟，使物体自由下落
实现了物体与地面的碰撞检测和反弹效果
实现了物体之间的容易碰撞检测和响应
三、配置说明
1）查看基础设置：https://dajianshi.blog.csdn.net/article/details/141936765
2）将示例源代码，粘贴到src/views/Home.vue中，npm run serve 运行即可。
四、示例源代码（共 250行）
/*
* @Author: 大剑师兰特（xiaozhuanlan），还是大剑师兰特（CSDN）
* @此源代码版权归大剑师兰特所有，可供学习或商业项目中借鉴，未经授权，不得重复地发表到博客、论坛，问答，git等公共空间或网站中。
* @Email: 2909222303@qq.com
* @First published in CSDN
* @First published time: 2025-11-12
*/
<template>
<div class="three-container">
<div ref="canvasContainer" class="canvas-container"></div>
<button @click="addBox" class="add-btn">添加立方体</button>
</div>
</template>
<script>
import * as THREE from 'three'
import { OrbitControls } from 'three/examples/jsm//controls/OrbitControls.js'
export default {
data() {
return {
scene: null,
camera: null,
renderer: null,
controls: null,
boxes: [], // 存储所有下落的物体
ground: null, // 地面
gravity: 0.2, // 重力加速度
animationId: null
}
},
mounted() {
this.initThree()
this.createGround()
this.animate()
},
beforeDestroy() {
// 清理资源
cancelAnimationFrame(this.animationId)
this.renderer.dispose()
this.scene.clear()
},
methods: {
// 初始化Three.js基础组件
initThree() {
// 创建场景
this.scene = new THREE.Scene()
this.scene.background = new THREE.Color(0xf0f0f0)
// 创建相机
this.camera = new THREE.PerspectiveCamera(
75,
this.$refs.canvasContainer.clientWidth / this.$refs.canvasContainer.clientHeight,
0.1,
1000
)
this.camera.position.z = 20
this.camera.position.y = 10
this.camera.position.x = 10
this.camera.lookAt(0, 0, 0)
// 创建渲染器
this.renderer = new THREE.WebGLRenderer({ antialias: true })
this.renderer.setSize(
this.$refs.canvasContainer.clientWidth,
this.$refs.canvasContainer.clientHeight
)
this.$refs.canvasContainer.appendChild(this.renderer.domElement)
// 添加轨道控制器
this.controls = new OrbitControls(this.camera, this.renderer.domElement)
this.controls.enableDamping = true
// 添加环境光
const ambientLight = new THREE.AmbientLight(0xffffff, 0.6)
this.scene.add(ambientLight)
// 添加平行光
const directionalLight = new THREE.DirectionalLight(0xffffff, 1)
directionalLight.position.set(10, 20, 10)
this.scene.add(directionalLight)
// 监听窗口大小变化
window.addEventListener('resize', this.onWindowResize)
},
// 创建地面
createGround() {
const groundGeometry = new THREE.PlaneGeometry(50, 50)
const groundMaterial = new THREE.MeshStandardMaterial({
color: 0xeeeeee,
side: THREE.DoubleSide
})
this.ground = new THREE.Mesh(groundGeometry, groundMaterial)
this.ground.rotation.x = Math.PI / 2 // 旋转90度使其水平
this.ground.position.y = -5 // 地面位置
this.scene.add(this.ground)
},
// 添加立方体
addBox() {
const size = Math.random() * 1 + 2.5 // 随机大小
const geometry = new THREE.BoxGeometry(size, size, size)
const material = new THREE.MeshStandardMaterial({
color: Math.random() * 0xffffff,
transparent: true,
opacity: 0.9
})
const box = new THREE.Mesh(geometry, material)
// 随机位置
box.position.x = (Math.random() - 0.5) * 10
box.position.z = (Math.random() - 0.5) * 10
box.position.y = 15 // 初始高度
// 添加物理属性
box.velocity = new THREE.Vector3(0, 0, 0) // 速度
box.rotationSpeed = new THREE.Vector3(
Math.random() * 0.05,
Math.random() * 0.05,
Math.random() * 0.05
) // 旋转速度
this.scene.add(box)
this.boxes.push(box)
},
// 窗口大小变化处理
onWindowResize() {
this.camera.aspect = this.$refs.canvasContainer.clientWidth / this.$refs.canvasContainer.clientHeight
this.camera.updateProjectionMatrix()
this.renderer.setSize(
this.$refs.canvasContainer.clientWidth,
this.$refs.canvasContainer.clientHeight
)
},
// 动画循环
animate() {
this.animationId = requestAnimationFrame(() => this.animate())
// 更新控制器
this.controls.update()
// 更新所有物体的物理状态
this.updatePhysics()
// 渲染场景
this.renderer.render(this.scene, this.camera)
},
// 更新物理效果
updatePhysics() {
this.boxes.forEach(box => {
// 应用重力
box.velocity.y -= this.gravity
// 更新位置
box.position.add(box.velocity)
// 检测与地面的碰撞
const boxHalfHeight = box.geometry.parameters.height / 2
const groundY = this.ground.position.y
if (box.position.y - boxHalfHeight < groundY) {
// 碰撞后反弹 (损失一些能量)
box.velocity.y = -box.velocity.y * 0.8
// 防止物体陷入地面
box.position.y = groundY + boxHalfHeight
// 能量损失到一定程度后停止反弹
if (Math.abs(box.velocity.y) < 0.1) {
box.velocity.y = 0
}
}
// 检测物体之间的碰撞
this.detectBoxCollisions(box)
})
},
// 检测物体之间的碰撞
detectBoxCollisions(box) {
const boxHalfHeight = box.geometry.parameters.height / 2
const boxHalfWidth = box.geometry.parameters.width / 2
const boxHalfDepth = box.geometry.parameters.depth / 2
this.boxes.forEach(otherBox => {
if (box === otherBox) return
const otherHalfHeight = otherBox.geometry.parameters.height / 2
const otherHalfWidth = otherBox.geometry.parameters.width / 2
const otherHalfDepth = otherBox.geometry.parameters.depth / 2
// 简单的AABB碰撞检测
const collisionX = Math.abs(box.position.x - otherBox.position.x) < (boxHalfWidth + otherHalfWidth)
const collisionY = Math.abs(box.position.y - otherBox.position.y) < (boxHalfHeight + otherHalfHeight)
const collisionZ = Math.abs(box.position.z - otherBox.position.z) < (boxHalfDepth + otherHalfDepth)
if (collisionX && collisionY && collisionZ) {
// 交换y方向的速度 (简单碰撞响应)
const tempVelocity = box.velocity.y
box.velocity.y = otherBox.velocity.y * 0.8
otherBox.velocity.y = tempVelocity * 0.8
// 分离物体防止重叠
if (box.position.y < otherBox.position.y) {
box.position.y = otherBox.position.y - (boxHalfHeight + otherHalfHeight)
} else {
otherBox.position.y = box.position.y - (boxHalfHeight + otherHalfHeight)
}
}
})
}
}
}
</script>
<style scoped>
.three-container {
width: 100%;
height: 100vh;
position: relative;
}
.canvas-container {
width: 100%;
height: 100%;
}
.add-btn {
position: absolute;
top: 20px;
left: 20px;
padding: 10px 20px;
background-color: #42b983;
color: white;
border: none;
border-radius: 4px;
cursor: pointer;
z-index: 100;
}
.add-btn:hover {
background-color: #359e6d;
}
</style>五、相关文章参考
