Python递归画树 - 画蕨类植物 - 画窗格 - 搭建分形平台
@
画树
import numpy as np
import cv2
import math
def draw_tree(img, origin, length, angle, scale, left_angle, left_scale, right_angle, right_scale):
if length < 4:
return # 当length小于2的时候，停止画线(也可以用下面两行代码，表示当length小于2的时候，再画一次停止)
# end = to_int(get_point(origin, length * scale, angle))
# cv2.line(img, origin, end, (0, 255, 0))
else:
end = to_int(get_point(origin, length*scale, angle))
cv2.line(img, origin, end, (0, 255, 0))
# cv2.imshow('MyTree', img)
# cv2.waitKey(100)
draw_tree(img, end, length*left_scale, angle+left_angle, scale, left_angle, left_scale, right_angle, right_scale)
draw_tree(img, end, length*right_scale, angle+right_angle, scale, left_angle, left_scale, right_angle, right_scale)
def get_point(origin, length, angle):
x, y = origin
angle *= math.pi / 180
x += length * math.cos(angle)
y += length * math.sin(angle)
return x, y
def to_int(p):
return int(p[0] + 0.5), int(p[1] + 0.5)
if __name__ == '__main__':
height = 300
width = 400
img = np.zeros([height, width, 3]) # H,W,C
draw_tree(img, (width//2, height), height, -90, 0.4, -40, 0.5, 30, 0.6) # BRG
cv2.imshow('MyTree', img)
cv2.waitKey()
效果图如下：
画蕨类植物
import numpy as np
import cv2
import math
def draw_tree(img, origin, length, angle, scale, left_angle, left_scale, right_angle, right_scale):
if length < 4:
return # 当length小于2的时候，停止画线(也可以用下面两行代码，表示当length小于2的时候，再画一次停止)
# end = to_int(get_point(origin, length * scale, angle))
# cv2.line(img, origin, end, (0, 255, 0))
else:
end = to_int(get_point(origin, length*scale, angle))
cv2.line(img, origin, end, (0, 255, 0))
# cv2.imshow('MyTree', img)
# cv2.waitKey(100)
draw_tree(img, end, length*left_scale, angle+left_angle, scale, left_angle, left_scale, right_angle, right_scale)
draw_tree(img, end, (1-scale) * length, angle - 10, scale, left_angle, left_scale, right_angle, right_scale)
draw_tree(img, end, length*right_scale, angle+right_angle, scale, left_angle, left_scale, right_angle, right_scale)
def get_point(origin, length, angle):
x, y = origin
angle *= math.pi / 180
x += length * math.cos(angle)
y += length * math.sin(angle)
return x, y
def to_int(p):
return int(p[0] + 0.5), int(p[1] + 0.5)
if __name__ == '__main__':
height = 300
width = 400
img = np.zeros([height, width, 3]) # H,W,C
draw_tree(img, (width//2, height), height, -90, 0.2, -40, 0.3, 30, 0.3) # BRG
cv2.imshow('MyTree', img)
cv2.waitKey()

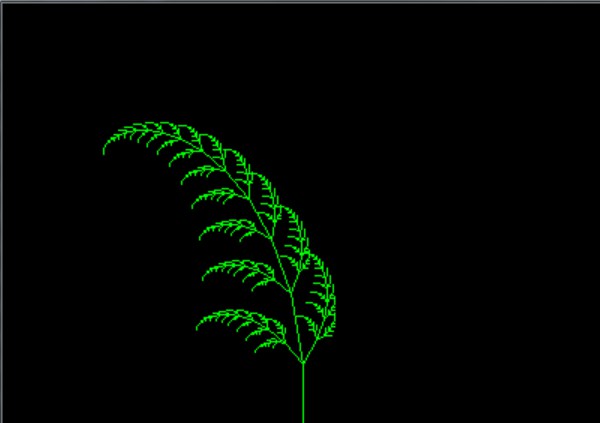

效果图如下：
画窗格
import numpy as np
import cv2
import math
def draw_window(img, origin, length, angle):
if length < 20:
end = to_int(get_point(origin, length, angle))
cv2.line(img, to_int(origin), end, (0, 255, 0))
# cv2.imshow('img', img)
# cv2.waitKey(1000)
else:
length /= 3
draw_window(img, origin, length, angle)
end = to_int(get_point(origin, length, angle))
draw_window(img, end, length, angle - 60)
end = to_int(get_point(end, length, angle-60))
draw_window(img, end, length, angle + 60)
end = to_int(get_point(end, length, angle+60))
draw_window(img, end, length, angle)
def get_point(origin, length, angle):
x, y = origin
angle *= math.pi / 180
x += length * math.cos(angle)
y += length * math.sin(angle)
return x, y
def to_int(p):
return int(p[0] + 0.5), int(p[1] + 0.5)
if __name__ == '__main__':
height = 300
width = 400
img = np.zeros([height, width, 3])
draw_window(img, (0, height // 2), width, 0)
cv2.imshow('img', img)
cv2.waitKey()

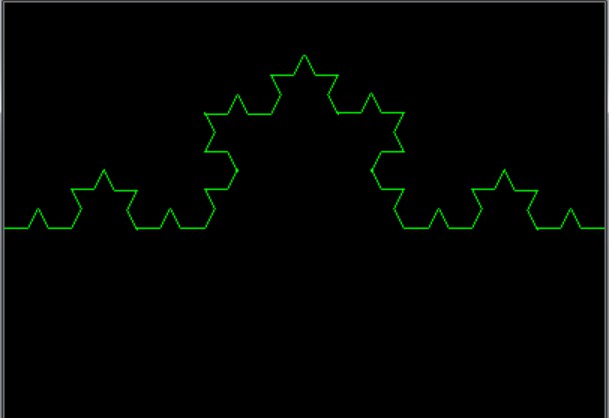

效果图如下：
分形平台
import cv2
import numpy as np
import math
class Env:
def __init__(self, origin, alpha, length, color, limit=4):
self.origin = origin
self.alpha = alpha
self.length = length
self.color = color
self.limit = limit
def copy(self):
env2 = Env(self.origin, self.alpha, self.length, self.color, self.limit)
return env2
class Graphics:
# def __init__(self):
# self.fraction = None
def draw(self, env):
raise Exception('The draw() method is not override!')
class Fraction(Graphics):
def __init__(self):
self.gs = []
def add(self, g: Graphics):
g.fraction = self
self.gs.append(g)
def draw(self, env):
for g in self.gs:
g.draw(env)
class LR(Graphics):
def __init__(self, len_scale, alpha_adjust, move):
self.len_scale = len_scale
self.alpha_adjust = alpha_adjust
self.move = move
class Line(LR):
def __init__(self, len_scale, alpha_adjust, move=True):
super(Line, self).__init__(len_scale, alpha_adjust, move)
def draw(self, env):
end = to_int(get_end(env.origin, self.len_scale * env.length, env.alpha + self.alpha_adjust))
cv2.line(img, env.origin, end, env.color)
if self.move:
env.origin = end
def get_end(origin, length, alpha):
x, y = origin[0], origin[1]
alpha = alpha * math.pi / 180
x += length * math.cos(alpha)
y += length * math.sin(alpha)
return x, y
def to_int(coord):
return int(coord[0] + 0.5), int(coord[1] + 0.5)
class Recur(LR):
def __init__(self, len_scale, alpha_adjust, move=False):
super(Recur, self).__init__(len_scale, alpha_adjust, move)
def draw(self, env):
length = self.len_scale * env.length
alpha = self.alpha_adjust + env.alpha
end = to_int(get_end(env.origin, length, alpha))
if length <= env.limit:
cv2.line(img, env.origin, end, env.color)
else:
env2 = env.copy()
env2.length = length
env2.alpha = alpha
self.fraction.draw(env2)
if self.move:
env.origin = end
if __name__ == '__main__':
f = Fraction()
f.add(Line(0.4, 0, True))
f.add(Recur(0.5, -20, False))
f.add(Recur(0.6, 40, False))
h, w = 600, 900
img = np.zeros((h, w, 3))
env = Env((w//6, h), -90, h, (0, 0, 255))
f.draw(env)
f = Fraction()
f.add(Recur(0.333, 0, True))
f.add(Recur(0.333, -60, True))
f.add(Recur(0.333, 60, True))
f.add(Recur(0.333, 0))
env = Env((w//3, h * 3//4), 0, w//3, (255, 0, 0), limit=20)
f.draw(env)
f = Fraction()
f.add(Line(0.2, 0, True))
f.add(Recur(0.3, -30, False))
f.add(Recur(0.8, -10, False))
f.add(Recur(0.3, 35, False))
env = Env((w * 5//6, h), -90, h, (0, 255, 0))
f.draw(env)
cv2.imshow('MyImage', img)
cv2.waitKey()
效果图如下：
