10.部署prometheus+grafana监控系统详细过程
1 安装前准备
1.1 主机环境
准备一台虚拟机
IP地址 操作系统 配置
10.0.0.101 CentOS Linux release 7.9.2009 (Core) 4核心、4G内存、100G磁盘
1.2 规划安装目录
将prometheus相关服务都安装在/data/目录下面，最好/data是一块单独的磁盘，易于扩容
[root@docker01 ~]# mkdir -p /data/{prometheus,grafana,alertmanager,node_exporter}
1.3 下载安装包
官网下载地址：
https://prometheus.io/download/
https://grafana.com/grafana/download/
版本信息：
Prometheus版本：2.53.4
grafana版本：11.5.3
alertmanager版本：0.28.1
exporter版本：1.9.0
[root@docker01 data]# cd /data [root@docker01 data]# ls -ltr total 297164 drwxr-xr-x 2 root root 6 Apr 11 09:20 node_exporter drwxr-xr-x 2 root root 6 Apr 11 09:20 grafana drwxr-xr-x 2 root root 6 Apr 11 09:20 alertmanager drwxr-xr-x 4 root root 132 Apr 11 09:20 prometheus
# 下载prometheus [root@docker01 data]# wget https://github.com/prometheus/prometheus/releases/download/v2.53.4/prometheus-2.53.4.linux-amd64.tar.gz --2025-04-11 09:21:38-- https://github.com/prometheus/prometheus/releases/download/v2.53.4/prometheus-2.53.4.linux-amd64.tar.gz Resolving github.com (github.com)... 20.205.243.166 Connecting to github.com (github.com)|20.205.243.166|:443... connected. Unable to establish SSL connection. [root@docker01 data]# wget https://github.com/prometheus/prometheus/releases/download/v2.53.4/prometheus-2.53.4.linux-amd64.tar.gz --2025-04-11 09:21:40-- https://github.com/prometheus/prometheus/releases/download/v2.53.4/prometheus-2.53.4.linux-amd64.tar.gz Resolving github.com (github.com)... 20.205.243.166 Connecting to github.com (github.com)|20.205.243.166|:443... connected. HTTP request sent, awaiting response... 302 Found Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/6838921/cebdf666-8802-4ed5-a1ae-e4fd5cad8363?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T012142Z&X-Amz-Expires=300&X-Amz-Signature=e49abcef3f6900812a883195504764c53f01b04318d2b10ee42d2ad55ae667ae&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dprometheus-2.53.4.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream [following] --2025-04-11 09:21:41-- https://objects.githubusercontent.com/github-production-release-asset-2e65be/6838921/cebdf666-8802-4ed5-a1ae-e4fd5cad8363?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T012142Z&X-Amz-Expires=300&X-Amz-Signature=e49abcef3f6900812a883195504764c53f01b04318d2b10ee42d2ad55ae667ae&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dprometheus-2.53.4.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.110.133, 185.199.109.133, 185.199.108.133, ... Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.110.133|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 104200835 (99M) [application/octet-stream] Saving to: ‘prometheus-2.53.4.linux-amd64.tar.gz’ 100%[===========================================================================>] 104,200,835 7.44MB/s in 15s 2025-04-11 09:21:58 (6.48 MB/s) - ‘prometheus-2.53.4.linux-amd64.tar.gz’ saved [104200835/104200835]
# 下载grafana [root@docker01 data]# wget https://dl.grafana.com/enterprise/release/grafana-enterprise-11.5.3.linux-amd64.tar.gz --2025-04-11 09:22:40-- https://dl.grafana.com/enterprise/release/grafana-enterprise-11.5.3.linux-amd64.tar.gz Resolving dl.grafana.com (dl.grafana.com)... 146.75.42.217, 2a04:4e42:7a::729 Connecting to dl.grafana.com (dl.grafana.com)|146.75.42.217|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 155080092 (148M) [application/x-tar] Saving to: ‘grafana-enterprise-11.5.3.linux-amd64.tar.gz’ 100%[===========================================================================>] 155,080,092 8.71MB/s in 28s 2025-04-11 09:23:12 (5.21 MB/s) - ‘grafana-enterprise-11.5.3.linux-amd64.tar.gz’ saved [155080092/155080092]
# 下载altermanager [root@docker01 data]# wget https://github.com/prometheus/alertmanager/releases/download/v0.28.1/alertmanager-0.28.1.linux-amd64.tar.gz --2025-04-11 09:29:23-- https://github.com/prometheus/alertmanager/releases/download/v0.28.1/alertmanager-0.28.1.linux-amd64.tar.gz Resolving github.com (github.com)... 20.205.243.166 Connecting to github.com (github.com)|20.205.243.166|:443... connected. HTTP request sent, awaiting response... 302 Found Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/11452538/72c63ac7-cd2a-4224-84be-28f404ca793f?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T012924Z&X-Amz-Expires=300&X-Amz-Signature=f72ddf439253c3c4f2a20d7021bc6aa6893c6b8ac203d8ff547bfb0c8be20449&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dalertmanager-0.28.1.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream [following] --2025-04-11 09:29:24-- https://objects.githubusercontent.com/github-production-release-asset-2e65be/11452538/72c63ac7-cd2a-4224-84be-28f404ca793f?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T012924Z&X-Amz-Expires=300&X-Amz-Signature=f72ddf439253c3c4f2a20d7021bc6aa6893c6b8ac203d8ff547bfb0c8be20449&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dalertmanager-0.28.1.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.110.133, 185.199.109.133, 185.199.108.133, ... Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.110.133|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 33436897 (32M) [application/octet-stream] Saving to: ‘alertmanager-0.28.1.linux-amd64.tar.gz’ 100%[===========================================================================>] 33,436,897 6.27MB/s in 11s 2025-04-11 09:29:36 (2.95 MB/s) - ‘alertmanager-0.28.1.linux-amd64.tar.gz’ saved [33436897/33436897]
# 下载node_exporter [root@docker01 data]# wget https://github.com/prometheus/node_exporter/releases/download/v1.9.0/node_exporter-1.9.0.linux-amd64.tar.gz --2025-04-11 09:30:05-- https://github.com/prometheus/node_exporter/releases/download/v1.9.0/node_exporter-1.9.0.linux-amd64.tar.gz Resolving github.com (github.com)... 20.205.243.166 Connecting to github.com (github.com)|20.205.243.166|:443... connected. HTTP request sent, awaiting response... 302 Found Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/9524057/c181ae2d-a1b3-4bac-883f-2a071c7ba341?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T013007Z&X-Amz-Expires=300&X-Amz-Signature=c99e44d456bf3db92ffdafa36bd09a66d233ea9c92b86cab05f035054de96700&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dnode_exporter-1.9.0.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream [following] --2025-04-11 09:30:06-- https://objects.githubusercontent.com/github-production-release-asset-2e65be/9524057/c181ae2d-a1b3-4bac-883f-2a071c7ba341?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=releaseassetproduction%2F20250411%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250411T013007Z&X-Amz-Expires=300&X-Amz-Signature=c99e44d456bf3db92ffdafa36bd09a66d233ea9c92b86cab05f035054de96700&X-Amz-SignedHeaders=host&response-content-disposition=attachment%3B%20filename%3Dnode_exporter-1.9.0.linux-amd64.tar.gz&response-content-type=application%2Foctet-stream Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.111.133, 185.199.110.133, 185.199.108.133, ... Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.111.133|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 11569068 (11M) [application/octet-stream] Saving to: ‘node_exporter-1.9.0.linux-amd64.tar.gz’ 100%[===========================================================================>] 11,569,068 362KB/s in 19s 2025-04-11 09:30:27 (603 KB/s) - ‘node_exporter-1.9.0.linux-amd64.tar.gz’ saved [11569068/11569068]
1.4 检查安装包下载完毕
[root@docker01 ~]# cd /data/ [root@docker01 data]# ls -ltr total 297164 -rw-r--r-- 1 root root 11569068 Feb 17 15:27 node_exporter-1.9.0.linux-amd64.tar.gz -rw-r--r-- 1 root root 33436897 Mar 7 23:09 alertmanager-0.28.1.linux-amd64.tar.gz -rw-r--r-- 1 root root 104200835 Mar 18 23:12 prometheus-2.53.4.linux-amd64.tar.gz -rw-r--r-- 1 root root 155080092 Mar 26 03:22 grafana-enterprise-11.5.3.linux-amd64.tar.gz drwxr-xr-x 2 root root 6 Apr 11 09:20 node_exporter drwxr-xr-x 2 root root 6 Apr 11 09:20 grafana drwxr-xr-x 2 root root 6 Apr 11 09:20 alertmanager drwxr-xr-x 4 root root 132 Apr 11 09:20 prometheus
2 安装prometheus相关服务
2.1 安装Prometheus
2.1.1 解压安装包
[root@docker01 data]# cd /data [root@docker01 data]# tar -xvf prometheus-2.53.4.linux-amd64.tar.gz prometheus-2.53.4.linux-amd64/ prometheus-2.53.4.linux-amd64/LICENSE prometheus-2.53.4.linux-amd64/promtool prometheus-2.53.4.linux-amd64/prometheus.yml prometheus-2.53.4.linux-amd64/prometheus prometheus-2.53.4.linux-amd64/NOTICE prometheus-2.53.4.linux-amd64/console_libraries/ prometheus-2.53.4.linux-amd64/console_libraries/menu.lib prometheus-2.53.4.linux-amd64/console_libraries/prom.lib prometheus-2.53.4.linux-amd64/consoles/ prometheus-2.53.4.linux-amd64/consoles/node-disk.html prometheus-2.53.4.linux-amd64/consoles/index.html.example prometheus-2.53.4.linux-amd64/consoles/prometheus.html prometheus-2.53.4.linux-amd64/consoles/node-cpu.html prometheus-2.53.4.linux-amd64/consoles/node.html prometheus-2.53.4.linux-amd64/consoles/node-overview.html prometheus-2.53.4.linux-amd64/consoles/prometheus-overview.html [root@docker01 data]# mv prometheus-2.53.4.linux-amd64/* /data/prometheus
2.1.2 创建prometheus用户
[root@docker01 data]# useradd -M -s /sbin/nologin prometheus [root@docker01 data]# id prometheus uid=1000(prometheus) gid=1000(prometheus) groups=1000(prometheus)
2.1.3 授予prometheus目录权限
[root@docker01 data]# chown -R prometheus.prometheus /data/prometheus
2.1.4 给 Prometheus创建systemd服务
[root@docker01 data]# cat /etc/systemd/system/prometheus.service [Unit] Description=Prometheus Server Documentation=https://prometheus.io/docs/introduction/overview After=network.target [Service] Type=simple User=prometheus Group=prometheus Restart=on-failure ExecStart=/data/prometheus/prometheus \ --config.file=/data/prometheus/prometheus.yml \ --storage.tsdb.path=/data/prometheus/data \ --storage.tsdb.retention.time=15d \ --web.enable-lifecycle [Install] WantedBy=multi-user.target
2.1.5 加载、启动并设置开机自启动
[root@docker01 data]# systemctl daemon-reload [root@docker01 data]# systemctl enable --now prometheus.service Created symlink from /etc/systemd/system/multi-user.target.wants/prometheus.service to /etc/systemd/system/prometheus.service.
2.1.6 检查状态
[root@docker01 data]# systemctl status prometheus.service ● prometheus.service - Prometheus Server Loaded: loaded (/etc/systemd/system/prometheus.service; enabled; vendor preset: disabled) Active: active (running) since Fri 2025-04-11 10:37:25 CST; 4s ago Docs: https://prometheus.io/docs/introduction/overview Main PID: 2295 (prometheus) Tasks: 9 Memory: 18.9M CGroup: /system.slice/prometheus.service └─2295 /data/prometheus/prometheus --config.file=/data/prometheus/prometheus.yml --storage.tsdb.path=/d... Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.461Z caller=head.go:721 level=info componen...hile" Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.476Z caller=head.go:793 level=info componen...ent=0 Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.476Z caller=head.go:830 level=info componen…41563ms Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.478Z caller=main.go:1169 level=info fs_type...MAGIC Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.478Z caller=main.go:1172 level=info msg="TS...rted" Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.478Z caller=main.go:1354 level=info msg="Lo...s.yml Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.547Z caller=main.go:1391 level=info msg="up...ew=75 Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.547Z caller=main.go:1402 level=info msg="Complet…µs Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.547Z caller=main.go:1133 level=info msg="Se...sts." Apr 11 10:37:25 docker01 prometheus[2295]: ts=2025-04-11T02:37:25.547Z caller=manager.go:164 level=info compo...r..." Hint: Some lines were ellipsized, use -l to show in full.

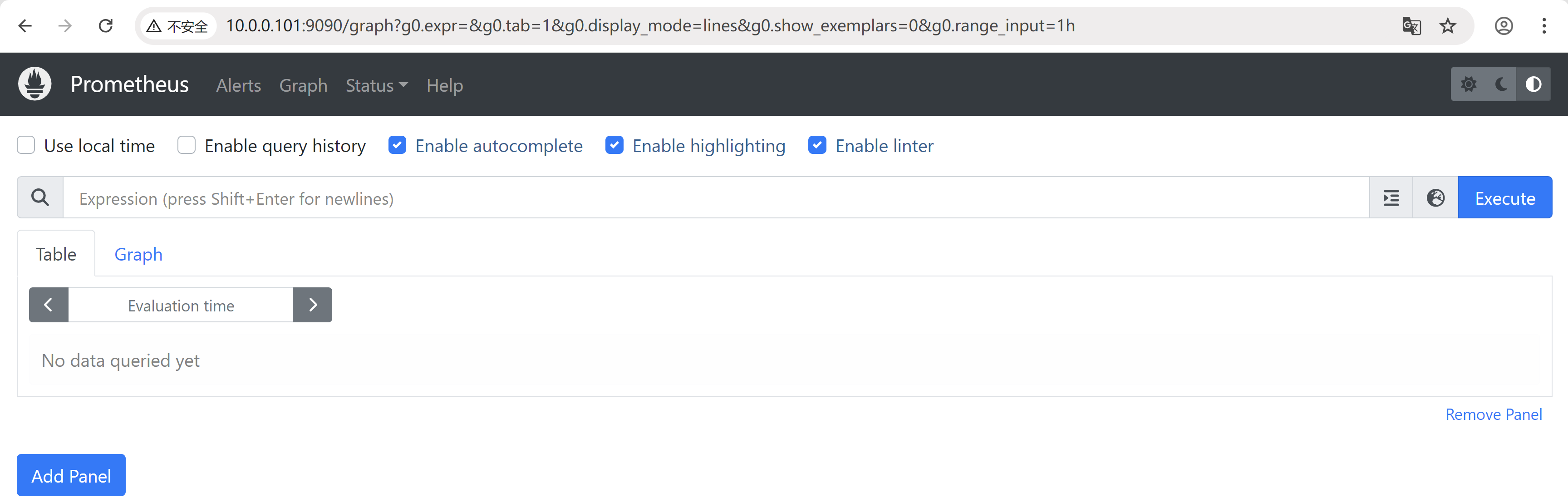

2.1.7 访问prometheus的Web界面
本地浏览器访问: 10.0.0.101:9090
2.2 安装alertmanager
2.2.1 解压安装包
[root@docker01 ~]# cd /data/ [root@docker01 data]# tar -xvf alertmanager-0.28.1.linux-amd64.tar.gz alertmanager-0.28.1.linux-amd64/ alertmanager-0.28.1.linux-amd64/LICENSE alertmanager-0.28.1.linux-amd64/alertmanager alertmanager-0.28.1.linux-amd64/alertmanager.yml alertmanager-0.28.1.linux-amd64/amtool alertmanager-0.28.1.linux-amd64/NOTICE [root@docker01 data]# mv /data/alertmanager-0.28.1.linux-amd64/* /data/alertmanager
2.2.2 授予 Prometheus目录权限
[root@docker01 data]# chown -R prometheus.prometheus /data/alertmanager
2.2.3 给alertmanager创建systemd服务
[root@docker01 data]# cat /etc/systemd/system/alertmanager.service [Unit] Desciption=Alert Manager wants=network-online.target After=network-online.target [Service] Type=simple User=prometheus Group=prometheus ExecStart=/data/alertmanager/alertmanager \ --config.file=/data/alertmanager/alertmanager.yml \ --storage.path=/data/alertmanager/data Restart=always [Install] WantedBy=multi-user.target
2.2.4 加载、启动并设置开机自启动
[root@docker01 data]# systemctl daemon-reload [root@docker01 data]# systemctl enable --now alertmanager.service Created symlink from /etc/systemd/system/multi-user.target.wants/alertmanager.service to /etc/systemd/system/alertmanager.service.
2.2.5 检查状态
[root@docker01 data]# systemctl status alertmanager.service ● alertmanager.service Loaded: loaded (/etc/systemd/system/alertmanager.service; enabled; vendor preset: disabled) Active: active (running) since Fri 2025-04-11 11:13:31 CST; 9s ago Main PID: 2449 (alertmanager) Tasks: 10 Memory: 14.5M CGroup: /system.slice/alertmanager.service └─2449 /data/alertmanager/alertmanager --config.file=/data/alertmanager/alertmanager.yml --storage.path... Apr 11 11:13:31 docker01 systemd[1]: Started alertmanager.service. Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.349Z level=INFO source=main.go:191 msg=...910)" Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.349Z level=INFO source=main.go:192 msg=...tgo)" Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.353Z level=INFO source=cluster.go:185 m...=9094 Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.354Z level=INFO source=cluster.go:674 m...al=2s Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.397Z level=INFO source=coordinator.go:1...r.yml Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.398Z level=INFO source=coordinator.go:1...r.yml Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.400Z level=INFO source=tls_config.go:34...:9093 Apr 11 11:13:31 docker01 alertmanager[2449]: time=2025-04-11T03:13:31.400Z level=INFO source=tls_config.go:35...:9093 Apr 11 11:13:33 docker01 alertmanager[2449]: time=2025-04-11T03:13:33.355Z level=INFO source=cluster.go:699 m...6518s Hint: Some lines were ellipsized, use -l to show in full.
2.2.6 将alertmanager加入prometheus
[root@docker01 prometheus]# cat /data/prometheus/prometheus.yml # my global config global: scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. # scrape_timeout is set to the global default (10s). # Alertmanager configuration alerting: alertmanagers: - static_configs: - targets: # 根据实际填写alertmanager的IP地址 - 10.0.0.101:9093 # Load rules once and periodically evaluate them according to the global 'evaluation_interval'. rule_files: # 根据实际名修改文件名，可以有多个规则文件 - "/data/alertmanager/rule/alert.yml" # - "first_rules.yml" # - "second_rules.yml" # A scrape configuration containing exactly one endpoint to scrape: # Here it's Prometheus itself. scrape_configs: # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config. - job_name: "prometheus" # metrics_path defaults to '/metrics' # scheme defaults to 'http'. static_configs: - targets: ["localhost:9090"]
2.2.7 增加触发器配置文件并检查配置
[root@docker01 data]# mkdir /data/alertmanager/rule [root@docker01 data]# cat /data/alertmanager/rule/alert.yml groups: - name: 主机状态监控 rules: - alert: 主机宕机 expr: up == 0 for: 1m labels: severity: critical annotations: summary: "{{ $labels.instance }} 主机宕机，请尽快处理" description: "{{ $labels.instance }} 已经宕机超过 1 分钟。请检查服务状态。" [root@docker01 data]# chown -R prometheus.prometheus /data/alertmanager
2.2.8 检查配置
[root@docker01 ~]# cd /data/prometheus [root@docker01 prometheus]# ./promtool check config prometheus.yml Checking prometheus.yml SUCCESS: 1 rule files found SUCCESS: prometheus.yml is valid prometheus config file syntax Checking /data/alertmanager/rule/alert.yml SUCCESS: 1 rules found
注意：一定要检测通过再进行重启prometheus
2.2.9 重启prometheus
[root@docker01 prometheus]# systemctl restart prometheus

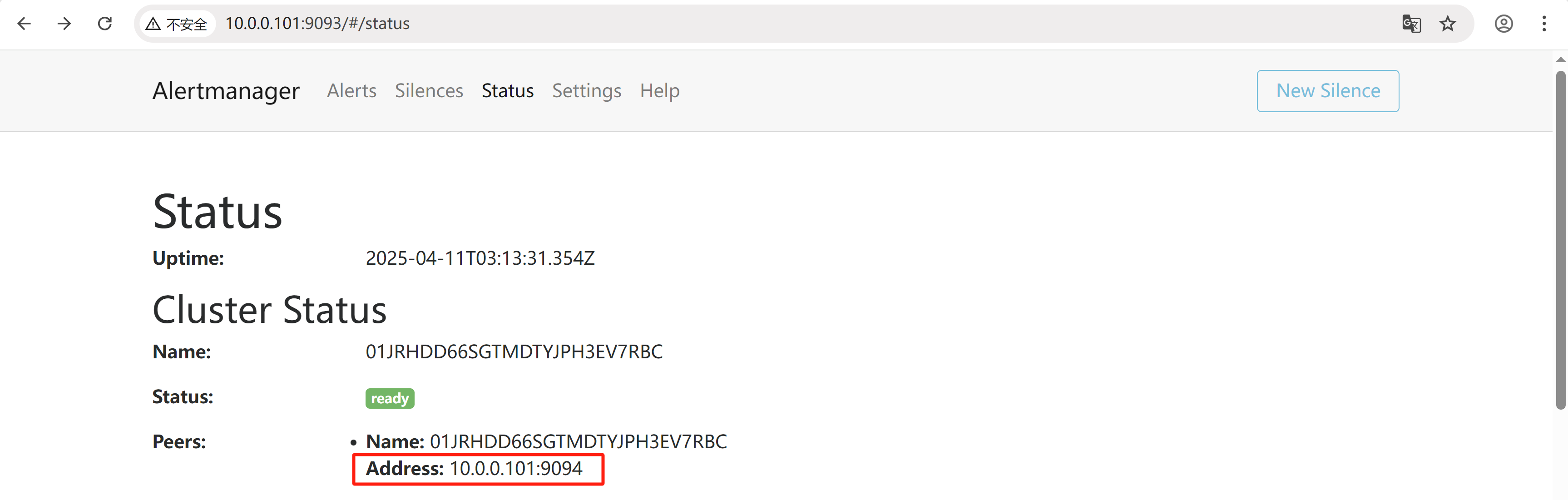

2.2.10 访问alertmanager的Web界面
本地浏览器访问: 10.0.0.101:9093
2.3 安装node_exporter
2.3.1 解压安装包
[root@docker01 ~]# cd /data/ [root@docker01 data]# tar -xvf node_exporter-1.9.0.linux-amd64.tar.gz node_exporter-1.9.0.linux-amd64/ node_exporter-1.9.0.linux-amd64/LICENSE node_exporter-1.9.0.linux-amd64/NOTICE node_exporter-1.9.0.linux-amd64/node_exporter [root@docker01 data]# mv node_exporter-1.9.0.linux-amd64/* /data/node_exporter
2.3.2 授予node_exporter目录权限
[root@docker01 data]# chown prometheus.prometheus -R /data/node_exporter
2.3.3 给node_exporter创建systemd服务
[root@docker01 data]# cat /etc/systemd/system/node_exporter.service [Unit] Description=node_exporter Documentation=https://prometheus.io/ After=network.target [Service] User=prometheus Group=prometheus ExecStart=/data/node_exporter/node_exporter Restart=on-failure [Install] WantedBy=multi-user.target
2.3.4 加载、启动并设置开机自启动
[root@docker01 data]# systemctl daemon-reload [root@docker01 data]# systemctl enable --now node_exporter.service Created symlink from /etc/systemd/system/multi-user.target.wants/node_exporter.service to /etc/systemd/system/node_exporter.service.
2.3.5 检查状态
[root@docker01 data]# systemctl status node_exporter ● node_exporter.service - node_exporter Loaded: loaded (/etc/systemd/system/node_exporter.service; enabled; vendor preset: disabled) Active: active (running) since Fri 2025-04-11 14:58:52 CST; 10s ago Docs: https://prometheus.io/ Main PID: 3374 (node_exporter) Tasks: 5 Memory: 4.8M CGroup: /system.slice/node_exporter.service └─3374 /data/node_exporter/node_exporter Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...=time Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...timex Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...ueues Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...uname Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...mstat Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...chdog Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...g=xfs Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.380Z level=INFO source=node_exporter.g...g=zfs Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.381Z level=INFO source=tls_config.go:3...:9100 Apr 11 14:58:52 docker01 node_exporter[3374]: time=2025-04-11T06:58:52.381Z level=INFO source=tls_config.go:3...:9100 Hint: Some lines were ellipsized, use -l to show in full.

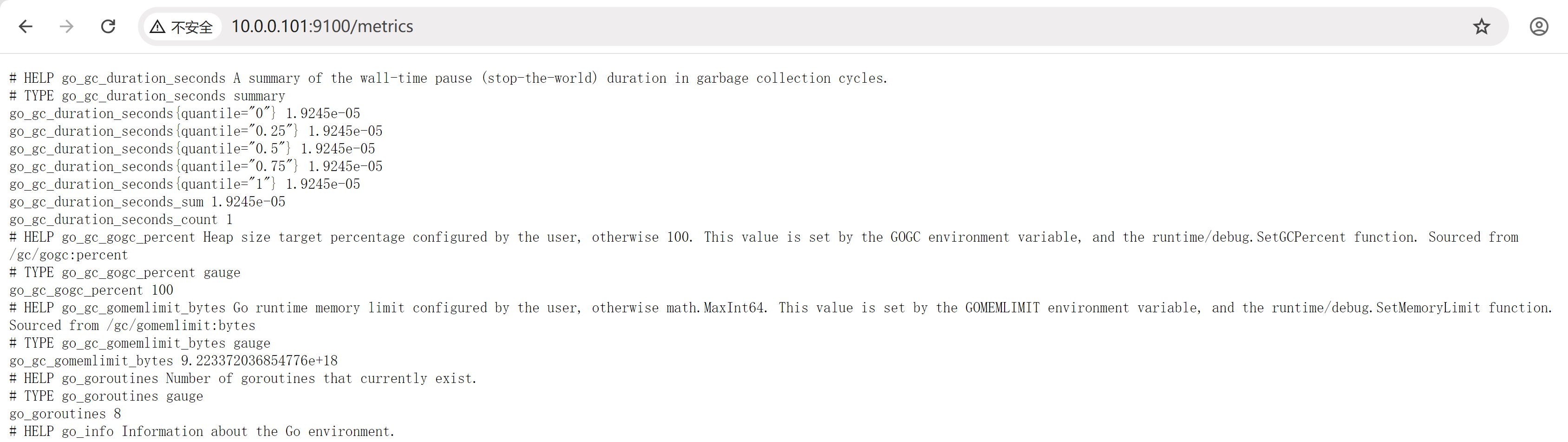

2.3.6 访问node_exporter的Web界面
本地浏览器访问: 10.0.0.101:9100/metrics

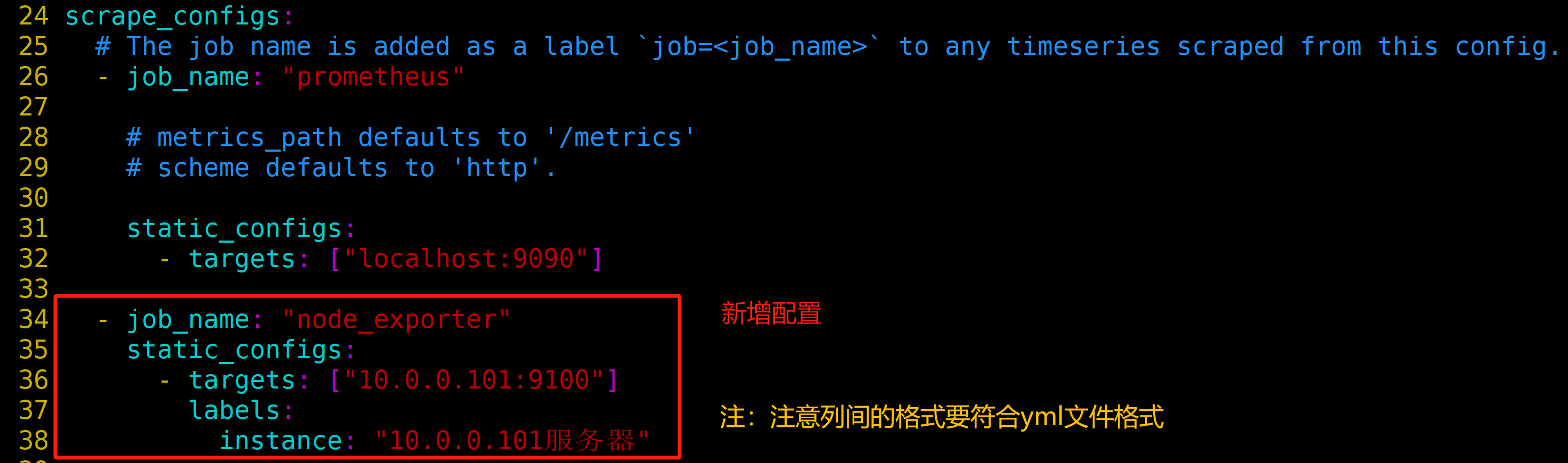

2.3.7 将node_exporter加入prometheus
# 在prometheus.yml文件尾部添加一个job_name,可以添加多个targets
[root@docker01 prometheus]# tail -10 /data/prometheus/prometheus.yml # scheme defaults to 'http'. static_configs: - targets: ["localhost:9090"] - job_name: "node_exporter" static_configs: - targets: ["10.0.0.101:9100"] labels: instance: "10.0.0.101服务器"
2.3.9 检查配置并平滑加载或重启
[root@docker01 prometheus]# ./promtool check config prometheus.yml Checking prometheus.yml SUCCESS: 1 rule files found SUCCESS: prometheus.yml is valid prometheus config file syntax Checking /data/alertmanager/rule/alert.yml SUCCESS: 1 rules found # 平滑加载（2选1） [root@docker01 prometheus]# curl -X POST http://10.0.0.101:9090/-/reload
# 重启（2选1）
[root@docker01 prometheus]# systemctl restart prometheus.service

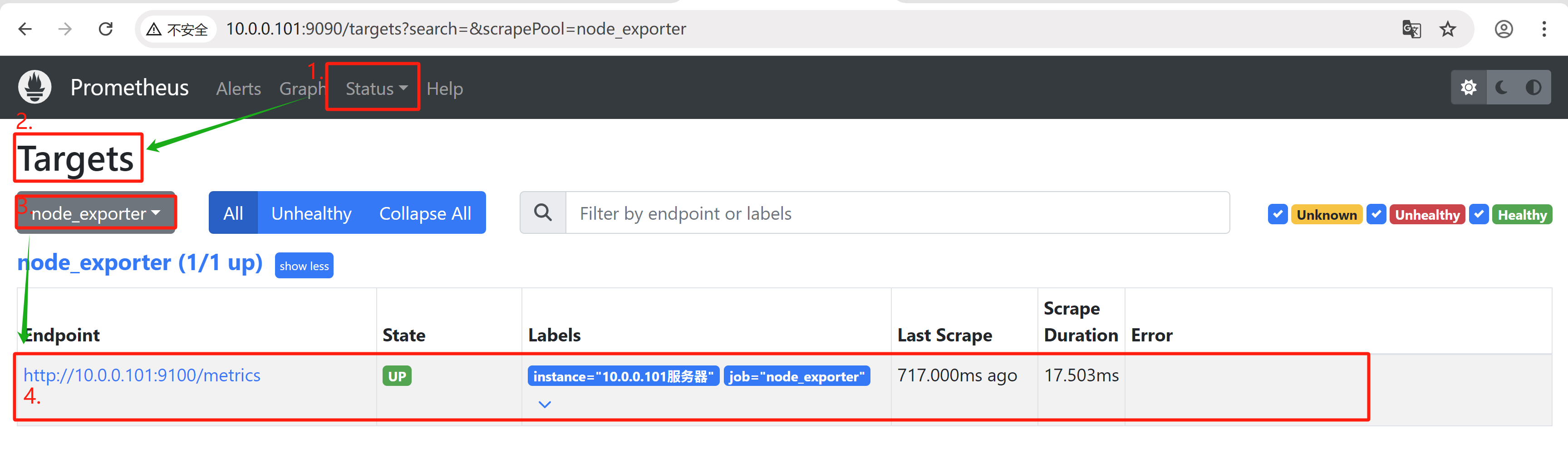

2.3.10 登录prometheus查看node_exporter是否启动
2.4 安装Grafana
2.4.1 解压安装包
[root@docker01 ~]# cd /data/ [root@docker01 data]# tar -xvf grafana-enterprise-11.5.3.linux-amd64.tar.gz grafana-v11.5.3/VERSION grafana-v11.5.3/LICENSE grafana-v11.5.3/NOTICE.md grafana-v11.5.3/README.md grafana-v11.5.3/Dockerfile grafana-v11.5.3/tools/zoneinfo.zip ............ [root@docker01 data]# mv grafana-v11.5.3/* /data/grafana
2.4.2 授予 Grafana目录权限
[root@docker01 data]# chown -R prometheus.prometheus /data/grafana
2.4.3 给grafana创建systemd服务
[root@docker01 data]# cat /etc/systemd/system/grafana-server.service [Unit] Description=Grafana server Documetation=http://dosc.grafana.org [Service] Type=simple User=prometheus Group=prometheus Restart=on-failure ExecStart=/data/grafana/bin/grafana-server --config=/data/grafana/conf/defaults.ini --homepath=/data/grafana [Install] WantedBy=multi-user.target
2.4.4 加载、启动并设置开机自启动
[root@docker01 data]# systemctl daemon-reload [root@docker01 data]# systemctl enable --now grafana-server.service Created symlink from /etc/systemd/system/multi-user.target.wants/grafana-server.service to /etc/systemd/system/grafana-server.service.
2.4.5 检查状态
[root@docker01 data]# systemctl status grafana-server.service ● grafana-server.service - Grafana server Loaded: loaded (/etc/systemd/system/grafana-server.service; enabled; vendor preset: disabled) Active: active (running) since Fri 2025-04-11 16:02:21 CST; 8s ago Main PID: 5024 (grafana) Tasks: 14 Memory: 93.5M CGroup: /system.slice/grafana-server.service └─5024 grafana server --config=/data/grafana/conf/defaults.ini --homepath=/data/grafana Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.07784359+08:00 level=info...ion" Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.078712974+08:00 level=inf….921µs Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.080007229+08:00 level=inf...umn" Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.086532635+08:00 level=inf...56ms Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.087565225+08:00 level=inf...029s Apr 11 16:02:24 docker01 grafana-server[5024]: logger=migrator t=2025-04-11T16:02:24.088075756+08:00 level=inf...ase" Apr 11 16:02:24 docker01 grafana-server[5024]: logger=sqlstore t=2025-04-11T16:02:24.101759062+08:00 level=inf...dmin Apr 11 16:02:24 docker01 grafana-server[5024]: logger=sqlstore t=2025-04-11T16:02:24.10213337+08:00 level=info...ion" Apr 11 16:02:24 docker01 grafana-server[5024]: logger=licensing t=2025-04-11T16:02:24.104527078+08:00 level=in...ound Apr 11 16:02:24 docker01 grafana-server[5024]: logger=secrets t=2025-04-11T16:02:24.104610142+08:00 level=info...y.v1 Hint: Some lines were ellipsized, use -l to show in full.

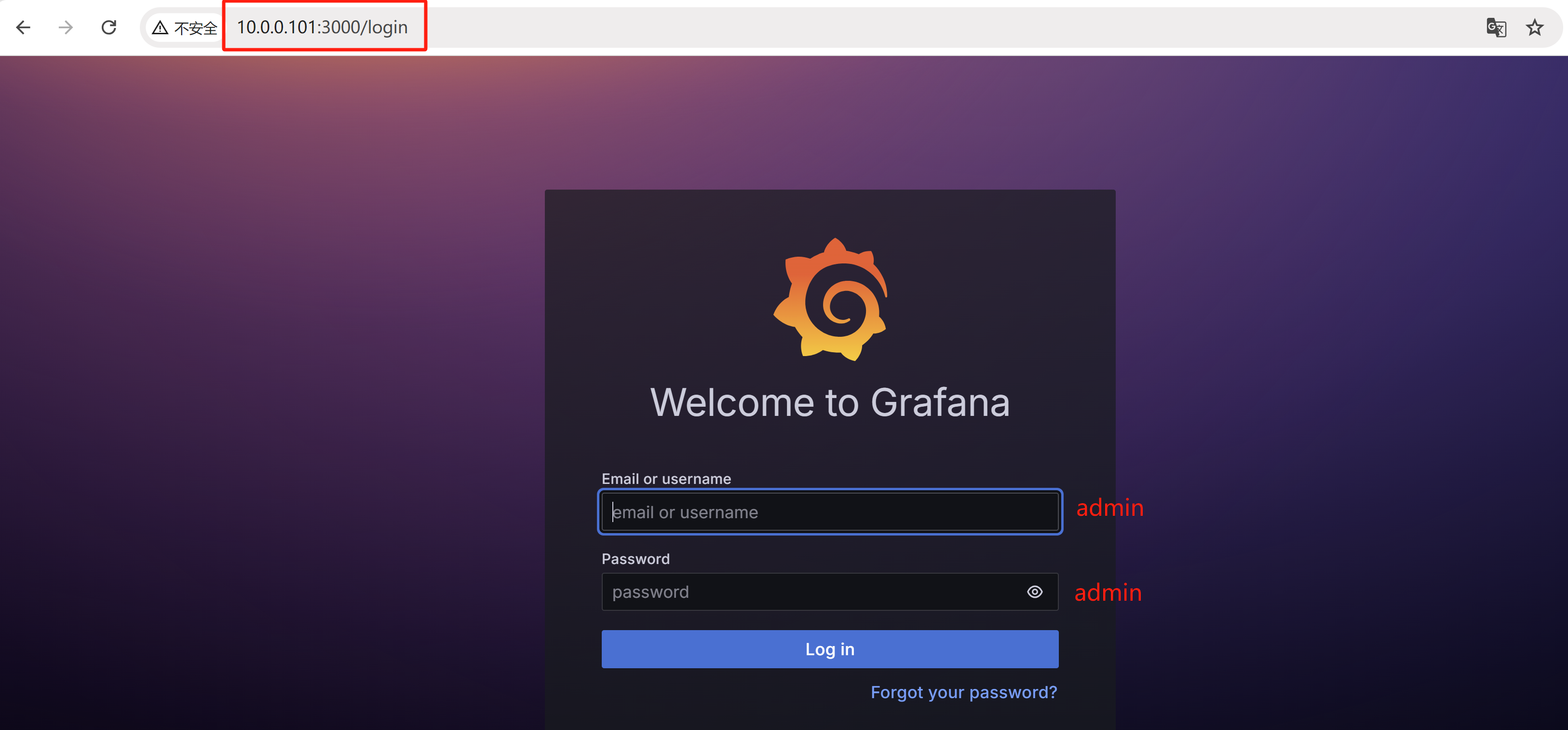

2.4.6 访问grafana的Web界面
本地浏览器访问: 10.0.0.101:3000 默认用户名/密码：admin/admin # 首次登录需要修改密码
2.4.7 grafana对接prometheus
依次点击：1.Home -> 2.Connections -> 3.Add new connection -> 4.Prometheus
-> 5.Add new data source
2.4.8从Grafana官网导入符合要求的仪表盘
Grafana官网：https://grafana.com/grafana/dashboards/

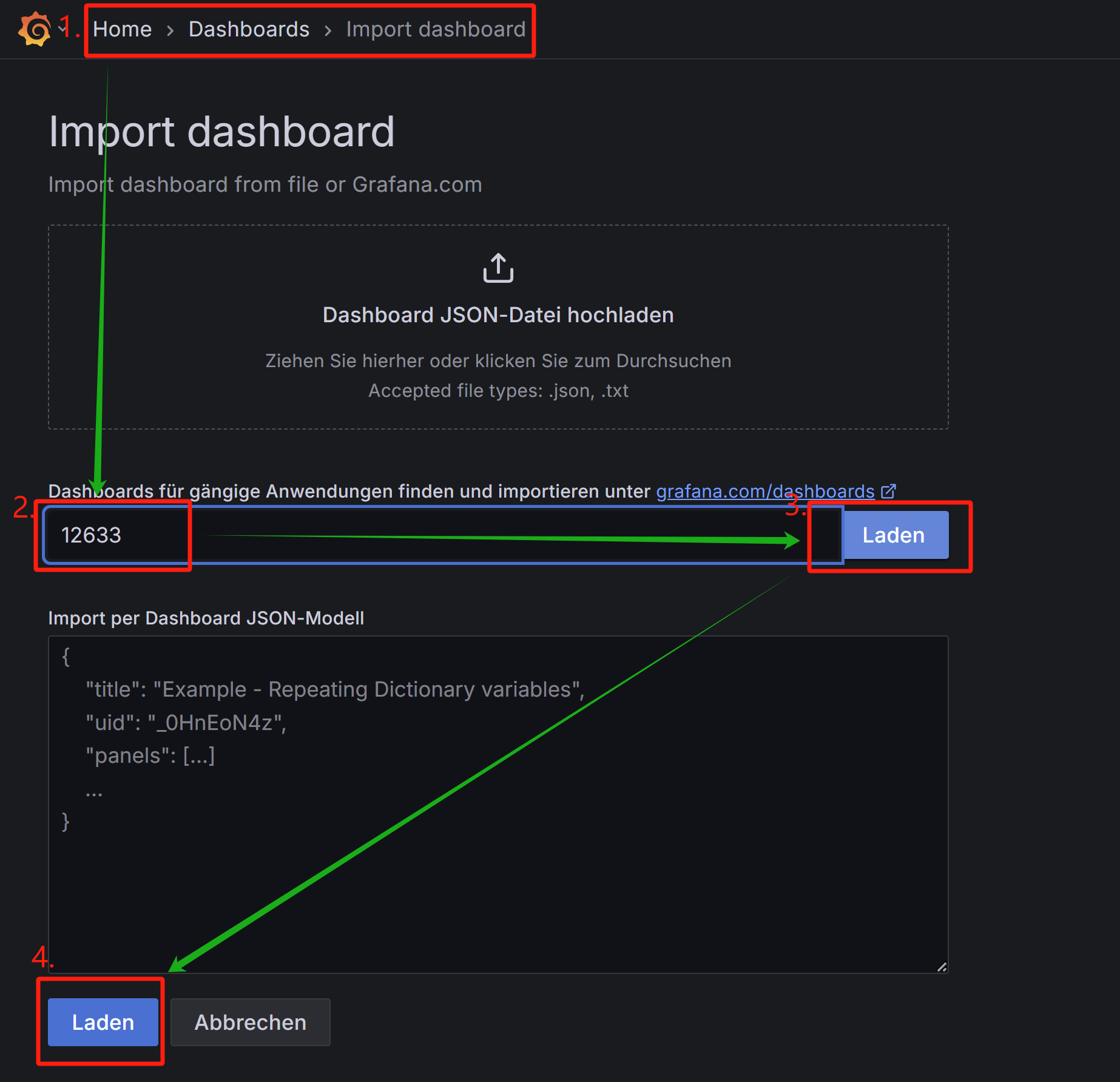

1.基于ID号方式导入
在官网查看监控模版的ID号，把ID号粘贴到 2 中，依次点击3、4，选择prometheus数据源，点击import导入

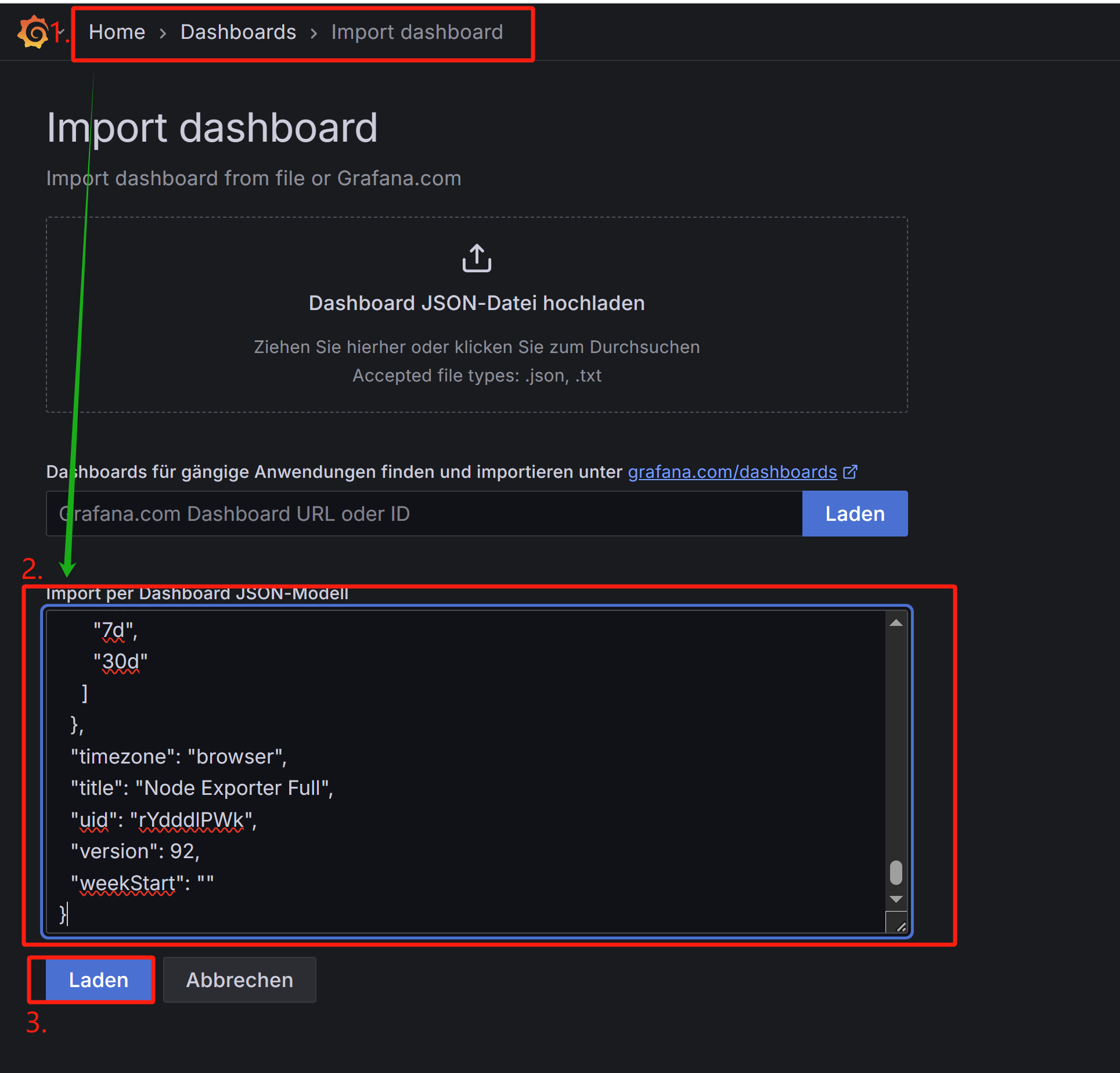

2.基于文件方式导入
先在官网下载json格式文件，把文件中的内容粘贴到 2 中，点击3，选择prometheus数据源，点击import导入
———————————————————————————————————————————————————————————————————————————
