PowerDesigner中name、comment的同步及code大小写转换

使用PowerDesigner设计表结构时候，为避免重复将name字段手工复制到commnet，可以先不复制name字段到comment，等设计完成后。使用脚本批量将name字段复制到comment中，再进行调整comment中内容。

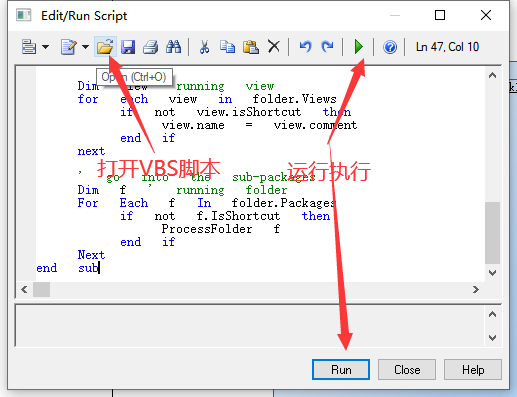

PDM设计完成后，操作：tools > execute commands > edit/run scripts 按需求粘贴一下内容运行即可，就实现了批量的name到comment的同步操作。可以将脚本保存为VBS，选择脚本调用执行。





相关脚本如下：

1.name字段同步到comment

Option   Explicit
ValidationMode   =   True
InteractiveMode   =   im_Batch

Dim   mdl   '   the   current   model

'   get   the   current   active   model
Set   mdl   =   ActiveModel
If   (mdl   Is   Nothing)   Then
  MsgBox   "There   is   no   current   Model "
ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
  MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
Else
  ProcessFolder   mdl
End   If

'   This   routine   copy   name   into   comment   for   each   table,   each   column   and   each   view
'   of   the   current   folder
Private   sub   ProcessFolder(folder)
  Dim   Tab   'running     table
  for   each   Tab   in   folder.tables
    if   not   tab.isShortcut   then
      tab.comment   =   tab.name
      Dim   col   '   running   column
      for   each   col   in   tab.columns
        col.comment=   col.name
      next
    end   if
  next

  Dim   view   'running   view
  for   each   view   in   folder.Views
    if   not   view.isShortcut   then
      view.comment   =   view.name
    end   if
  next

  '   go   into   the   sub-packages
  Dim   f   '   running   folder
  For   Each   f   In   folder.Packages
    if   not   f.IsShortcut   then
      ProcessFolder   f
    end   if
  Next
end   sub
View Code

2.comment字段同步到name

Option   Explicit
ValidationMode   =   True
InteractiveMode   =   im_Batch

Dim   mdl   '   the   current   model

'   get   the   current   active   model
Set   mdl   =   ActiveModel
If   (mdl   Is   Nothing)   Then
      MsgBox   "There   is   no   current   Model "
ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
      MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
Else
      ProcessFolder   mdl
End   If

Private   sub   ProcessFolder(folder)
On Error Resume Next
      Dim   Tab   'running     table
      for   each   Tab   in   folder.tables
            if   not   tab.isShortcut   then
                  tab.name   =   tab.comment
                  Dim   col   '   running   column
                  for   each   col   in   tab.columns
                  if col.comment="" then
                  else
                        col.name=   col.comment
                  end if
                  next
            end   if
      next

      Dim   view   'running   view
      for   each   view   in   folder.Views
            if   not   view.isShortcut   then
                  view.name   =   view.comment
            end   if
      next

      '   go   into   the   sub-packages
      Dim   f   '   running   folder
      For   Each   f   In   folder.Packages
            if   not   f.IsShortcut   then
                  ProcessFolder   f
            end   if
      Next
end   sub
View Code

3.code字段 转大写

 1 Option Explicit
 2 ValidationMode = True
 3 InteractiveMode = im_Batch
 4
 5 Dim mdl ' the current model
 6
 7 ' get the current active model
 8 Set mdl = ActiveModel
 9 If (mdl Is Nothing) Then
10    MsgBox "There is no current Model"
11 ElseIf Not mdl.IsKindOf(PdPDM.cls_Model) Then
12    MsgBox "The current model is not an Physical Data model."
13 Else
14    ProcessFolder mdl
15 End If
16
17 ' This routine copy name into code for each table, each column and each view
18 ' of the current folder
19 Private sub ProcessFolder(folder)
20    Dim Tab 'running  table
21    for each Tab in folder.tables
22    '   if not tab.isShortcut then
23         ' tab.code = tab.name
24          Dim col ' running column
25          for each col in tab.columns
26         col.code= UCase(col.code)
27                      next
28       'end if
29    next
30
31 '  Dim view 'running view
32 '   for each view in folder.Views
33    '   if not view.isShortcut then
34        '  view.code = view.name
35     '  end if
36   ' next
37
38    ' go into the sub-packages
39    Dim f ' running folder
40    For Each f In folder.Packages
41       if not f.IsShortcut then
42          ProcessFolder f
43       end if
44    Next
45 end sub
View Code

4.code字段转小写

 1 Option Explicit
 2 ValidationMode = True
 3 InteractiveMode = im_Batch
 4
 5 Dim mdl ' the current model
 6
 7 ' get the current active model
 8 Set mdl = ActiveModel
 9 If (mdl Is Nothing) Then
10    MsgBox "There is no current Model"
11 ElseIf Not mdl.IsKindOf(PdPDM.cls_Model) Then
12    MsgBox "The current model is not an Physical Data model."
13 Else
14    ProcessFolder mdl
15 End If
16
17 ' This routine copy name into code for each table, each column and each view
18 ' of the current folder
19 Private sub ProcessFolder(folder)
20    Dim Tab 'running  table
21    for each Tab in folder.tables
22    '   if not tab.isShortcut then
23         ' tab.code = tab.name
24          Dim col ' running column
25          for each col in tab.columns
26             col.code= LCase(col.code) '转小写
27          next
28       'end if
29    next
30
31 '  Dim view 'running view
32 '   for each view in folder.Views
33    '   if not view.isShortcut then
34        '  view.code = view.name
35     '  end if
36   ' next
37
38    ' go into the sub-packages
39    Dim f ' running folder
40    For Each f In folder.Packages
41       if not f.IsShortcut then
42          ProcessFolder f
43       end if
44    Next
45 end sub
View Code
