Java 远程连接在 VMware Ubuntu 中的 Hbase 并进行简单的 CRUD（不使用 Maven）
之前上传的 CSDN，水印就懒得再做处理了
Hbase 作业 1
Environmental Preparation
Network Check
先对环境进行准备，确保虚拟机和宿主机能够互 Ping,确保两台主机能够网络通畅

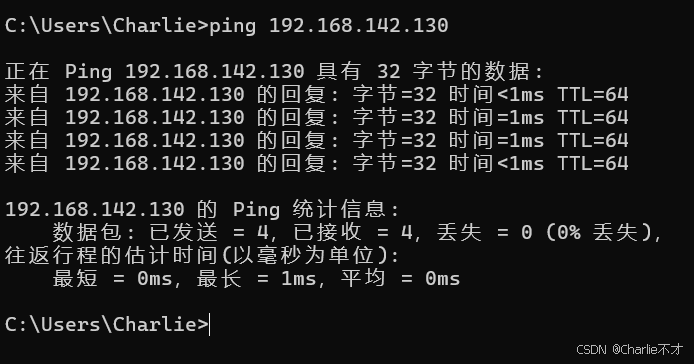

宿主机打开 Powershell 对虚拟机进行 Ping 操作

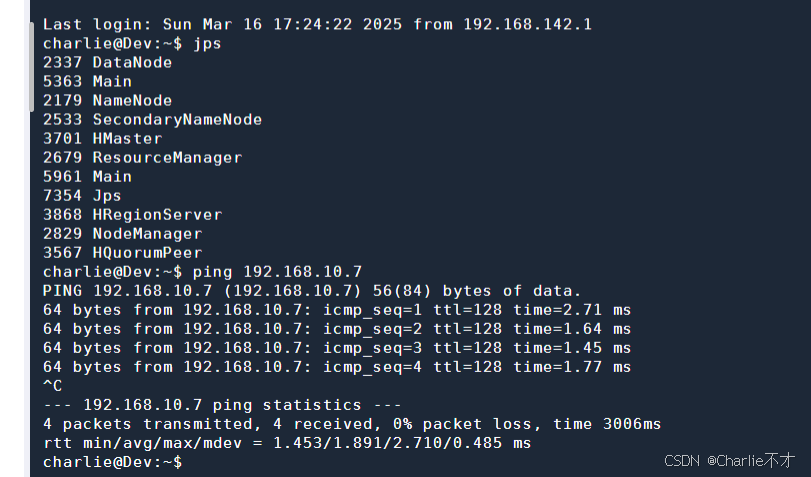

同样的方式，打开虚拟机中 Ubhntu 的 Terminal 对宿主机进行 ping 操作
Launch Hadoop And Hbase Software
启动 Hadoop 和 Hbase 环境，HBase 需依赖 HDFS 存储数据，且需 ZooKeeper 协调服务，是否启动成功可以通过 jps 命令来查看
start-all.sh
start-hbase.sh
hbase shell
Create New Project in Idea

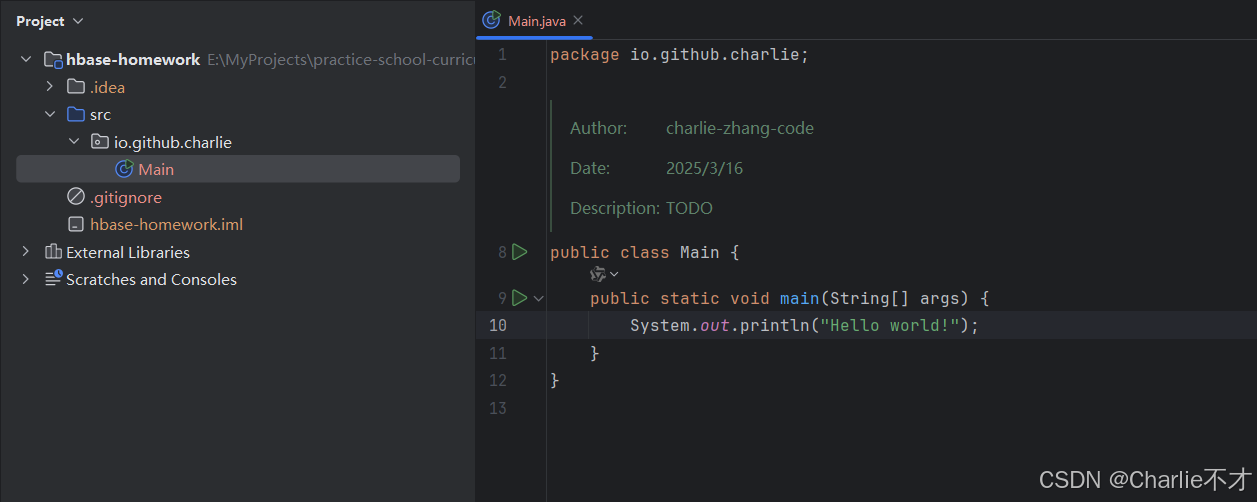

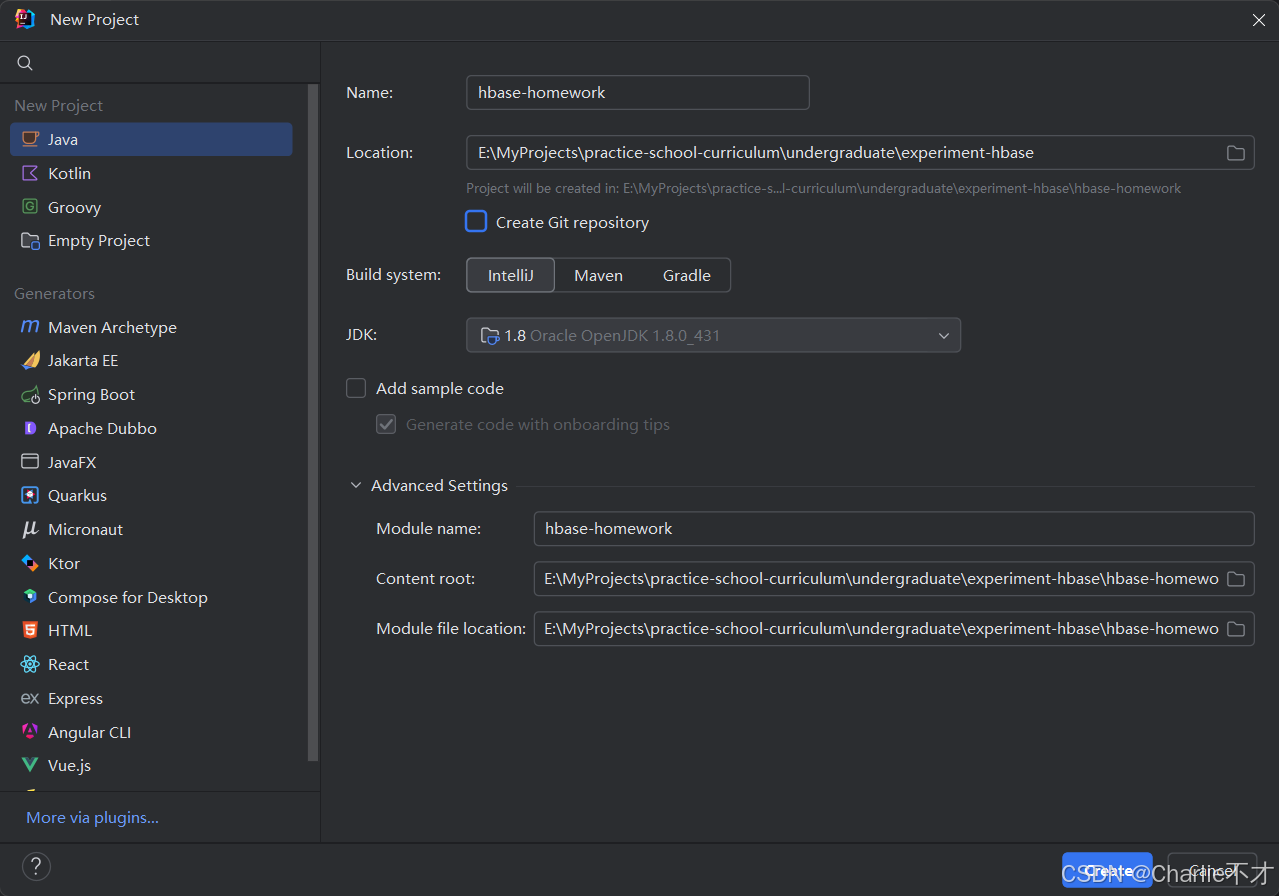

使用 Idea IDE 创建一个简单的 Java 项目（不使用 Maven）

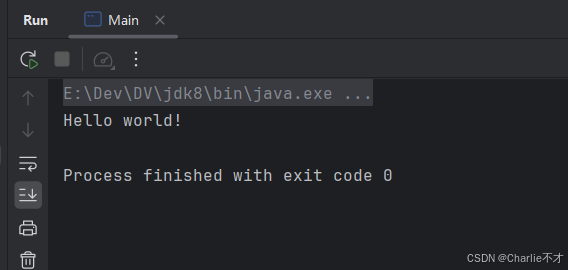

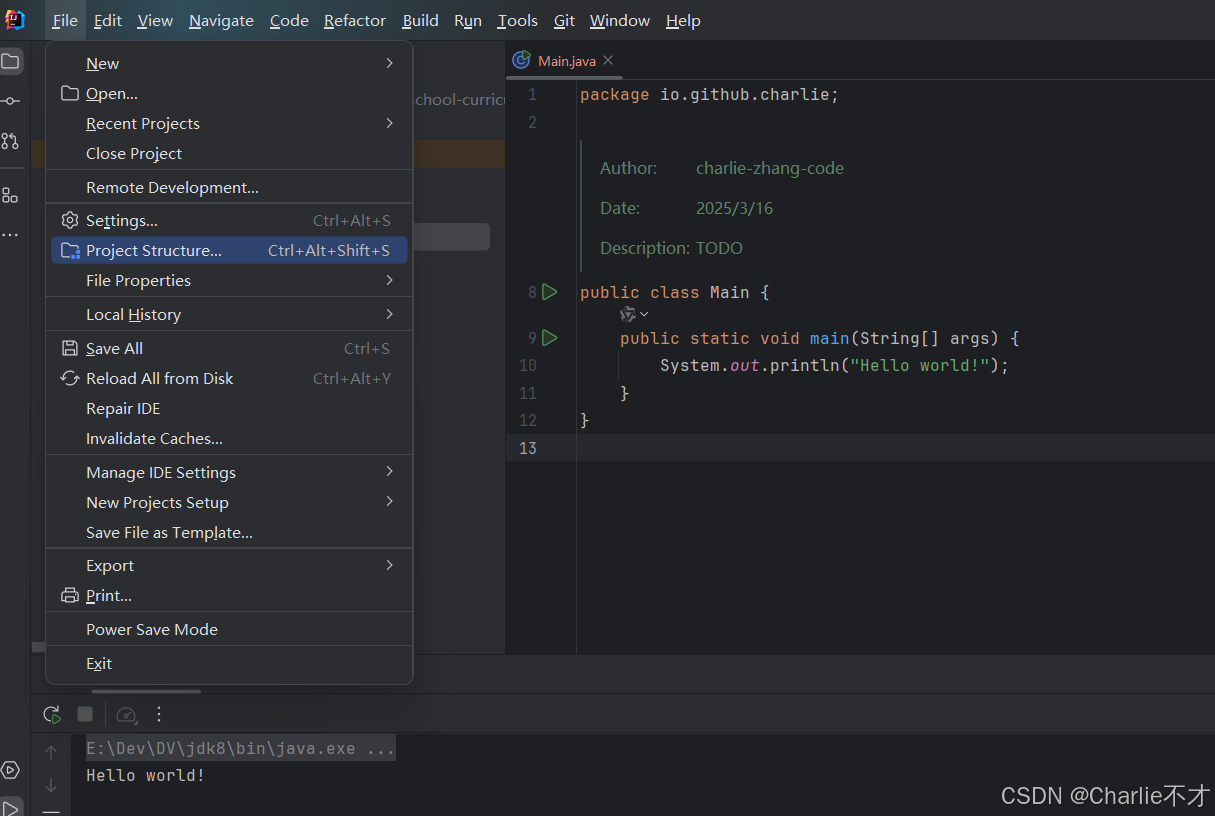

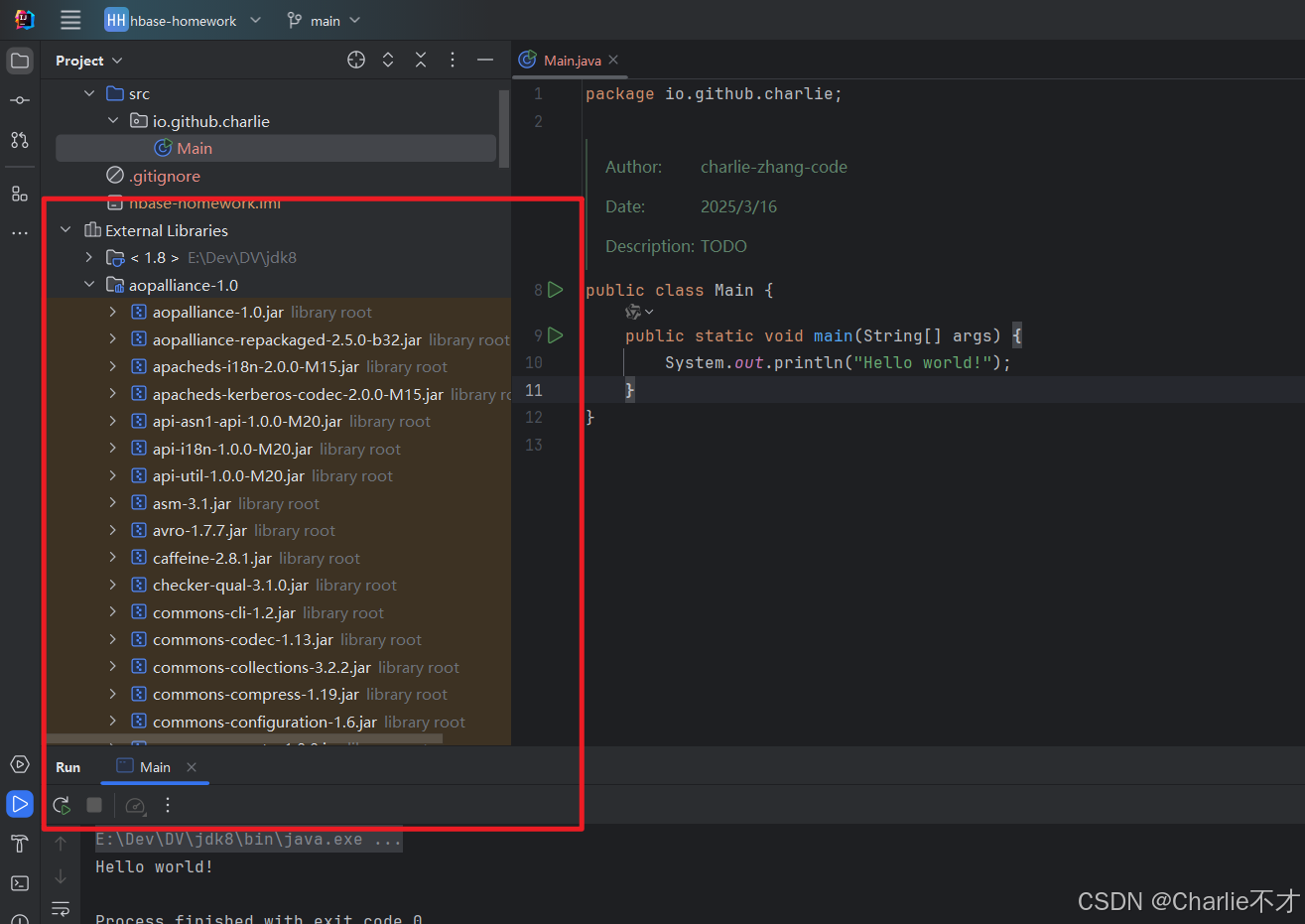

Lanch Check
简单启动一下经常是否能够正常调用启动
Add the Hbase Jar Package to The Project

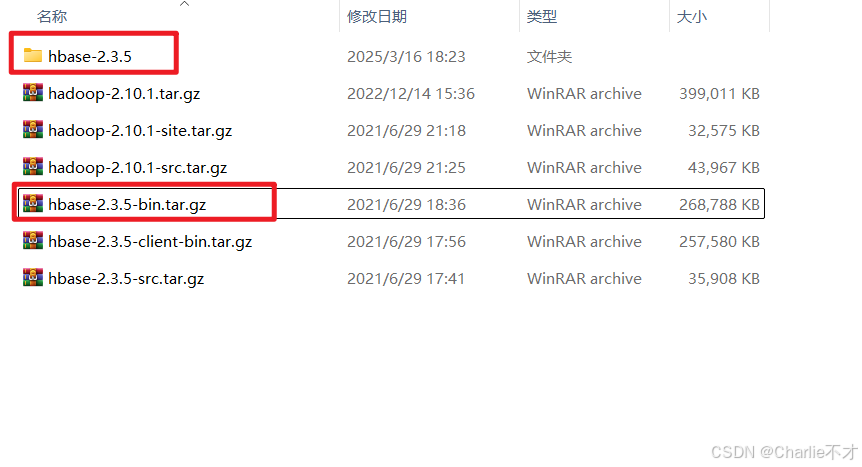

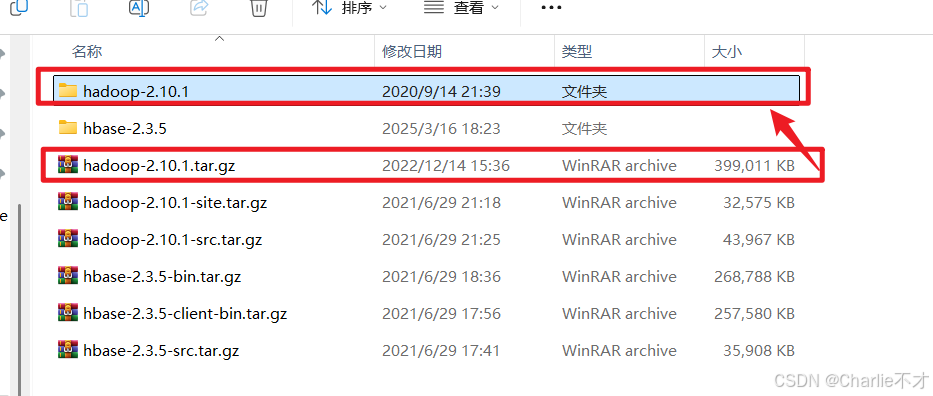

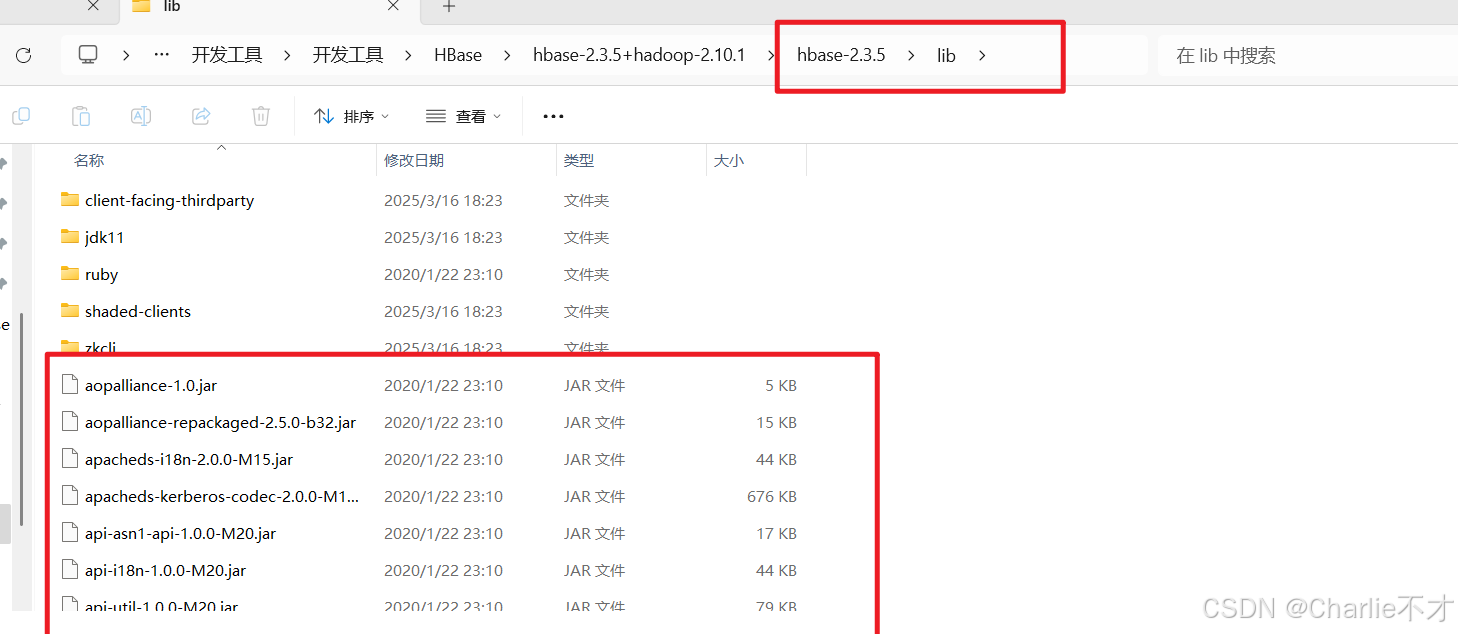

解压课程发的压缩包，获取得到 jar 包，后面的 Hadoop 同样

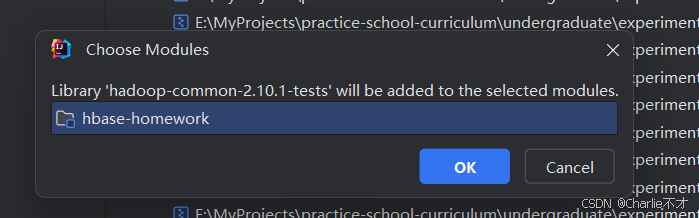

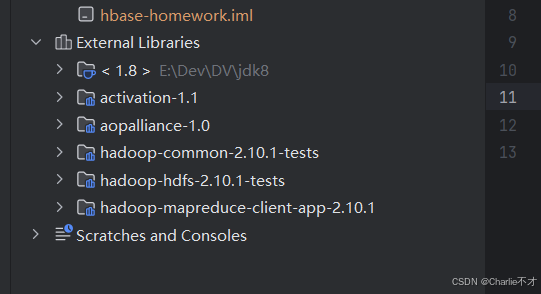

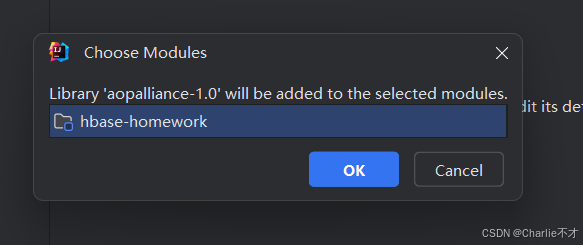

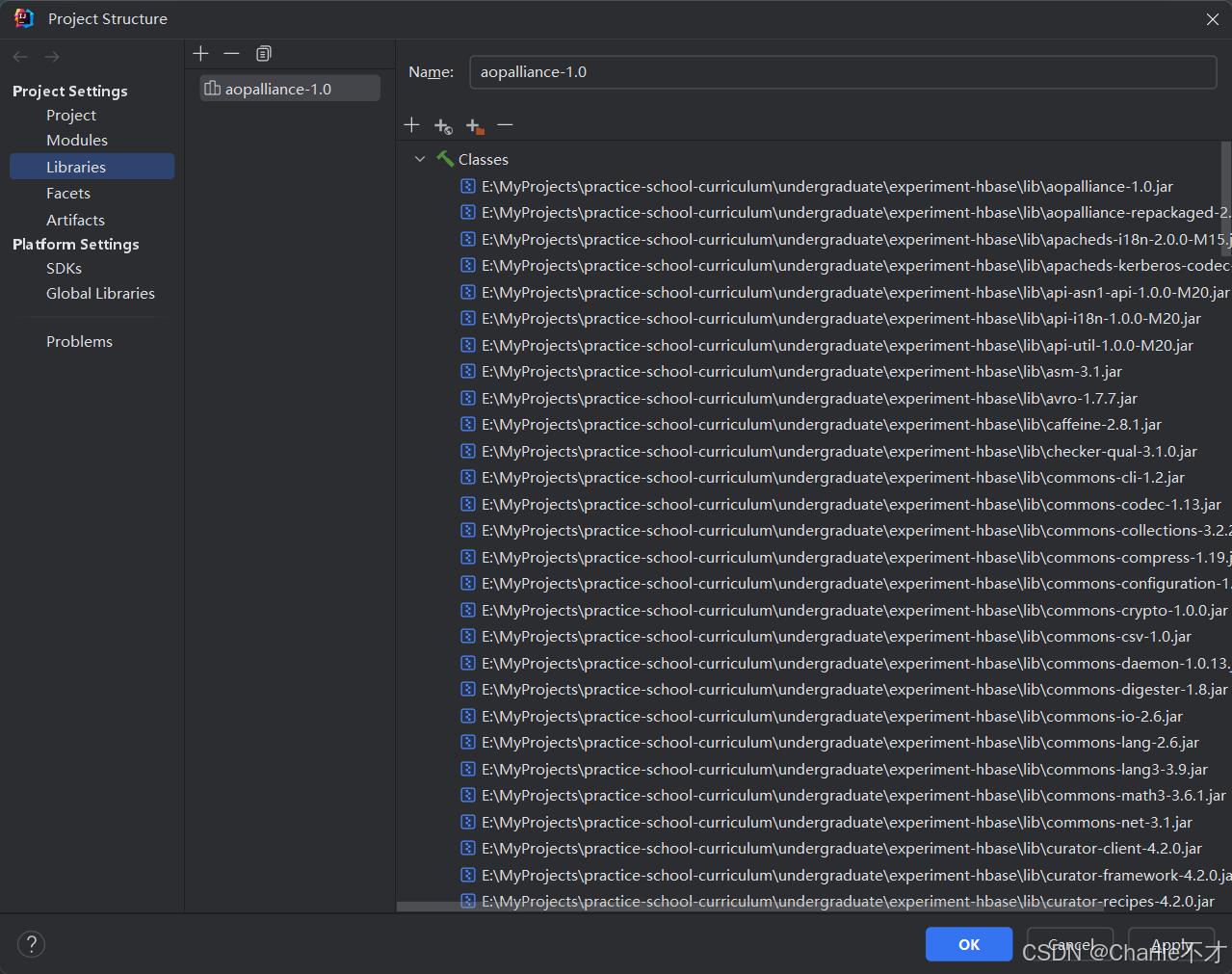

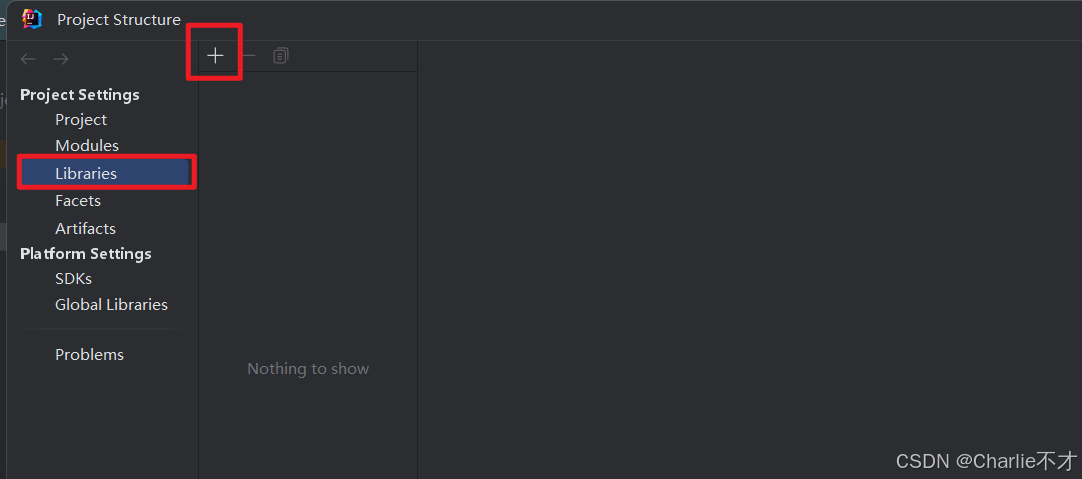

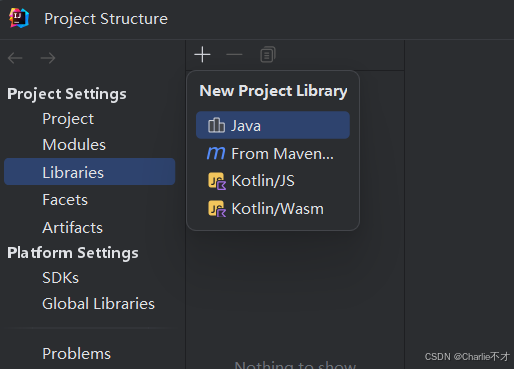

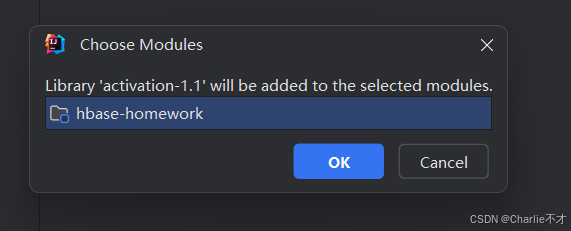

将 jar 包添加到项目中

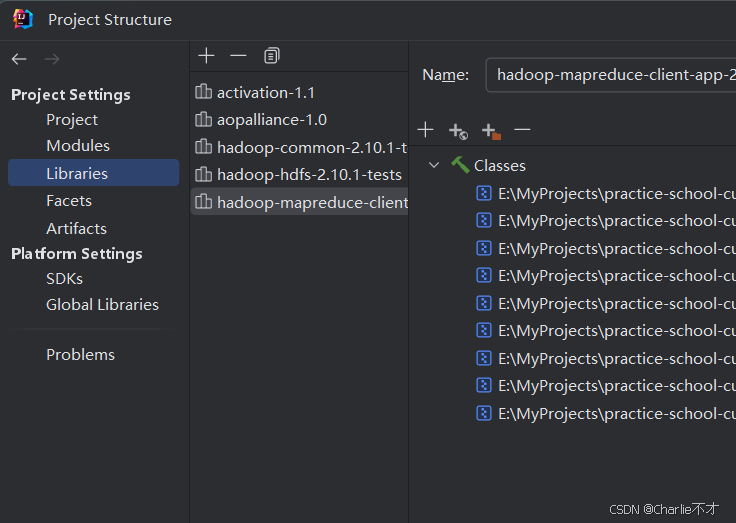

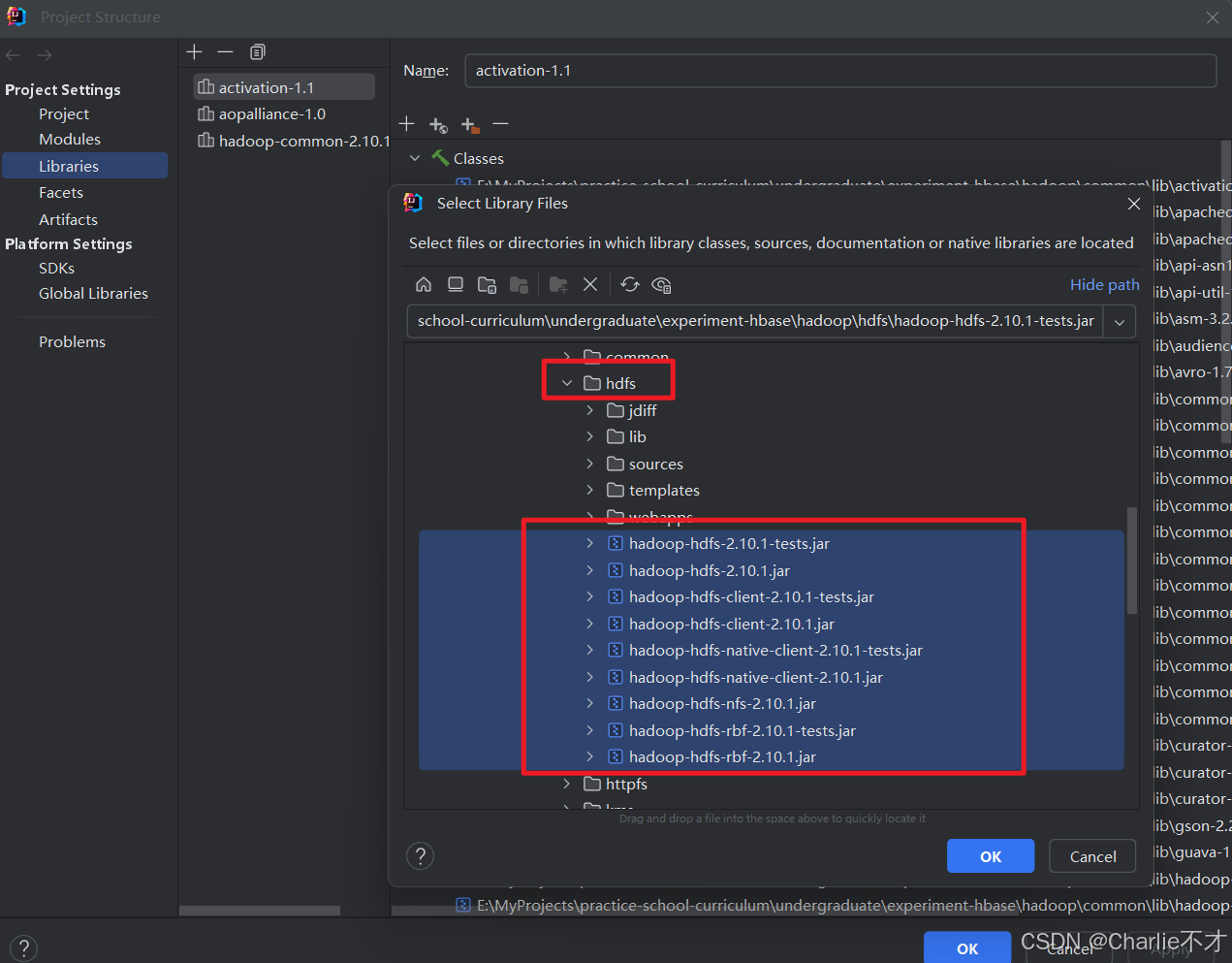

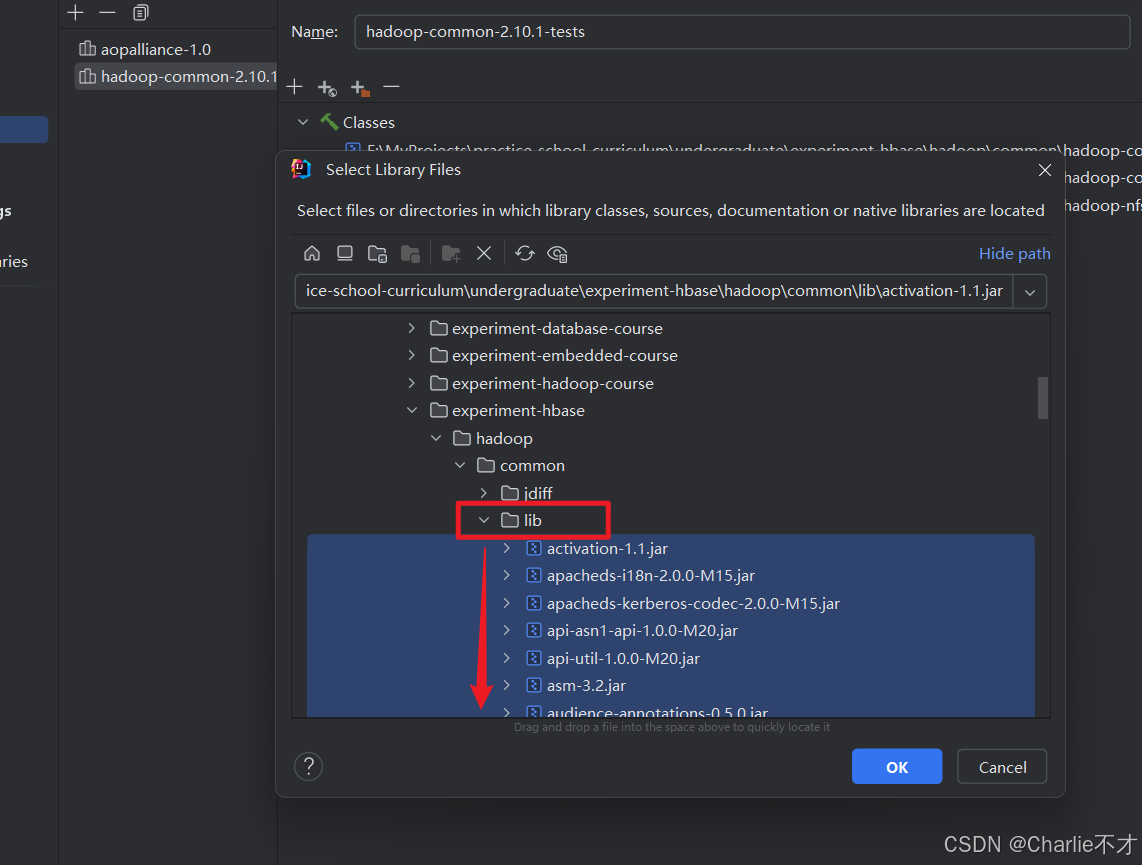

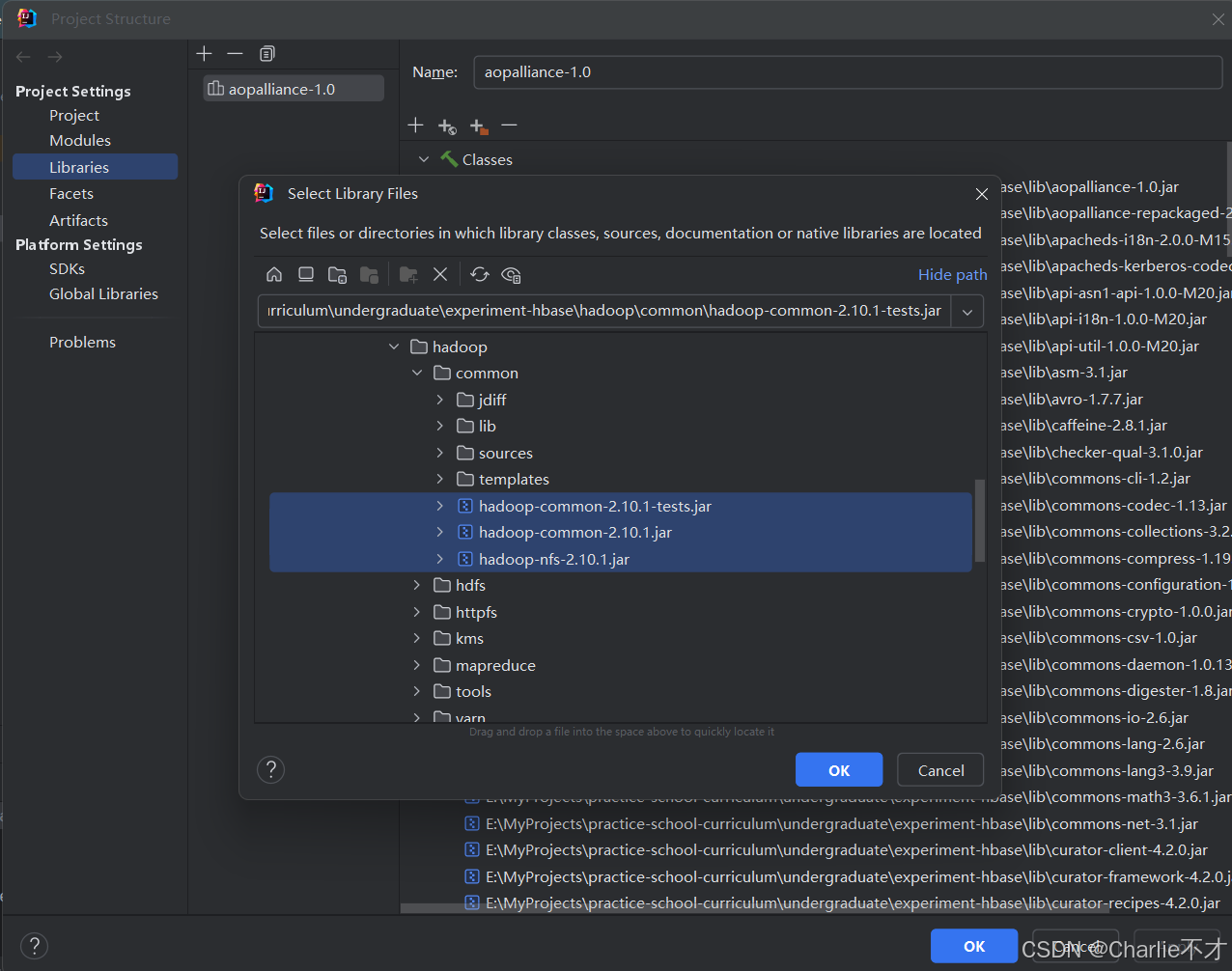

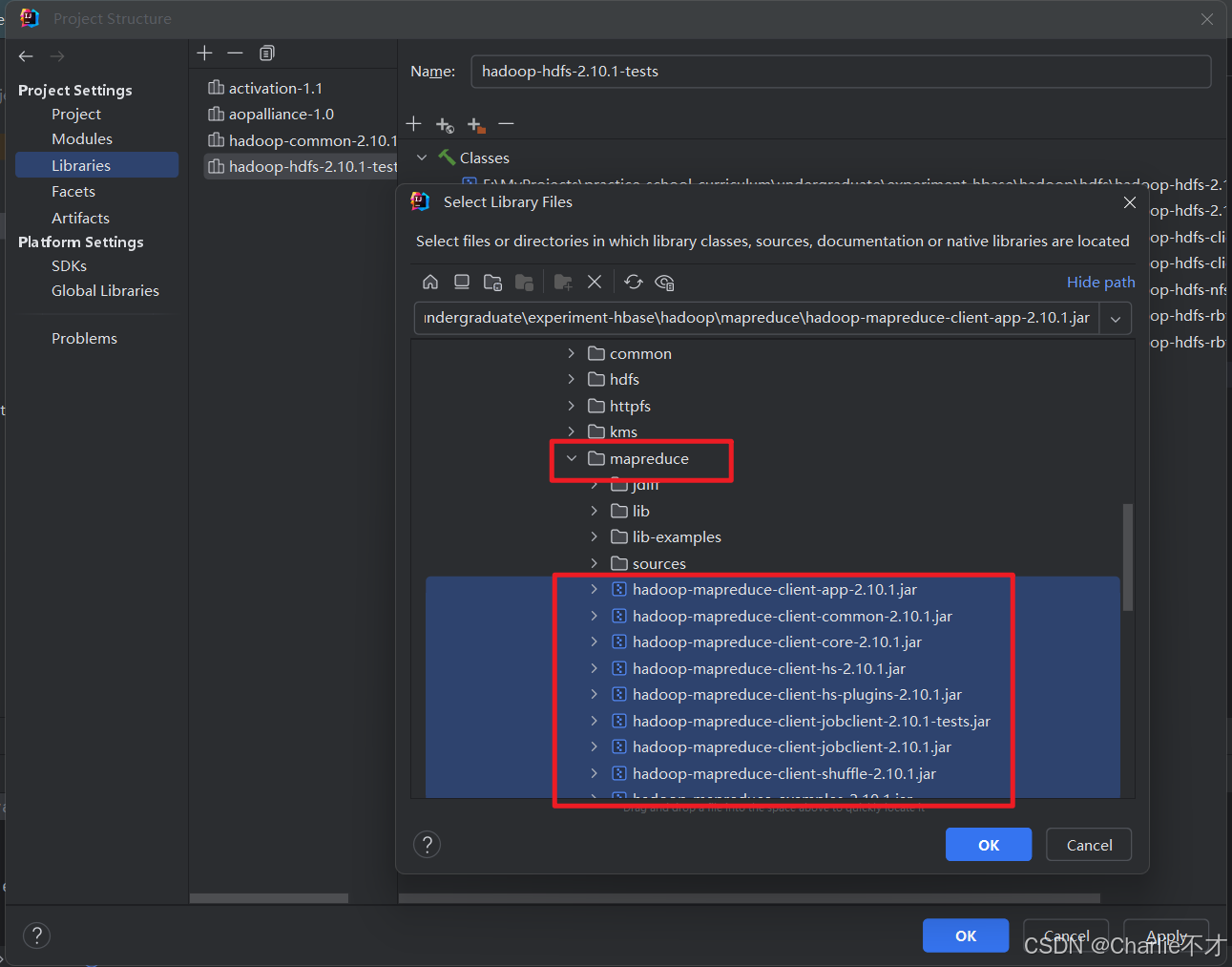

Add the Hdaoop Jar Package to The Project

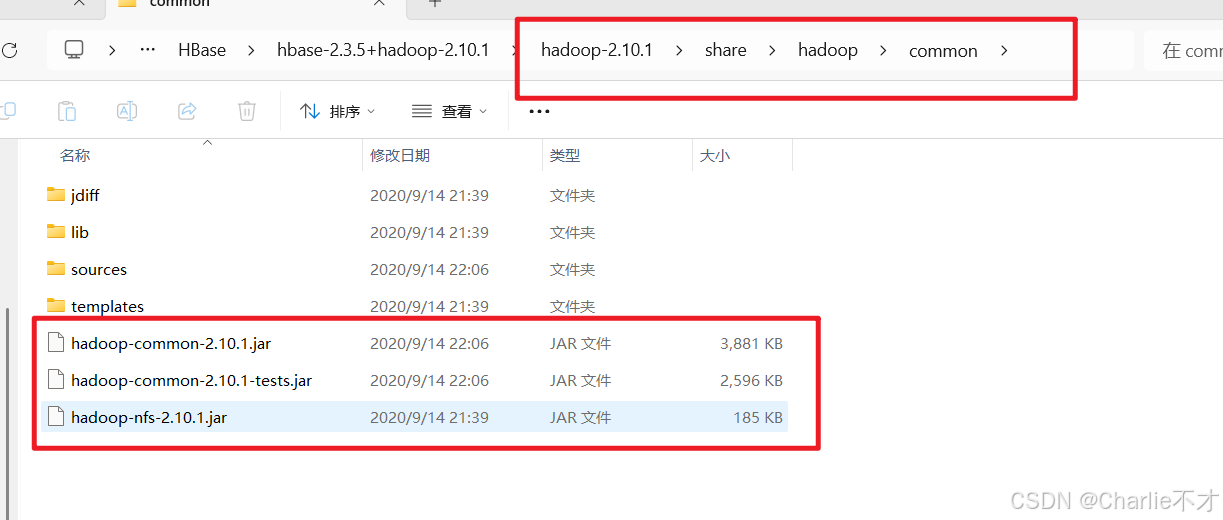

Hadoop 导入的 jar 可以看 https://www.cnblogs.com/zlslch/p/5837145.html，需要哪些路径的 jar 包

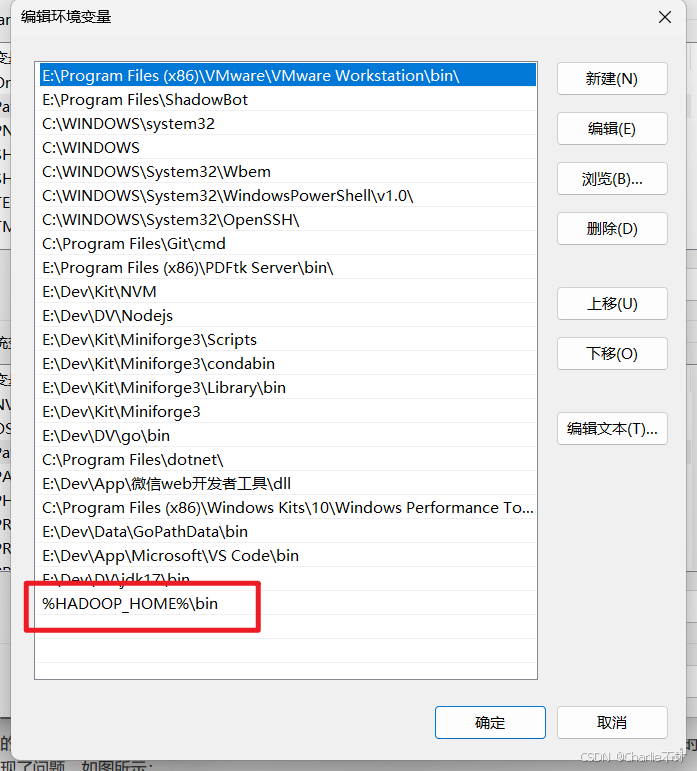

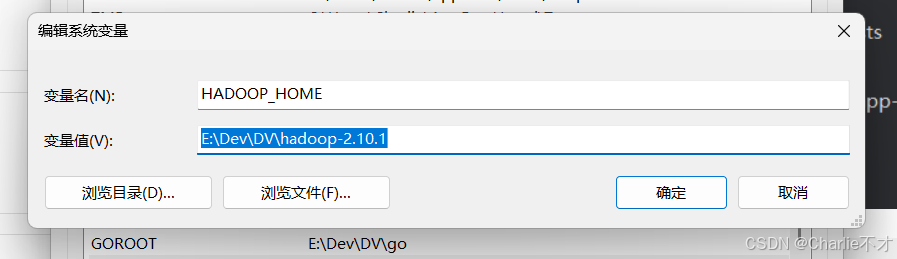

Set Hadoop environment variables

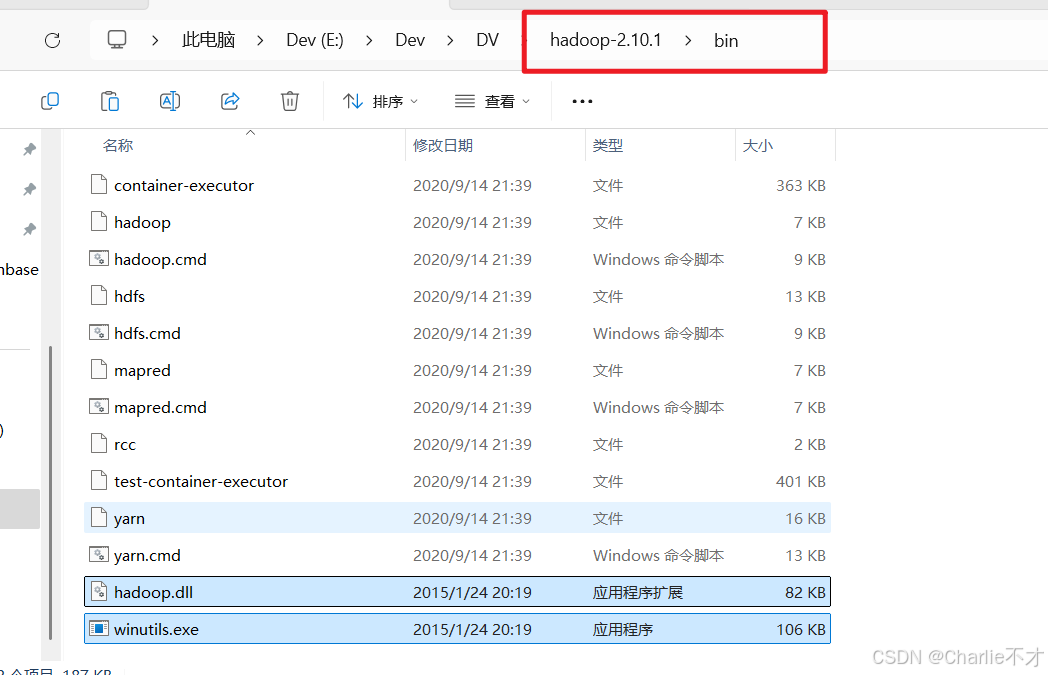

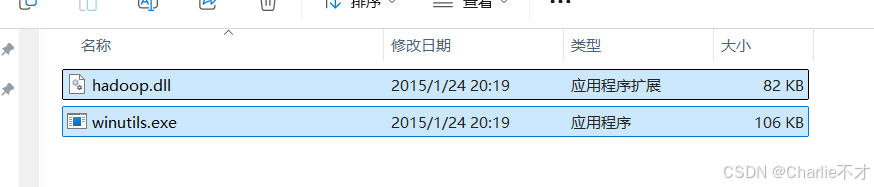

Hadoop 在 Windows 上运行需要额外的工具来处理,添加到目的路径
Create Java Class

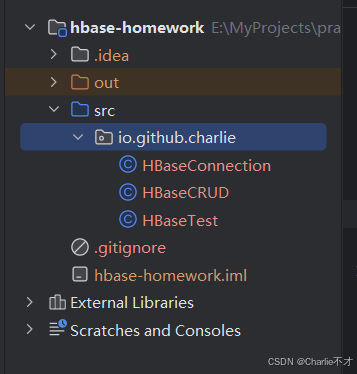

创建 3 个 Java 类
- HBaseConnetction.java 连接类
- HBaseCRUD.java CRUD 类
- HBaseTest.java 测试类
源码如下：
package io.github.charlie;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.*;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.client.coprocessor.AggregationClient;
/**
* @Date: 2025/3/16
* @Description: HBaseConnection
*/
public class HBaseConnection {
public Configuration conf;
public Connection conn;
public AggregationClient aggregationClient;
HBaseConnection() {
conf = HBaseConfiguration.create();
conf.set("hbase.zookeeper.quorum", "Dev");
conf.set("hbase.zookeeper.property.clientPort", "2181");
conf.set("hbase.master", "Dev:2181");
try {
conn = ConnectionFactory.createConnection(conf);
System.out.println("HBase Connection Success");
} catch (Exception e) {
System.out.println("HBase Connection Failed");
e.printStackTrace();
}
aggregationClient = new AggregationClient(conf);
}
public Configuration getConf() {
return conf;
}
public Connection getConn() {
return conn;
}
}
package io.github.charlie;
import org.apache.hadoop.hbase.*;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import org.omg.CORBA.PUBLIC_MEMBER;
import java.io.IOException;
import java.time.LocalDateTime;
import java.time.ZoneId;
import java.time.format.DateTimeFormatter;
import java.util.List;
/**
* @Date: 2025/3/16
* @Description: HBaseCRUD
*/
public class HBaseCRUD {
public HBaseConnection hBaseConnection;
public Admin admin;
TableName tableName;
HTableDescriptor tableDescriptor;
HColumnDescriptor columnDescriptor;
Table table;
HBaseCRUD() {
hBaseConnection = new HBaseConnection();
getAdmin();
}
public void getAdmin() {
try {
admin = hBaseConnection.getConn().getAdmin();
} catch (Exception e) {
e.printStackTrace();
}
}
public Table getTable(String tableName) throws IOException {
table = hBaseConnection.getConn().getTable(TableName.valueOf(tableName));
return table;
}
public void createTable(String name, String[] columnFamily) throws IOException {
tableName = TableName.valueOf(name);
if (admin.tableExists(tableName)) {
admin.disableTable(tableName);
admin.deleteTable(tableName);
System.out.println(tableName.toString() + " table exists");
}
tableDescriptor = new HTableDescriptor(tableName);
for (String column : columnFamily) {
columnDescriptor = new HColumnDescriptor(column);
tableDescriptor.addFamily(columnDescriptor);
}
admin.createTable(tableDescriptor);
}
public void insertAndModify(String name, String rowKey, String columnFamilyName, String columnName, long timestamp, String value) throws IOException {
getTable(name);
Put put = new Put(Bytes.toBytes(rowKey));
put.addColumn(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName), timestamp, Bytes.toBytes(value));
table.put(put);
table.close();
}
public void selectByGet(String name, String rowKey, String columnFamilyName, String columnName) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
Result result = getTable(name).get(get);
byte[] value = result.getValue(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName));
System.out.println(Bytes.toString(value));
}
public void selectByCell(String name, String rowKey, String columnFamilyName, String columnName, int maxVersion) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
get.setMaxVersions(maxVersion);
Result result = getTable(name).get(get);
List<Cell> cells = result.getColumnCells(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName));
for (Cell cell : cells) {
byte[] value = CellUtil.cloneValue(cell);
System.out.println(Bytes.toString(value));
}
}
public void selectByRow(String name, String rowKey) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
Result result = getTable(name).get(get);
for (Cell cell : result.rawCells()) {
System.out.println(new String(CellUtil.getCellKeyAsString(cell)));
System.out.println(new String(CellUtil.cloneFamily(cell)));
System.out.println(new String(CellUtil.cloneQualifier(cell)));
System.out.println(new String(CellUtil.cloneValue(cell)));
System.out.println(cell.getTimestamp());
}
}
public void turncateTable(String name) throws IOException {
getAdmin();
tableName = TableName.valueOf(name);
admin.disableTable(tableName);
admin.truncateTable(tableName, false);
}
public static long timestampStringConvert2Long(String timestamp){
DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd'T'HH:mm:ss.SSS");
LocalDateTime localDateTime = LocalDateTime.parse(timestamp, formatter);
return LocalDateTime.from(localDateTime).atZone(ZoneId.systemDefault()).toInstant().toEpochMilli();
}
}
package io.github.charlie;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) {
HBaseConnection hBaseConnection = new HBaseConnection();
}
}

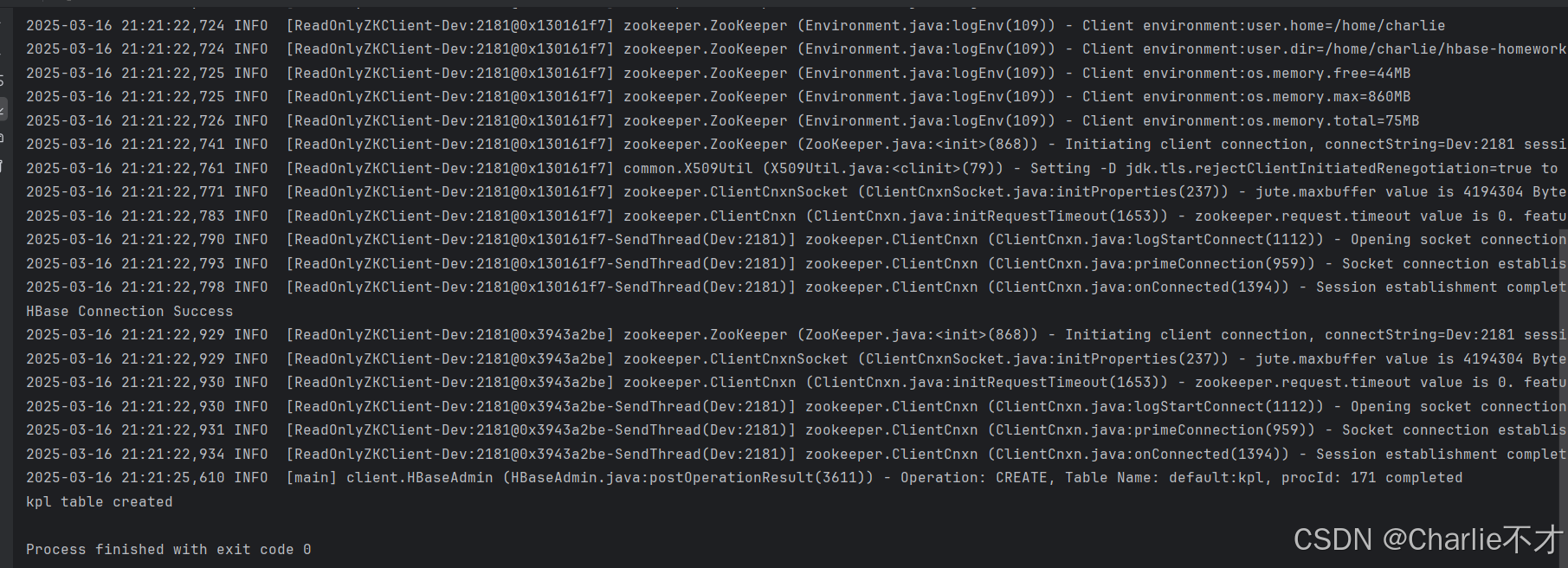

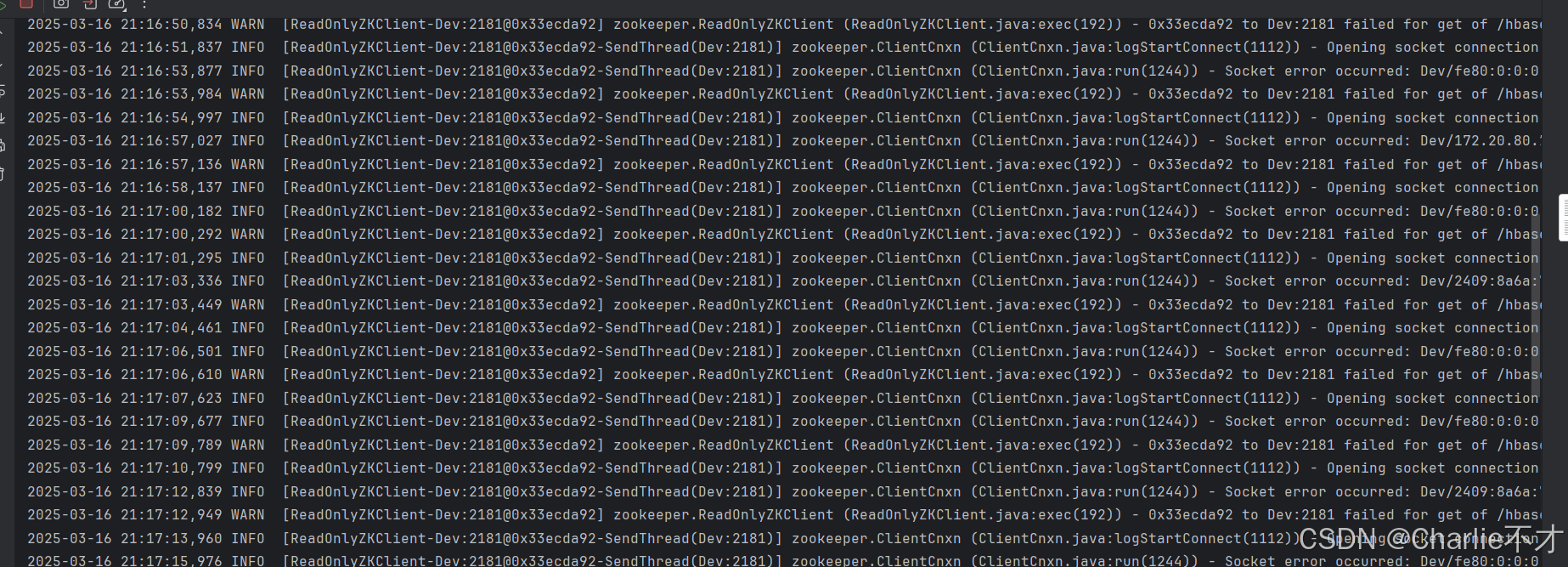

Test Connection

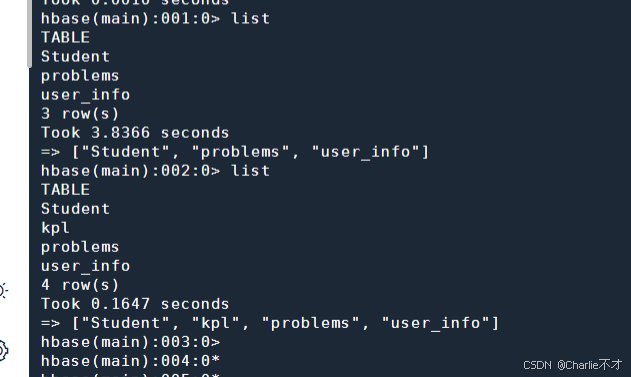

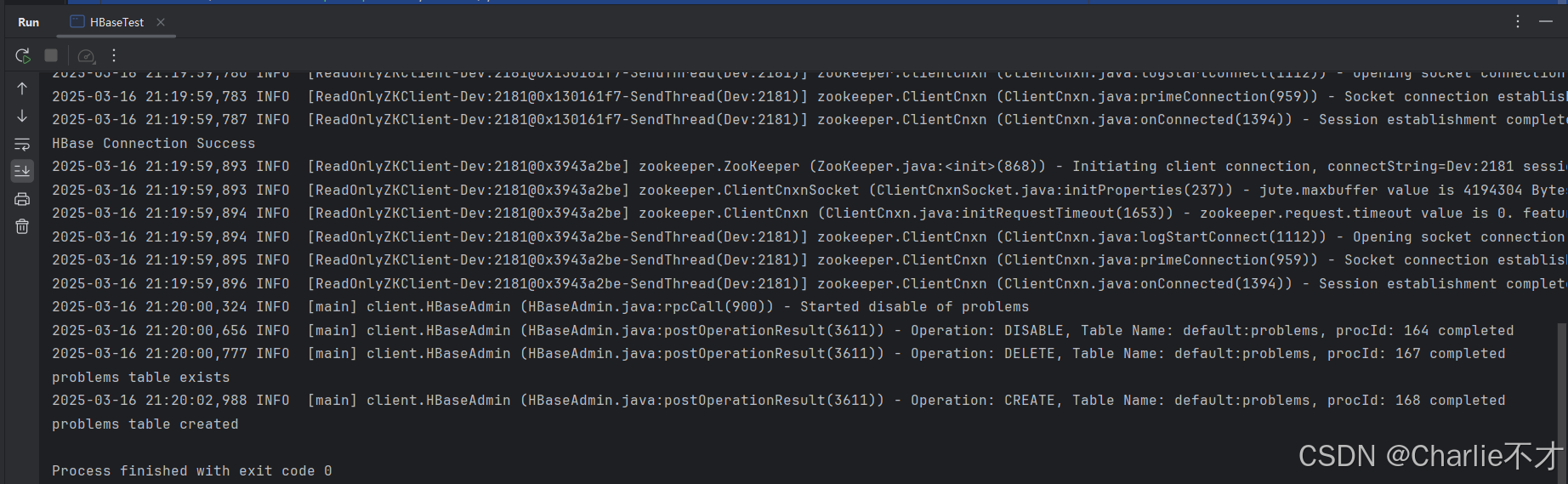

Create Table
package io.github.charlie;
import java.io.IOException;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) throws IOException {
// HBase连接测试
// HBaseConnection hBaseConnection = new HBaseConnection();
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String name = "kpl";
String rowKey = "0001";
long timestamp = 5L;
String columnFamilyName = "role";
String attr_name = "name";
String attr_type = "type";
String attr_duty = "duty";
String value_name = "Hanxin";
String value_type = "Warrior";
String value_duty = "Wild";
String[] columnFamily = {"role", "attack", "defence"};
hBaseCRUD.createTable(name, columnFamily);
}
}

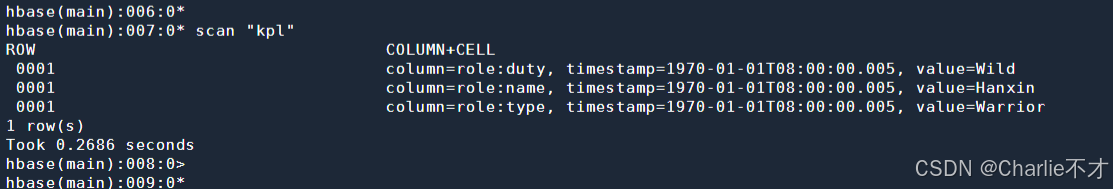

Insert Data Demo
package io.github.charlie;
import java.io.IOException;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) throws IOException {
// HBase连接测试
// HBaseConnection hBaseConnection = new HBaseConnection();
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String name = "kpl";
String rowKey = "0001";
long timestamp = 5L;
String columnFamilyName = "role";
String attr_name = "name";
String attr_type = "type";
String attr_duty = "duty";
String value_name = "Hanxin";
String value_type = "Warrior";
String value_duty = "Wild";
String[] columnFamily = {"role", "attack", "defence"};
// hBaseCRUD.createTable(name, columnFamily);
hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_name, timestamp, value_name);
hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_type, timestamp, value_type);
hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_duty, timestamp, value_duty);
}
}

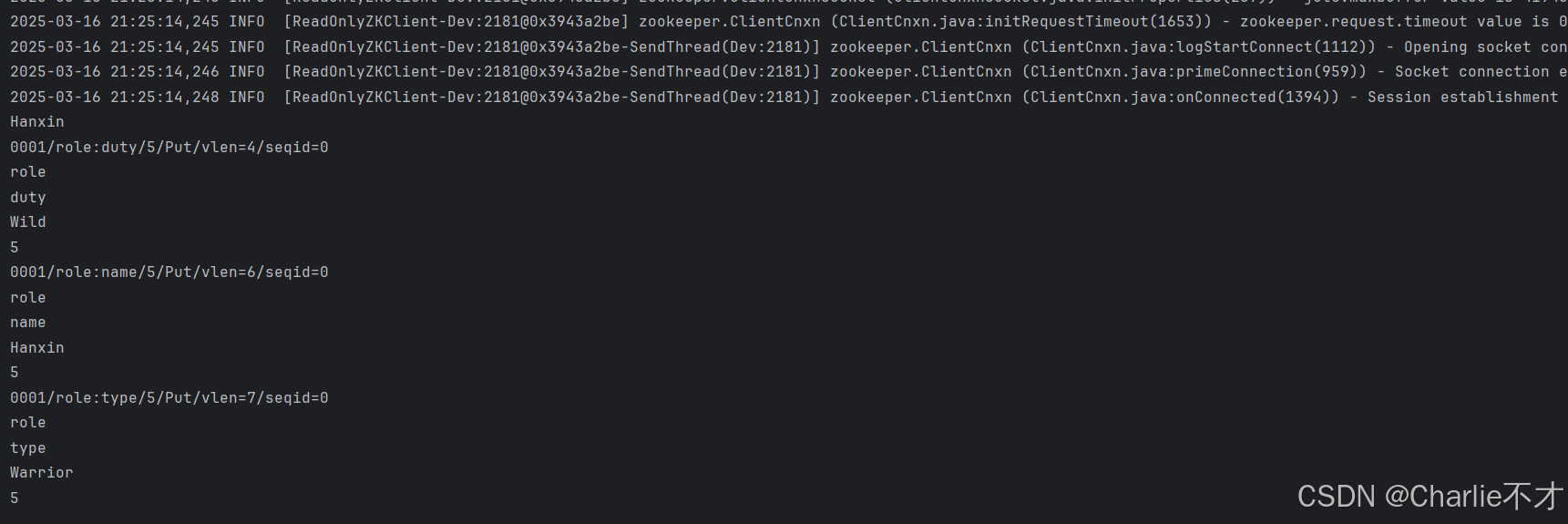

Select Data Demo
package io.github.charlie;
import java.io.IOException;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) throws IOException {
// HBase连接测试
// HBaseConnection hBaseConnection = new HBaseConnection();
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String name = "kpl";
String rowKey = "0001";
long timestamp = 5L;
String columnFamilyName = "role";
String attr_name = "name";
String attr_type = "type";
String attr_duty = "duty";
String value_name = "Hanxin";
String value_type = "Warrior";
String value_duty = "Wild";
String[] columnFamily = {"role", "attack", "defence"};
// hBaseCRUD.createTable(name, columnFamily);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_name, timestamp, value_name);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_type, timestamp, value_type);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_duty, timestamp, value_duty);
hBaseCRUD.selectByGet(name, rowKey, columnFamilyName, attr_name);

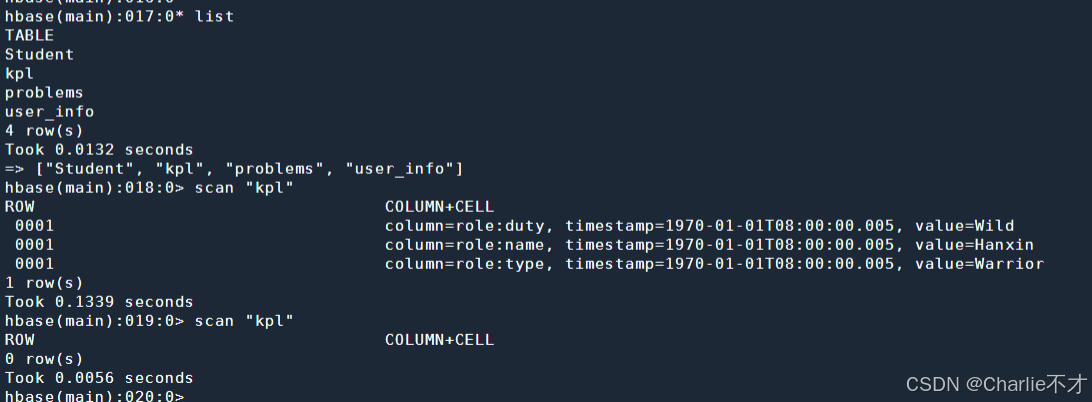

hBaseCRUD.selectByRow(name, rowKey);
}
}

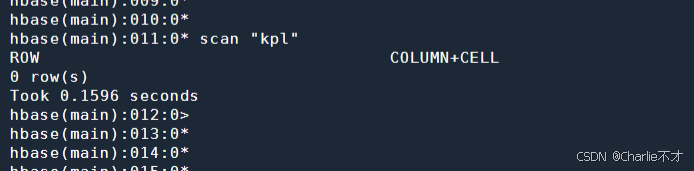

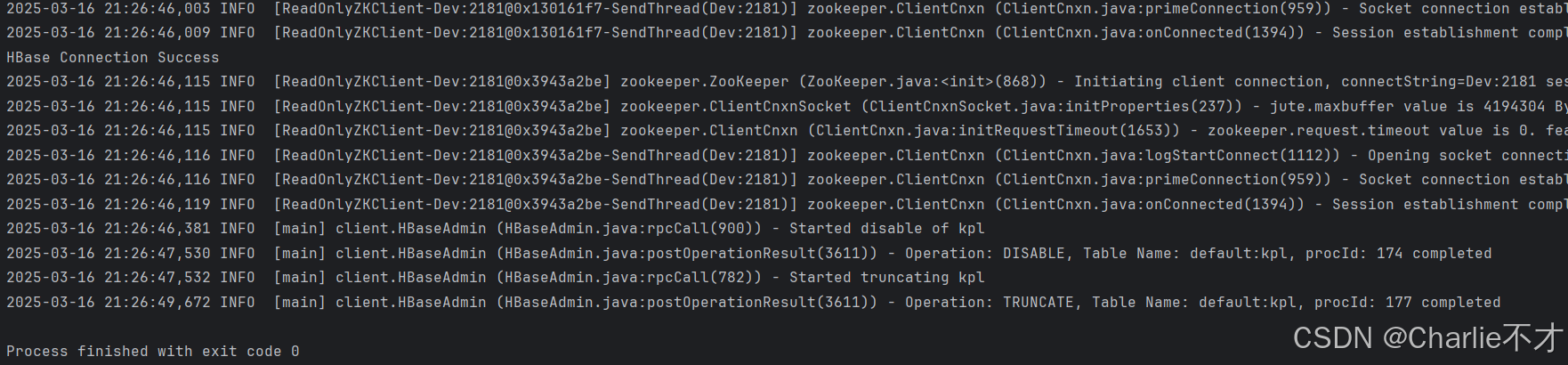

Turncate Table Demo
package io.github.charlie;
import java.io.IOException;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) throws IOException {
// HBase连接测试
// HBaseConnection hBaseConnection = new HBaseConnection();
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String name = "kpl";
String rowKey = "0001";
long timestamp = 5L;
String columnFamilyName = "role";
String attr_name = "name";
String attr_type = "type";
String attr_duty = "duty";
String value_name = "Hanxin";
String value_type = "Warrior";
String value_duty = "Wild";
String[] columnFamily = {"role", "attack", "defence"};
// hBaseCRUD.createTable(name, columnFamily);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_name, timestamp, value_name);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_type, timestamp, value_type);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_duty, timestamp, value_duty);
// hBaseCRUD.selectByGet(name, rowKey, columnFamilyName, attr_name);
// hBaseCRUD.selectByRow(name, rowKey);

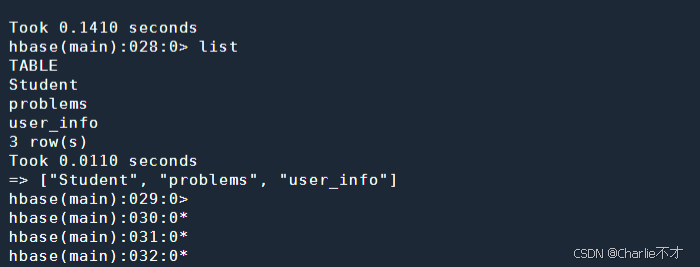

hBaseCRUD.turncateTable(name);
}
}

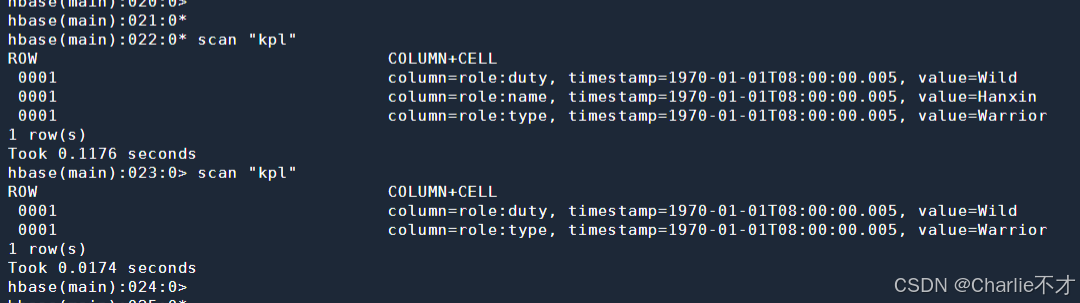

Delete Data Demo

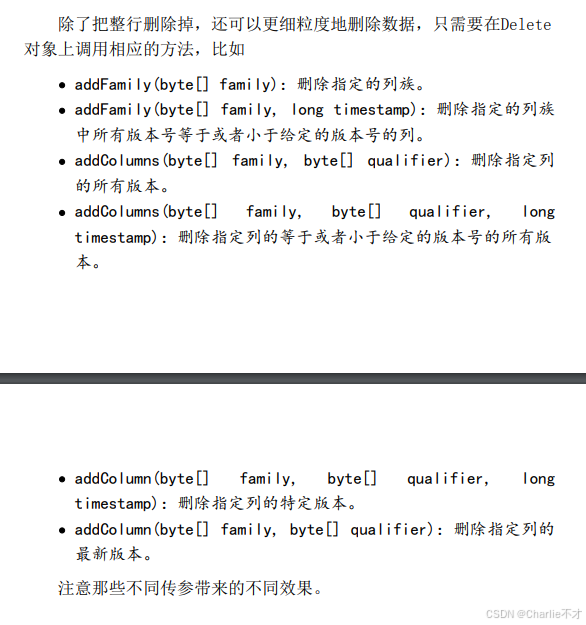

关于删除，《HBase 不睡觉书第 4 章》中写到
Add Delete Method
package io.github.charlie;
import org.apache.hadoop.hbase.*;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import org.omg.CORBA.PUBLIC_MEMBER;
import java.io.IOException;
import java.time.LocalDateTime;
import java.time.ZoneId;
import java.time.format.DateTimeFormatter;
import java.util.List;
/**
* @Date: 2025/3/16
* @Description: HBaseCRUD
*/
public class HBaseCRUD {
public HBaseConnection hBaseConnection;
public Admin admin;
TableName tableName;
HTableDescriptor tableDescriptor;
HColumnDescriptor columnDescriptor;
Table table;
HBaseCRUD() {
hBaseConnection = new HBaseConnection();
getAdmin();
}
public void getAdmin() {
try {
admin = hBaseConnection.getConn().getAdmin();
} catch (Exception e) {
e.printStackTrace();
}
}
public Table getTable(String tableName) throws IOException {
table = hBaseConnection.getConn().getTable(TableName.valueOf(tableName));
return table;
}
public void createTable(String name, String[] columnFamily) throws IOException {
tableName = TableName.valueOf(name);
if (admin.tableExists(tableName)) {
admin.disableTable(tableName);
admin.deleteTable(tableName);
System.out.println(tableName.toString() + " table exists");
}
tableDescriptor = new HTableDescriptor(tableName);
for (String column : columnFamily) {
columnDescriptor = new HColumnDescriptor(column);
tableDescriptor.addFamily(columnDescriptor);
}
admin.createTable(tableDescriptor);
System.out.println(tableName.toString() + " table created");
}
public void insertAndModify(String name, String rowKey, String columnFamilyName, String columnName, long timestamp, String value) throws IOException {
getTable(name);
Put put = new Put(Bytes.toBytes(rowKey));
put.addColumn(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName), timestamp, Bytes.toBytes(value));
table.put(put);
table.close();
}
public void selectByGet(String name, String rowKey, String columnFamilyName, String columnName) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
Result result = getTable(name).get(get);
byte[] value = result.getValue(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName));
System.out.println(Bytes.toString(value));
}
public void selectByCell(String name, String rowKey, String columnFamilyName, String columnName, int maxVersion) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
get.setMaxVersions(maxVersion);
Result result = getTable(name).get(get);
List<Cell> cells = result.getColumnCells(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName));
for (Cell cell : cells) {
byte[] value = CellUtil.cloneValue(cell);
System.out.println(Bytes.toString(value));
}
}
public void selectByRow(String name, String rowKey) throws IOException {
Get get = new Get(Bytes.toBytes(rowKey));
Result result = getTable(name).get(get);
for (Cell cell : result.rawCells()) {
System.out.println(new String(CellUtil.getCellKeyAsString(cell)));
System.out.println(new String(CellUtil.cloneFamily(cell)));
System.out.println(new String(CellUtil.cloneQualifier(cell)));
System.out.println(new String(CellUtil.cloneValue(cell)));
System.out.println(cell.getTimestamp());
}
}
public void turncateTable(String name) throws IOException {
getAdmin();
tableName = TableName.valueOf(name);
admin.disableTable(tableName);
admin.truncateTable(tableName, false);
}
public static long timestampStringConvert2Long(String timestamp) {
DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd'T'HH:mm:ss.SSS");
LocalDateTime localDateTime = LocalDateTime.parse(timestamp, formatter);
return LocalDateTime.from(localDateTime).atZone(ZoneId.systemDefault()).toInstant().toEpochMilli();
}
/**
* 根据行键删除指定表中的整行数据
*
* @param name 表名
* @param rowKey 要删除的行的唯一标识键
*/
public void deleteByRow(String name, String rowKey) throws IOException {
// 创建一个Delete对象，指定要删除的行键
Delete delete = new Delete(Bytes.toBytes(rowKey));
// 获取指定的表并执行删除操作
getTable(name).delete(delete);
}
/**
* 根据行键和列限定符删除指定表中的特定列数据
*
* @param name 表名
* @param rowKey 要删除数据的行的唯一标识键
* @param columnFamilyName 列族名称
* @param columnName 列名称
*/
public void deleteByColumn(String name, String rowKey, String columnFamilyName, String columnName) throws IOException {
// 创建一个Delete对象，指定要删除的行键
Delete delete = new Delete(Bytes.toBytes(rowKey));
// 添加要删除的列，包括列族和列名
delete.addColumn(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName));
// 获取指定的表并执行删除操作
getTable(name).delete(delete);
}
/**
* 根据行键、列族和列名以及时间戳删除指定表中的特定版本的数据
*
* @param name 表名
* @param rowKey 要删除数据的行的唯一标识键
* @param columnFamilyName 列族名称
* @param columnName 列名称
* @param timestamp 数据的时间戳，用于指定要删除的具体版本
*/
public void deleteByTime(String name, String rowKey, String columnFamilyName, String columnName, String timestamp) throws IOException {
// 创建一个Delete对象，指定要删除的行键
Delete delete = new Delete(Bytes.toBytes(rowKey));
// 添加要删除的列及其时间戳，时间戳需要转换为长整型
delete.addColumns(Bytes.toBytes(columnFamilyName), Bytes.toBytes(columnName), timestampStringConvert2Long(timestamp));
// 获取指定的表并执行删除操作
getTable(name).delete(delete);
}
/**
* 删除指定的表
*
* @param name 表名
*/
public void deleteTable(String name) throws IOException {
getAdmin();
// 检查表是否存在
if (admin.tableExists(TableName.valueOf(name))) {
// 禁用表，确保在删除之前表处于禁用状态
admin.disableTable(TableName.valueOf(name));
// 删除表
admin.deleteTable(TableName.valueOf(name));
System.out.println("表 " + name + " 已删除。");
} else {
System.out.println("表 " + name + " 不存在。");
}
}
}
Delete Demo
package io.github.charlie;
import java.io.IOException;
/**
* @Date: 2025/3/16
* @Description: HBaseTest
*/
public class HBaseTest {
public static void main(String[] args) throws IOException {
// HBase连接测试
// HBaseConnection hBaseConnection = new HBaseConnection();
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String name = "kpl";
String rowKey = "0001";
long timestamp = 5L;
String columnFamilyName = "role";
String attr_name = "name";
String attr_type = "type";
String attr_duty = "duty";
String value_name = "Hanxin";
String value_type = "Warrior";
String value_duty = "Wild";
String[] columnFamily = {"role", "attack", "defence"};
// hBaseCRUD.createTable(name, columnFamily);
//
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_name, timestamp, value_name);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_type, timestamp, value_type);
// hBaseCRUD.insertAndModify(name, rowKey, columnFamilyName, attr_duty, timestamp, value_duty);
// hBaseCRUD.selectByGet(name, rowKey, columnFamilyName, attr_name);
// hBaseCRUD.selectByRow(name, rowKey);
// hBaseCRUD.turncateTable(name);
// 删除数据
// hBaseCRUD.deleteByRow(name, rowKey);
// hBaseCRUD.deleteByColumn(name, rowKey, columnFamilyName, attr_name);
// hBaseCRUD.deleteByTime(name, rowKey, columnFamilyName, attr_name, String.valueOf(timestamp));
// 删除表
// hBaseCRUD.deleteTable(name);
}
}

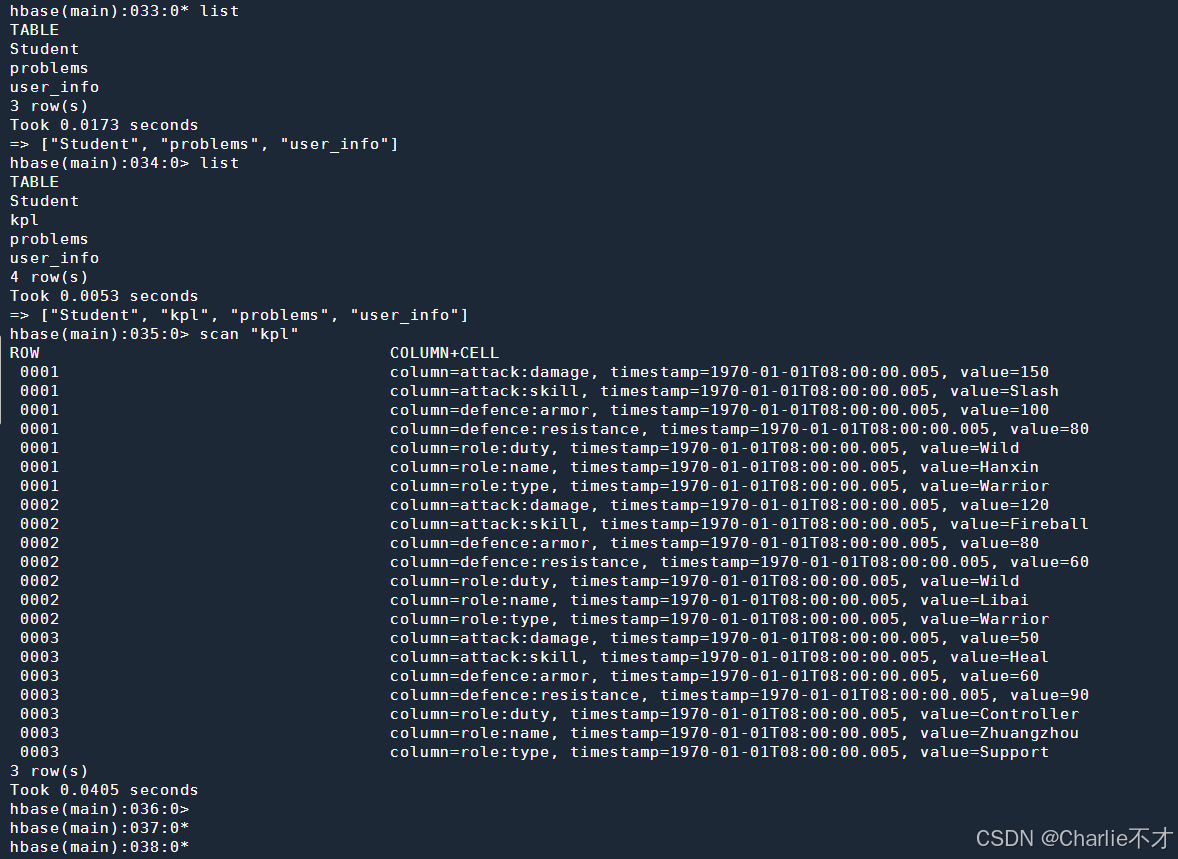

Inster New Data
package io.github.charlie;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
/**
* @Date: 2025/3/16
* @Description: TODO
*/
public class HBaseTest1 {
public static void main(String[] args) throws IOException {
// 操作测试
HBaseCRUD hBaseCRUD = new HBaseCRUD();
String tableName = "kpl";
long timestamp = 5L;
String[] columnFamily = {"role", "attack", "defence"};
String roleColumnFamilyName = "role";
String roleAttrName = "name";
String roleAttrType = "type";
String roleAttrDuty = "duty";
String attackColumnFamilyName = "attack";
String attackAttrSkill = "skill";
String attackAttrDamage = "damage";
String defenceColumnFamilyName = "defence";
String defenceAttrArmor = "armor";
String defenceAttrResistance = "resistance";
hBaseCRUD.createTable(tableName, columnFamily);
hBaseCRUD.insertAndModify(tableName, "0001", roleColumnFamilyName, roleAttrName, timestamp, "Hanxin");
hBaseCRUD.insertAndModify(tableName, "0001", roleColumnFamilyName, roleAttrType, timestamp, "Warrior");
hBaseCRUD.insertAndModify(tableName, "0001", roleColumnFamilyName, roleAttrDuty, timestamp, "Wild");
hBaseCRUD.insertAndModify(tableName, "0001", attackColumnFamilyName, attackAttrSkill, timestamp, "Slash");
hBaseCRUD.insertAndModify(tableName, "0001", attackColumnFamilyName, attackAttrDamage, timestamp, "150");
hBaseCRUD.insertAndModify(tableName, "0001", defenceColumnFamilyName, defenceAttrArmor, timestamp, "100");
hBaseCRUD.insertAndModify(tableName, "0001", defenceColumnFamilyName, defenceAttrResistance, timestamp, "80");
hBaseCRUD.insertAndModify(tableName, "0002", roleColumnFamilyName, roleAttrName, timestamp, "Libai");
hBaseCRUD.insertAndModify(tableName, "0002", roleColumnFamilyName, roleAttrType, timestamp, "Warrior");
hBaseCRUD.insertAndModify(tableName, "0002", roleColumnFamilyName, roleAttrDuty, timestamp, "Wild");
hBaseCRUD.insertAndModify(tableName, "0002", attackColumnFamilyName, attackAttrSkill, timestamp, "Fireball");
hBaseCRUD.insertAndModify(tableName, "0002", attackColumnFamilyName, attackAttrDamage, timestamp, "120");
hBaseCRUD.insertAndModify(tableName, "0002", defenceColumnFamilyName, defenceAttrArmor, timestamp, "80");
hBaseCRUD.insertAndModify(tableName, "0002", defenceColumnFamilyName, defenceAttrResistance, timestamp, "60");
hBaseCRUD.insertAndModify(tableName, "0003", roleColumnFamilyName, roleAttrName, timestamp, "Zhuangzhou");
hBaseCRUD.insertAndModify(tableName, "0003", roleColumnFamilyName, roleAttrType, timestamp, "Support");
hBaseCRUD.insertAndModify(tableName, "0003", roleColumnFamilyName, roleAttrDuty, timestamp, "Controller");
hBaseCRUD.insertAndModify(tableName, "0003", attackColumnFamilyName, attackAttrSkill, timestamp, "Heal");
hBaseCRUD.insertAndModify(tableName, "0003", attackColumnFamilyName, attackAttrDamage, timestamp, "50");
hBaseCRUD.insertAndModify(tableName, "0003", defenceColumnFamilyName, defenceAttrArmor, timestamp, "60");
hBaseCRUD.insertAndModify(tableName, "0003", defenceColumnFamilyName, defenceAttrResistance, timestamp, "90");
}
}
Problems
连接过程中发现 IP 可以连接，但是换成 HostName 就不能了

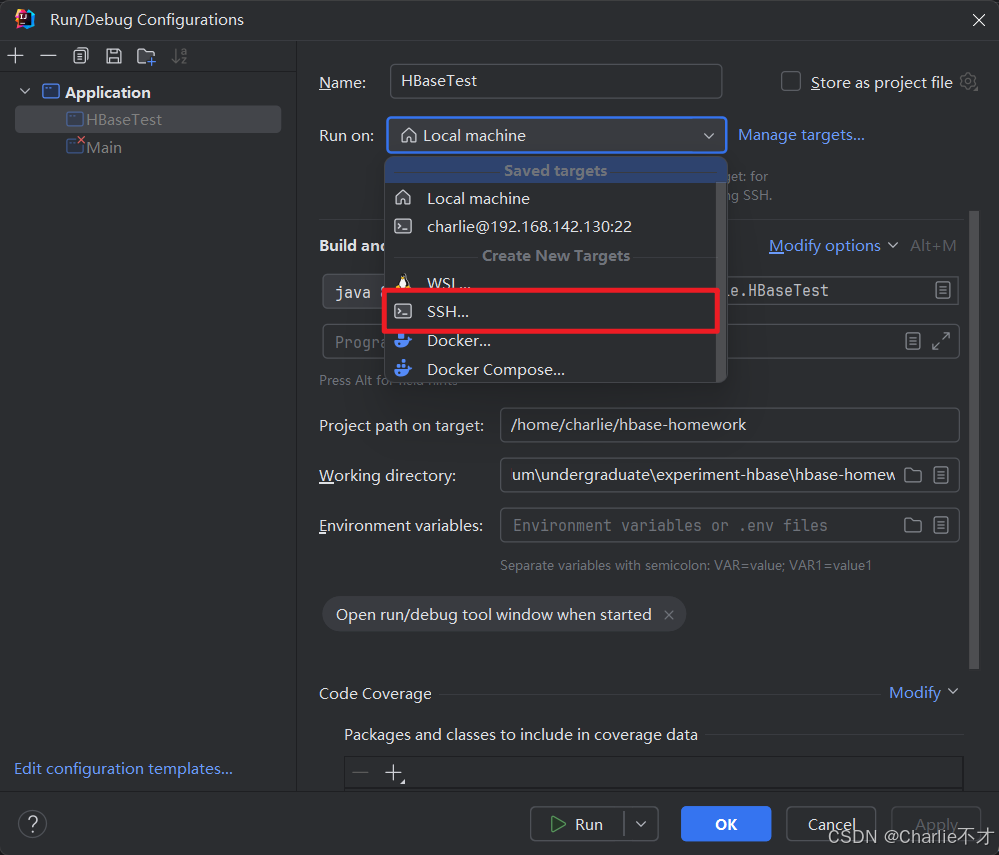

这里我换了个方式，通过 SSH，直接在 ubuntu 里面运行

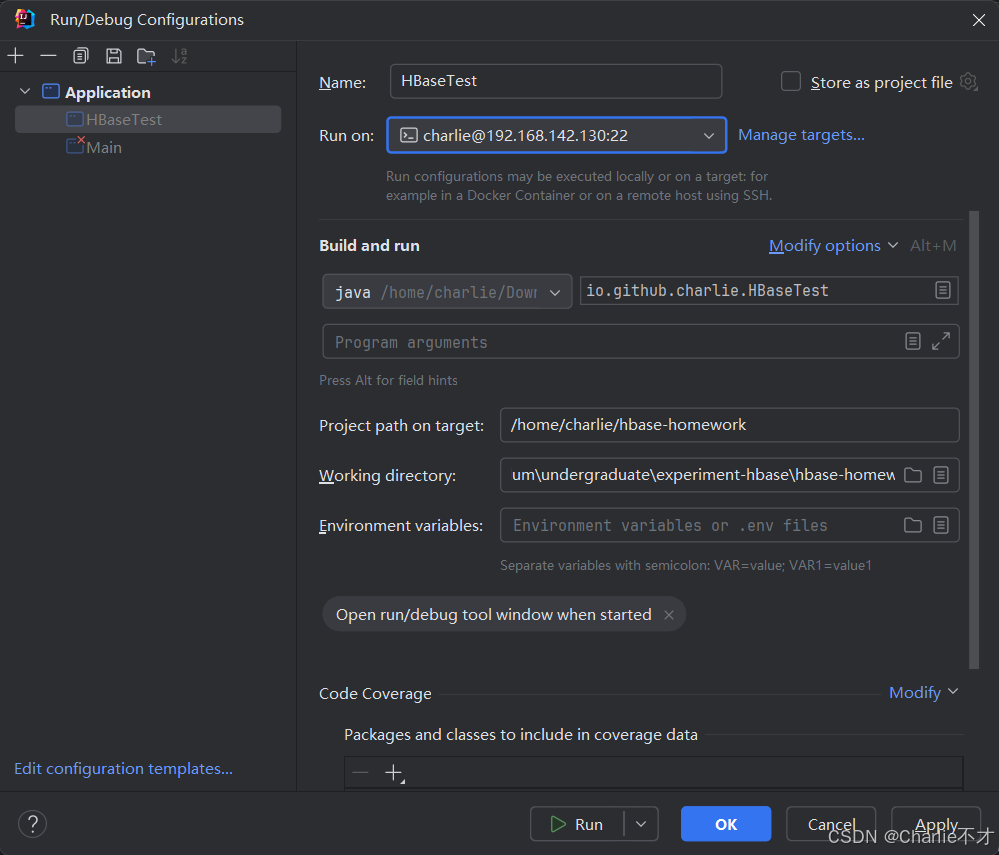

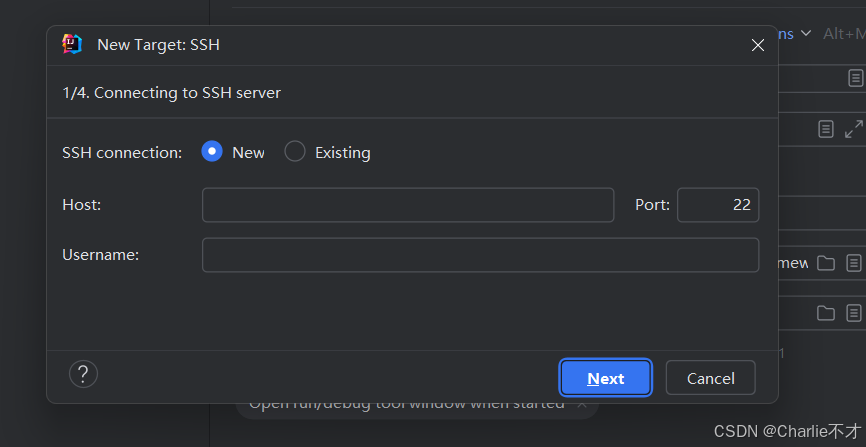

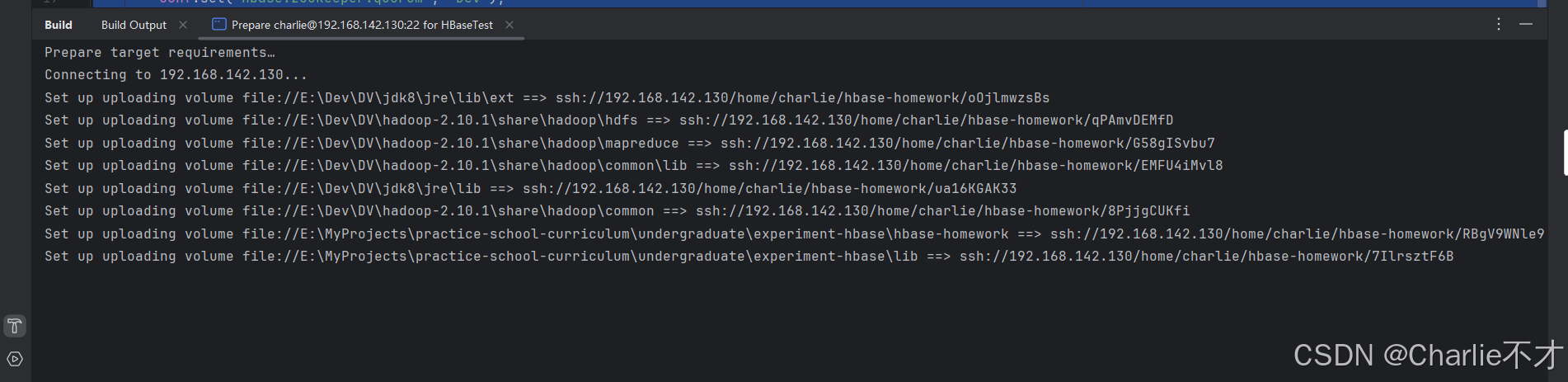

之后按 ssh 连上 Ubuntu，换成 SSH
OK 了，问题不大，主要是操作
浙公网安备 33010602011771号
