书籍管理系统：实现简单的增 删 改 查
书籍管理系统：实现简单的增 删 改 查
基于SSM（Spring + Spring MVC +Mybatis）框架的管理系统：实现简单的增 删 改 查
项目运行浏览

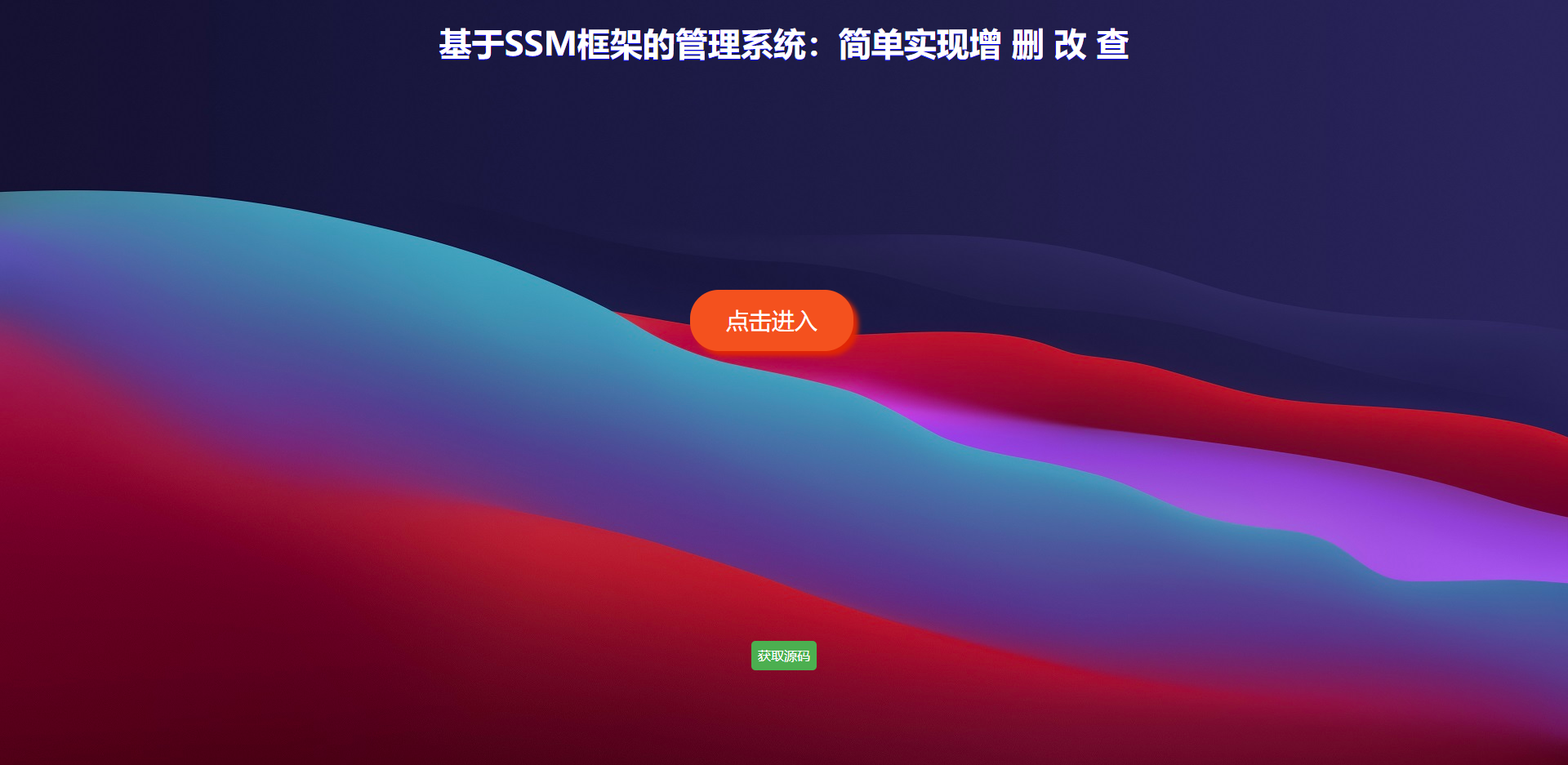

index.jsp

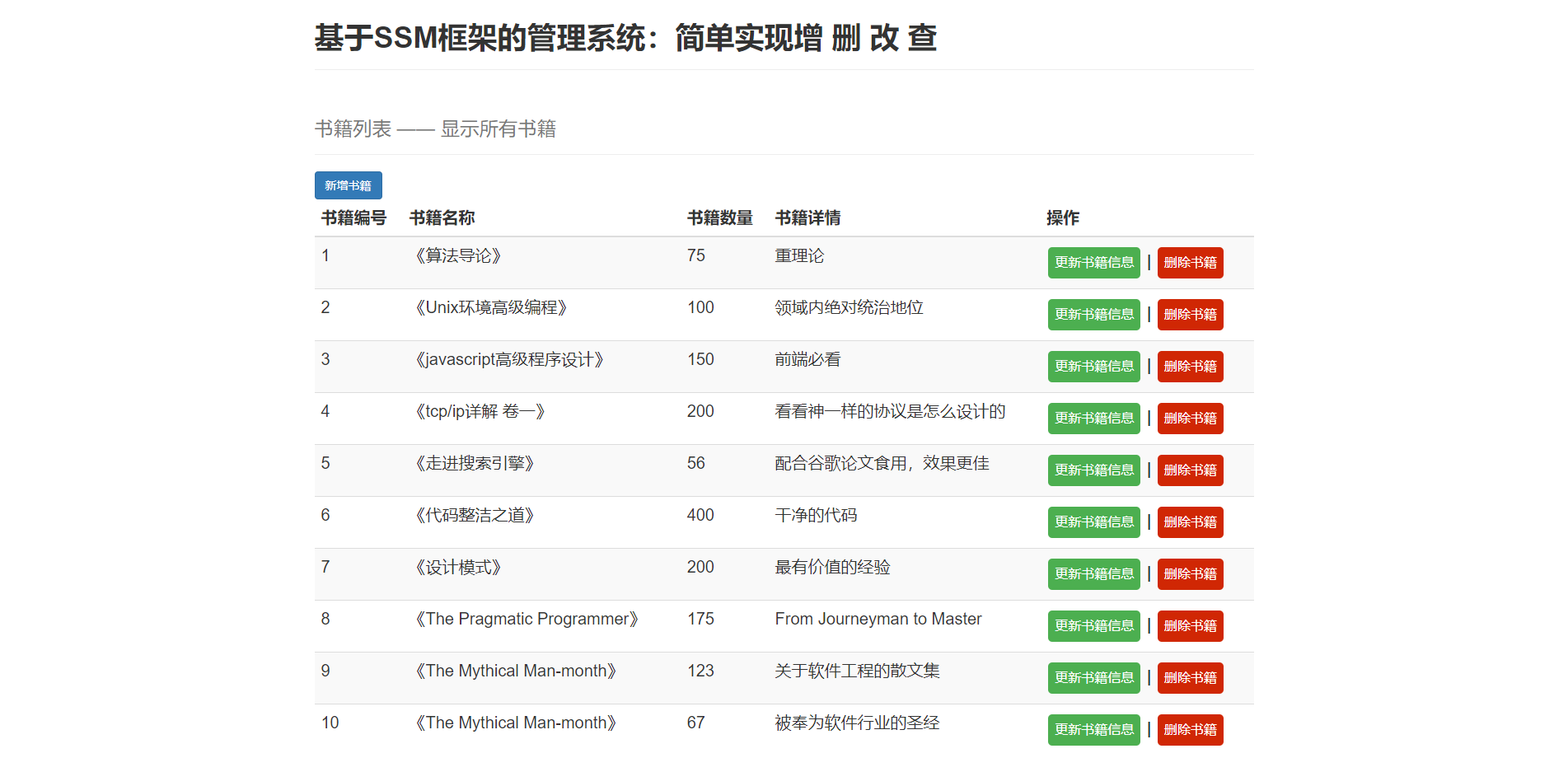

allPaper.jsp

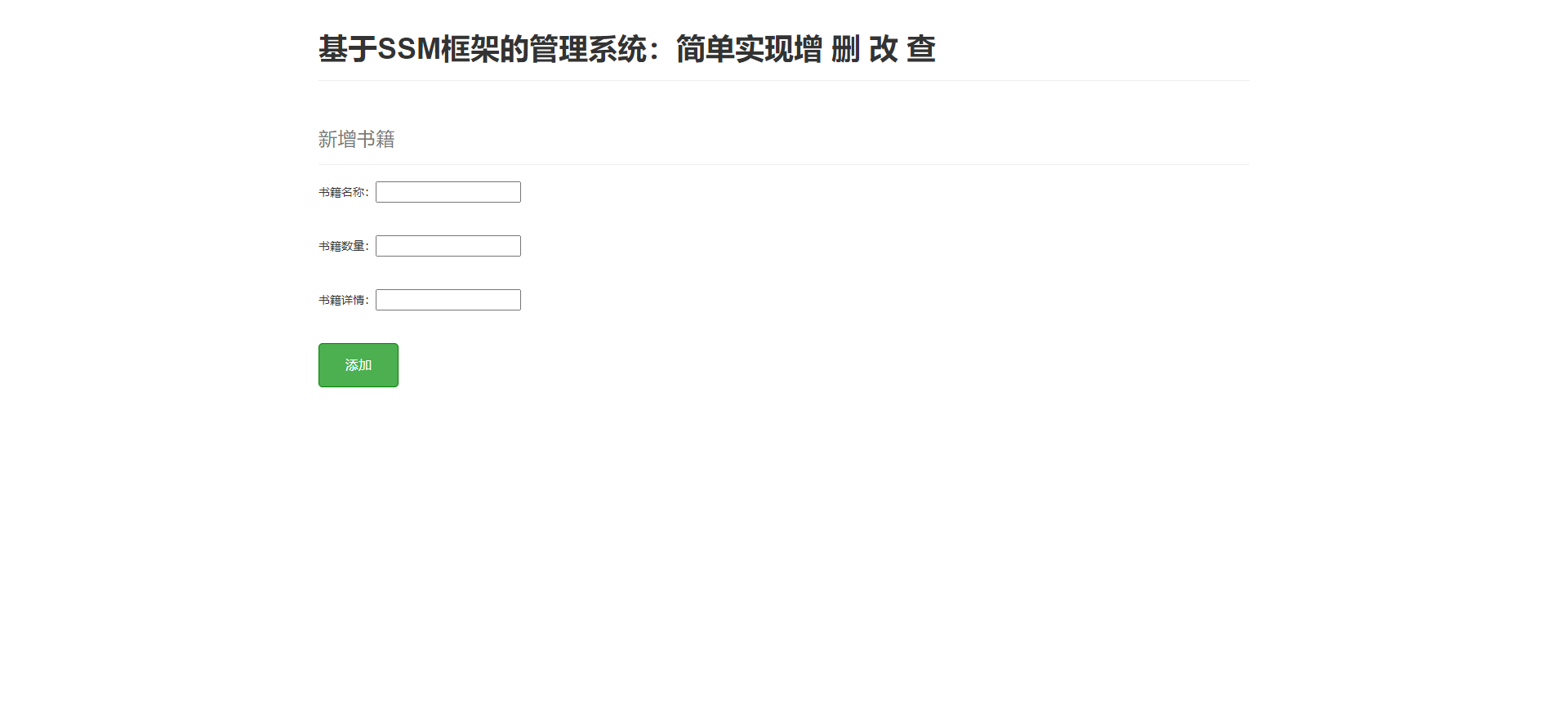

addPaper.sjp

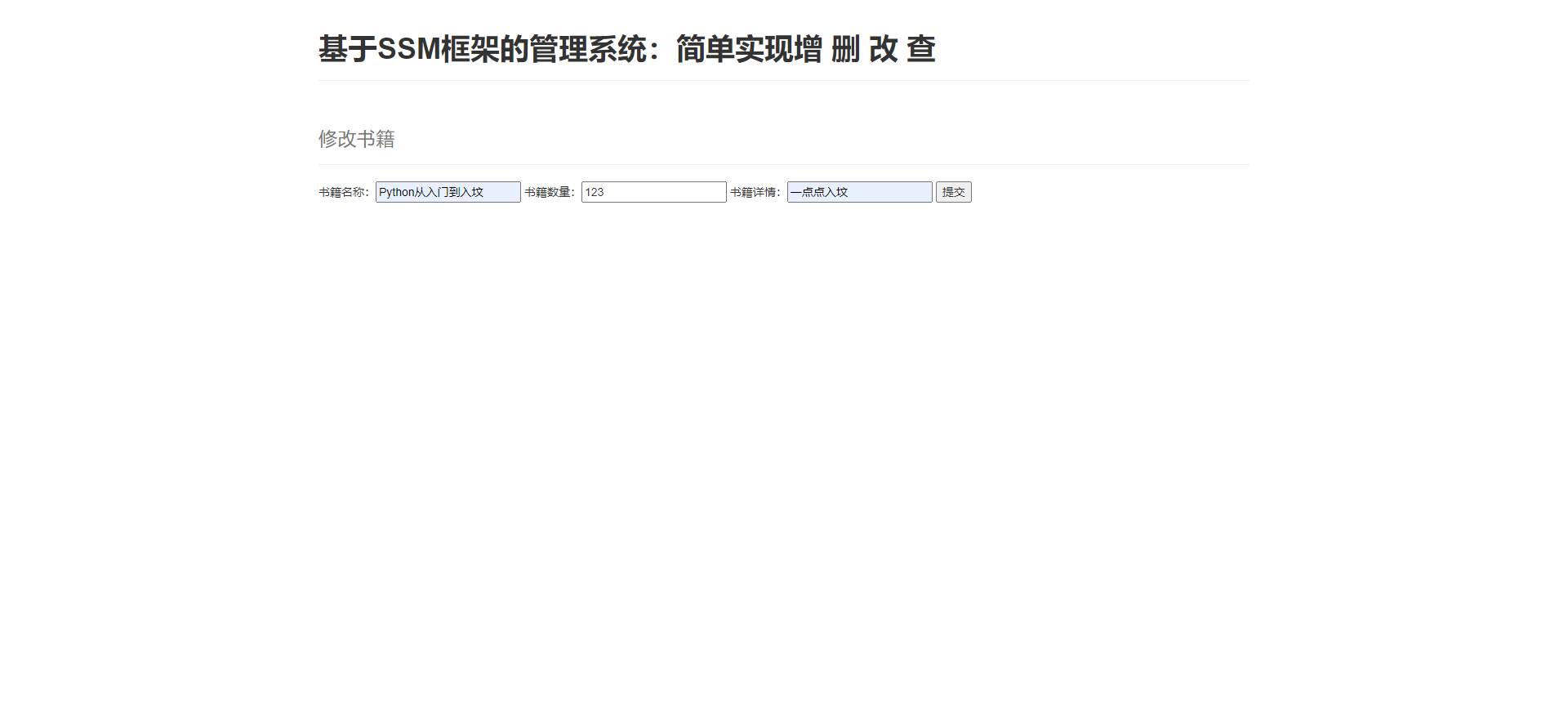

updatePaper.jsp
删除书籍

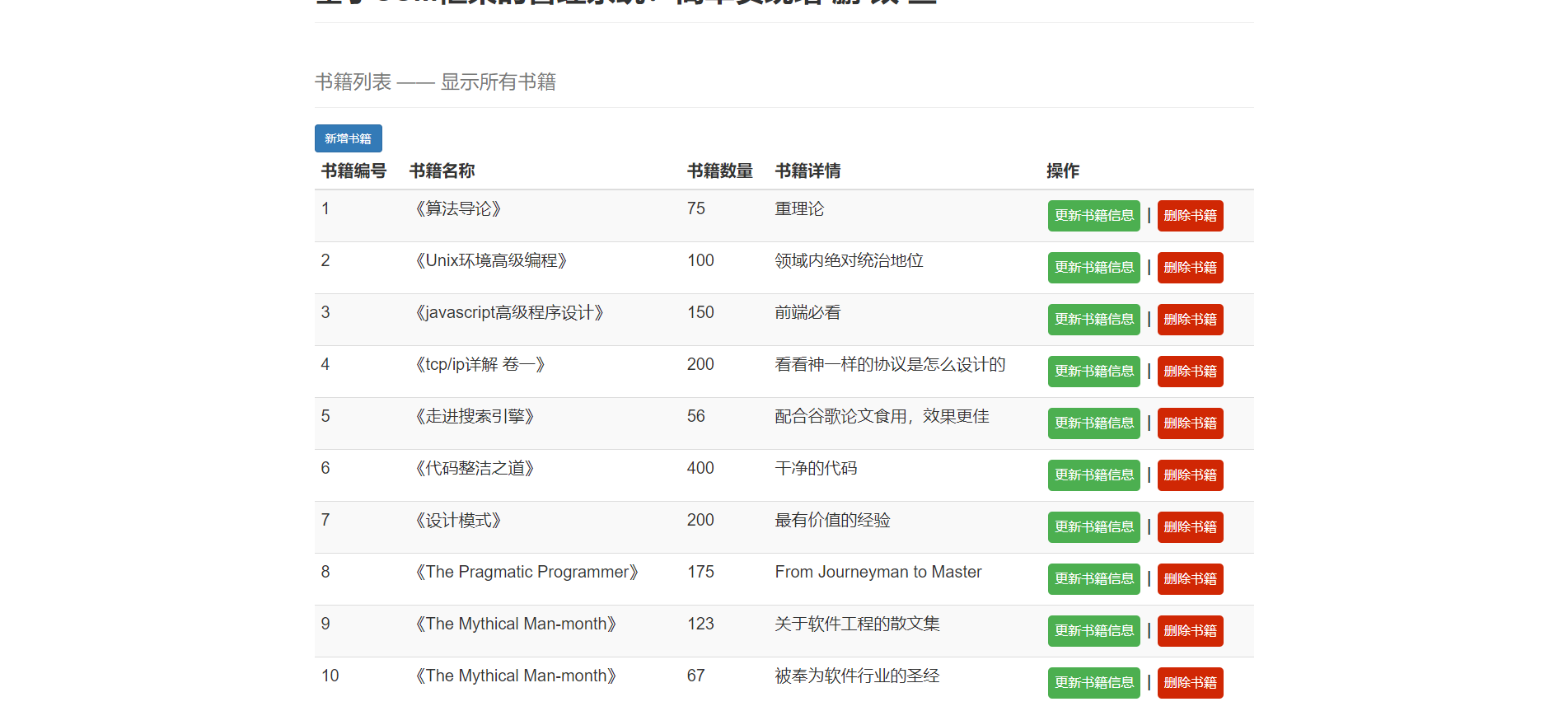

删除前
删除后
开发环境
使用IDEA，利用Maven管理项目，整合SSM框架搭建书籍管理系统
- IntelliJ IDEA 2021.1.1
- JDK：1.8.0
- MySQL：8.0.21 可视化工具：Navicat Premium 15
- SpringVersion:5.0.2.RELEASE
- Maven 3.3.9
- Apache-tomcat-9.0.37

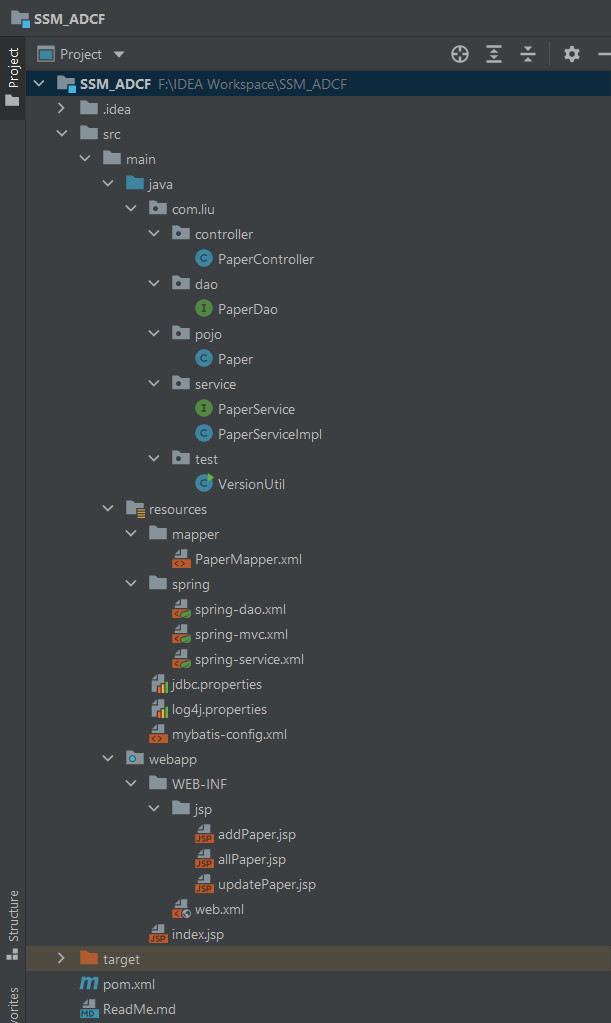

完整工程结构
Java代码部分
此项目需要的SQL建表语句
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for paper
-- ----------------------------
DROP TABLE IF EXISTS `paper`;
CREATE TABLE `paper` (
`paper_id` bigint(0) NOT NULL AUTO_INCREMENT COMMENT 'paperID',
`name` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT 'paper名称',
`number` int(0) NOT NULL COMMENT 'paper数量',
`detail` varchar(200) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT 'paper描述',
PRIMARY KEY (`paper_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 130 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = 'paper表' ROW_FORMAT = Dynamic;
-- ----------------------------
-- Records of paper
-- ----------------------------
INSERT INTO `paper` VALUES (1, '《算法导论》', 75, '重理论');
INSERT INTO `paper` VALUES (2, '《Unix环境高级编程》', 100, '领域内绝对统治地位');
INSERT INTO `paper` VALUES (3, '《javascript高级程序设计》', 150, '前端必看');
INSERT INTO `paper` VALUES (4, '《tcp/ip详解 卷一》', 200, '看看神一样的协议是怎么设计的');
INSERT INTO `paper` VALUES (5, '《走进搜索引擎》', 56, '配合谷歌论文食用，效果更佳');
INSERT INTO `paper` VALUES (6, '《代码整洁之道》', 400, '干净的代码，既在质量上较为可靠，也为后期维护、升级奠定了良好基础。');
INSERT INTO `paper` VALUES (7, '《设计模式》', 200, '设计模式总结了面向对象设计中最有价值的经验');
INSERT INTO `paper` VALUES (8, '《The Pragmatic Programmer》', 175, 'From Journeyman to Master');
INSERT INTO `paper` VALUES (9, '《The Mythical Man-month》', 123, '关于软件工程的散文集');
INSERT INTO `paper` VALUES (10, '《The Mythical Man-month》', 67, '被奉为软件行业的圣经');
SET FOREIGN_KEY_CHECKS = 1;
首先在src/main/java目录下新建几个包分别为：
- controller：代表控制层，此层业务层与视图层打交道的中间层，负责传输VO对象和调用BO层的业务方法，负责视图层请求的数据处理后响应给视图层.
- dao：代表数据访问对象的意思,负责持久层的操作,定义接口，包含与数据库进行交互的功能.
- pojo： 存放自定义的java类 如：paper类等，每个类的属性设为private，并提供public属性的getter/setter方法让外界访问.
- service：定义接口，包含系统所提供的功能.
- test：这里放一些测试类，可加可不加.
配置pom.xml文件
在此文件中配置项目所需要的jar包
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.liu</groupId>
<artifactId>SSM_ADCF</artifactId><!-- 项目名称 -->
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>SSM_ADCF Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
</properties>
<dependencies>
<!-- 单元测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>
<!-- Spring core -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<!-- Spring DAO -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<!-- Spring mvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<!-- Servlet web -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.0.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>taglibs</groupId>
<artifactId>standard</artifactId>
<version>1.1.2</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.9.4</version>
</dependency>
<!-- 数据库和mybatis -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.21</version>
</dependency>
<!-- 数据库连接池 -->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.2</version>
</dependency>
<!-- MyBatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.2.6</version>
</dependency>
<!-- mybatis-spring整合包 -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.1</version>
</dependency>
<!-- 日志&实现slf4j接口并整合 -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.1.1</version>
</dependency>
</dependencies>
<build>
<finalName>SSM_ADCF</finalName><!-- 项目名称 -->
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
<resources>
<resource>
<directory>src/main/java</directory><!--所在的目录-->
<!--包括目录下的.properties,.xml文件都会扫描到-->
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
</resources>
</build>
</project>
pojo
新建 Paper 实体类-设置私有属性-Getter And Setter没啥好说的一键生成即可
Paper
package com.liu.pojo;
/**
* Create with IDEA
*
* @ClassName: Paper
* @Author : Liu Xingyu
* @Create: 6/4/2021
* @Description: Paper实体类
*/
public class Paper {
private long paperId;
private String paperName;
private int paperNum;
private String paperDetail;
public long getPaperId() {
return paperId;
}
public void setPaperId(long paperId) {
this.paperId = paperId;
}
public String getPaperName() {
return paperName;
}
public void setPaperName(String paperName) {
this.paperName = paperName;
}
public int getPaperNum() {
return paperNum;
}
public void setPaperNum(int paperNum) {
this.paperNum = paperNum;
}
public String getPaperDetail() {
return paperDetail;
}
public void setPaperDetail(String paperDetail) {
this.paperDetail = paperDetail;
}
}
service
PaperService
在service包中新建PaperService接口
package com.liu.service;
import com.liu.pojo.Paper;
import java.util.List;
public interface PaperService {
// 查找所有
List<Paper> queryAllPaper();
// 添加
int addPaper(Paper paper);
// 根据ID删除
int deletePaperById(long id);
// 更新
int updatePaper(Paper paper);
// 根据ID查找
Paper queryById(long id);
}
PaperServiceImpl
实现前面 PaperService 接口
package com.liu.service;
import com.liu.pojo.Paper;
import com.liu.dao.PaperDao;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class PaperServiceImpl implements PaperService {
@Autowired
private PaperDao paperDao;
@Override
public int addPaper(Paper paper) {
return paperDao.addPaper(paper);
}
@Override
public int deletePaperById(long id) {
return paperDao.deletePaperById(id);
}
@Override
public int updatePaper(Paper paper) {
return paperDao.updatePaper(paper);
}
@Override
public Paper queryById(long id) {
return paperDao.queryById(id);
}
@Override
public List<Paper> queryAllPaper() {
return paperDao.queryAllPaper();
}
}
dao
PaperDao
package com.liu.dao;
import com.liu.pojo.Paper;
import java.util.List;
public interface PaperDao {
int addPaper(Paper paper);
int deletePaperById(long id);
int updatePaper(Paper paper);
Paper queryById(long id);
List<Paper> queryAllPaper();
}
controller
在controller包中新建
PaperController
package com.liu.controller;
import com.liu.pojo.Paper;
import com.liu.service.PaperService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.List;
/**
* Create with IDEA
*
* @ClassName: PaperController
* @Author : Liu Xingyu
* @Create: 6/4/2021
* @Description:
*/
@Controller
@RequestMapping("/paper")
public class PaperController {
@Autowired
private PaperService paperService;
@RequestMapping("/allPaper")
public String list(Model model) {
List<Paper> list = paperService.queryAllPaper();
model.addAttribute("list", list);
return "allPaper";
}
@RequestMapping("toAddPaper")
public String toAddPaper() {
return "addPaper";
}
@RequestMapping("/addPaper")
public String addPaper(Paper paper) {
paperService.addPaper(paper);
return "redirect:/paper/allPaper";
}
@RequestMapping("/del/{paperId}")
public String deletePaper(@PathVariable("paperId") Long id) {
paperService.deletePaperById(id);
return "redirect:/paper/allPaper";
}
@RequestMapping("toUpdatePaper")
public String toUpdatePaper(Model model, Long id) {
model.addAttribute("paper", paperService.queryById(id));
return "updatePaper";
}
@RequestMapping("/updatePaper")
public String updatePaper(Model model, Paper paper) {
paperService.updatePaper(paper);
paper = paperService.queryById(paper.getPaperId());
model.addAttribute("paper", paper);
return "redirect:/paper/allPaper";
}
}
@Autowired 注释，它可以对类成员变量、方法及构造函数进行标注，完成自动装配的工作。 通过 @Autowired的使用来消除 set ，get方法。
@RequestMapping 来映射请求，也就是通过它来指定控制器可以处理哪些URL请求。
resources部分
在src/main/resources下新建两个文件夹 mapper 和 spring
mapper
PaperMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.liu.dao.PaperDao">
<resultMap type="Paper" id="paperResultMap" >
<id property="paperId" column="paper_id"/>
<result property="paperName" column="name"/>
<result property="paperNum" column="number"/>
<result property="paperDetail" column="detail"/>
</resultMap>
<insert id="addPaper" parameterType="Paper">
INSERT INTO paper(paper_id,name,number,detail) VALUE (#{paperId},#{paperName}, #{paperNum}, #{paperDetail})
</insert>
<delete id="deletePaperById" parameterType="long">
DELETE FROM paper WHERE paper_id=#{paperID}
</delete>
<update id="updatePaper" parameterType="Paper">
UPDATE paper
SET NAME = #{paperName},NUMBER = #{paperNum},detail = #{paperDetail}
WHERE paper_id = #{paperId}
</update>
<select id="queryById" resultType="Paper" parameterType="long">
SELECT paper_id,name,number,detail
FROM paper
WHERE paper_id=#{paperId}
</select>
<select id="queryAllPaper" resultMap="paperResultMap">
SELECT paper_id,name,number,detail
FROM paper
</select>
</mapper>
spring
spring-dao.xml
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd">
<!-- 配置整合mybatis过程 -->
<!-- 1.配置数据库相关参数properties的属性：${url} -->
<context:property-placeholder location="classpath:jdbc.properties"/>
<!-- 2.数据库连接池 -->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<!-- 配置连接池属性 -->
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
<!-- c3p0连接池的私有属性 -->
<property name="maxPoolSize" value="30"/>
<property name="minPoolSize" value="10"/>
<!-- 关闭连接后不自动commit -->
<property name="autoCommitOnClose" value="false"/>
<!-- 获取连接超时时间 -->
<property name="checkoutTimeout" value="10000"/>
<!-- 当获取连接失败重试次数 -->
<property name="acquireRetryAttempts" value="2"/>
</bean>
<!-- 3.配置SqlSessionFactory对象 -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource"/>
<!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<!-- 扫描pojo包 使用别名 -->
<property name="typeAliasesPackage" value="com.liu.pojo"/>
<!-- 扫描sql配置文件:mapper需要的xml文件 -->
<property name="mapperLocations" value="classpath:mapper/*.xml"/>
</bean>
<!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 注入sqlSessionFactory -->
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
<!-- 给出需要扫描Dao接口包 -->
<property name="basePackage" value="com.liu.dao"/>
</bean>
</beans>
spring-mvc.xml
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
<!-- 配置SpringMVC -->
<!-- 1.开启SpringMVC注解模式 -->
<!-- 简化配置：
(1)自动注册DefaultAnootationHandlerMapping,AnotationMethodHandlerAdapter
(2)提供一些列：数据绑定，数字和日期的format @NumberFormat, @DateTimeFormat, xml,json默认读写支持
-->
<mvc:annotation-driven />
<!-- 2.静态资源默认servlet配置
(1)加入对静态资源的处理：js,gif,png
(2)允许使用"/"做整体映射
-->
<mvc:default-servlet-handler/>
<!-- 3.配置jsp 显示ViewResolver -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
<property name="prefix" value="/WEB-INF/jsp/" />
<property name="suffix" value=".jsp" />
</bean>
<!-- 4.扫描web相关的bean -->
<context:component-scan base-package="com.liu.controller" />
</beans>
spring-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<!-- 扫描service包下所有使用注解的类型 -->
<context:component-scan base-package="com.liu.service" />
<!-- 配置事务管理器 -->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 配置基于注解的声明式事务 -->
<tx:annotation-driven transaction-manager="transactionManager" />
</beans>
其他配置文件
jdbc.properties
数据库连接配置
jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/javaeeproject_ssm?serverTimezone=UTC&useSSL=false&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=112800
log4j.properties
log4j.rootLogger=ERROR, stdout
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!-- 配置全局属性 -->
<settings>
<!-- 使用jdbc的getGeneratedKeys获取数据库自增主键值 -->
<setting name="useGeneratedKeys" value="true"/>
<!-- 使用列别名替换列名 默认:true -->
<setting name="useColumnLabel" value="true"/>
<!-- 开启驼峰命名转换:Table{create_time} -> Entity{createTime} -->
<setting name="mapUnderscoreToCamelCase" value="true"/>
</settings>
</configuration>
View视图层（webapp）
这里主要就是写JSP视图层的东西了
index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8" %>
<%
pageContext.setAttribute("path", request.getContextPath());
%>
<!DOCTYPE HTML>
<html>
<head>
<title>首页</title>
<%-- 这里更换icon --%>
<link rel="icon" type="image/x-icon" href="https://files.catbox.moe/vicxg3.png" />
<style type="text/css">
.h1 {
text-align: center;
color: #FFFFFF;
color: #fff;
text-shadow: blue 0 1px 0;
}
.button {
display: inline-block;
border-radius: 35px;
background-color: #f4511e;
border: none;
color: #FFFFFF;
text-align: center;
font-size: 28px;
padding: 20px;
width: 200px;
transition: all 0.5s;
cursor: pointer;
margin: 5px;
position: absolute;
left: 840px;
top: 350px;
box-shadow: 6px 6px 6px #e12604;
}
.button span {
cursor: pointer;
display: inline-block;
position: relative;
transition: 0.5s;
}
.button span:after {
content: '👆';
position: absolute;
opacity: 0;
top: 0;
right: -20px;
transition: 0.5s;
}
.button:hover span {
padding-right: 25px;
}
.button:hover span:after {
opacity: 1;
right: 0;
}
.body {
background-image: url("https://files.catbox.moe/y5d1o6.jpg");
background-repeat:no-repeat;
background-size:1920px 1280px;
background-position-x:50%;
}
.code {
color: #FFFFFF;
text-align: center;
padding-top: 600px;
}
.git {
background-color: #4CAF50;
border: none;
color: white;
padding: 8px;
border-radius: 5px;
text-align: center;
text-decoration: none;
display: inline-block;
font-size: 16px;
margin: 4px 2px;
cursor: pointer;
}
.git:hover {
background-color: #3e8e41;
}
</style>
</head>
<body class="body">
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1 class="h1">
基于SSM框架的管理系统：简单实现增 删 改 查
</h1>
</div>
</div>
</div>
</div>
<br><br>
<h3>
<a href="${path }/paper/allPaper">
<button class="button" style="vertical-align:middle"><span>点击进入</span></button>
</a>
</h3>
<h2 class="code">
<a href="https://gitee.com/jaolvv/ssm_-adcf/tree/master/SSM_ADCF" target="_blank">
<button class="git">获取源码</button>
</a>
</h2>
</body>
</html>
src/main/webapp/WEB-INF/web.xml
web.xml
<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1" metadata-complete="true">
<display-name>Archetype Created Web Application</display-name>
<servlet>
<servlet-name>dispatcher</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- 配置springMVC需要加载的配置文件
spring-dao.xml,spring-service.xml,spring-mvc.xml
Mybatis - > spring -> springmvc
-->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-*.xml</param-value>
</init-param>
</servlet>
<servlet-mapping>
<servlet-name>dispatcher</servlet-name>
<!-- 默认匹配所有的请求 -->
<url-pattern>/</url-pattern>
</servlet-mapping>
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>
org.springframework.web.filter.CharacterEncodingFilter
</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
接着在src/main/webapp/WEB-INF/下新建jsp包
addPaper.jsp
<%--
Created by IntelliJ IDEA.
User: Huawei
Date: 6/4/2021
Time: 6:01 PM
To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%
pageContext.setAttribute("path", request.getContextPath());
%>
<html>
<head>
<title>新增书籍</title>
<%-- 这里更换icon --%>
<link rel="icon" type="image/x-icon" href="https://files.catbox.moe/vicxg3.png" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
<style type="text/css">
.sbutton {
background-color: #4CAF50; /* Green */
border: 1px solid green;
color: white;
padding: 15px 32px;
text-align: center;
text-decoration: none;
display: inline-block;
font-size: 16px;
cursor: pointer;
float: left;
border-radius: 5px;
}
.sbutton:hover {
background-color: #3e8e41;
}
</style>
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<b>基于SSM框架的管理系统：简单实现增 删 改 查</b>
</h1>
</div>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>新增书籍</small>
</h1>
</div>
</div>
</div>
<form action="" name="userForm">
书籍名称：<input type="text" name="paperName"><br><br><br>
书籍数量：<input type="text" name="paperNum"><br><br><br>
书籍详情：<input type="text" name="paperDetail"><br><br><br>
<input class="sbutton" type="button" value="添加" onclick="addPaper()">
</form>
<script type="text/javascript">
function addPaper() {
var form = document.forms[0];
form.action = "${path}/paper/addPaper";
form.method = "post";
form.submit();
}
</script>
</div>
allPaper.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%
pageContext.setAttribute("path", request.getContextPath());
%>
<html>
<head>
<title>书籍列表</title>
<%-- 这里更换icon --%>
<link rel="icon" type="image/x-icon" href="https://files.catbox.moe/vicxg3.png" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
<style type="text/css">
.body {
background-color: #FFFFFF;
}
.edit {
background-color: #4CAF50; /* 绿色 */
border: none;
color: white;
padding: 8px;
border-radius: 5px;
text-decoration: none;
display: inline-block;
font-size: 16px;
margin: 4px 2px;
cursor: pointer;
}
.edit:hover {
background-color: #3e8e41;
}
.del {
background-color: #d02704;
border: none;
color: white;
padding: 8px;
border-radius: 5px;
text-align: center;
text-decoration: none;
display: inline-block;
font-size: 16px;
margin: 4px 2px;
cursor: pointer;
}
.del:hover {
background-color: #a42204;
}
</style>
</head>
<body class="body">
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<b>基于SSM框架的管理系统：简单实现增 删 改 查</b>
</h1>
</div>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>书籍列表 —— 显示所有书籍</small>
</h1>
</div>
</div>
</div>
<div class="row">
<div class="col-md-4 column">
<a class="btn btn-primary" href="${path}/paper/toAddPaper">新增书籍</a>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<table class="table table-hover table-striped">
<thead>
<tr>
<th>书籍编号</th>
<th>书籍名称</th>
<th>书籍数量</th>
<th>书籍详情</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<c:forEach var="paper" items="${requestScope.get('list')}" varStatus="status">
<tr>
<td id="td1">${paper.paperId}</td>
<td>${paper.paperName}</td>
<td>${paper.paperNum}</td>
<td>${paper.paperDetail}</td>
<td>
<a href="${path}/paper/toUpdatePaper?id=${paper.paperId}" style="text-decoration:none">
<button class="edit">更新书籍信息</button>
</a>
<b>|</b>
<a href="${path}/paper/del/${paper.paperId}">
<button class="del">删除书籍</button>
</a>
</td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
</div>
</div>
updatePaper.jsp
<%--
Created by IntelliJ IDEA.
User: Huawei
Date: 6/4/2021
Time: 6:01 PM
To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%
pageContext.setAttribute("path", request.getContextPath());
%>
<html>
<head>
<title>修改书籍</title>
<%-- 这里更换icon --%>
<link rel="icon" type="image/x-icon" href="https://files.catbox.moe/vicxg3.png" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引入 Bootstrap -->
<link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<b>基于SSM框架的管理系统：简单实现增 删 改 查</b>
</h1>
</div>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>修改书籍</small>
</h1>
</div>
</div>
</div>
<form action="" name="userForm">
<input type="hidden" name="paperId" value="${paper.paperId}"/>
书籍名称：<input type="text" name="paperName" value="${paper.paperName}"/>
书籍数量：<input type="text" name="paperNum" value="${paper.paperNum}"/>
书籍详情：<input type="text" name="paperDetail" value="${paper.paperDetail }"/>
<input type="button" value="提交" onclick="updatePaper()"/>
</form>
<script type="text/javascript">
function updatePaper() {
var form = document.forms[0];
form.action = "${path}/paper/updatePaper";
form.method = "post";
form.submit();
}
</script>
</div>
到这里就是所有的代码了
最后配置Tomcat就可以启动了
有可能出现的错误
第二个页面报错 500
可能是数据库版本低，我的是8.0.21；然后在jdbc.properties里，将jdbc.driver改成com.mysql.cj.jdbc.Driver，加个cj；然后在jdbc.url的链接后面加上&useSSL=false&serverTimezone=UTC
浙公网安备 33010602011771号
