SpringBoot自动配置原理

SpringBoot自动配置原理

SpringBoot在启动过程中，会识别到启动类 将其保存在 SpringApplication 的 mainApplicationClass 属性中，在 SpringApplication 构造方法中指定：

public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
		this.resourceLoader = resourceLoader;
		Assert.notNull(primarySources, "PrimarySources must not be null");
		this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
		this.webApplicationType = WebApplicationType.deduceFromClasspath();
		setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
		setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
		this.mainApplicationClass = deduceMainApplicationClass();		// 识别启动类
	}

	private Class<?> deduceMainApplicationClass() {
		try {
			StackTraceElement[] stackTrace = new RuntimeException().getStackTrace();
			for (StackTraceElement stackTraceElement : stackTrace) {
				if ("main".equals(stackTraceElement.getMethodName())) {
					return Class.forName(stackTraceElement.getClassName());
				}
			}
		}
		catch (ClassNotFoundException ex) {
			// Swallow and continue
		}
		return null;
	}

SpringBoot 自动配置有两种方式：

@import

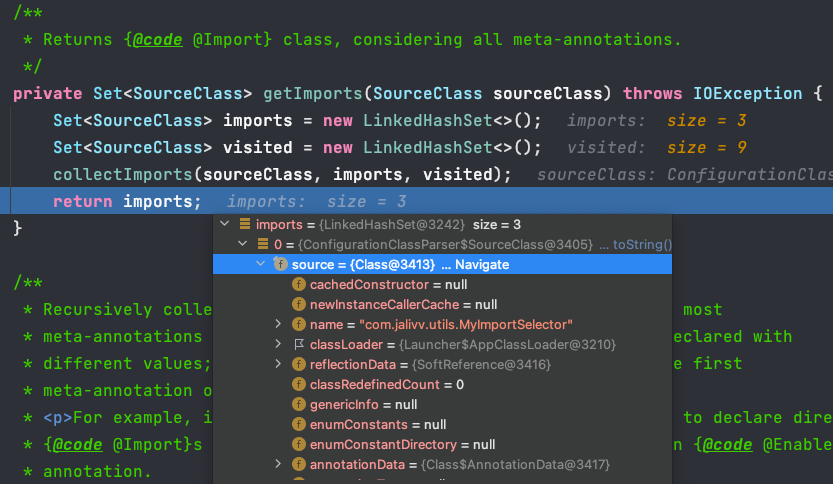

SpringBoot 在启动过程中，会去收集被 @Import 注解的类 作为一个 sourceClass

if (candidate.isAssignable(ImportSelector.class)) {
    // Candidate class is an ImportSelector -> delegate to it to determine imports
    Class<?> candidateClass = candidate.loadClass();
    ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,this.environment, this.resourceLoader, this.registry);
    Predicate<String> selectorFilter = selector.getExclusionFilter();
    if (selectorFilter != null) {
        exclusionFilter = exclusionFilter.or(selectorFilter);
    }
    if (selector instanceof DeferredImportSelector) {
        this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
    }
    else {
        String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
        Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
        processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
    }
}

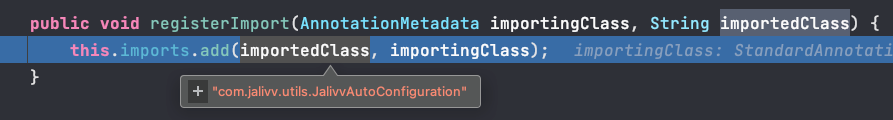

就会将类加到 imports 中，为了以后实例化

会在之后解析 xxxAutoConfiguration 中的 @bean ,解析到之后，加入到容器里面

	// Process individual @Bean methods
	Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
	for (MethodMetadata methodMetadata : beanMethods) {
		configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
	}

读取 spring.factories 配置文件

在 org.springframework.boot.autoconfigure.AutoConfigurationImportSelector 的 prosess() 中：

@Override
		public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
			Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector,
					() -> String.format("Only %s implementations are supported, got %s",
							AutoConfigurationImportSelector.class.getSimpleName(),
							deferredImportSelector.getClass().getName()));
			AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
					.getAutoConfigurationEntry(annotationMetadata);
			this.autoConfigurationEntries.add(autoConfigurationEntry);
			for (String importClassName : autoConfigurationEntry.getConfigurations()) {
				this.entries.putIfAbsent(importClassName, annotationMetadata);
			}
		}

getAutoConfigurationEntry()

protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
		if (!isEnabled(annotationMetadata)) {
			return EMPTY_ENTRY;
		}
		AnnotationAttributes attributes = getAttributes(annotationMetadata);
		List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
		configurations = removeDuplicates(configurations);
		Set<String> exclusions = getExclusions(annotationMetadata, attributes);
		checkExcludedClasses(configurations, exclusions);
		configurations.removeAll(exclusions);
		configurations = getConfigurationClassFilter().filter(configurations);
		fireAutoConfigurationImportEvents(configurations, exclusions);
		return new AutoConfigurationEntry(configurations, exclusions);
	}

在 prepareRefresh() 的 load() 方法中，将 启动类 注册到 AnnotatedBeanDefinitionReader 中，以便以后识别

private final AnnotatedBeanDefinitionReader annotatedReader;

private int load(Class<?> source) {
		if (isGroovyPresent() && GroovyBeanDefinitionSource.class.isAssignableFrom(source)) {
			// Any GroovyLoaders added in beans{} DSL can contribute beans here
			GroovyBeanDefinitionSource loader = BeanUtils.instantiateClass(source, GroovyBeanDefinitionSource.class);
			load(loader);
		}
		if (isEligible(source)) {
			this.annotatedReader.register(source);
			return 1;
		}
		return 0;
	}

getCandidateConfigurations() 中调用 SpringFactoriesLoader.loadFactoryNames(EnableAutoConfiguration.class,
getBeanClassLoader());

在这里获取 META-INF 目录下 spring.factories 文件中的指定 key 为 org.springframework.boot.autoconfigure.EnableAutoConfiguration

对应的类的权限定名称。这些类会经过一系列的排除，过滤，最后加入到 IOC 容器中供我们使用

手写一个 starter

• 创建一个 springboot 工程，加入依赖

  				<dependency>
              <groupId>org.springframework</groupId>
              <artifactId>spring-context</artifactId>
              <version>5.3.7</version>
          </dependency>


• 编写一个 template 类

  public class JalivvTemplate {
      public void say() {
          System.out.println("jalivv so cool");
      }
  }


• 编写一个 AutoConfiguration 类，在该类中将 template 对象注入到 IOC 容器中。

  public class JalivvAutoConfiguration {

      @Bean
      JalivvTemplate jalivvTemplate() {
          return new JalivvTemplate();
      }
  }


• 编写一个 Selector 类，去实现 ImportSelector 接口，重写接口中的方法

  public class MyImportSelector implements ImportSelector {
      @Override
      public String[] selectImports(AnnotationMetadata importingClassMetadata) {
          return new String[]{JalivvAutoConfiguration.class.getName()};
      }
  }


• 编写一个注解，开启这个 starter

  @Target(ElementType.TYPE)
  @Retention(RetentionPolicy.RUNTIME)
  @Import(MyImportSelector.class)
  public @interface EnableJalivv {
  }


• 引入到我们自己的项目中

          <dependency>
              <groupId>com.jalivv.spring.boot</groupId>
              <artifactId>jalivv-spring-boot-starter</artifactId>
              <version>1.0</version>
          </dependency>

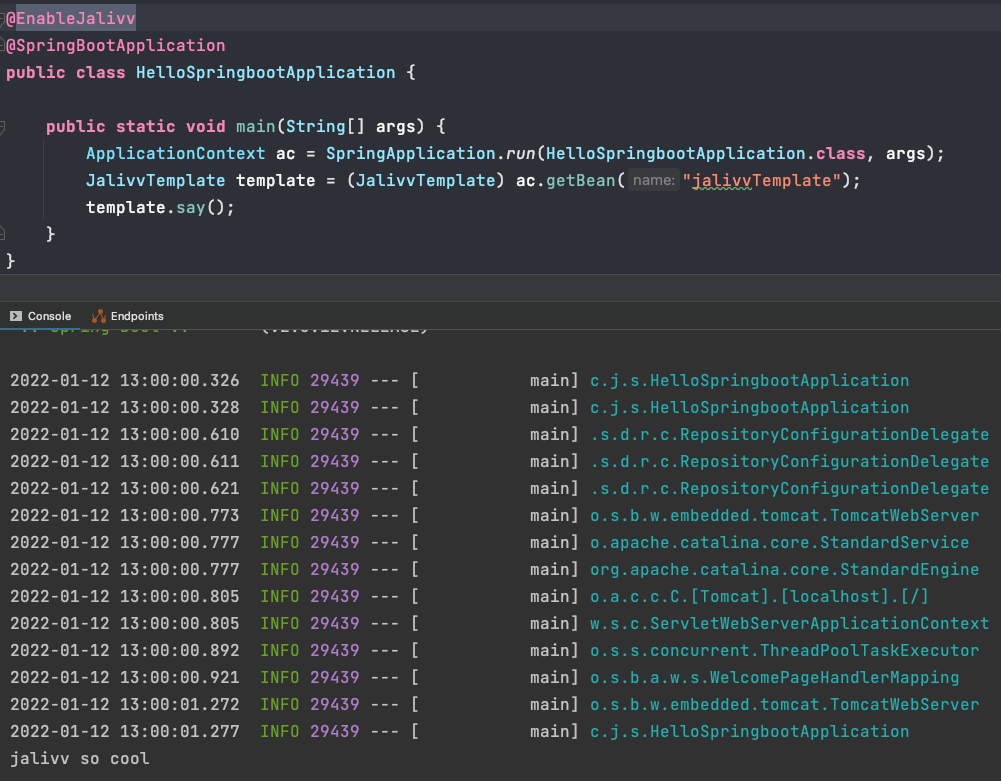

• 在启动类加上 @EnableJalivv ，就能从 IOC 容器中 取到 JalivvTemplate 这个对象

RedisAutoconfiguration

redisAutoConfiguration 在 spring.factories 配置文件中已经配置，采用加载该配置文件的方式 加入IOC 容器

# Auto Configure	其他的类已经省略
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.boot.autoconfigure.data.redis.RedisAutoConfiguration,\

在 redisAutoConfiguration 中，就配置了 RedisTemplate

@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(RedisOperations.class)
@EnableConfigurationProperties(RedisProperties.class)
@Import({ LettuceConnectionConfiguration.class, JedisConnectionConfiguration.class })
public class RedisAutoConfiguration {

	@Bean
	@ConditionalOnMissingBean(name = "redisTemplate")
	public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory)
			throws UnknownHostException {
		RedisTemplate<Object, Object> template = new RedisTemplate<>();
		template.setConnectionFactory(redisConnectionFactory);
		return template;
	}

	@Bean
	@ConditionalOnMissingBean
	public StringRedisTemplate stringRedisTemplate(RedisConnectionFactory redisConnectionFactory)
			throws UnknownHostException {
		StringRedisTemplate template = new StringRedisTemplate();
		template.setConnectionFactory(redisConnectionFactory);
		return template;
	}

}
