05_单片机_点阵初识_74HC595

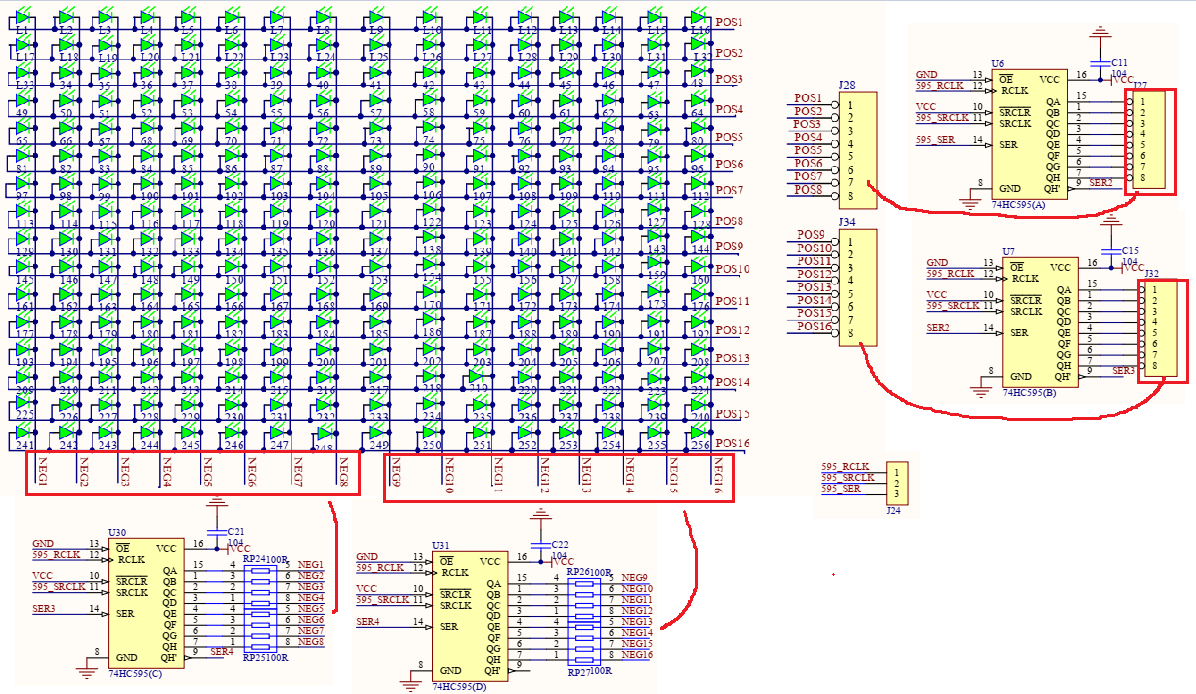

1. 单片机点阵接线（Positive：正极；negative：负极）

2. 74HC595 （链接：https://www.mouser.cn/ProductDetail/Texas-Instruments/SN74HC595NE4?qs=AgY10sKTvDK0jki9CKjSwg%3D%3D）

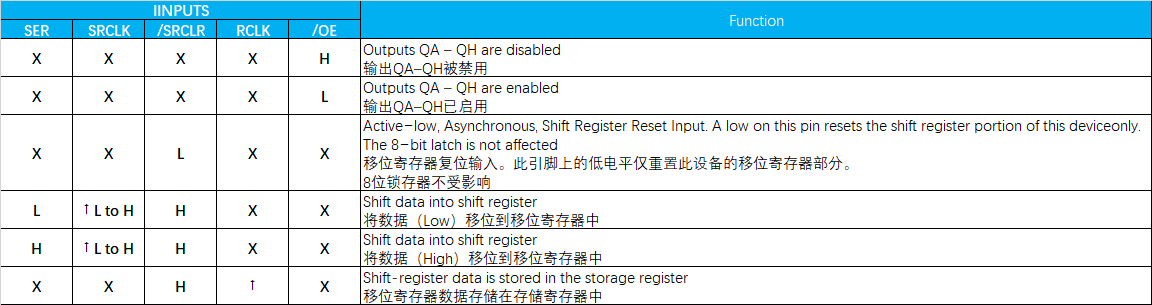

2.1. 查询datasheet，如下设备功能模式（Device Functional Modes）

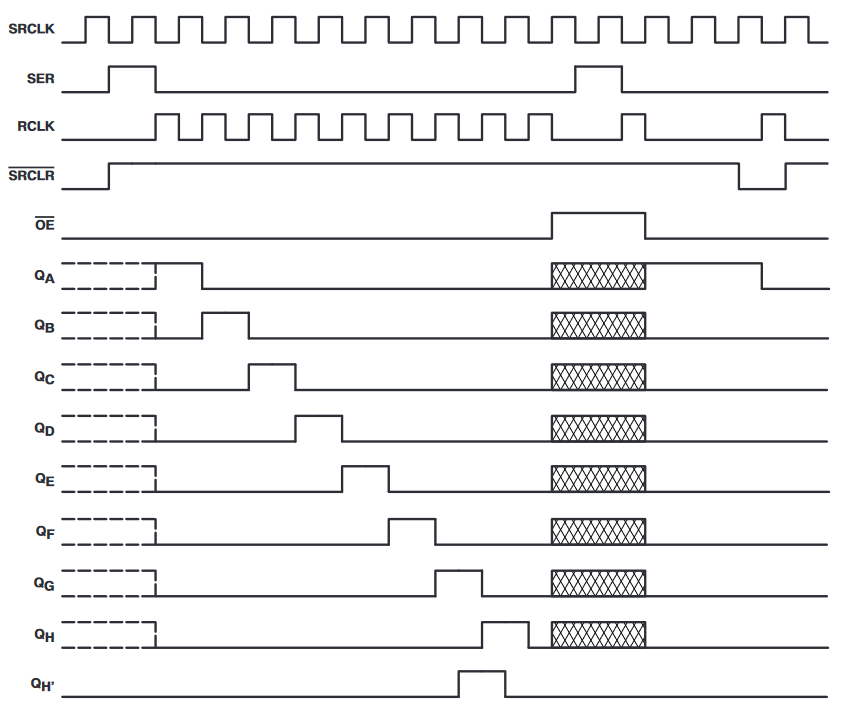

2.2. 时序图

3. 实现点亮LED点阵

　根据上述，SRCLK 上升沿（低电平转高电平）会移位SER的数据到移位寄存器中；RCLK 上升沿（low to high）移位寄存器的数据存储在存储寄存器中

3.1. 点亮所有LED

　　发现个问题，使用教程P3^4，P3^5，P3^6可以点亮所有LED，P1^0，P1^1，P1^2也可以，但是使用Port0端口，有两列LED无法点亮，未发现问题，求解？

 1 #include <REG51.H>
 2
 3
 4 sbit SER         = P1^0;
 5 sbit RCLK     = P1^1;
 6 sbit SRCLK     = P1^2;
 7
 8 void main(void)
 9 {
10     unsigned char i = 0;
11     unsigned char pos1, pos2, neg1, neg2;
12
13     RCLK = 0;
14     SRCLK = 0;
15
16     pos1 = 0xff;
17     pos2 = 0xff;
18     neg1 = 0x00;
19     neg2 = 0x00;
20
21     for(i=0; i<8; i++)
22     {
23         SER = neg2>>7;    // 获取最高位传递给SER
24         SRCLK = 0;
25         SRCLK = 1;
26         neg2 = neg2<<1;
27     }
28
29     for(i=0; i<8; i++)
30     {
31         SER = neg1>>7;
32         SRCLK = 0;
33         SRCLK = 1;
34         neg1 = neg1<<1;
35     }
36
37     for(i=0; i<8; i++)
38     {
39         SER = pos2>>7;
40         SRCLK = 0;
41         SRCLK = 1;
42         pos2 = pos2<<1;
43     }
44
45     for(i=0; i<8; i++)
46     {
47         SER = pos1>>7;
48         SRCLK = 0;
49         SRCLK = 1;
50         pos1 = pos1<<1;
51     }
52
53     RCLK = 0;
54     RCLK = 1;
55 }

View Code

　　使用函数，优化代码

 1 #include <REG51.H>
 2
 3
 4 void HC595SendBytes(unsigned char pos1, unsigned char pos2, unsigned char neg1, unsigned char neg2);
 5
 6 sbit SER         = P1^0;
 7 sbit RCLK     = P1^1;
 8 sbit SRCLK     = P1^2;
 9
10 void main(void)
11 {
12     HC595SendBytes(0xff, 0xff, 0x00, 0x00);
13 }
14
15 void HC595SendBytes(unsigned char pos1, unsigned char pos2, unsigned char neg1, unsigned char neg2)
16 {
17     unsigned char i = 0;
18
19     RCLK = 0;
20     SRCLK = 0;
21
22     for(i=0; i<8; i++)
23     {
24         SER = neg2>>7;    // 获取最高位传递给SER
25         SRCLK = 0;
26         SRCLK = 1;
27         neg2 = neg2<<1;
28     }
29
30     for(i=0; i<8; i++)
31     {
32         SER = neg1>>7;
33         SRCLK = 0;
34         SRCLK = 1;
35         neg1 = neg1<<1;
36     }
37
38     for(i=0; i<8; i++)
39     {
40         SER = pos2>>7;
41         SRCLK = 0;
42         SRCLK = 1;
43         pos2 = pos2<<1;
44     }
45
46     for(i=0; i<8; i++)
47     {
48         SER = pos1>>7;
49         SRCLK = 0;
50         SRCLK = 1;
51         pos1 = pos1<<1;
52     }
53
54     RCLK = 0;
55     RCLK = 1;
56 }

View Code

4.习题：

1. 点亮最上面1排；函数代码如上

1 void main(void)
2 {
3     HC595SendBytes(0x01, 0x00, 0x00, 0x00);
4 }

2. 点亮最下面1排

1 void main(void)
2 {
3     HC595SendBytes(0x00, 0x80, 0x00, 0x00);
4 }

3. 最左边1列

1 void main(void)
2 {
3     HC595SendBytes(0xff, 0xff, 0xfe, 0xff);
4 }

4. 点亮左上角1颗

1 void main(void)
2 {
3     HC595SendBytes(0x01, 0x00, 0xfe, 0xff);
4 }

5. 点亮角上4颗

1 void main(void)
2 {
3     HC595SendBytes(0x01, 0x80, 0xfe, 0x7f);
4 }
