【Flink1.14实战】Docker环境 Kafka SQL 连接器

Apache Kafka SQL 连接器

Kafka 连接器提供从 Kafka topic 中消费和写入数据的能力。

依赖

https://repo.maven.apache.org/maven2/org/apache/flink/flink-sql-connector-kafka_2.11/1.14.4/flink-sql-connector-kafka_2.11-1.14.4.jar

如何创建 Kafka 表

以下示例展示了如何创建 Kafka 表：

CREATE TABLE KafkaTable (
  `user_id` BIGINT,
  `item_id` BIGINT,
  `behavior` STRING,
  `ts` TIMESTAMP(3) METADATA FROM 'timestamp'
) WITH (
  'connector' = 'kafka',
  'topic' = 'user_behavior',
  'properties.bootstrap.servers' = 'localhost:9092',
  'properties.group.id' = 'testGroup',
  'scan.startup.mode' = 'earliest-offset',
  'format' = 'csv'
)

实战

• kafka --> flink --> es -->kibana

数据采集存储到kafka，通过flink消费kafka数据，实时计算，结果存储到es，最后通过kibana展现。

基于docker-compose。

1、编辑 docker-compose.yml

version: "3"
services:
  zookeeper:
    image: wurstmeister/zookeeper:3.4.6
  kafka:
    image: wurstmeister/kafka:2.12-2.2.1
    environment:
      KAFKA_ADVERTISED_LISTENERS: INSIDE://:9092,OUTSIDE://:9094
      KAFKA_LISTENERS: INSIDE://:9092,OUTSIDE://:9094
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: INSIDE:PLAINTEXT,OUTSIDE:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: INSIDE
      KAFKA_CREATE_TOPICS: "input:2:1, output:2:1"
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
    ports:
      - 9092:9092
      - 9094:9094
    depends_on:
      - zookeeper
  jobmanager:
    image: flink:1.14.4-scala_2.11
    ports:
      - "8081:8081"
    command: jobmanager
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager

  taskmanager:
    image: flink:1.14.4-scala_2.11
    depends_on:
      - jobmanager
    command: taskmanager
    scale: 1
    environment:
      - |
        FLINK_PROPERTIES=
        jobmanager.rpc.address: jobmanager
        taskmanager.numberOfTaskSlots: 4

2、启动服务

$ docker-compose up -d

# 下载依赖包
$ wget https://repo.maven.apache.org/maven2/org/apache/flink/flink-sql-connector-kafka_2.11/1.14.4/flink-sql-connector-kafka_2.11-1.14.4.jar
$ docker cp flink-sql-connector-kafka_2.11-1.14.4.jar  kafka_taskmanager_1:/opt/flink/lib
$ docker cp flink-sql-connector-kafka_2.11-1.14.4.jar  kafka_jobmanager_1:/opt/flink/lib
# 查看lib
docker exec -it kafka_taskmanager_1 /bin/bash
# 重启
$ docker-compose restart

3、kafka数据

电商用户行为分析共涉及3个表，商品类目信息表、商品类目信息表、用户行为信息表，其中用户行为信息表共5个列：用户ID、商品ID、商品类目ID、行为类型、时间戳；

$ docker exec -it kafka_kafka_1 /bin/bash
$ cd /opt/kafka
$ ./bin/kafka-console-producer.sh --broker-list localhost:9092 --topic input
1,2268318,2520377,pv,1671544070
1,2333346,2520771,pv,1671561733

数据格式为csv，以逗号分隔

4、Flink SQL建表读取kafka数据

$ docker-compose exec jobmanager ./bin/sql-client.sh

CREATE TABLE user_behavior (
    user_id BIGINT,
    item_id BIGINT,
    category_id BIGINT,
    behavior STRING,
	app_time BIGINT,
	ts AS TO_TIMESTAMP(FROM_UNIXTIME(app_time, 'yyyy-MM-dd HH:mm:ss')),
    proctime AS PROCTIME(),
    WATERMARK FOR ts AS ts - INTERVAL '5' SECOND
) WITH (
    'connector' = 'kafka',  --使用kafka connector
    'topic' = 'input',  --kafka topic
    'scan.startup.mode' = 'earliest-offset',
    'properties.bootstrap.servers'='kafka:9092',
	'properties.group.id' = 'test-group',
    'format' = 'csv',
	'csv.field-delimiter'=','
);

• WATERMARK 定义处理混乱次序的事件时间属性，每5秒触发一次window
• PROCTIME 是内置函数，产生一个虚拟的Processing Time列，偶尔会用到
• WITH 里定义kafka连接信息和属性
• 由于事件时间格式为bigint,在sql中将其转为timestamp

5、分析场景

场景1：分析每10分钟累计在线用户数

最终的分析结果数据会写入print

CREATE TABLE users_v (
    date_str STRING,
    time_str STRING,
    uv BIGINT,
    PRIMARY KEY (date_str, time_str) NOT ENFORCED
) WITH (
     'connector' = 'print'
);

分析每10分钟在线用户数只需要知道日期(date_str)、时间(time_str)、数量(uv)即可；上面已经定义了消费kafka数据的表 user_behavior，现在查询该表，并将数据写入es；

INSERT INTO
users_v
SELECT
date_str, MAX(time_str), COUNT(DISTINCT user_id) as uv
FROM (
  SELECT
    DATE_FORMAT(ts, 'yyyy-MM-dd') as date_str,
    SUBSTR(DATE_FORMAT(ts, 'HH:mm'),1,4) || '0' as time_str,
    user_id
  FROM user_behavior)
GROUP BY
date_str;

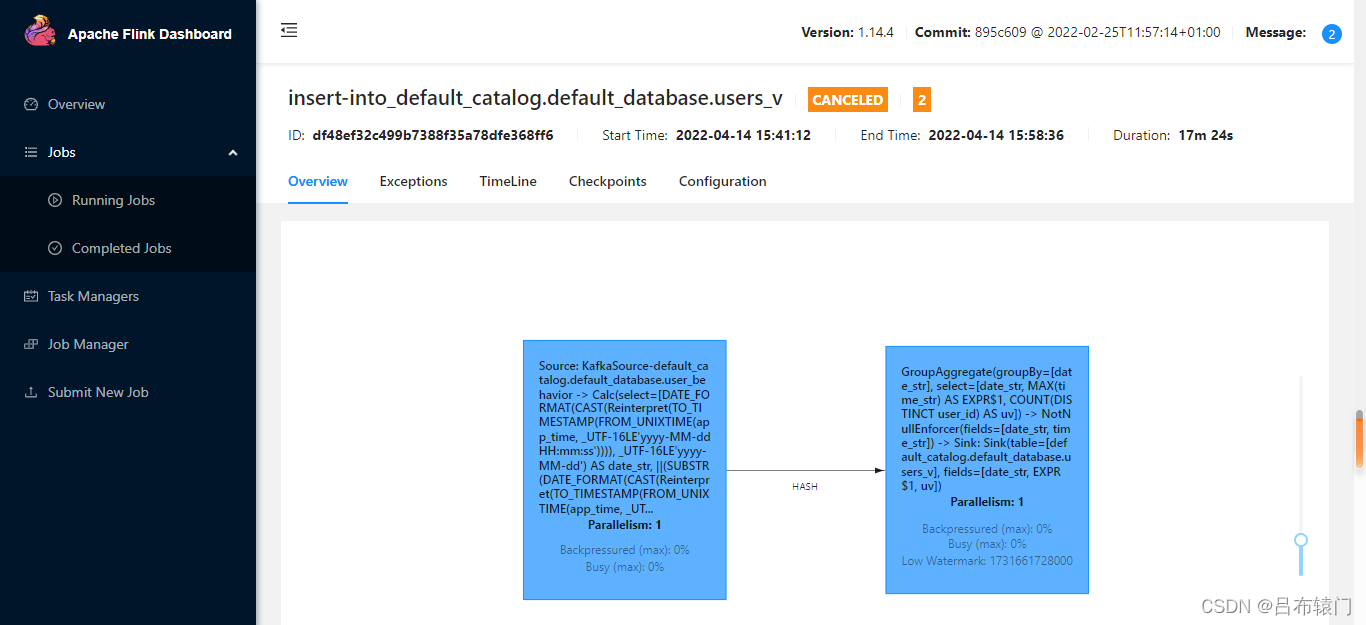

由于分析跨度为每10分钟，在sql 内层查询中使用 SUBSTR 截取事件小时和分钟字符，拼凑成每10分钟的数据，比如: 12:10，12:20。提交sql后，flink会将sql以流作业方式按照设定的WATERMARK和窗口提交到集群运行；

$ docker-compose logs -f taskmanager
taskmanager_1  | +I[2017-11-24, 17:20, 1]
