CLoud云的使用

CLoud云真实网络的使用

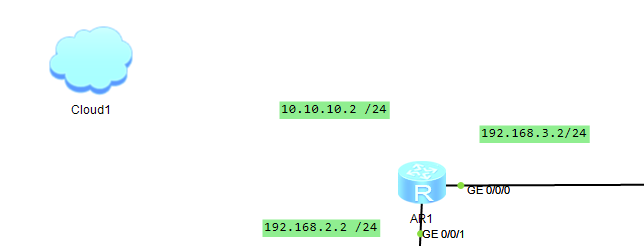

实验拓扑



配置云

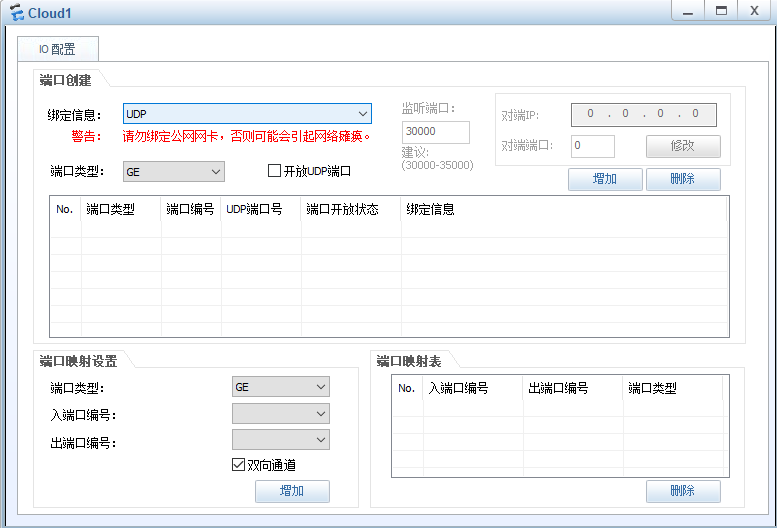

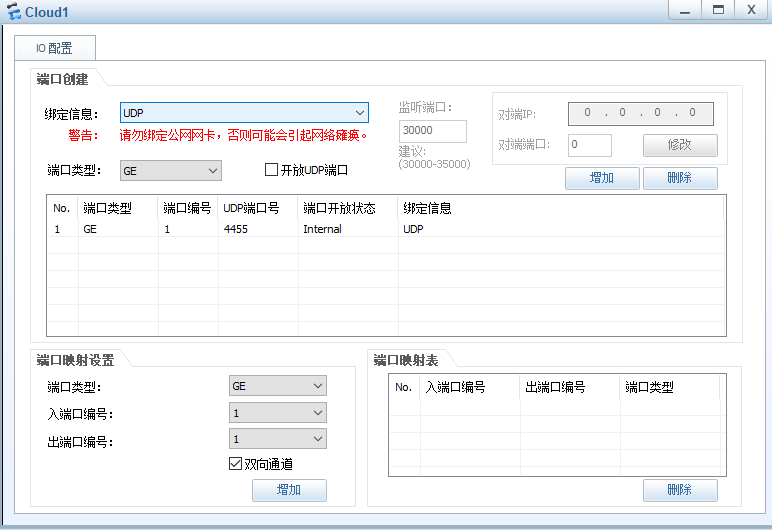

默认添加一个端口

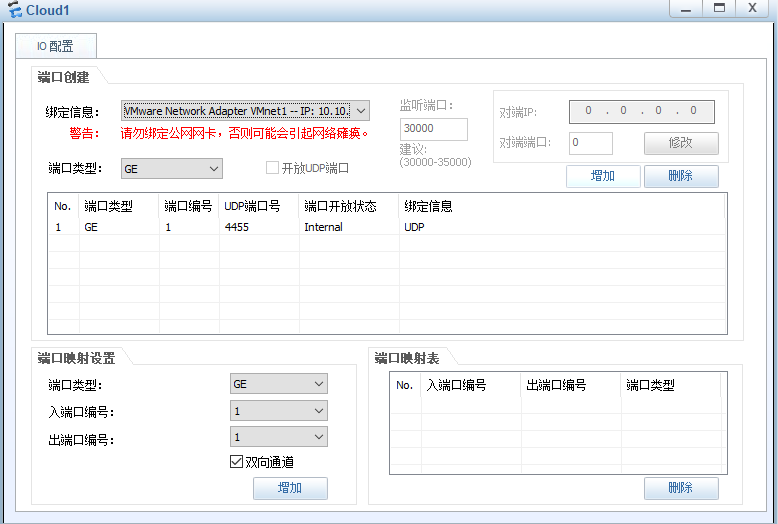

添加一个绑定网卡的

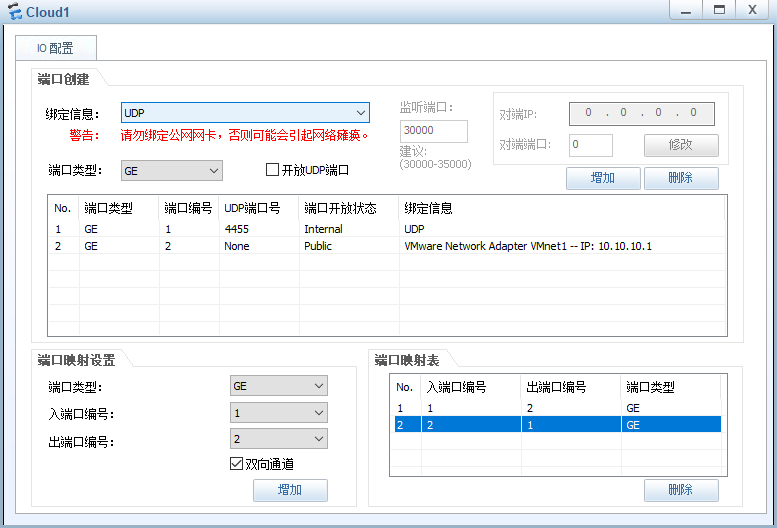

添加端口映射

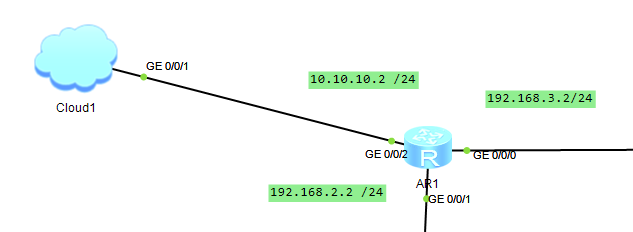

连接配置线



配置路由器

• R1 路由器配置

<R1>system-view
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip address 10.10.10.2 24
[R1-GigabitEthernet0/0/2]quit
[R1]ip route-static 0.0.0.0 0 10.10.10.1
[R1]ospf 1
[R1-ospf-1]default-route-advertise always cost 200 type 1

• 查看 R1 路由器配置通过在 R1 路由器中查看路由表，可以发现一条默认路由指向物理机虚拟网卡。

[Huawei]display  ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 18       Routes : 18

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        0.0.0.0/0   Static  60   0          RD   10.10.10.1      GigabitEthernet
0/0/2
       10.0.5.0/24  OSPF    10   3           D   192.168.3.1     GigabitEthernet
0/0/0
     10.10.10.0/24  Direct  0    0           D   10.10.10.2      GigabitEthernet
0/0/2
     10.10.10.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
   10.10.10.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/2
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
     172.16.3.0/24  OSPF    10   2           D   192.168.2.1     GigabitEthernet
0/0/1
     172.16.9.0/24  OSPF    10   2           D   192.168.2.1     GigabitEthernet
0/0/1
    192.168.2.0/24  Direct  0    0           D   192.168.2.2     GigabitEthernet
0/0/1
    192.168.2.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
  192.168.2.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
    192.168.3.0/24  Direct  0    0           D   192.168.3.2     GigabitEthernet
0/0/0
    192.168.3.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
  192.168.3.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
    192.168.4.0/24  OSPF    10   2           D   192.168.3.1     GigabitEthernet
0/0/0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0



做好telnet

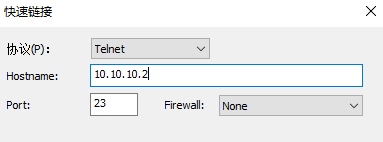

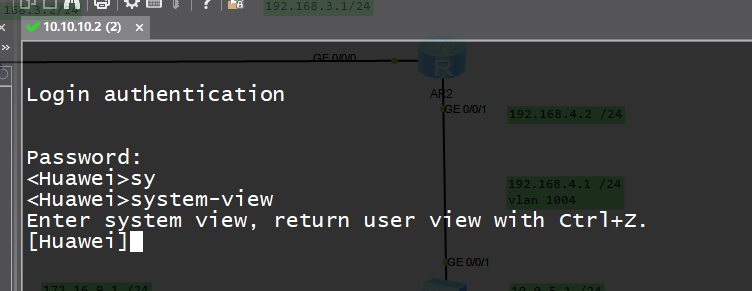

由于接入了云，所以该拓扑图是可以直接访问虚拟网卡，使用CRT连接我们的R1路由器

[Huawei]telnet server enable
Error: TELNET server has been enabled
[Huawei]user-interface vty 0 4
[Huawei-ui-vty0-4]authentication-mode password
Please configure the login password (maximum length 16):123321
[Huawei-ui-vty0-4]user privilege level 3
