IOTOS物联中台JT808驱动开发实例

​

本文章为原创，转载请注明出处！

登录平台：IOTOS®爱投斯物联中台

账号：iotos_test    密码：iotos123

代码地址：IOTOSDK-Python: IOTOS Python版本SDK，自带原生接口和采集引擎 (gitee.com)

目录

前言

驱动目的

适用范围

使用示例

驱动代码

驱动解析

---

• 前言

JT 808泛指JT/T808协议，是指交通部制定的运输行业通信标准，全称《交通运输行业标准-道路运输车辆卫星定位系统终端通信协议及数据格式》可至交通部下载协议

JT808规定了道路运输车辆卫星定位系统车载终端与监管/监控平台之间的通信协议与数据格式，包括协议基础、通信连接、消息处理、协议分类与要求及数据格式，适用于道路运输车辆卫星定位系统车载终端和监管/监控平台之间的通信

• 驱动目的

        处理终端转发过来的数据并且上传至中台

• 适用范围

        符合JT808协议规范的车辆终端

• 使用示例

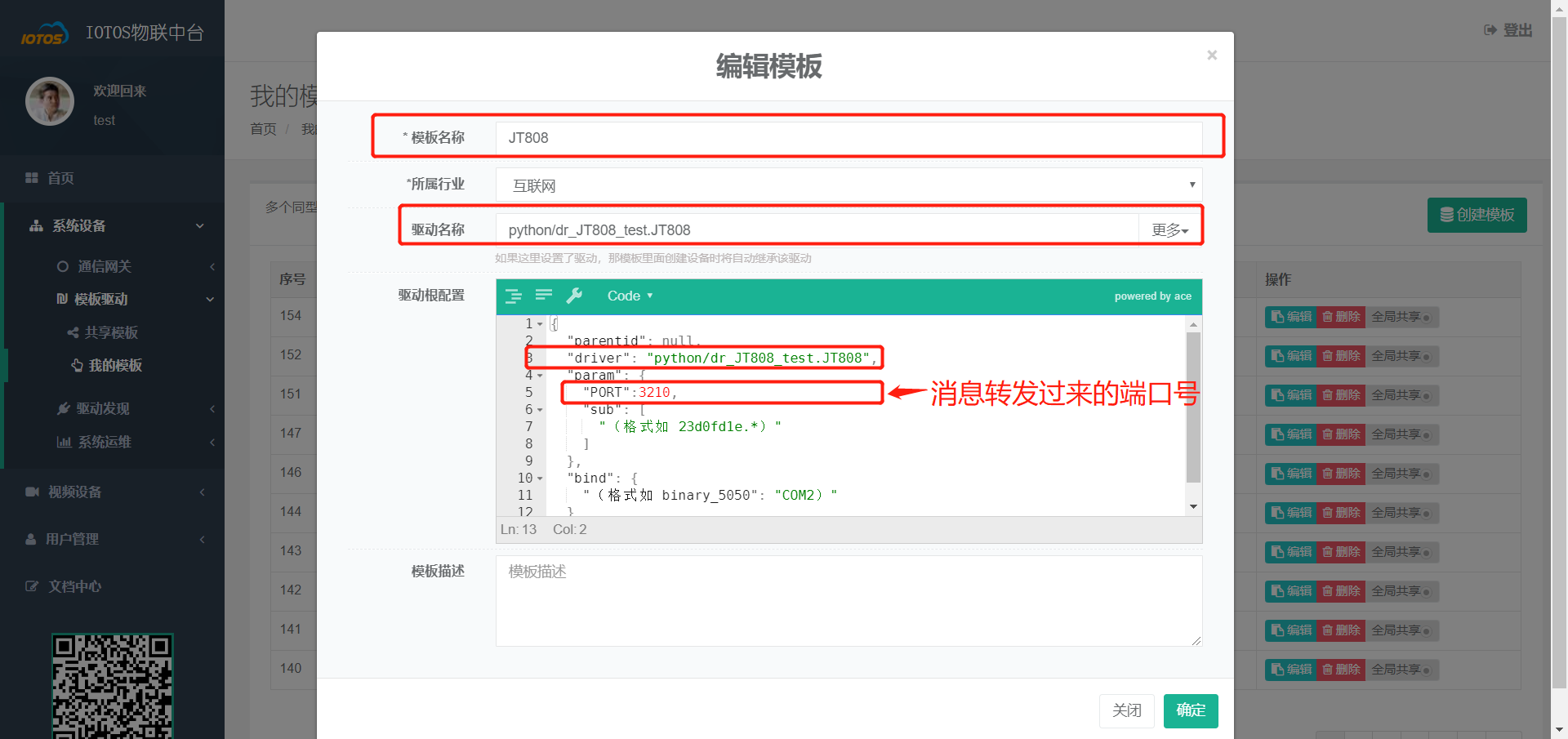

• 进入爱投斯中台,账号为iotos_test，密码为iotos123，在【创建模板】->【我的模板】，创建模板，填写相关信息，配置需要的参数



​

• 创建网关

​

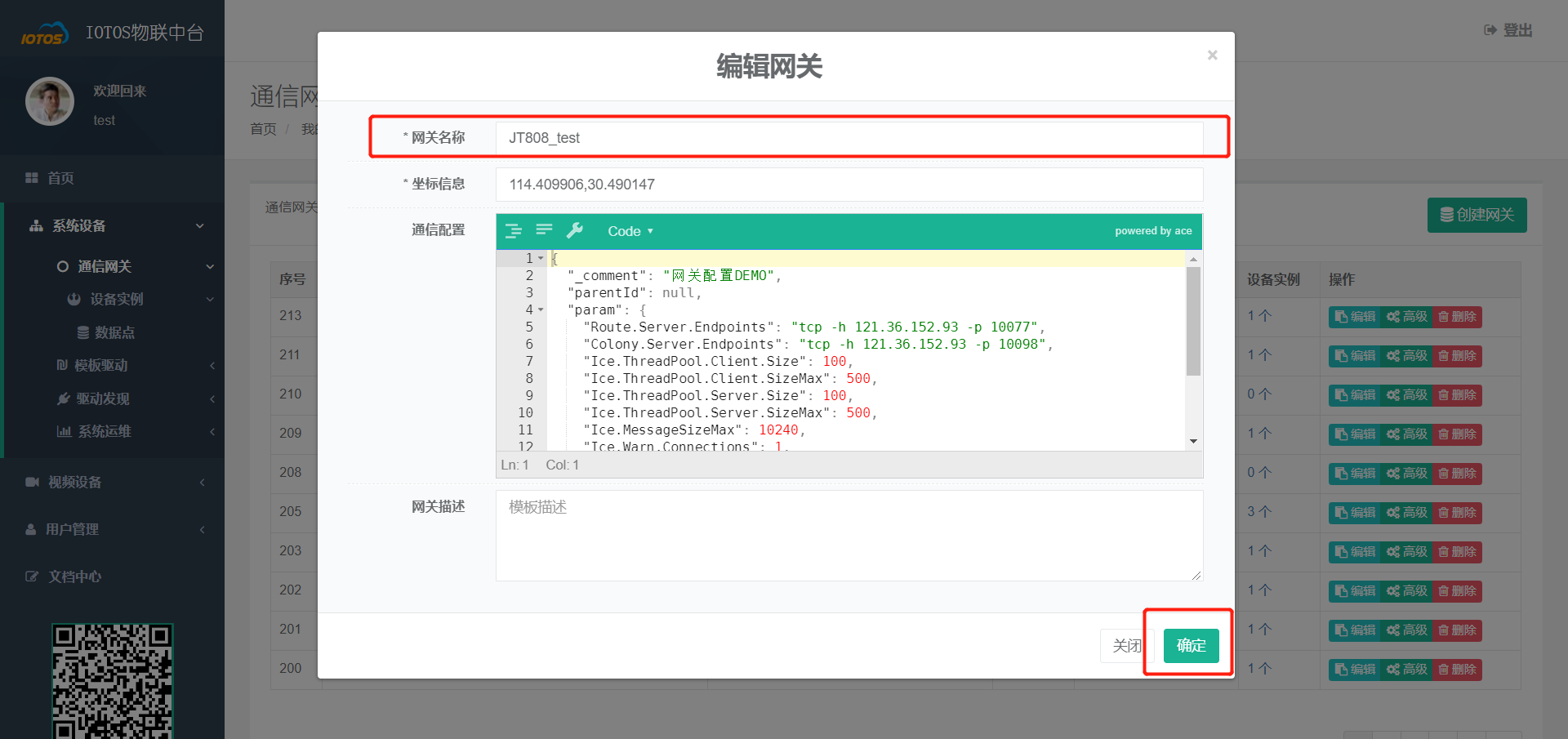

• 填好网关名称后点击确认

​

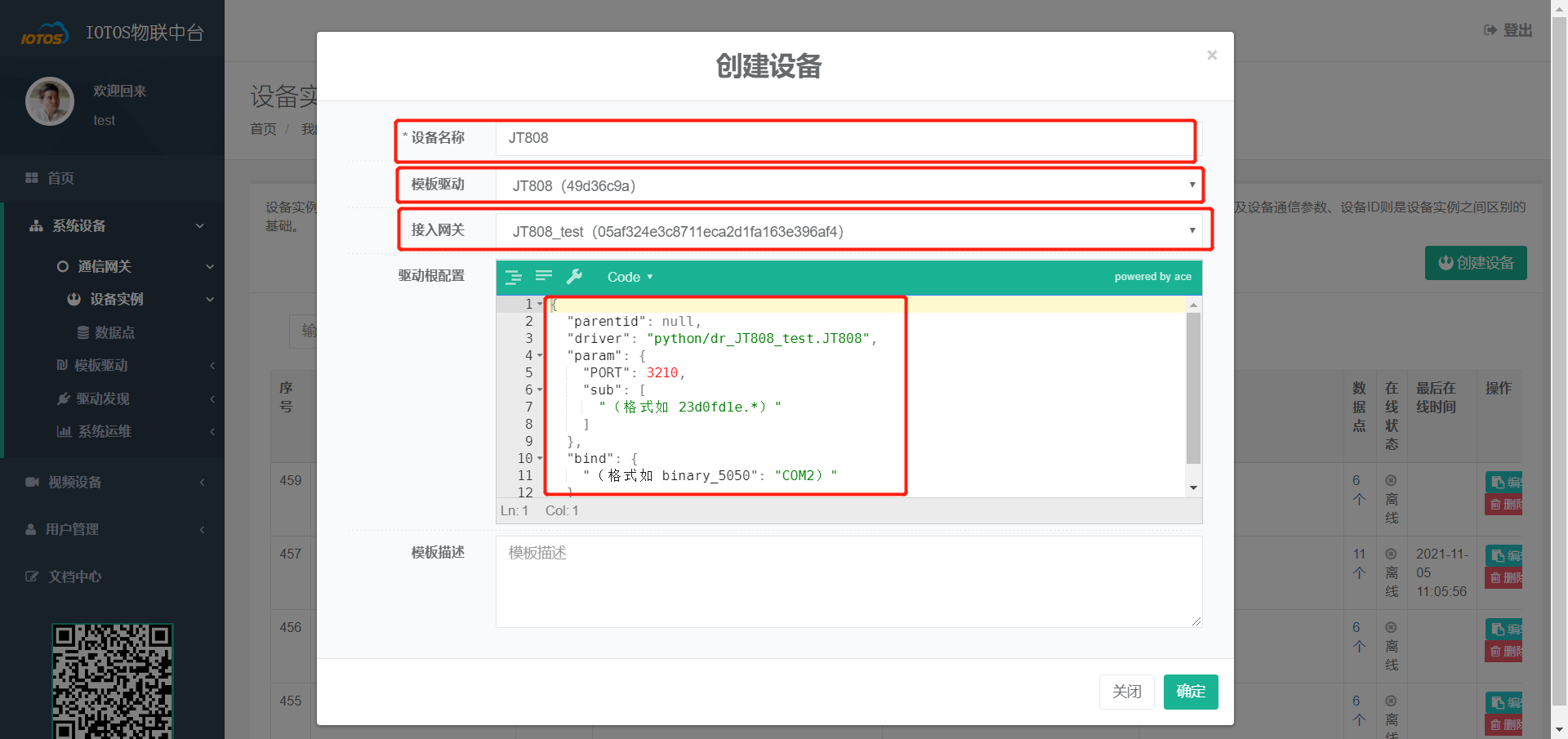

•  创建设备示例点击【系统设备】 -> 【通信网关】 -> 【设备实例】->【创建设备】

​



•  填写【设备名称】、选择刚刚创建的【模板驱动】和【通信网关】。

​

• 创建数据点（有点表可以之间导入忽略创建数据点这几步），点击【系统设备】 -> 【通信网关】 -> 【设备实例】 -> 【数据点】，并在【设备实例】下拉列表选择刚刚创建的设备实例

​



•  点击右边的创建数据点，填写名称

​

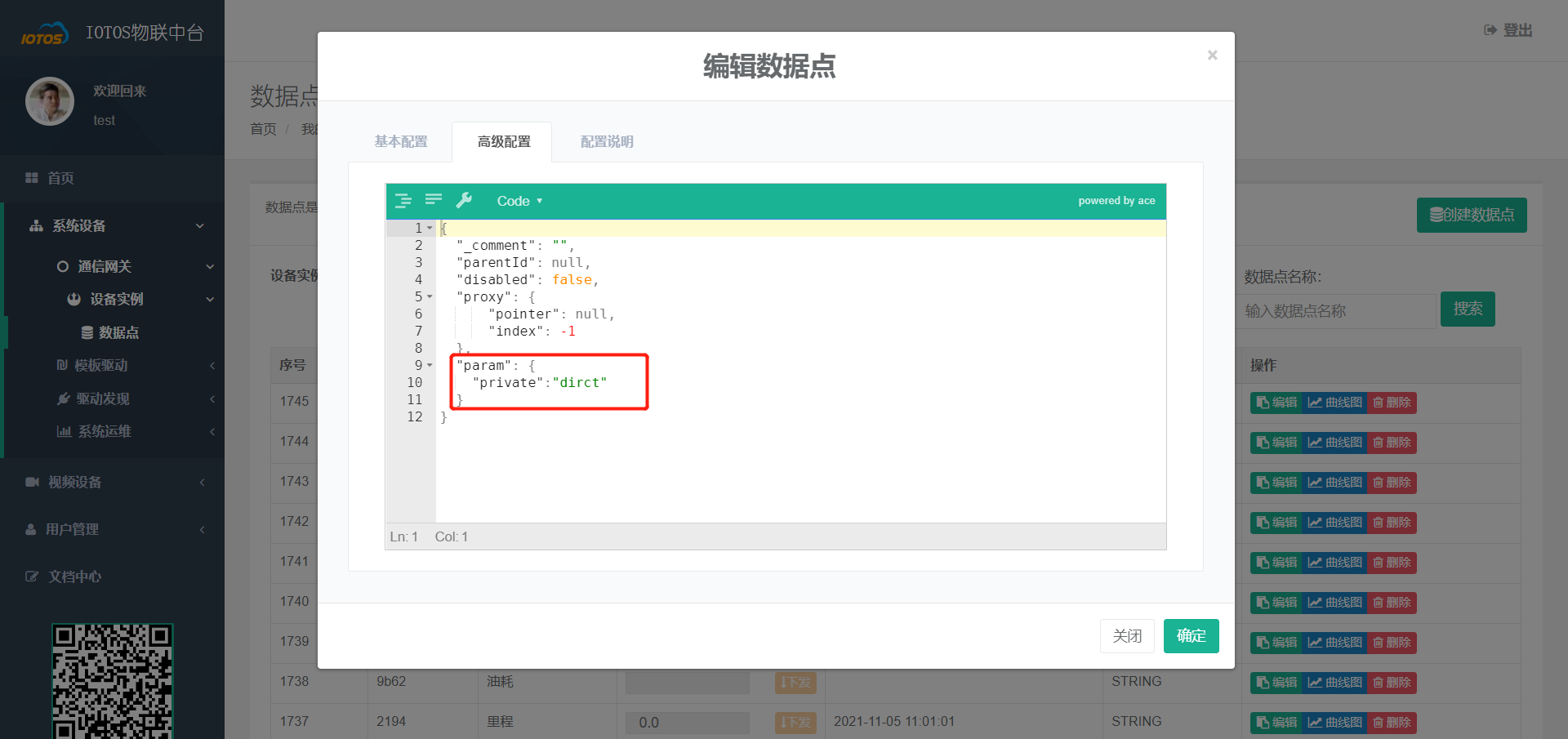

• 并在高级配置中配置数据点的相关标志，需要拿多少数据就可以配置多少数据，目前测试的数据：方向、高度、状态、报警、纬度、经度、速度、油耗、里程、消息接收时间、终端手机号（名称可以修改），又要要可以增加，需要在数据点里面的param中配置相应的"private"属性： ，例如：





​

各数据点的配置如下：

数据点名称	private参数
方向	dirct
高度	hight
状态	status
报警	alarm
纬度	lng
经度	lat
速度	speed
油耗	oil
里程	mileage
消息接收时间	serv_receive
终端手机号	device_id

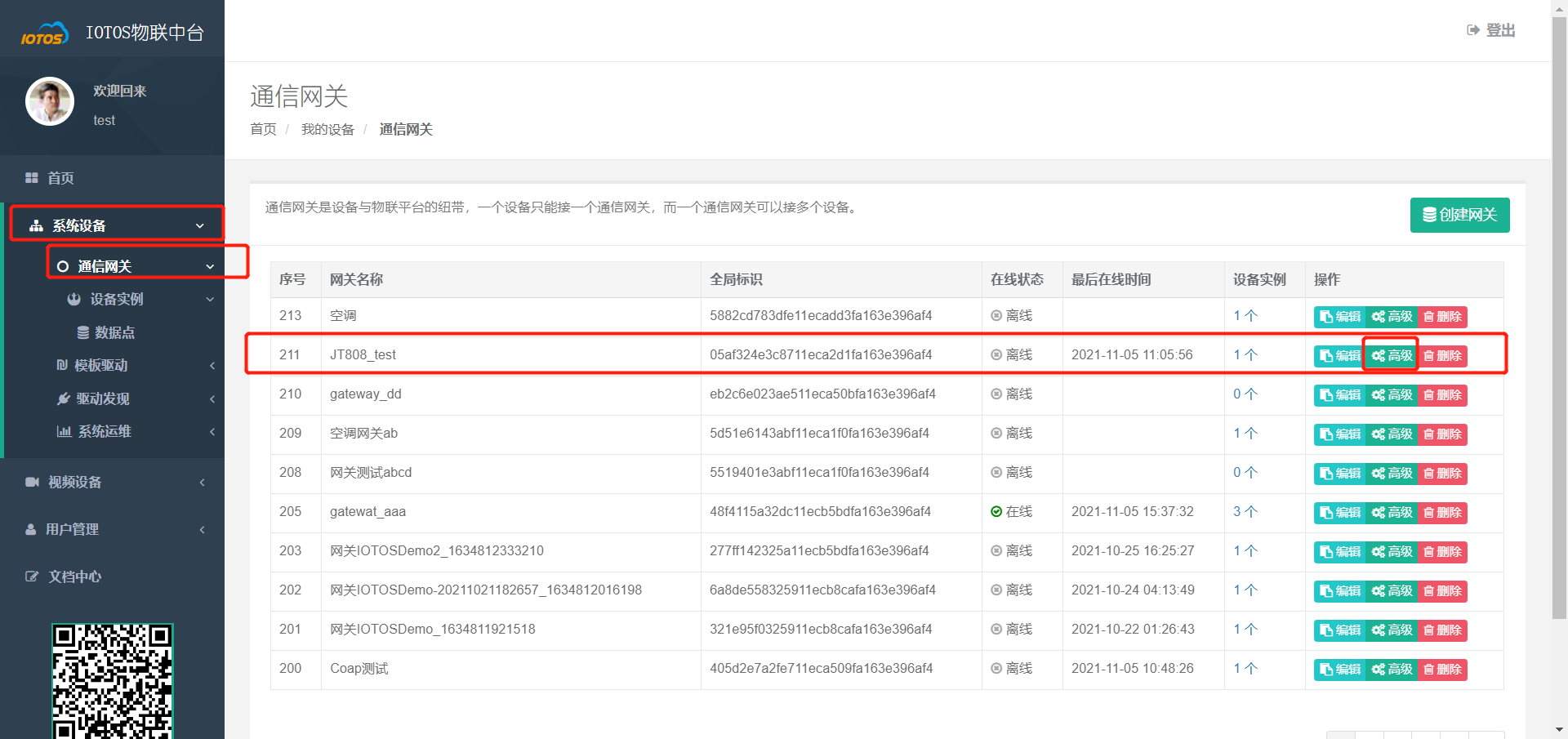

•  在【系统设备】 -> 【通信网关】中找到刚才创建的网关，点击【高级】

 ​



•  开启云网关，密码为账号密码

​

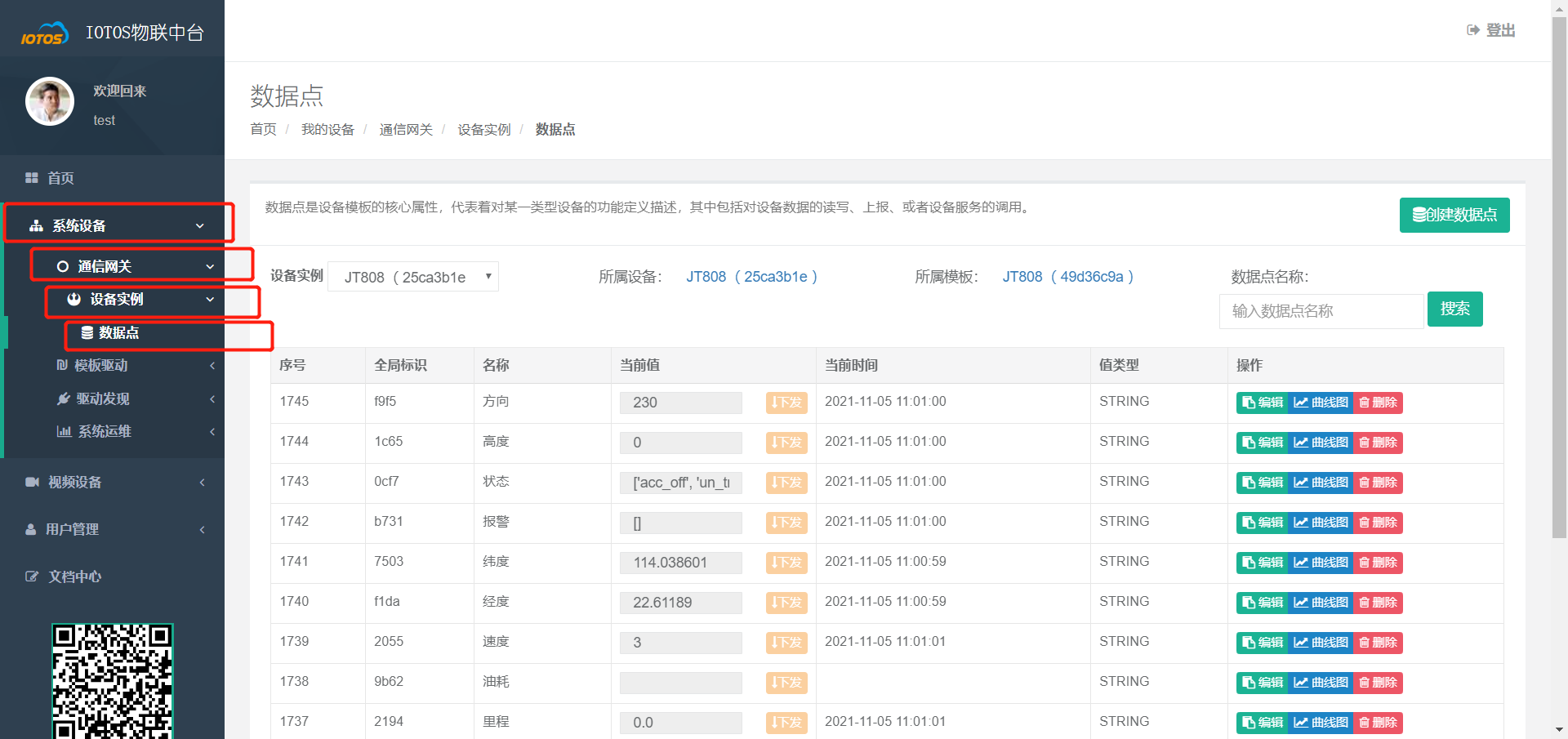

•  点击 【系统设备】 -> 【通信网关】 -> 【设备实例】->【数据点】，选择刚才创建的设备实例

 ​

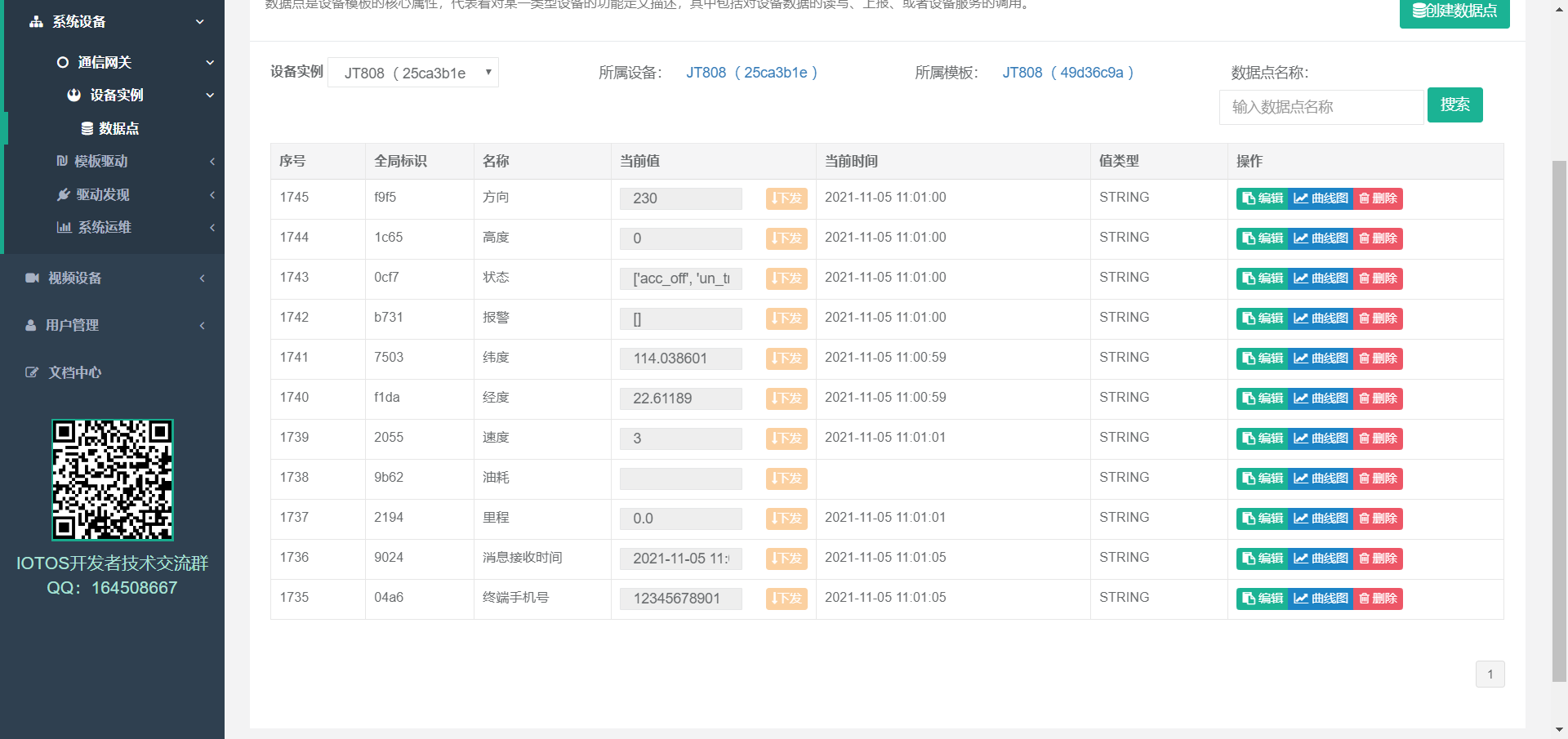

• 即可查看数据已经上报成功

​

• 驱动代码

import sys
sys.path.append("..")
from driver import *
import time
import threading


#coding:utf-8
"""
JT808泛指JT/T808协议，是指交通部制定的运输行业通信标准，全称《交通运输行业标准 - 道路运输车辆卫星定位系统终端通信协议及数据格式》
"""

# JT808设备消息监听、处理

import asyncore
import re
import datetime
import binascii

global data_last,jt808_port
data_last=''
jt808_port=''
def BCC_Check(data):
	data = data.replace(' ', '')
	n = int(len(data) / 2)
	xor = 0
	for r in range(n):
		xor ^= int(data[2 * r:2 * r + 2], 16)
	xor = hex(xor)

	if len(xor) != 4:
		xor = '0' + xor[2:]
	else:
		# 返回16进制字符串
		xor = xor[2:]
	return xor


def loca_report(rule, data):
	loca_data = {}
	rule = rule + r'(?P<alarm_data>\w{8})(?P<status>\w{8})(?P<lat>\w{8})(?P<lng>\w{8})(?P<hight>\w{4})(?P<speed>\w{4})(?P<dirct>\w{4})(?P<dev_upload>\w{12})'
	# 获取剩余的为解析的
	attch_data = data[len(re.search(rule, data).group()):]
	data = re.search(rule, data).groupdict()

	alarm_data = data['alarm_data']
	# print(alarm_data)
	alarm_happen = ''
	for x in range(len(alarm_data)):
		alarm_happen += '{:04b}'.format(int(alarm_data[x], 16))
		# print("alarm_happen   " + alarm_happen)

	# 解析报警信息
	all_alarm = []
	if alarm_happen[-1] == '1':
		all_alarm.append('sos_alarm')  # 紧急报警

	if alarm_happen[-2] == '1':
		all_alarm.append('speed_alarm')  # 超速

	if alarm_happen[-3] == '1':
		all_alarm.append('fatigue_drive')  # 疲劳驾驶

	if alarm_happen[-6] == '1':
		all_alarm.append('antenna_alarm')  # 天线故障

	if alarm_happen[-8] == '1':
		all_alarm.append('low_power')  # 低电压报警

	if alarm_happen[-9] == '1':
		all_alarm.append('power_cut')  # 断电报警

	if alarm_happen[-18] == '1':
		all_alarm.append('remove_alarm')  # 拆除报警

	if alarm_happen[-29] == '1':
		all_alarm.append('illegal_move_alarm')  # 非法位移报警
	# print(all_alarm)

	# 解析状态
	status = data['status']
	print("status  " + status)
	status_happen = ''
	for x in range(len(status)):
		status_happen += '{:04b}'.format(int(status[x], 16))
		# print("status_happen  " + status_happen)
	all_status = []
	if status_happen[-1] == '1':
		all_status.append('acc_on')
	else:
		all_status.append('acc_off')

	if status_happen[-2] == '1':
		all_status.append('track')
	else:
		all_status.append('un_track')

	if status_happen[-11] == '0':
		all_status.append('oil_normal')
	else:
		all_status.append('oil_cut')

	if status_happen[-12] == '0':
		all_status.append('ele_normal')
	else:
		all_status.append('ele_cut')

	# 经度纬度、高度、速度、方向的数据转换
	lat = int(data['lat'], 16) / pow(10, 6)
	lng = int(data['lng'], 16) / pow(10, 6)
	hight = str(int(data['hight'], 16))
	speed = str(int((int(data['speed'], 16) / 10)))
	dirct = str(int(data['dirct'], 16))
	dev_upload = data['dev_upload']
	dev_upload = '20%s-%s-%s %s:%s:%s' % (
	dev_upload[0:2], dev_upload[2:4], dev_upload[4:6], dev_upload[6:8], dev_upload[8:10], dev_upload[10:12])
	# print(data)
	if attch_data:

		# print('attch_data',attch_data)

		def handle_atth(d):
			attch_rule = r'(?P<msg_id>\w{2})(?P<msg_len>\w{2})'
			# print('d==>',d)
			msg_head = d[0:4]

			res = re.search(attch_rule, msg_head).groupdict()
			# print('msg_head==>',res)
			msg_id = res['msg_id']  # 附加消息id
			msg_len = int(res['msg_len'], 16) * 2  # 取附加消息长度
			value = d[4:4 + msg_len]  # 取附加消息
			# print('value==>',value)
			if msg_id == '01':
				value = int(value, 16) / 10
				loca_data['mileage'] = value  # 里程
			elif msg_id == '02':
				value = int(value, 16) / 10
				loca_data['oil'] = value  # 油耗
			elif msg_id == '03':
				value = int(value, 16) / 10
				loca_data['speed'] = value  # 速度
			elif msg_id == '30':
				value = int(value, 16)
				loca_data['rssi'] = value  # 通讯信号强度
			elif msg_id == '31':
				value = int(value, 16)
				loca_data['gnss_num'] = value  # 定位卫星颗数
			else:
				return

			handle_len = 4 + msg_len  # 取后续附加消息（厂家自定）
			next_data = d[handle_len:]
			if len(next_data) > 0:
				handle_atth(next_data)  # 迭代取出

		handle_atth(attch_data)

	loca_data.update(lat=lat, lng=lng, alarm=str(all_alarm), status=str(all_status), hight=hight, speed=speed,
					 dirct=dirct, dev_upload=dev_upload)
	return loca_data


def jt808_resopnes(responekind, mesg_head, mesg_result):
	response = '0'
	auth = '313233343536'
	mesg_id = mesg_head['mesg_id']
	phone_num = mesg_head['phone_num']
	mesg_num = mesg_head['mesg_num']

	if responekind == '8001':
		mesg_perp = '%04x' % int(len(mesg_num + mesg_id) / 2 + 1)
		response_body = responekind + mesg_perp + phone_num + '0000' + mesg_num + mesg_id + mesg_result
	elif responekind == '8100':
		mesg_perp = '%04x' % int(len(mesg_num + auth) / 2 + 1)
		response_body = responekind + mesg_perp + phone_num + '0000' + mesg_num + mesg_result + auth
	response_check = BCC_Check(response_body)
	response_body = response_body + response_check
	response_body = response_body.replace('7d', '7d01')
	response = '7e' + response_body.replace('7e', '7d02') + '7e'
	response = binascii.a2b_hex(response)
	return response


def jt808_analysis(data, serv_receive, device_id='0'):
	response = b'0'
	all_data = {}
	all_data['device_id'] = device_id
	all_data['save_kind'] = 'no'
	all_data['serv_receive'] = serv_receive
	# ascii转16进制字符  ??????????????
	data = binascii.hexlify(data).decode()
	# print(data)  # 7e02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d2d7e

	# data='7e010000210147852369000046000B04575331303030533130303030303031323334353637327ca4425039344a35ef7e'
	# 去掉头尾标识符，进行转译处理(转义还原"7d02"转换为"7e"后"7d01"转换为7d)
	data = data[2:-2].replace('7d02', '7e')
	data = data.replace('7d01', '7d')
	# print(data)  # 02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d2d
	# 校验
	if BCC_Check(data[0:-2]) == data[-2:]:
		print('check-ok!')
	else:
		print('chec—failed')
		all_data['response'] = response

		return all_data
	# 去掉校验码，获取需要解析的数据字段
	data = data[0:-2]
	print(data)  # 02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d
	# 数据头处理，命令id，是否包含分包处理，电话号码，数据流水号
	rule = r'(?P<mesg_id>\w{4})(?P<mesg_explain>\w{4})(?P<phone_num>\w{12})(?P<mesg_num>\w{4})'
	head_len = len(re.search(rule, data).group())
	result = re.search(rule, data).groupdict()
	# print(result)
	mesg_id = result['mesg_id']  # 消息头（消息ID）
	print(mesg_id)
	phone_num = result['phone_num']  # 消息头（终端手机号）
	print(phone_num)
	mesg_num = result['mesg_num']  # 消息头（消息流水号）
	print(mesg_num)
	all_data['device_id'] = str(int(phone_num))

	response = jt808_resopnes('8001', result, '00')
	# 解析消息体属性
	mesg_explain = ''
	for x in range(len(result['mesg_explain'])):
		mesg_explain += '{:04b}'.format(int(result['mesg_explain'][x], 16))
		print(mesg_explain)

	mesg_split = mesg_explain[2]
	mesg_encryption = mesg_explain[5]
	# print(mesg_explain)
	if mesg_split == '1':
		rule = rule + r'(?P<mesg_total_num>\w{4})' + r'(?P<mesg_order_num>\w{2})'
	if mesg_encryption == '1':
		# 消息体RSA解密转码
		print('RSA_algorithm_encryption')

	if mesg_id == '0001':  # 终端回应平台下发指令
		rule = rule + r'(?P<answer_num>\w{4})(?P<answer_id>\w{4})(?P<command_result>\w{2})'
		data = re.search(rule, data).groupdict()
	# print('0001：终端回应平台下发指令',data)

	# 设备登录
	elif mesg_id == '0100':
		# if len(data)-head_len==76:
		rule = rule + r'(?P<Provincial_ID>\w{4})(?P<City_County_ID>\w{4})(?P<Manufacturer_ID>\w{10})(?P<Terminal_model>\w{16})(?P<Terminal_ID>\w{14})(?P<car_num_color>\w{2})(?P<car_identification>\w{2})'
		data = re.search(rule, data).groupdict()
		all_data.update(data)
		response = jt808_resopnes('8100', result, '00')
		all_data['save_kind'] = 'yes'

	# 主要的位置上报信息
	elif mesg_id == '0200':
		print(data)
		print(rule)
		loca_data = loca_report(rule, data)
		print(loca_data)
		all_data.update(loca_data)
		all_data['save_kind'] = 'yes'

	elif mesg_id == '0201':
		data_head = data[0:head_len]
		data_body = data[head_len:]
		# 把消息体的前4位，应答流水号去掉，重新组成数据进行处理
		handle_data = data_head + data_body[4:]
		# 处理0200位置信息
		loca_data = loca_report(rule, data)
		all_data.update(loca_data)
		all_data['save_kind'] = 'yes'
		print('0201：终端查询位置信息回复')

	elif mesg_id == '0704':
		print('0704：多条数据上传')
		rule = rule + r'(?P<data_num>\w{4})(?P<data_type>\w{2})(?P<detail>\w*)'
		res = re.search(rule, data).groupdict()
		data_num = int(res['data_num'], 16)
		type_dict = {'00': '正常', '01': '补报'}
		data_type = type_dict[res['data_type']]
		detail = res['detail']
		multi_rule = rule = r'(?P<mesg_explain>\w{4})(?P<phone_num>\w{12})(?P<mesg_num>\w{4})'
		all_loca = []
		for x in range(data_num):
			data_len = int(detail[0:4], 16) * 2
			handle_len = 4 + data_len
			data_body = detail[4:handle_len]
			data_res = loca_report('', data_body)
			detail = detail[handle_len:]
			lng = data_res.get('lng')

			if lng not in [0.0, '', '0', None]:
				data_res['device_id'] = all_data['device_id']
				data_res['serv_receive'] = serv_receive
				all_loca.append(data_res)

		all_data['save_kind'] = 'yes'
		all_data['all_loca'] = all_loca
	all_data['response'] = response
	# print('all_data',all_data)
	return all_data



class Jt808Handler(asyncore.dispatcher_with_send):
	res_data=''
	buffer_data={}
	# 预处理，丢弃不完整的数据包
	def pre_handle(self,datas):
		data_handled=[]
		print("datas"+str(datas))
		#判断是否为有效数据
		if datas.startswith(b'~') and datas.endswith(b'~'):
			datas=datas.split(b'~')

			datas.pop()  #去掉列表最后一个元素
			print(datas)
			for data in datas:
				if data!=b'':
					data=b'~'+data+b'~'
					data_handled.append(data)
			# print(data_handled) #处理后的data_handle变成了列表形式
			# if data_handled[0]==b'~\x02\x00\x00"\x01A\x19P\x10\x01\x059\x00\x00\x00\x00\x00\x00\x00\x03\x02\t24\x06\xb4q\xd0\x00\x00\x00\x00\x01@\x19\t\x16\t\'\x07\x01\x04\x00\x00\x02]-~':
			# 	print(1111111111111111111111111111111111111111111111111)
			return data_handled
		else:
			return 'buffer_data'

	# 存储功能
	def handle_save(sefl,data):
		pass

	# 数据解析，存储，回复
	def handle_read(self):
		# print(self.buffer_data)
		serv_receive=datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')
		data = self.recv(8192)
		# print(data)
		data=self.pre_handle(data)
		if data!='buffer_data':
			# print(data)
			for d in data:
				print("d:"+str(d))
				dev_id=self.buffer_data.get(str(self.addr),'0')
				res=jt808_analysis(d,serv_receive,dev_id)
				print("res = "+str(res))
				if res.get('device_id')!=None:
					self.buffer_data[res['device_id']]=self
					self.buffer_data[str(self.addr)]=res['device_id']
				else:
					res['device_id']=self.buffer_data[str(self.addr)]

				save=res.pop('save_kind')
				response=res.pop('response')

				if save=='yes':
					self.handle_save(res)

				if response!=b'0':
					self.send(response)
			# print("111111111111"+str(res))
			global data_last
			data_last=res

	def writable(self):
		return self.res_data
# 设备链接监听
class Jt808Server(asyncore.dispatcher):

	def __init__(self, host, port):
		asyncore.dispatcher.__init__(self)
		self.create_socket()
		self.set_reuse_addr()
		self.bind((host, port))
		self.listen(5)

	def handle_accepted(self, sock, addr):
		print('Incoming connection from %s' % repr(addr))
		handler = Jt808Handler(sock)

		# print("handler = "+str(handler))

#服务器监听线程
class EchoServerThread(threading.Thread):
	def __init__(self):
		threading.Thread.__init__(self)

	def run(self):
		server = Jt808Server('', jt808_port)
		asyncore.loop()


class JT808(IOTOSDriverI):
	def InitComm(self,attrs):
		global jt808_port
		jt808_port=self.sysAttrs['config']['param']['PORT']
		self.debug(jt808_port)
		self.setPauseCollect(False)
		self.setCollectingOneCircle = True
		self.online(True)
		EchoServerThread().start()

	def Collecting(self, dataId):
		if data_last=='':
			return ()
		self.debug(1111111111111111111111111)
		cfgtmp = self.data2attrs[dataId]['config']
		if cfgtmp["param"] == "":
			return ()

		# 过滤采集点
		if 'disabled' in cfgtmp and cfgtmp['disabled'] == True:
			return ()
		else:
			self.debug(self.name(dataId))
		# 上传数据
		if 'private' in cfgtmp['param']:
			for data_key,data_value in data_last.items():
				if data_key==cfgtmp['param']['private']:
					self.debug(3333333333333333333333333333333)
					self.debug(data_value)
					self.setValue(self.name(dataId),data_value)
		return ()

• 驱动解析

•  运行环境为python3，先导入驱动和数据解析所需的包

from driver import *
import time
import threading

import asyncore
import re
import datetime
import binascii

• 定义数据解析的函数，包括校验检验函数、消息体数据解析函数、消息回应生成函数和消息包解析函数

global data_last,jt808_port
data_last=''
jt808_port=''
def BCC_Check(data):
	data = data.replace(' ', '')
	n = int(len(data) / 2)
	xor = 0
	for r in range(n):
		xor ^= int(data[2 * r:2 * r + 2], 16)
	xor = hex(xor)

	if len(xor) != 4:
		xor = '0' + xor[2:]
	else:
		# 返回16进制字符串
		xor = xor[2:]
	return xor


def loca_report(rule, data):
	loca_data = {}
	rule = rule + r'(?P<alarm_data>\w{8})(?P<status>\w{8})(?P<lat>\w{8})(?P<lng>\w{8})(?P<hight>\w{4})(?P<speed>\w{4})(?P<dirct>\w{4})(?P<dev_upload>\w{12})'
	# 获取剩余的为解析的
	attch_data = data[len(re.search(rule, data).group()):]
	data = re.search(rule, data).groupdict()

	# print(data)
	# print('attch_data',attch_data)  #01040000025d

	alarm_data = data['alarm_data']
	# print(alarm_data)
	alarm_happen = ''
	for x in range(len(alarm_data)):
		alarm_happen += '{:04b}'.format(int(alarm_data[x], 16))
		# print("alarm_happen   " + alarm_happen)

	# 解析报警信息
	all_alarm = []
	if alarm_happen[-1] == '1':
		all_alarm.append('sos_alarm')  # 紧急报警

	if alarm_happen[-2] == '1':
		all_alarm.append('speed_alarm')  # 超速

	if alarm_happen[-3] == '1':
		all_alarm.append('fatigue_drive')  # 疲劳驾驶

	if alarm_happen[-6] == '1':
		all_alarm.append('antenna_alarm')  # 天线故障

	if alarm_happen[-8] == '1':
		all_alarm.append('low_power')  # 低电压报警

	if alarm_happen[-9] == '1':
		all_alarm.append('power_cut')  # 断电报警

	if alarm_happen[-18] == '1':
		all_alarm.append('remove_alarm')  # 拆除报警

	if alarm_happen[-29] == '1':
		all_alarm.append('illegal_move_alarm')  # 非法位移报警
	# print(all_alarm)

	# 解析状态
	status = data['status']
	print("status  " + status)
	status_happen = ''
	for x in range(len(status)):
		status_happen += '{:04b}'.format(int(status[x], 16))
		# print("status_happen  " + status_happen)
	all_status = []
	if status_happen[-1] == '1':
		all_status.append('acc_on')
	else:
		all_status.append('acc_off')

	if status_happen[-2] == '1':
		all_status.append('track')
	else:
		all_status.append('un_track')

	if status_happen[-11] == '0':
		all_status.append('oil_normal')
	else:
		all_status.append('oil_cut')

	if status_happen[-12] == '0':
		all_status.append('ele_normal')
	else:
		all_status.append('ele_cut')

	# 经度纬度、高度、速度、方向的数据转换
	lat = int(data['lat'], 16) / pow(10, 6)
	lng = int(data['lng'], 16) / pow(10, 6)
	hight = str(int(data['hight'], 16))
	speed = str(int((int(data['speed'], 16) / 10)))
	dirct = str(int(data['dirct'], 16))
	dev_upload = data['dev_upload']
	dev_upload = '20%s-%s-%s %s:%s:%s' % (
	dev_upload[0:2], dev_upload[2:4], dev_upload[4:6], dev_upload[6:8], dev_upload[8:10], dev_upload[10:12])
	# print(data)
	if attch_data:

		# print('attch_data',attch_data)

		def handle_atth(d):
			attch_rule = r'(?P<msg_id>\w{2})(?P<msg_len>\w{2})'
			# print('d==>',d)
			msg_head = d[0:4]

			res = re.search(attch_rule, msg_head).groupdict()
			# print('msg_head==>',res)
			msg_id = res['msg_id']  # 附加消息id
			msg_len = int(res['msg_len'], 16) * 2  # 取附加消息长度
			value = d[4:4 + msg_len]  # 取附加消息
			# print('value==>',value)
			if msg_id == '01':
				value = int(value, 16) / 10
				loca_data['mileage'] = value  # 里程
			elif msg_id == '02':
				value = int(value, 16) / 10
				loca_data['oil'] = value  # 油耗
			elif msg_id == '03':
				value = int(value, 16) / 10
				loca_data['speed'] = value  # 速度
			elif msg_id == '30':
				value = int(value, 16)
				loca_data['rssi'] = value  # 通讯信号强度
			elif msg_id == '31':
				value = int(value, 16)
				loca_data['gnss_num'] = value  # 定位卫星颗数
			else:
				return

			handle_len = 4 + msg_len  # 取后续附加消息（厂家自定）
			next_data = d[handle_len:]
			if len(next_data) > 0:
				handle_atth(next_data)  # 迭代取出

		handle_atth(attch_data)

	loca_data.update(lat=lat, lng=lng, alarm=str(all_alarm), status=str(all_status), hight=hight, speed=speed,
					 dirct=dirct, dev_upload=dev_upload)
	return loca_data


def jt808_resopnes(responekind, mesg_head, mesg_result):
	response = '0'
	auth = '313233343536'
	mesg_id = mesg_head['mesg_id']
	phone_num = mesg_head['phone_num']
	mesg_num = mesg_head['mesg_num']

	if responekind == '8001':
		mesg_perp = '%04x' % int(len(mesg_num + mesg_id) / 2 + 1)
		response_body = responekind + mesg_perp + phone_num + '0000' + mesg_num + mesg_id + mesg_result
	elif responekind == '8100':
		mesg_perp = '%04x' % int(len(mesg_num + auth) / 2 + 1)
		response_body = responekind + mesg_perp + phone_num + '0000' + mesg_num + mesg_result + auth
	response_check = BCC_Check(response_body)
	response_body = response_body + response_check
	response_body = response_body.replace('7d', '7d01')
	response = '7e' + response_body.replace('7e', '7d02') + '7e'
	response = binascii.a2b_hex(response)
	return response


def jt808_analysis(data, serv_receive, device_id='0'):
	# data=b'~\x02\x00\x00"\x01A\x19P\x10\x01\x059\x00\x00\x00\x00\x00\x00\x00\x03\x02\t24\x06\xb4q\xd0\x00\x00\x00\x00\x01@\x19\t\x16\t\'\x07\x01\x04\x00\x00\x02]-~'
	response = b'0'
	all_data = {}
	all_data['device_id'] = device_id
	all_data['save_kind'] = 'no'
	all_data['serv_receive'] = serv_receive
	# ascii转16进制字符  ??????????????
	data = binascii.hexlify(data).decode()
	# print(data)  # 7e02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d2d7e

	# data='7e010000210147852369000046000B04575331303030533130303030303031323334353637327ca4425039344a35ef7e'
	# 去掉头尾标识符，进行转译处理(转义还原"7d02"转换为"7e"后"7d01"转换为7d)
	data = data[2:-2].replace('7d02', '7e')
	data = data.replace('7d01', '7d')
	# print(data)  # 02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d2d
	# 校验
	if BCC_Check(data[0:-2]) == data[-2:]:
		print('check-ok!')
	else:
		print('chec—failed')
		all_data['response'] = response

		return all_data
	# 去掉校验码，获取需要解析的数据字段
	data = data[0:-2]
	print(data)  # 02000022014119501001053900000000000000030209323406b471d000000000014019091609270701040000025d
	# 数据头处理，命令id，是否包含分包处理，电话号码，数据流水号
	rule = r'(?P<mesg_id>\w{4})(?P<mesg_explain>\w{4})(?P<phone_num>\w{12})(?P<mesg_num>\w{4})'
	head_len = len(re.search(rule, data).group())
	result = re.search(rule, data).groupdict()
	# print(result)
	mesg_id = result['mesg_id']  # 消息头（消息ID）
	print(mesg_id)
	phone_num = result['phone_num']  # 消息头（终端手机号）
	print(phone_num)
	mesg_num = result['mesg_num']  # 消息头（消息流水号）
	print(mesg_num)
	all_data['device_id'] = str(int(phone_num))

	response = jt808_resopnes('8001', result, '00')
	# 解析消息体属性
	mesg_explain = ''
	for x in range(len(result['mesg_explain'])):
		mesg_explain += '{:04b}'.format(int(result['mesg_explain'][x], 16))
		print(mesg_explain)

	mesg_split = mesg_explain[2]
	mesg_encryption = mesg_explain[5]
	# print(mesg_explain)
	if mesg_split == '1':
		rule = rule + r'(?P<mesg_total_num>\w{4})' + r'(?P<mesg_order_num>\w{2})'
	if mesg_encryption == '1':
		# 消息体RSA解密转码
		print('RSA_algorithm_encryption')

	if mesg_id == '0001':  # 终端回应平台下发指令
		rule = rule + r'(?P<answer_num>\w{4})(?P<answer_id>\w{4})(?P<command_result>\w{2})'
		data = re.search(rule, data).groupdict()
	# print('0001：终端回应平台下发指令',data)

	# 设备登录
	elif mesg_id == '0100':
		# if len(data)-head_len==76:
		rule = rule + r'(?P<Provincial_ID>\w{4})(?P<City_County_ID>\w{4})(?P<Manufacturer_ID>\w{10})(?P<Terminal_model>\w{16})(?P<Terminal_ID>\w{14})(?P<car_num_color>\w{2})(?P<car_identification>\w{2})'
		data = re.search(rule, data).groupdict()
		all_data.update(data)
		response = jt808_resopnes('8100', result, '00')
		all_data['save_kind'] = 'yes'

	# 主要的位置上报信息
	elif mesg_id == '0200':
		print(data)
		print(rule)
		loca_data = loca_report(rule, data)
		print(loca_data)
		all_data.update(loca_data)
		all_data['save_kind'] = 'yes'

	elif mesg_id == '0201':
		data_head = data[0:head_len]
		data_body = data[head_len:]
		# 把消息体的前4位，应答流水号去掉，重新组成数据进行处理
		handle_data = data_head + data_body[4:]
		# 处理0200位置信息
		loca_data = loca_report(rule, data)
		all_data.update(loca_data)
		all_data['save_kind'] = 'yes'
		print('0201：终端查询位置信息回复')

	elif mesg_id == '0704':
		print('0704：多条数据上传')
		rule = rule + r'(?P<data_num>\w{4})(?P<data_type>\w{2})(?P<detail>\w*)'
		res = re.search(rule, data).groupdict()
		data_num = int(res['data_num'], 16)
		type_dict = {'00': '正常', '01': '补报'}
		data_type = type_dict[res['data_type']]
		detail = res['detail']
		multi_rule = rule = r'(?P<mesg_explain>\w{4})(?P<phone_num>\w{12})(?P<mesg_num>\w{4})'
		all_loca = []
		for x in range(data_num):
			data_len = int(detail[0:4], 16) * 2
			handle_len = 4 + data_len
			data_body = detail[4:handle_len]
			data_res = loca_report('', data_body)
			detail = detail[handle_len:]
			lng = data_res.get('lng')

			if lng not in [0.0, '', '0', None]:
				data_res['device_id'] = all_data['device_id']
				data_res['serv_receive'] = serv_receive
				all_loca.append(data_res)

		all_data['save_kind'] = 'yes'
		all_data['all_loca'] = all_loca
	all_data['response'] = response
	# print('all_data',all_data)
	return all_data

• 设置预处理函数和asyncore异步通信的服务端线程

class Jt808Handler(asyncore.dispatcher_with_send):
	res_data=''
	buffer_data={}
	# 预处理，丢弃不完整的数据包
	def pre_handle(self,datas):
		data_handled=[]
		print("datas"+str(datas))
		#判断是否为有效数据
		if datas.startswith(b'~') and datas.endswith(b'~'):
			datas=datas.split(b'~')

			datas.pop()  #去掉列表最后一个元素
			print(datas)
			for data in datas:
				if data!=b'':
					data=b'~'+data+b'~'
					data_handled.append(data)
			# print(data_handled) #处理后的data_handle变成了列表形式
			# if data_handled[0]==b'~\x02\x00\x00"\x01A\x19P\x10\x01\x059\x00\x00\x00\x00\x00\x00\x00\x03\x02\t24\x06\xb4q\xd0\x00\x00\x00\x00\x01@\x19\t\x16\t\'\x07\x01\x04\x00\x00\x02]-~':
			# 	print(1111111111111111111111111111111111111111111111111)
			return data_handled
		else:
			return 'buffer_data'

	# 存储功能
	def handle_save(sefl,data):
		pass


	# 数据解析，存储，回复
	def handle_read(self):
		# print(self.buffer_data)
		serv_receive=datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')
		data = self.recv(8192)
		# print(data)
		data=self.pre_handle(data)
		if data!='buffer_data':
			# print(data)
			for d in data:
				print("d:"+str(d))
				dev_id=self.buffer_data.get(str(self.addr),'0')
				res=jt808_analysis(d,serv_receive,dev_id)
				print("res = "+str(res))
				if res.get('device_id')!=None:
					self.buffer_data[res['device_id']]=self
					self.buffer_data[str(self.addr)]=res['device_id']
				else:
					res['device_id']=self.buffer_data[str(self.addr)]

				save=res.pop('save_kind')
				response=res.pop('response')

				if save=='yes':
					self.handle_save(res)

				if response!=b'0':
					self.send(response)
			# print("111111111111"+str(res))
			global data_last
			data_last=res

	def writable(self):
		return self.res_data
# 设备链接监听
class Jt808Server(asyncore.dispatcher):

	def __init__(self, host, port):
		asyncore.dispatcher.__init__(self)
		self.create_socket()
		self.set_reuse_addr()
		self.bind((host, port))
		self.listen(5)

	def handle_accepted(self, sock, addr):
		print('Incoming connection from %s' % repr(addr))
		handler = Jt808Handler(sock)

		# print("handler = "+str(handler))

#服务器监听线程
class EchoServerThread(threading.Thread):
	def __init__(self):
		threading.Thread.__init__(self)

	def run(self):
		server = Jt808Server('', jt808_port)
		asyncore.loop()

•  对驱动进行初始化，获取中台配置的"PORT"参数，启动服务的线程

class JT808(IOTOSDriverI):
	def InitComm(self,attrs):
		global jt808_port
		jt808_port=self.sysAttrs['config']['param']['PORT']
		self.debug(jt808_port)
		self.setPauseCollect(False)
		self.setCollectingOneCircle = True
		self.online(True)
		EchoServerThread().start()

• 编写采集函数，先判断是否有数据转发过来没有就推出，有的话过滤掉非采集点，判断采集点并且根据每个数据点的私有属性“private”进行数据的上传

	def Collecting(self, dataId):
		if data_last=='':
			return ()
		cfgtmp = self.data2attrs[dataId]['config']
		if cfgtmp["param"] == "":
			return ()

		# 过滤采集点
		if 'disabled' in cfgtmp and cfgtmp['disabled'] == True:
			return ()
		else:
			self.debug(self.name(dataId))
		# 获取用于数据下发的点
		if 'private' in cfgtmp['param']:
			for data_key,data_value in data_last.items():
				if data_key==cfgtmp['param']['private']:
					self.debug(3333333333333333333333333333333)
					self.debug(data_value)
					self.setValue(self.name(dataId),data_value)
		return ()



​
