Springboot动态多数据源+jta分布式事务

前言：

公司最近要做一个项目，要求从数据库里读取配置信息，动态切换数据源，这样数据源多的情况下就不用每次修改配置文件了。然后就参考了博客上很多文章，发现很多都是数据源可以动态切换，添加事务后就切换不了，或者是多数据源配置信息写在配置文件里，这些都不是我想要的，经过两天努力，借鉴了很多文章终于解决问题。现把过程记录下来以方便他人和自己。

项目运行从默认主数据库读取所有数据源配置信息，然后交给JTA事务管理器统一管理事务。

正文开始

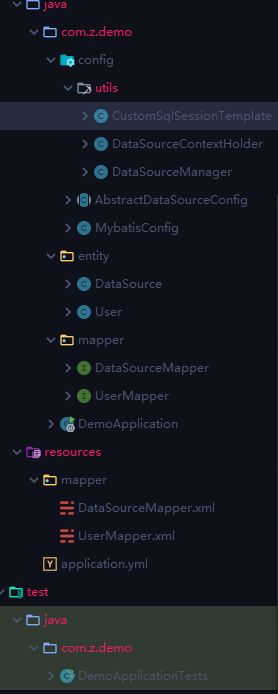

为了方便观看和了解项目，可以先看下项目目录结构



 首先 pom.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.z</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.38</version>
        </dependency>
        <!-- druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.6</version>
        </dependency>
        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>
        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- jta -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jta-atomikos</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>
pom.xml

然后 application.yml (这里配置的是主数据源)

server:
  port: 8090
spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      # 默认主数据源
      system:
        username: root
        password: 123
        url: jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=UTC
        driverClassName: com.mysql.jdbc.Driver
application.yml

准备完毕，接下来就是代码

DataSourceContextHolder.java



package com.z.demo.config.utils;

/*
* 数据源上下文切换
* */
public class DataSourceContextHolder {

    private static final ThreadLocal<String> contextHolder = new ThreadLocal<>();

    /*
    * 设置当前数据源
    * */
    public static void setDatasourceType(String dbType) {
        contextHolder.set(dbType);
    }

    /*
    * 取得当前数据源
    * */
    public static String getDatasourceType() {
        return contextHolder.get();
    }

    /*
    * 清除上下文数据源
    * */
    public static void clearDatasourceType() {
        contextHolder.remove();
    }
}
DataSourceContextHolder.java



CustomSqlSessionTemplate.java

package com.z.demo.config.utils;

import static java.lang.reflect.Proxy.newProxyInstance;
import static org.apache.ibatis.reflection.ExceptionUtil.unwrapThrowable;
import static org.mybatis.spring.SqlSessionUtils.closeSqlSession;
import static org.mybatis.spring.SqlSessionUtils.getSqlSession;
import static org.mybatis.spring.SqlSessionUtils.isSqlSessionTransactional;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.sql.Connection;
import java.util.List;
import java.util.Map;

import org.apache.ibatis.exceptions.PersistenceException;
import org.apache.ibatis.executor.BatchResult;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ExecutorType;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.MyBatisExceptionTranslator;
import org.mybatis.spring.SqlSessionTemplate;
import org.springframework.dao.support.PersistenceExceptionTranslator;
import org.springframework.util.Assert;


public class CustomSqlSessionTemplate extends SqlSessionTemplate {

    private final SqlSessionFactory sqlSessionFactory;
    private final ExecutorType executorType;
    private final SqlSession sqlSessionProxy;
    private final PersistenceExceptionTranslator exceptionTranslator;

    private Map<Object, SqlSessionFactory> targetSqlSessionFactorys;
    private SqlSessionFactory defaultTargetSqlSessionFactory;

    public void setTargetSqlSessionFactorys(Map<Object, SqlSessionFactory> targetSqlSessionFactorys) {
        this.targetSqlSessionFactorys = targetSqlSessionFactorys;
    }

    public Map<Object, SqlSessionFactory> getTargetSqlSessionFactorys() {
        return targetSqlSessionFactorys;
    }

    public void setDefaultTargetSqlSessionFactory(SqlSessionFactory defaultTargetSqlSessionFactory) {
        this.defaultTargetSqlSessionFactory = defaultTargetSqlSessionFactory;
    }

    public CustomSqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {
        this(sqlSessionFactory, sqlSessionFactory.getConfiguration().getDefaultExecutorType());
    }

    public CustomSqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType) {
        this(sqlSessionFactory, executorType , new MyBatisExceptionTranslator(sqlSessionFactory.getConfiguration()
                .getEnvironment().getDataSource(), true));
    }

    public CustomSqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType,
                                    PersistenceExceptionTranslator exceptionTranslator) {
        super(sqlSessionFactory, executorType, exceptionTranslator);

        this.sqlSessionFactory = sqlSessionFactory;
        this.executorType = executorType;
        this.exceptionTranslator = exceptionTranslator;

        this.sqlSessionProxy = (SqlSession) newProxyInstance(
                SqlSessionFactory.class.getClassLoader(),
                new Class[]{ SqlSession.class },
                new SqlSessionInterceptor());
        this.defaultTargetSqlSessionFactory = sqlSessionFactory;
    }

    @Override
    public SqlSessionFactory getSqlSessionFactory() {
        SqlSessionFactory targetSqlSessionFactory = targetSqlSessionFactorys.get(DataSourceContextHolder.getDatasourceType());
        if (targetSqlSessionFactory != null) {
            return targetSqlSessionFactory;
        } else if (defaultTargetSqlSessionFactory != null) {
            return defaultTargetSqlSessionFactory;
        } else {
            Assert.notNull(targetSqlSessionFactorys, "Property 'targetSqlSessionFactorys' or 'defaultTargetSqlSessionFactory' are required");
            Assert.notNull(defaultTargetSqlSessionFactory, "Property 'defaultTargetSqlSessionFactory' or 'targetSqlSessionFactorys' are required");
        }
        return this.sqlSessionFactory;
    }


    @Override
    public Configuration getConfiguration() {
        return this.getSqlSessionFactory().getConfiguration();
    }

    public ExecutorType getExecutorType() {
        return this.executorType;
    }

    public PersistenceExceptionTranslator getPersistenceExceptionTranslator() {
        return this.exceptionTranslator;
    }

    /**
     * {@inheritDoc}
     */
    public <T> T selectOne(String statement) {
        return this.sqlSessionProxy.<T>selectOne(statement);
    }

    /**
     * {@inheritDoc}
     */
    public <T> T selectOne(String statement, Object parameter) {
        return this.sqlSessionProxy.<T>selectOne(statement, parameter);
    }

    /**
     * {@inheritDoc}
     */
    public <K, V> Map<K, V> selectMap(String statement, String mapKey) {
        return this.sqlSessionProxy.<K, V>selectMap(statement, mapKey);
    }

    /**
     * {@inheritDoc}
     */
    public <K, V> Map<K, V> selectMap(String statement, Object parameter, String mapKey) {
        return this.sqlSessionProxy.<K, V>selectMap(statement, parameter, mapKey);
    }

    /**
     * {@inheritDoc}
     */
    public <K, V> Map<K, V> selectMap(String statement, Object parameter, String mapKey, RowBounds rowBounds) {
        return this.sqlSessionProxy.<K, V>selectMap(statement, parameter, mapKey, rowBounds);
    }

    /**
     * {@inheritDoc}
     */
    public <E> List<E> selectList(String statement) {
        return this.sqlSessionProxy.<E>selectList(statement);
    }

    /**
     * {@inheritDoc}
     */
    public <E> List<E> selectList(String statement, Object parameter) {
        return this.sqlSessionProxy.<E>selectList(statement, parameter);
    }

    /**
     * {@inheritDoc}
     */
    public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
        return this.sqlSessionProxy.<E>selectList(statement, parameter, rowBounds);
    }

    /**
     * {@inheritDoc}
     */
    public void select(String statement, ResultHandler handler) {
        this.sqlSessionProxy.select(statement, handler);
    }

    /**
     * {@inheritDoc}
     */
    public void select(String statement, Object parameter, ResultHandler handler) {
        this.sqlSessionProxy.select(statement, parameter, handler);
    }

    /**
     * {@inheritDoc}
     */
    public void select(String statement, Object parameter, RowBounds rowBounds, ResultHandler handler) {
        this.sqlSessionProxy.select(statement, parameter, rowBounds, handler);
    }

    /**
     * {@inheritDoc}
     */
    public int insert(String statement) {
        return this.sqlSessionProxy.insert(statement);
    }

    /**
     * {@inheritDoc}
     */
    public int insert(String statement, Object parameter) {
        return this.sqlSessionProxy.insert(statement, parameter);
    }

    /**
     * {@inheritDoc}
     */
    public int update(String statement) {
        return this.sqlSessionProxy.update(statement);
    }

    /**
     * {@inheritDoc}
     */
    public int update(String statement, Object parameter) {
        return this.sqlSessionProxy.update(statement, parameter);
    }

    /**
     * {@inheritDoc}
     */
    public int delete(String statement) {
        return this.sqlSessionProxy.delete(statement);
    }

    /**
     * {@inheritDoc}
     */
    public int delete(String statement, Object parameter) {
        return this.sqlSessionProxy.delete(statement, parameter);
    }

    /**
     * {@inheritDoc}
     */
    public <T> T getMapper(Class<T> type) {
        return getConfiguration().getMapper(type, this);
    }

    /**
     * {@inheritDoc}
     */
    public void commit() {
        throw new UnsupportedOperationException("Manual commit is not allowed over a Spring managed SqlSession");
    }

    /**
     * {@inheritDoc}
     */
    public void commit(boolean force) {
        throw new UnsupportedOperationException("Manual commit is not allowed over a Spring managed SqlSession");
    }

    /**
     * {@inheritDoc}
     */
    public void rollback() {
        throw new UnsupportedOperationException("Manual rollback is not allowed over a Spring managed SqlSession");
    }

    /**
     * {@inheritDoc}
     */
    public void rollback(boolean force) {
        throw new UnsupportedOperationException("Manual rollback is not allowed over a Spring managed SqlSession");
    }

    /**
     * {@inheritDoc}
     */
    public void close() {
        throw new UnsupportedOperationException("Manual close is not allowed over a Spring managed SqlSession");
    }

    /**
     * {@inheritDoc}
     */
    public void clearCache() {
        this.sqlSessionProxy.clearCache();
    }

    /**
     * {@inheritDoc}
     */
    public Connection getConnection() {
        return this.sqlSessionProxy.getConnection();
    }

    /**
     * {@inheritDoc}
     *
     * @since 1.0.2
     */
    public List<BatchResult> flushStatements() {
        return this.sqlSessionProxy.flushStatements();
    }

    /**
     * Proxy needed to route MyBatis method calls to the proper SqlSession got from Spring's Transaction Manager It also
     * unwraps exceptions thrown by {@code Method#invoke(Object, Object...)} to pass a {@code PersistenceException} to
     * the {@code PersistenceExceptionTranslator}.
     */
    private class SqlSessionInterceptor implements InvocationHandler {
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            final SqlSession sqlSession = getSqlSession(
                    CustomSqlSessionTemplate.this.getSqlSessionFactory(),
                    CustomSqlSessionTemplate.this.executorType,
                    CustomSqlSessionTemplate.this.exceptionTranslator);
            try {
                Object result = method.invoke(sqlSession, args);
                if (!isSqlSessionTransactional(sqlSession, CustomSqlSessionTemplate.this.getSqlSessionFactory())) {
                    sqlSession.commit(true);
                }
                return result;
            } catch (Throwable t) {
                Throwable unwrapped = unwrapThrowable(t);
                if (CustomSqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
                    Throwable translated = CustomSqlSessionTemplate.this.exceptionTranslator
                            .translateExceptionIfPossible((PersistenceException) unwrapped);
                    if (translated != null) {
                        unwrapped = translated;
                    }
                }
                throw unwrapped;
            } finally {
                closeSqlSession(sqlSession, CustomSqlSessionTemplate.this.getSqlSessionFactory());
            }
        }
    }
}
CustomSqlSessionTemplate.java

AbstractDataSourceConfig.java

package com.z.demo.config;

import com.atomikos.jdbc.AtomikosDataSourceBean;
import org.springframework.core.env.Environment;

import javax.sql.DataSource;
import java.util.Properties;

public abstract class AbstractDataSourceConfig {

    protected DataSource getDataSource(Environment env, String prefix, String dataSourceName) {
        Properties prop = build(env, prefix);
        AtomikosDataSourceBean ds = new AtomikosDataSourceBean();
        ds.setXaDataSourceClassName("com.alibaba.druid.pool.xa.DruidXADataSource");
        ds.setUniqueResourceName(dataSourceName);
        ds.setXaProperties(prop);
        return ds;
    }

    /**
     * 主要针对druid数据库链接池
     */
    protected Properties build(Environment env, String prefix) {
        Properties prop = new Properties();
        prop.put("url", env.getProperty(prefix + "url"));
        prop.put("username", env.getProperty(prefix + "username"));
        prop.put("password", env.getProperty(prefix + "password"));
        prop.put("driverClassName", env.getProperty(prefix + "driverClassName", ""));
        return prop;
    }
}
AbstractDataSourceConfig.java

MybatisConfig.java

package com.z.demo.config;

import com.atomikos.jdbc.AtomikosDataSourceBean;
import com.z.demo.config.utils.CustomSqlSessionTemplate;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.mybatis.spring.boot.autoconfigure.SpringBootVFS;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.env.Environment;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.stereotype.Component;

import javax.sql.DataSource;
import java.util.HashMap;
import java.util.Map;
import java.util.Properties;

@Configuration
@Component
@MapperScan(basePackages = MybatisConfig.BASE_PACKAGE, sqlSessionTemplateRef = "sqlSessionTemplate")
public class MybatisConfig extends AbstractDataSourceConfig {

    //mapper模式下的接口层
    static final String BASE_PACKAGE = "com.z.demo.mapper";
    //对接数据库的实体层
    private static final String ALIASES_PACKAGE = "com.z.demo.entity";
    private static final String MAPPER_LOCATION = "classpath:mapper/*.xml";

    @Primary
    @Bean(name = "dataSourceSystem")
    public DataSource dataSourceOne(Environment env) {
        String prefix = "spring.datasource.druid.system.";
        return getDataSource(env, prefix, "system");
    }

    @Bean(name = "sqlSessionFactorySystem")
    public SqlSessionFactory sqlSessionFactoryOne(@Qualifier("dataSourceSystem") DataSource dataSource)
            throws Exception {
        return createSqlSessionFactory(dataSource);
    }

    @Bean(name = "sqlSessionTemplate")
    public CustomSqlSessionTemplate sqlSessionTemplate(@Qualifier("sqlSessionFactorySystem") SqlSessionFactory factorySystem) throws Exception {
        Map<Object, SqlSessionFactory> sqlSessionFactoryMap = new HashMap<>();
        sqlSessionFactoryMap.put("system", factorySystem);
        CustomSqlSessionTemplate customSqlSessionTemplate = new CustomSqlSessionTemplate(factorySystem);
        customSqlSessionTemplate.setTargetSqlSessionFactorys(sqlSessionFactoryMap);
        return customSqlSessionTemplate;
    }

    /**
     * 创建数据源
     */
    public SqlSessionFactory createSqlSessionFactory(DataSource dataSource) throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        bean.setVfs(SpringBootVFS.class);
        bean.setTypeAliasesPackage(ALIASES_PACKAGE);
        bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(MAPPER_LOCATION));
        bean.setConfiguration(configuration());
        return bean.getObject();
    }

    public org.apache.ibatis.session.Configuration configuration() {
        org.apache.ibatis.session.Configuration configuration = new org.apache.ibatis.session.Configuration();
        configuration.setMapUnderscoreToCamelCase(true);
        return configuration;
    }

    //创建新数据源
    public DataSource getDataSource(com.z.demo.entity.DataSource dataSource) {
        Properties prop = new Properties();
        prop.put("url", dataSource.getUrl());
        prop.put("username", dataSource.getUserName());
        prop.put("password", dataSource.getPassWord());
        prop.put("driverClassName", "com.mysql.jdbc.Driver");
        AtomikosDataSourceBean ds = new AtomikosDataSourceBean();
        ds.setXaDataSourceClassName("com.alibaba.druid.pool.xa.DruidXADataSource");
        ds.setUniqueResourceName(dataSource.getId());
        ds.setXaProperties(prop);
        return ds;
    }
}
MybatisConfig.java

DataSourceManager.java

package com.z.demo.config.utils;

import com.z.demo.config.MybatisConfig;
import com.z.demo.entity.DataSource;
import com.z.demo.mapper.DataSourceMapper;
import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import javax.annotation.Resource;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Component
public class DataSourceManager {

    @Resource
    private DataSourceMapper dataSourceMapper;
    @Resource
    private CustomSqlSessionTemplate sqlSessionTemplate;
    @Resource
    private MybatisConfig mybatisConfig;

    /**
     * 初始或者重载入数据源
     */
    @PostConstruct
    public void loadDataSource() throws Exception {
        //从主数据源获取数据源配置
        List<DataSource> dataSourceList = dataSourceMapper.getDataSourceList();

        Map<Object, SqlSessionFactory> newSqlSessionFactoryMap = new HashMap<>();

        Map<Object, SqlSessionFactory> sqlSessionFactoryMap = sqlSessionTemplate.getTargetSqlSessionFactorys();

        for (DataSource dataSource : dataSourceList) {
            SqlSessionFactory sqlSessionFactory = mybatisConfig.createSqlSessionFactory(mybatisConfig.getDataSource(dataSource));
            newSqlSessionFactoryMap.put(dataSource.getId(), sqlSessionFactory);
        }

        newSqlSessionFactoryMap.putAll(sqlSessionFactoryMap);

        this.sqlSessionTemplate.setTargetSqlSessionFactorys(newSqlSessionFactoryMap);
    }
}
DataSourceManager.java

以上就是核心代码，还有一些无关紧要的代码就不贴出来了

接下来就是测试 多数据源的插入和事务回滚

首先是插入

package com.z.demo;

import com.z.demo.config.utils.DataSourceContextHolder;
import com.z.demo.entity.User;
import com.z.demo.mapper.UserMapper;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;

import javax.annotation.Resource;

@SpringBootTest
class DemoApplicationTests {

    @Resource
    UserMapper userMapper;

    @Test
    void contextLoads() {
        User user = new User();
        user.setUserName("张三");
        user.setAge(18);

        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());

        DataSourceContextHolder.setDatasourceType("demo1");
        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());
        int i = userMapper.insertSelective(user);

        DataSourceContextHolder.setDatasourceType("demo2");
        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());
        int i1 = userMapper.insertSelective(user);
    }
View Code

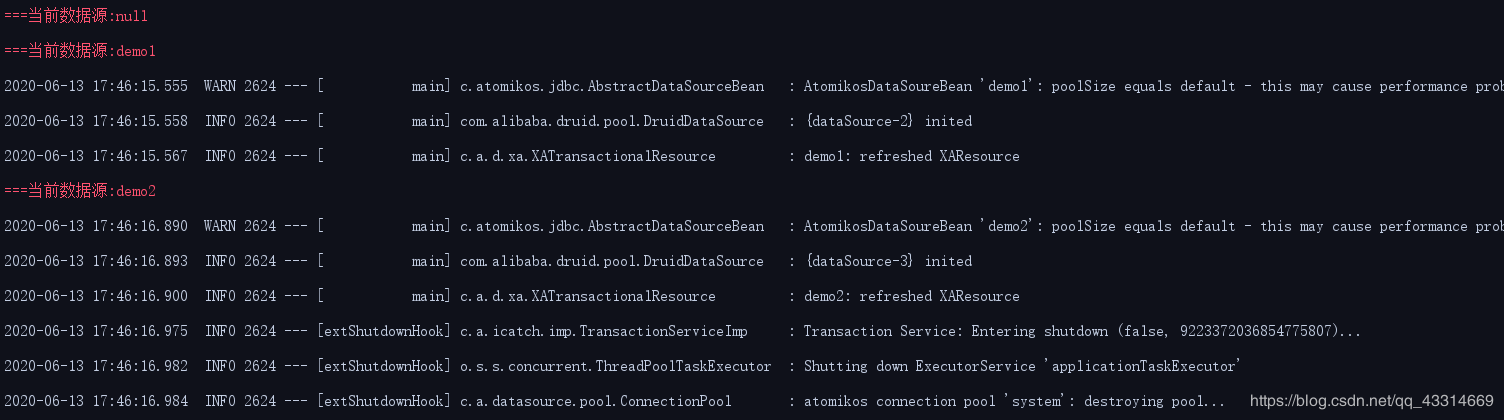

测试结果:









这边可以看到两个数据库都插入进去了数据

然后是测试事务回滚

package com.z.demo;

import com.z.demo.config.utils.DataSourceContextHolder;
import com.z.demo.entity.User;
import com.z.demo.mapper.UserMapper;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.transaction.annotation.Transactional;

import javax.annotation.Resource;

@SpringBootTest
class DemoApplicationTests {

    @Resource
    UserMapper userMapper;

    @Test
    @Transactional
    void contextLoads() {
        User user = new User();
        user.setUserName("李四");
        user.setAge(20);

        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());

        DataSourceContextHolder.setDatasourceType("demo1");
        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());
        int i = userMapper.insertSelective(user);

        DataSourceContextHolder.setDatasourceType("demo2");
        System.err.println("===当前数据源:"+ DataSourceContextHolder.getDatasourceType());
        int i1 = userMapper.insertSelective(user);

        int num = 1/0;
    }

}
View Code

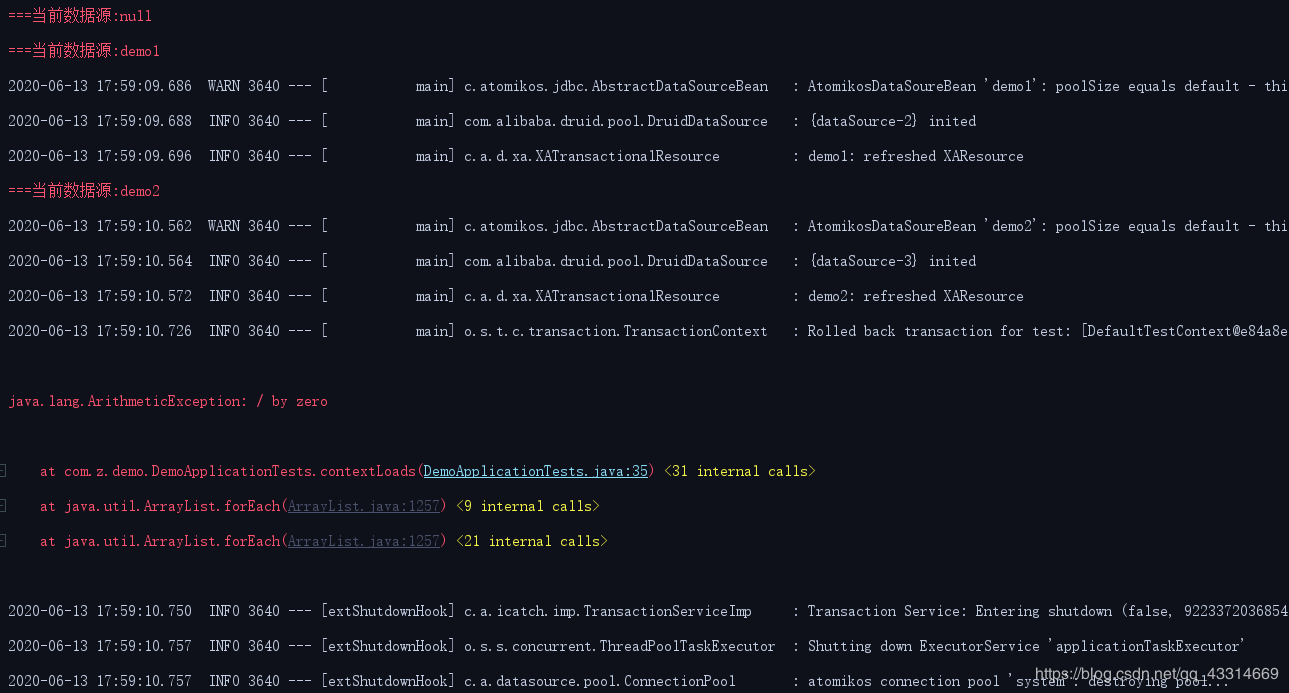

测试结果：



可以看到这里发生了异常



数据库里也没有数据插入，事务统一回滚成功

以上就是动态多数据源事务解决方案，有什么不足之处或者有什么问题可以在评论区提出，拜了个拜



posted @ 2020-06-15 10:03  名字有BUG  阅读(201)  评论(0)    收藏  举报
