vue中使用echarts

安装依赖包

npm i echarts -S

在组件内引入echarts

improt echarts from 'echarts'

html部分

<div id="chart" class="chart" style="height:300px;width:550px;"/>

js部分

methods: {
    setChart() {
      // 基于准备好的dom,初始化echarts实例
      let chart = echarts.init(document.getElementById("chart"));

      // 指定图表的配置项和数据
      let option = {
        // x轴是类目轴(离散数据),必须通过data设置类目数据
        xAxis: {
          type: "category",
          data: ["一", "二", "三", "四", "五", "六", "日"], // 可以从数据库中取来
          name: "日期"
        },
        // y轴是数据轴(连续数据)
        yAxis: {
          type: "value",
          show: true,
          name: "订单数"
        },
        // 系列列表。每个系列通过 type 决定自己的图表类型
        series: [
          {
            // 系列中的数据内容数组
            data: [100, 932, 901, 934, 1290, 1330, 1320], //数据都是从数据库中来
            // 折线图
            type: "bar" // line 线形图  bar 柱状图
          }
        ],
        title: {
          text: "订单增长柱状图"
        },
        tooltip: {
          trigger: "item"
        }
      };
      chart.setOption(option);
    },
  },
  mounted() {
    this.setChart()
  }

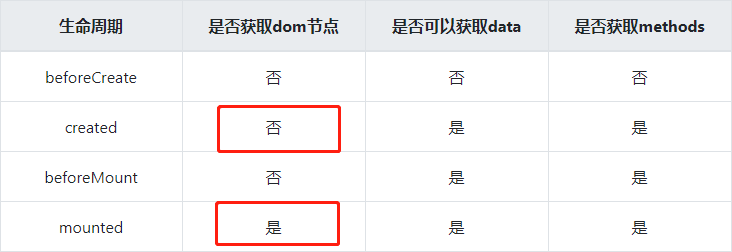

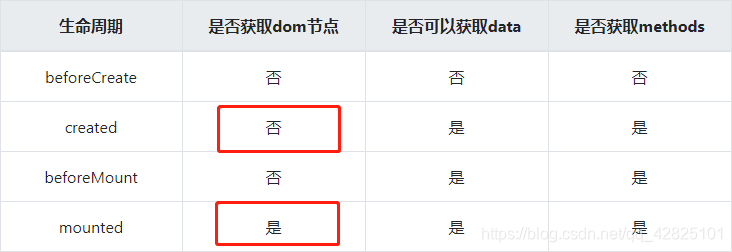

为什么不在created中调用方法,要在mounted中调用呢?
