Petalinux 2018.3构建zynq7020 linux系统

参考连接：

1.　https://www.cnblogs.com/vacajk/p/6148857.html

2.　https://developer.aliyun.com/article/1482180



版本说明：win10、VMWare-Ubuntu16.04、petalinux 2018.3

创建工程:

1.　petalinux-create -t project -n zynq_7020 -template zynq

2.　petalinux-config 按照参考连接中的配置对应的启动介质为qspi_flash

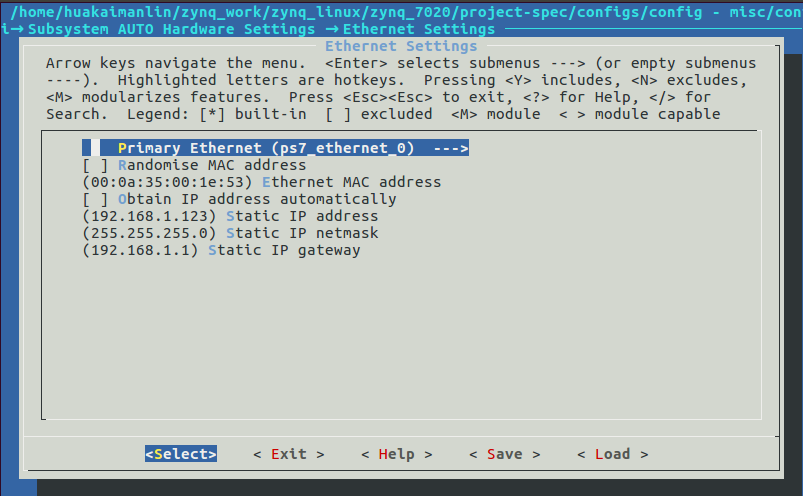

　　a. 取消PHY Auto Negotiation

　　

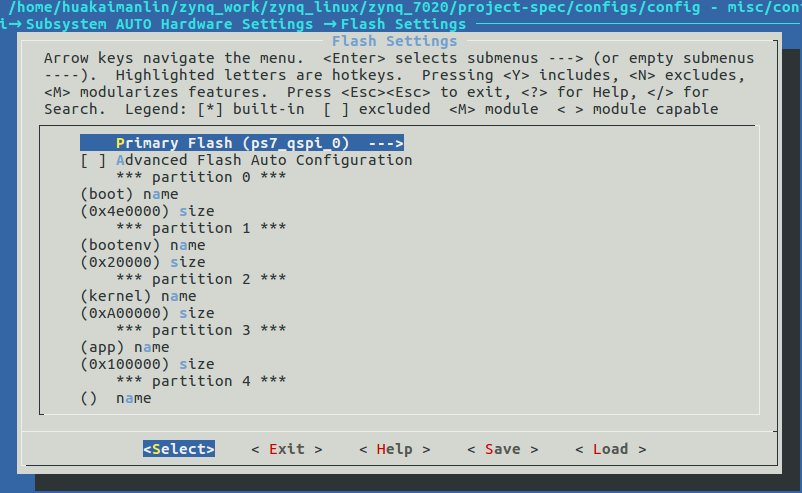

　　b. 配置qspi分区大小

　　

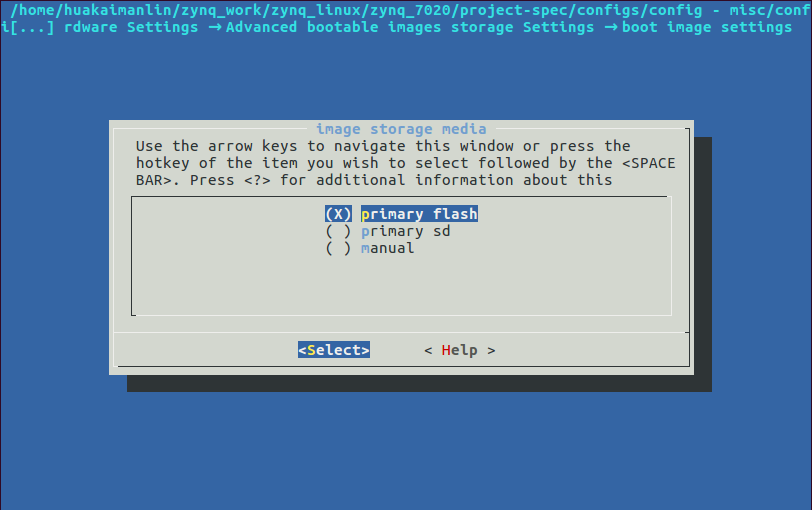

　　c. 配置image storage media

　　

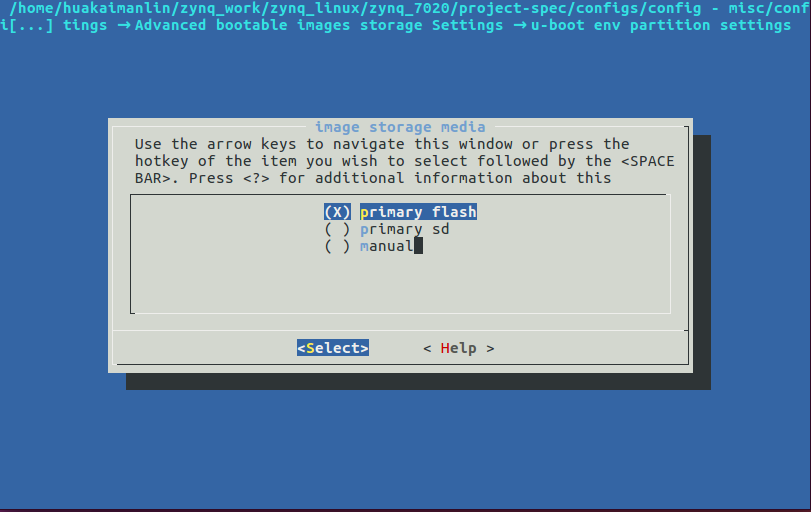

　　d. 配置uboot env storage media

　　

 添加AutoRun脚本：

1.　petalinux-create -t apps --template install -n myapp-init --enable
2.　修改bb文件如下：



#
# This file is the myapp-init recipe.
#

SUMMARY = "Simple myapp-init application"
SECTION = "PETALINUX/apps"
LICENSE = "MIT"
LIC_FILES_CHKSUM = "file://${COMMON_LICENSE_DIR}/MIT;md5=0835ade698e0bcf8506ecda2f7b4f302"

SRC_URI = "file://myapp-init \
"

S = "${WORKDIR}"

FILESEXTRAPATHS_prepend := "${THISDIR}/files:"

inherit update-rc.d

INITSCRIPT_NAME = "myapp-init"
INITSCRIPT_PARAMS = "start 5 S ."

do_install() {
　　　　install -d ${D}${sysconfdir}/init.d
　　　　install -m 0755 ${S}/myapp-init ${D}${sysconfdir}/init.d/myapp-init
}
FILES_${PN} += "${sysconfdir}/*"



3.　修改/project-spec/meta-user/recipes-apps/myapp-init/files/myapp-init为如下：

#!/bin/sh

echo "Hello PetaLinux World"

mkdir /mnt/qspi_flash

mount -t jffs2 /dev/mtdblock3 /mnt/qspi_flash

cd /mnt/qspi_flash

./start.sh

4. petalinux-build生成image.ub

5. petalinux-package --boot --fsbl --fpga ../fpga_top.bit --u-boot
