Playwright进阶篇 (6) | 自动化测试实战

2025企业级测试解决方案：从单测到千级并发，打造高可用测试体系

一、为什么传统自动化测试难以落地？

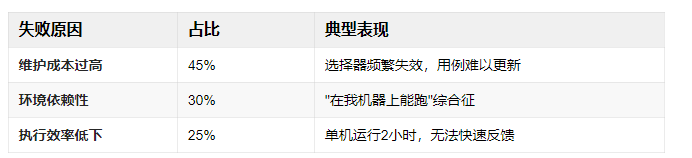

根据2025年最新行业调研，测试项目失败的三大核心原因：

Playwright通过智能选择器、容器化环境和分布式执行，将测试成功率提升至92%！

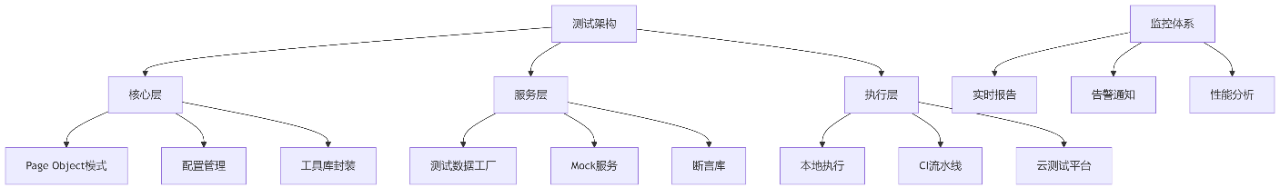

二、企业级测试架构设计

测试金字塔实践配比
UI测试（10%） - 关键业务流程
集成测试（20%） - 模块间交互
单元测试（70%） - 核心业务逻辑
三、实战：电商系统测试框架搭建

1. 项目结构设计

tests/
├── pages/ # 页面对象模型
│ ├── login-page.ts
│ ├── product-page.ts
│ └── cart-page.ts
├── fixtures/ # 测试夹具
│ ├── test-data.ts
│ └── mock-api.ts
├── specs/ # 测试用例
│ ├── checkout-flow.spec.ts
│ └── search-functionality.spec.ts
├── utils/ # 工具函数
│ ├── assertions.ts
│ └── reporters.ts
└── config/ # 配置文件
├── base.config.ts
└── ci.config.ts
2. 高级Page Object模式

// pages/base-page.ts - 基础页面类
exportabstractclass BasePage {
constructor(protected page: Page) {}

// 通用等待方法
protectedasync waitForState(
selector: string,
state: 'visible' | 'hidden' = 'visible',
timeout = 15000
) {
const locator = this.page.locator(selector);
await locator.waitFor({ state, timeout });
return locator;
}

// 截图方法
async takeScreenshot(name: string) {
const path = screenshots/${name}-${new Date().getTime()}.png;
awaitthis.page.screenshot({ path, fullPage: true });
return path;
}
}

// pages/login-page.ts - 登录页面
exportclass LoginPage extends BasePage {
// 元素定位器
private readonly usernameInput = this.page.getByLabel('用户名');
private readonly passwordInput = this.page.getByPlaceholder('密码');
private readonly submitButton = this.page.getByRole('button', { name: '登录' });

// 操作封装
async login(username: string, password: string) {
awaitthis.usernameInput.fill(username);
awaitthis.passwordInput.fill(password);
awaitthis.submitButton.click();

// 等待登录完成
awaitthis.page.waitForURL(/dashboard/);

}

// 业务方法
async loginAsAdmin() {
returnthis.login(
process.env.ADMIN_USERNAME!,
process.env.ADMIN_PASSWORD!
);
}
}

3. 测试数据工厂

// fixtures/test-data.ts
exportclass TestDataFactory {
static createUser(role: 'admin' | 'customer' | 'vip' = 'customer') {
const baseUser = {
email: testuser+${Date.now()}@example.com,
password: 'Password123!',
firstName: 'Test',
lastName: 'User'
};

const roles = {
  admin: { ...baseUser, permissions: ['all'] },
  customer: { ...baseUser, vip: false },
  vip: { ...baseUser, vip: true, discountRate: 0.2 }
};

return roles[role];

}

static createProduct(category: string) {
const categories = {
electronics: { price: 599.99, tags: ['tech', 'gadget'] },
clothing: { price: 49.99, tags: ['fashion'] },
book: { price: 19.99, tags: ['education'] }
};

return {
  name: `Test Product ${Date.now()}`,
  description: 'Automated test product',
  ...categories[category],
  stock: Math.floor(Math.random() * 100)
};

}
}
四、核心测试场景实战

1. 结账流程测试

// specs/checkout-flow.spec.ts
import { test, expect } from'@playwright/test';
import { LoginPage } from'../pages/login-page';
import { ProductPage } from'../pages/product-page';
import { CheckoutPage } from'../pages/checkout-page';

test.describe('结账流程', () => {
test('完整购物流程 @smoke', async ({ page }) => {
const loginPage = new LoginPage(page);
const productPage = new ProductPage(page);
const checkoutPage = new CheckoutPage(page);

// 登录
await loginPage.loginAsCustomer();

// 搜索并添加商品
await productPage.searchProduct('iPhone 15');
await productPage.addToCart();

// 结账
await checkoutPage.startCheckout();
await checkoutPage.fillShippingInfo({
  address: '123 Test Street',
  city: 'Test City',
  zipCode: '100001'
});
await checkoutPage.selectPaymentMethod('credit_card');

// 验证订单完成
await expect(page.getByText('订单创建成功')).toBeVisible();
await expect(page).toHaveURL(/order-confirmation/);

});

test('库存不足场景 @regression', async ({ page }) => {
// 模拟库存不足
await page.route('**/api/inventory*', route => route.fulfill({
status: 200,
body: JSON.stringify({ available: 0 })
}));

// 尝试购买
await productPage.addToCart();

// 验证错误提示
await expect(page.getByText('库存不足')).toBeVisible();

});
});

2. API Mocking实战

// fixtures/mock-api.ts
exportclass MockAPI {
staticasync setupMocks(page: Page) {
// Mock登录API
await page.route('**/api/auth/login', async route => {
const data = route.request().postData();
const { username } = JSON.parse(data!);

  if (username === 'admin') {
    return route.fulfill({
      status: 200,
      body: JSON.stringify({ token: 'admin-token', role: 'admin' })
    });
  }

  route.continue();
});

// Mock支付API
await page.route('**/api/payment/process', route => route.fulfill({
  status: 200,
  body: JSON.stringify({ success: true, transactionId: 'txn_12345' })
}));

}
}

// 在测试中使用
test.beforeEach(async ({ page }) => {
await MockAPI.setupMocks(page);
});
五、高级测试策略

1. 视觉回归测试

// utils/visual-regression.ts
exportclass VisualTester {
staticasync compareScreenshot(page: Page, name: string, threshold = 0.1) {
const screenshot = await page.screenshot({ fullPage: true });
const baselinePath = baselines/${name}.png;

if (!fs.existsSync(baselinePath)) {
  fs.writeFileSync(baselinePath, screenshot);
  returntrue;
}

const baseline = fs.readFileSync(baselinePath);
const diff = pixelmatch(screenshot, baseline, null, 800, 600, { threshold });

return diff < (800 * 600 * threshold);

}
}

// 在测试中使用
test('页面布局验证', async ({ page }) => {
await page.goto('/product/123');
const isMatch = await VisualTester.compareScreenshot(page, 'product-page');
expect(isMatch).toBeTruthy();
});

2. 性能测试集成

// utils/performance-monitor.ts
exportclass PerformanceMonitor {
staticasync measureMetrics(page: Page, url: string) {
const metrics = {};

// 启动跟踪
await page.context().tracing.start({ screenshots: true, snapshots: true });

// 导航并测量
await page.goto(url, { waitUntil: 'networkidle' });

// 获取性能指标
const perf = await page.evaluate(() =>
  JSON.stringify(window.performance.timing)
);

// 停止跟踪
await page.context().tracing.stop({ path: 'trace.zip' });

return {
  ...JSON.parse(perf),
  ...metrics
};

}
}
六、企业级执行方案

1. Docker化测试环境

Dockerfile.test

FROM mcr.microsoft.com/playwright:v1.45.0

WORKDIR /tests
COPY package.json .
COPY tests/ tests/

RUN npm ci
RUN npx playwright install --with-deps

健康检查

HEALTHCHECK --interval=30s CMD node healthcheck.js

CMD ["npx", "playwright", "test", "--config=ci.config.ts"]

2. CI/CD流水线集成

.github/workflows/test.yml

name:PlaywrightTests

on:[push,pull_request]

jobs:
test:
timeout-minutes:60
runs-on:ubuntu-latest
strategy:
matrix:
shard:[1,2,3,4]

steps:
-uses:actions/checkout@v4
-uses:actions/setup-node@v4

-name:Installdependencies
  run:npmci

-name:InstallPlaywright
  run:npxplaywrightinstall--with-deps

-name:Runtests
  run:npxplaywrighttest--shard=${{matrix.shard}}/${{strategy.job-total}}

-name:Uploadreport
  uses:actions/upload-artifact@v4
  if:always()
  with:
    name:playwright-report
    path:playwright-report/
    retention-days:30

3. 分布式测试执行

使用Browsertack进行跨浏览器测试

npx playwright test --config=browserstack.config.ts

分片执行（千级并发）

npx playwright test --shard=1/4 & npx playwright test --shard=2/4 &
npx playwright test --shard=3/4 & npx playwright test --shard=4/4 &

合并结果

npx playwright merge-reports --reporter=html ./report-1 ./report-2
七、测试报告与监控

1. 多维度报告配置

// config/ci.config.ts
import { defineConfig } from'@playwright/test';

exportdefault defineConfig({
reporter: [
['list'],
['html', { outputFolder: 'playwright-report', open: 'never' }],
['json', { outputFile: 'results.json' }],
['github'],
['@testomatio/reporter', { apiKey: process.env.TESTOMATIO_KEY }]
],

// 全局超时
globalTimeout: 60 * 60 * 1000, // 1小时

// 每个测试超时
timeout: 30 * 1000,
});

2. 实时监控看板

// utils/live-dashboard.ts
exportclass TestDashboard {
staticasync startLiveMonitoring() {
const io = require('socket.io')(3001);

io.on('connection', (socket: any) => {
  socket.on('test-start', (data: any) => {
    this.broadcast('test-status', {
      ...data,
      status: 'running',
      startTime: newDate()
    });
  });

  socket.on('test-end', (data: any) => {
    this.broadcast('test-status', {
      ...data,
      status: data.passed ? 'passed' : 'failed',
      duration: Date.now() - data.startTime
    });
  });
});

}
}
八、最佳实践与性能优化

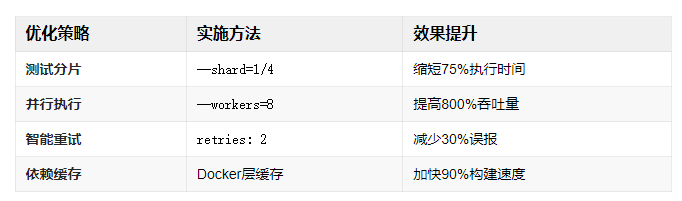

1. 测试执行优化策略

2. 资源使用优化

// 内存优化配置
exportdefault defineConfig({
workers: process.env.CI ? 4 : 8,

use: {
// 减少视频内存占用
video: 'on-first-failure',

// 优化截图策略
screenshot: 'only-on-failure',

// 限制Trace大小
trace: {
  mode: 'on-first-failure',
  sources: false,
  snapshots: true
}

}
});
九、常见问题解决方案

1. 稳定性问题处理

// utils/flaky-handler.ts
exportclass FlakyTestHandler {
staticasync retryFlakyTest(
testFunction: () =>Promise,
maxAttempts = 3
) {
for (let attempt = 1; attempt <= maxAttempts; attempt++) {
try {
await testFunction();
return;
} catch (error) {
if (attempt === maxAttempts) throw error;

    // 等待后重试
    awaitnewPromise(resolve =>
      setTimeout(resolve, attempt * 1000)
    );
  }
}

}
}

// 使用示例
test('不稳定的测试', async () => {
await FlakyTestHandler.retryFlakyTest(async () => {
// 测试逻辑
});
});

2. 环境问题诊断

环境诊断命令

npx playwright diagnose
npx playwright check
npx playwright debug

网络问题诊断

npx playwright show-trace trace.zip
npx playwright test --debug
十、AI在测试中的应用

1. 智能测试生成

// ai-test-generator.ts
exportclass AITestGenerator {
staticasync generateFromUserFlow(userActions: UserAction[]) {
const prompt = 根据用户操作生成Playwright测试代码： 操作序列：${JSON.stringify(userActions)} 要求：使用Page Object模式，包含断言 ;

const response = await openAI.chat.completions.create({
  model: "gpt-4-code",
  messages: [{ role: "user", content: prompt }]
});

return response.choices[0].message.content;

}
}

2. 自愈测试系统

// self-healing-tests.ts
exportclass SelfHealingSystem {
staticasync healLocator(page: Page, originalLocator: string) {
// 分析DOM变化
const newLocator = awaitthis.analyzeDOMChanges(
page,
originalLocator
);

// 验证新定位器
const isValid = awaitthis.validateLocator(page, newLocator);

if (isValid) {
  // 更新测试代码
  awaitthis.updateTestCode(originalLocator, newLocator);
  return newLocator;
}

thrownewError('无法自动修复定位器');

}
}
🚀 2025测试工程师核心能力：

测试架构设计而非用例编写
效率工具开发而非手动执行
质量数据分析而非结果统计
AI技术应用而非重复劳动
