【Canvas与旗帜】圆角红面白边蓝底梅花五星旗

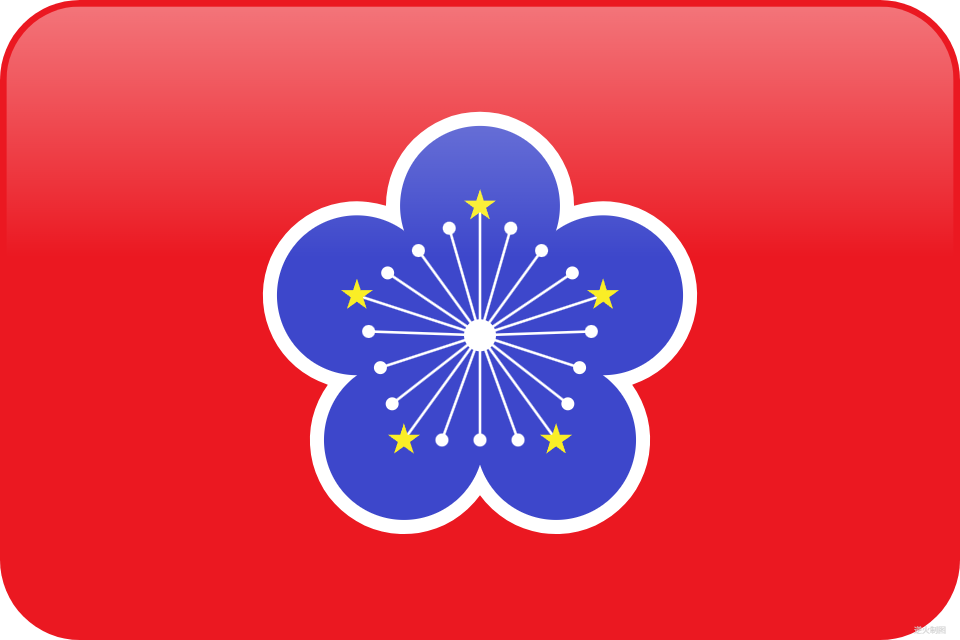

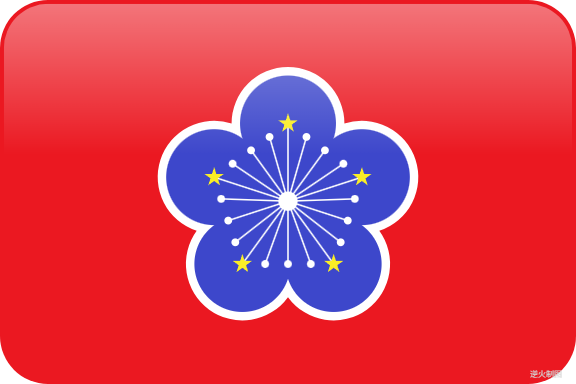

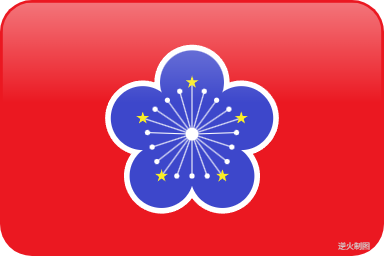

【成图】

1

2

3

4

5

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>圆角梅花五星旗 Draft2</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const RATIO=4;
const WIDTH=3*64*RATIO;
const HEIGHT=2*64*RATIO;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        //ctx.save();
        //ctx.fillStyle = "red";
        //ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        //ctx.restore();

        var ct=createPt(0,0);// ct=center

        // #1 旗面
        ctx.save();
        var w=WIDTH;
        var h=HEIGHT;

        drawRoundRect(ctx,ct.x,ct.y,w,h,h/8);
        ctx.clip();// 限制范围

        ctx.fillStyle = "rgb(235,24,33)";// 底色
        drawRect(ctx,ct.x,ct.y,w,h);
        ctx.fill();

        var r=h/4;
        ct=createPt(0,r*(1-Math.cos(Math.PI/5))/2);
        drawMeihuaIcon(ctx,ct.x,ct.y,r,Math.PI/10);// 梅花

        ctx.restore();

        // #2 玻璃光
        ctx.save();
        ct=createPt(0,0);
        w-=2*h/100;
        h-=2*h/100;
        drawRoundRect(ctx,ct.x,ct.y,w,h,h*0.118);
        ctx.clip();

        var top=createPt2(ct.x,ct.y,h/2,-Math.PI/2);
        var bottom=createPt2(ct.x,ct.y,h/2,Math.PI/2);
        var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
        gnt.addColorStop(0,"rgba(255,255,255,0.4)");
        gnt.addColorStop(0.1,"rgba(255,255,255,0.3)");
        gnt.addColorStop(0.2,"rgba(255,255,255,0.2)");
        gnt.addColorStop(0.3,"rgba(255,255,255,0.1)");
        gnt.addColorStop(0.4,"rgba(255,255,255,0.0)");
        gnt.addColorStop(1,"rgba(255,255,255,0.0)");
        ctx.fillStyle=gnt;
        drawRect(ctx,ct.x,ct.y,w,h);
        ctx.fill();
        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*----------------------------------------------------------
函数:用于绘制完整梅花标志,依赖drawMeihua函数
ctx:绘图上下文
x:轮廓中心横坐标
y:轮廓中心纵坐标
R:梅花中正五边形外接圆半径
initAngle:梅花初始旋转角
----------------------------------------------------------*/
function drawMeihuaIcon(ctx,x,y,R,initAngle){
    const ct=createPt(x,y);

    //#1 白边
    ctx.save();
    var r=R*1.00;
    ctx.fillStyle="white";
    drawMeihua(ctx,ct.x,ct.y,r,Math.PI/10);
    ctx.fill();
    ctx.restore();

    //#2 蓝底
    ctx.save();
    var ratio=0.85;
    var BLUE="rgb(61,71,203)";
    for(var i=0;i<5;i++){
        var theta=i*Math.PI*2/5+initAngle;
        var p=createPt2(ct.x,ct.y,R*Math.cos(Math.PI/5),theta+Math.PI/5);
        var radius=R*Math.sin(Math.PI/5);
        drawSolidCircle(ctx,p.x,p.y,radius*ratio,BLUE);
    }
    drawSolidCircle(ctx,ct.x,ct.y,radius*ratio,BLUE);
    ctx.restore();

    //#3 花蕊
    ctx.save();
    var r=R*Math.cos(Math.PI/5);
    for(var i=0;i<5;i++){
        var theta=i*Math.PI*2/5-initAngle;
        var a=createPt2(ct.x,ct.y,r,theta);
        var b=createPt2(ct.x,ct.y,r,theta+Math.PI*2/5);

        var xOffset=(b.x-a.x)/4;
        var yOffset=(b.y-a.y)/4;
        for(var j=0;j<4;j++){
            var p=createPt(a.x+j*xOffset,a.y+j*yOffset);
            ctx.strokeStyle="white";
            ctx.lineWidth=r*0.02;
            ctx.beginPath();
            ctx.moveTo(ct.x,ct.y);
            ctx.lineTo(p.x,p.y);
            ctx.stroke();

            if(j==0){
                ctx.fillStyle="rgb(250,238,38)";
                draw5Star(ctx,p.x,p.y,r*0.13);
                ctx.fill();
            }else{
                drawSolidCircle(ctx,p.x,p.y,r*0.05,"white");
            }
        }
    }
    ctx.restore();

    //#4 花心
    ctx.save();
    var r=R*0.1;
    drawSolidCircle(ctx,ct.x,ct.y,r,"white");
    ctx.restore();
}

/*----------------------------------------------------------
函数:用于绘制梅花轮廓
ctx:绘图上下文
x:轮廓中心横坐标
y:轮廓中心纵坐标
R:梅花中正五边形外接圆半径
initAngle:梅花初始旋转角
----------------------------------------------------------*/
function drawMeihua(ctx,x,y,R,initAngle){
    const ct=createPt(x,y);

    ctx.beginPath();
    for(var i=0;i<5;i++){
        var theta=i*Math.PI*2/5+initAngle;
        var p=createPt2(ct.x,ct.y,R*Math.cos(Math.PI/5),theta+Math.PI/5);
        var radius=R*Math.sin(Math.PI/5);
        ctx.arc(p.x,p.y,radius,theta+Math.PI/5-Math.PI/2,theta+Math.PI/5+Math.PI/2,false);
    }
}

/*--------------------------------------------------
基本函数:绘制标准正五角星轮廓,可描边,可填充
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
---------------------------------------------------*/
function draw5Star(ctx,x,y,R){
    var r=R*Math.sin(Math.PI/10)/Math.sin(Math.PI/10*7);

    var arr=[0,0,0,0,0,0,0,0,0,0];

    // 顶五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2-Math.PI/10;
        var x1=R*Math.cos(theta)+x;
        var y1=R*Math.sin(theta)+y;
        arr[i*2]=createPt(x1,y1);
    }

    // 内五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2+Math.PI/10;
        var x1=r*Math.cos(theta)+x;
        var y1=r*Math.sin(theta)+y;
        arr[i*2+1]=createPt(x1,y1);
    }

    ctx.beginPath();
    for(var i=0;i<arr.length;i++){
        ctx.lineTo(arr[i].x,arr[i].y);
    }
    ctx.closePath();
}

/*----------------------------------------------------------
基本函数:用于绘制圆角矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
radius:圆角半径
----------------------------------------------------------*/
function drawRoundRect(ctx,x,y,width,height,radius){
    ctx.beginPath();
    ctx.moveTo(x-width/2+radius,y-height/2);
    ctx.lineTo(x+width/2-radius,y-height/2);
    ctx.arcTo(x+width/2,y-height/2,x+width/2,y-height/2+radius,radius);
    ctx.lineTo(x+width/2,y-height/2+radius);
    ctx.lineTo(x+width/2,y+height/2-radius);
    ctx.arcTo(x+width/2,y+height/2,x+width/2-radius,y+height/2,radius);
    ctx.lineTo(x+width/2-radius,y+height/2);
    ctx.lineTo(x-width/2+radius,y+height/2);
    ctx.arcTo(x-width/2,y+height/2,x-width/2,y+height/2-radius,radius);
    ctx.lineTo(x-width/2,y+height/2-radius);
    ctx.lineTo(x-width/2,y-height/2+radius);
    ctx.arcTo(x-width/2,y-height/2,x-width/2+radius,y-height/2,radius);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
    var retval={};
    retval.x=baseX+radius*Math.cos(theta);
    retval.y=baseY+radius*Math.sin(theta);
    return retval;
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
