小土堆pytorch学习—P19-最大池化的使用

MaxPool官方文档

一般用MaxPool2d，

参数👇

• kernel_size (Union[int, Tuple[int, int]**]) – the size of the window to take a max over——卷积核，一般3$\times$3
• stride (Union[int, Tuple[int, int]**]) – the stride of the window. Default value is kernel_size——步长一般与卷积核大小一致
• padding (Union[int, Tuple[int, int]**]) – Implicit negative infinity padding to be added on both sides——是否在图像边缘进行填充
• dilation (Union[int, Tuple[int, int]**]) – a parameter that controls the stride of elements in the window——是否在进行卷积时，隔一个取一个值？
• return_indices (bool) – if True, will return the max indices along with the outputs. Useful for torch.nn.MaxUnpool2d later
• ceil_mode (bool) – when True, will use ceil instead of floor to compute the output shape——如果设置为true，则保留边缘的特征，否则不保留

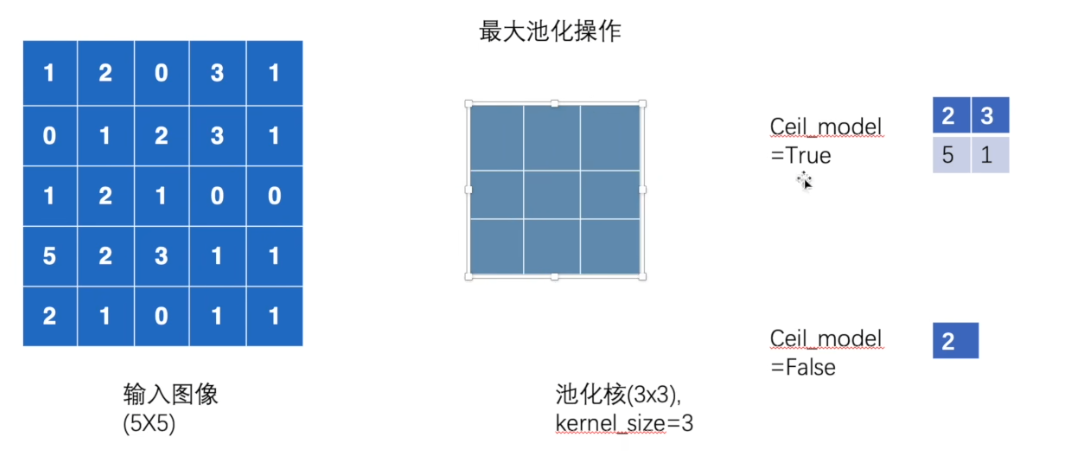

简单的使用代码示例👇

import torch
from torch import nn

input = torch.tensor([[1,2,0,3,1],
                    [0,1,2,3,1],
                    [1,2,1,0,0],
                    [5,2,3,1,1],
                    [2,1,0,1,1]])

class Tudui(nn.Module):
    def __init__(self):#这里忘记怎么写
        super(Tudui ,self).__init__()
        self.maxpool = nn.MaxPool2d(kernel_size = 3,
                                    ceil_mode =True)
        print(f"self.maxpool is {self.maxpool}")

    def forward(self , input):
        output = self.maxpool(input)
        return output

tudui = Tudui()
output = tudui(input)
print(f"output = {output}")
print(f"type of output = {type(output)}")
print("="*111)

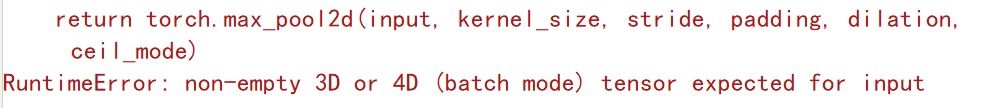

直接运行会出错，运行结果👇

问题：给定张量输入不对，需要3维/4维输入张量，但是现在我只给定了2维张量，需要对其重构。知道长宽和宽度，但不知道每次的minibatch^[1]。

解决方法有两种：

2. input = torch.tensor([[1,2,0,3,1],
                       [0,1,2,3,1],
                       [1,2,1,0,0],
                       [5,2,3,1,1],
                       [2,1,0,1,1]])
   print(F"the orignal shape of input is {input.shape}")
   # input = torch.reshape(input ,(-1 ,1,5,5) )#如果没有加这一行，会有报错
   print(F"the final shape of input is {input.shape}")
   # 增加一个维度，将2D张量转换为3D张量


3. input = torch.tensor([[1,2,0,3,1],
                       [0,1,2,3,1],
                       [1,2,1,0,0],
                       [5,2,3,1,1],
                       [2,1,0,1,1]])
   print(F"the orignal shape of input is {input.shape}")
   input= input.unsqueeze(0).unsqueeze(0).float()#增加维度
   print(F"the final shape of input is {input.shape}")


使用数据集在tensorboard中查看👇

test_data = torchvision.datasets.CIFAR10(root = "",
											train = False,
                                        transforms = torchvison.transforms.ToTensor())
data_loader = DataLoader(dataset =test_data ,  batch_size = 64)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.maxpool1 = MaxPool2d(kernel_size = 3,ceil_mode = False)

    def forward(self , input):
        output = self.maxpool1(input)
        return output

tudui = Tudui()
writer = SummaryWriter("tb_logs/maxpool_log")
step = 0
for data in data_loader:
    imgs , targets = data
    print(F"imgs = {imgs}")
    print(F"imgs.shape =  {imgs.shape}")
    print(F"imgs.type = {type(imgs)}")
    writer.add_images("maxpool_input" ,imgs, step )
    print(" "*111)
    output = tudui(imgs)
    print(F"output = {output}")
    print(F"output.shape = {output.shape}")
    print(F"output.type = {type(output)}")
    writer.add_images("maxpool_output",output, step)
    step+=1

writer.close()

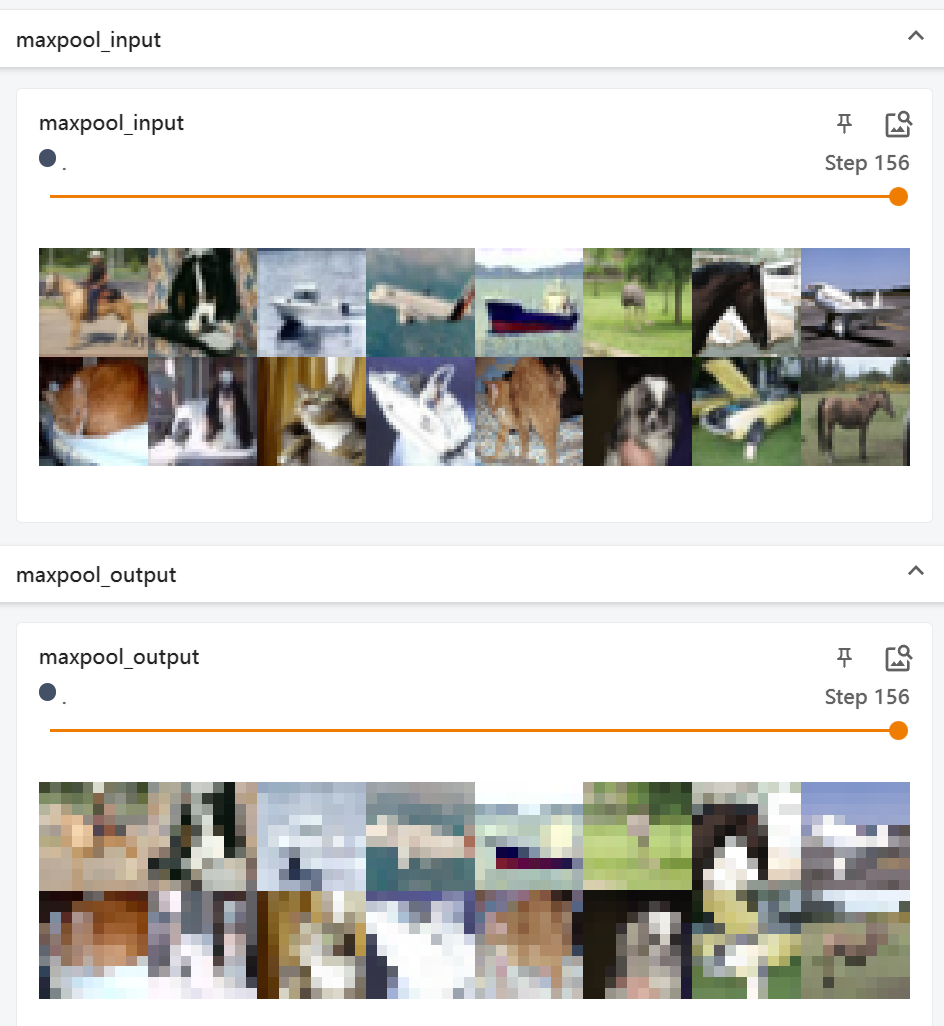

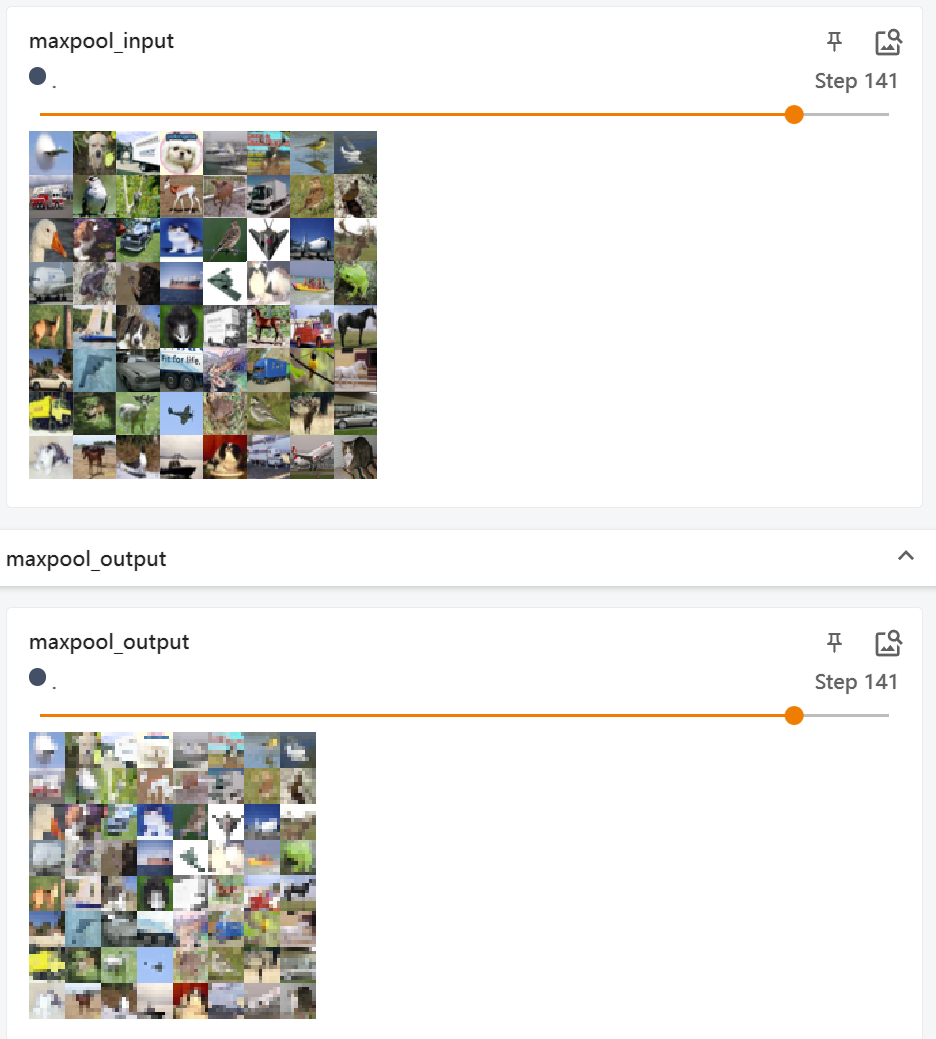

运行结果👇

---

---

1. https://pytorch.org/docs/stable/generated/torch.nn.functional.conv2d.html#torch.nn.functional.conv2d ↩︎
