spring-boot-swagger

一、创建项目

 spring-boot 搭建web项目 - hehehenhen - 博客园 (cnblogs.com)

二、导入依赖

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.7.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.7.0</version>
        </dependency>



三、创建api



package cn.newstrength.api;

import cn.newstrength.pojo.QueryPageRequest;
import cn.newstrength.pojo.QueryResponseResult;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.RequestBody;

import java.util.Map;

/**
 * 说明：
 *
 * @author LanPengBiao
 * @version 1.0
 * @Date: Created in 2021-10-29 9:32
 */
@Api(value="cms页面管理接口",description = "cms页面管理接口，提供页面的增、删、改、查")
public interface UserControllerApi {
    //页面查询
    @ApiOperation("分页查询页面列表")
    @ApiImplicitParams({
            @ApiImplicitParam(name="page",value = "页码",required=true,paramType="query",dataType="int"),
            @ApiImplicitParam(name="size",value = "每页记录数",required=true,paramType="query",dataType="int")
    })
    public Map findList( int  page, int size);


}







四、创建controller



package cn.newstrength.controller;

import cn.newstrength.api.UserControllerApi;
import cn.newstrength.pojo.Page;
import cn.newstrength.pojo.QueryPageRequest;
import cn.newstrength.pojo.QueryResponseResult;
import org.springframework.web.bind.annotation.*;

import java.util.HashMap;
import java.util.Map;


@RestController
public class UserController implements UserControllerApi{

    @PostMapping("getUser")
    public Map findList(int page, int size) {
        Map map = new HashMap();
        map.put(page, size);
        return map;
    }
}







五、注释启动类

启动



package cn.newstrength;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@SpringBootApplication
@EnableSwagger2
public class ManageApplication {
    public static void main(String[] args) {
        SpringApplication.run(ManageApplication.class);
    }
}

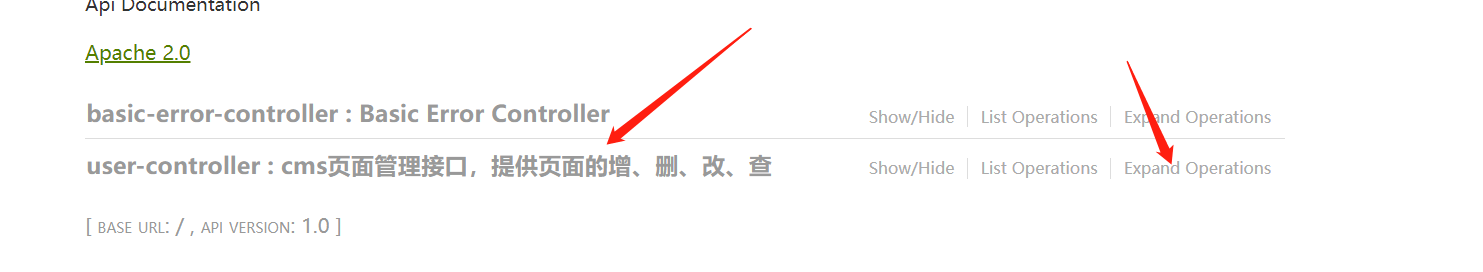

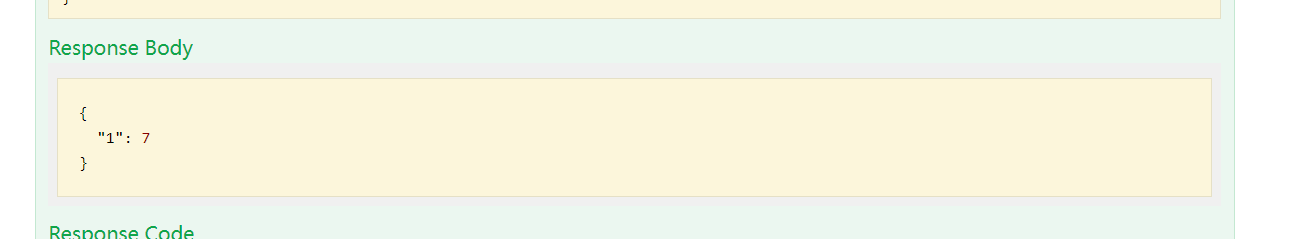

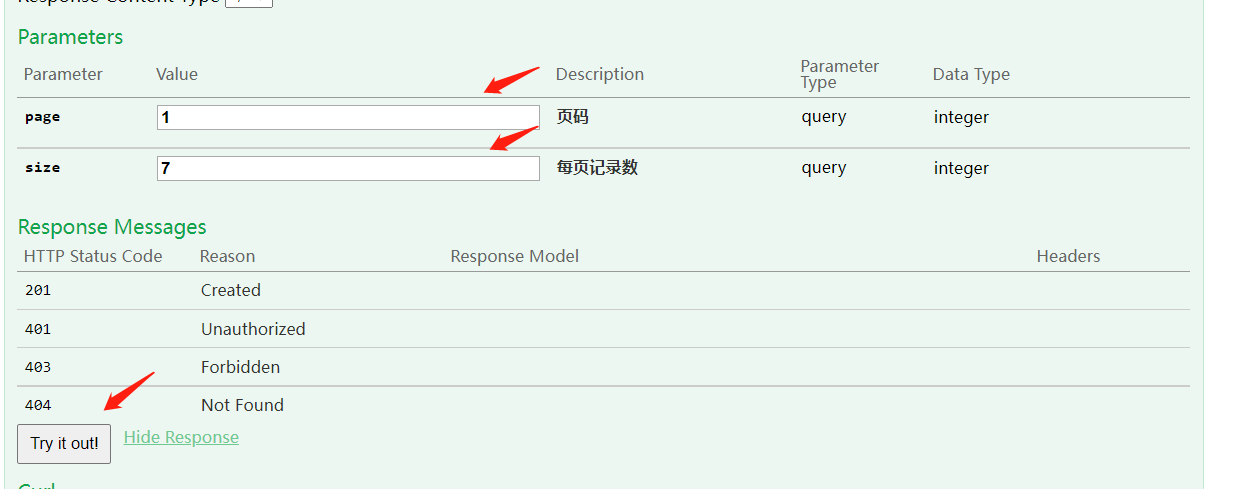

六、查看接口

网址：

http://localhost:8080/swagger-ui.html
