图像实验4 - 图像去噪
一、实验目的
1、掌握算术均值滤波器、几何均值滤波器、谐波和逆谐波均值滤波器进行图像去噪的算法
2、掌握利用中值滤波器进行图像去噪的算法
3、掌握自适应中值滤波算法
4、掌握自适应局部降低噪声滤波器去噪算法
5、掌握彩色图像去噪步骤
二、实验内容
1、均值滤波
具体内容：利用 OpenCV 对灰度图像像素进行操作，分别利用算术均值滤波器、几何均值滤波器、谐波和逆谐波均值滤波器进行图像去。模板大小为5*5。（注：请分别为图像添加高斯噪声、胡椒噪声、盐噪声和椒盐噪声，并观察滤波效果）
2、中值滤波
具体内容：利用 OpenCV 对灰度图像像素进行操作，分别利用 5*5 和 9*9尺寸的模板对图像进行中值滤波。（注：请分别为图像添加胡椒噪声、盐噪声和椒盐噪声，并观察滤波效果）
3、自适应均值滤波。
具体内容：利用 OpenCV 对灰度图像像素进行操作，设计自适应局部降低噪声滤波器去噪算法。模板大小 7*7（对比该算法的效果和均值滤波器的效果）
4、自适应中值滤波
具体内容：利用 OpenCV 对灰度图像像素进行操作，设计自适应中值滤波算法对椒盐图像进行去噪。模板大小 7*7（对比中值滤波器的效果）
5、彩色图像均值滤波
具体内容：利用 OpenCV 对彩色图像 RGB 三个通道的像素进行操作，利用算术均值滤波器和几何均值滤波器进行彩色图像去噪。模板大小为 5*5。
三、实验完成情况
添加噪声
核心代码
//添加指定数值噪声(椒：0，盐：255)
Mat saltAndPepperNoise(const Mat& input, int n, int value) {
int x, y;
int row = input.rows, col = input.cols;
bool color = input.channels() > 1;
Mat target = input.clone();
//随机取位置添加指定噪声
for (int i = 0; i < n; i++) {
x = rand() % row;
y = rand() % col;
if (color) {
target.at<Vec3b>(x, y)[0] = value;
target.at<Vec3b>(x, y)[1] = value;
target.at<Vec3b>(x, y)[2] = value;
}
else {
target.at<uchar>(x, y) = value;
}
}
return target;
}
//获取随机高斯噪声图像
Mat gaussianNoise(const Mat& input, int avg, int sd) {
Mat target = Mat::zeros(input.size(), input.type());
//Opencv随机数类
RNG rng(rand());
//高斯分布的平均数或均匀分布的最小值
int a = avg;
//高斯分布的标准差或均匀分布的最大值
int b = sd;
//类型，NORMAL为高斯分布，UNIFORM为均匀分布
int distType = RNG::NORMAL;
//产生一个符合高斯分布（或均匀分布）的图像
rng.fill(target, distType, a, b);
return target;
}
实现截图
1、均值滤波
核心代码
//对图像进行滤波处理
Mat filterProcess(const Mat& img, uchar kernel(const Mat&, int, int, int, int), int size, int q = 1) {
Mat target = img.clone();
vector<Mat> channels;
int m = size / 2;
split(target, channels);
for (Mat ch : channels) {
Mat src = ch.clone();
for (int i = src.rows - size; i >= 0; i--)
for (int j = src.cols - size; j >= 0; j--) {
ch.at<uchar>(i + m, j + m) = kernel(src, size, i, j, q);
}
}
merge(channels, target);
return target;
}
//算术均值计算
static uchar arithmeticMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res += img.at<uchar>(r, c);
}
}
return (uchar)(res / ((double)size * size));
}
//几何均值计算
static uchar geometricMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 1;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res *= img.at<uchar>(r, c);
}
}
return (uchar)(pow(res, 1.0 / ((double)size * size)));
}
//谐波平均值计算
static uchar harmonicMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res += 1.0 / ((double)img.at<uchar>(r, c) + 1);
}
}
return (uchar)(((double)size * size) / res - 1);
}
//反谐波平均值计算
static uchar antiHarmonicMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res1 = 0, res2 = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res1 += pow(img.at<uchar>(r, c), q + 1);
res2 += pow(img.at<uchar>(r, c), q);
}
}
return (uchar)(res1 / res2);
}

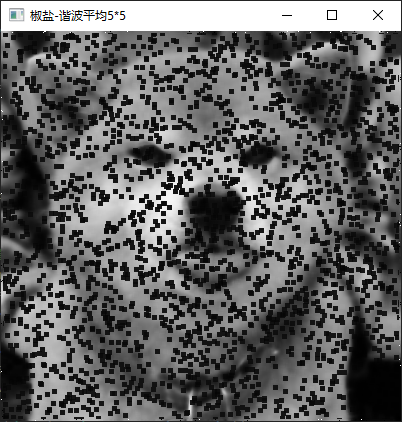

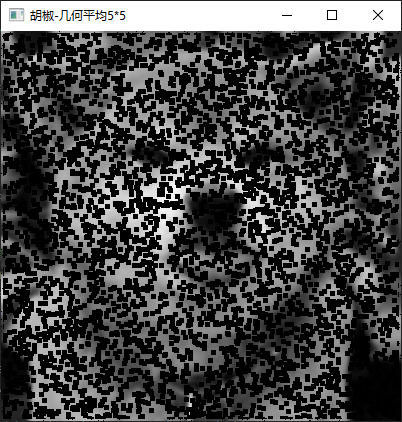

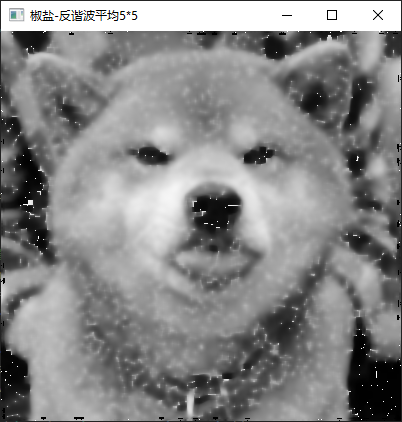

实现截图

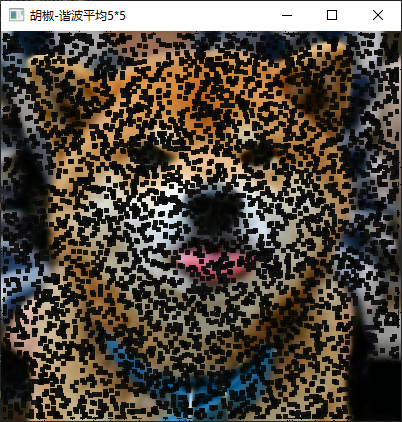

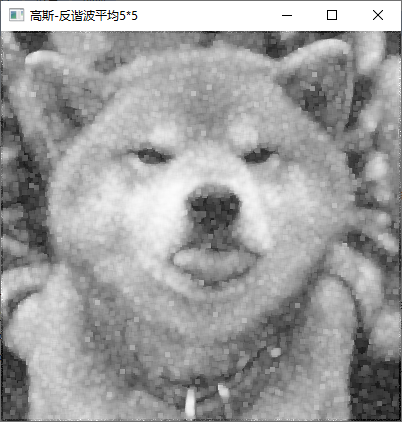

高斯噪声

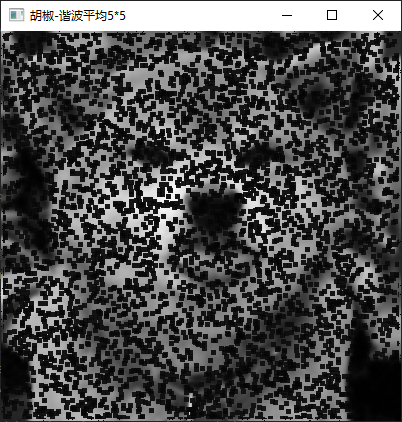

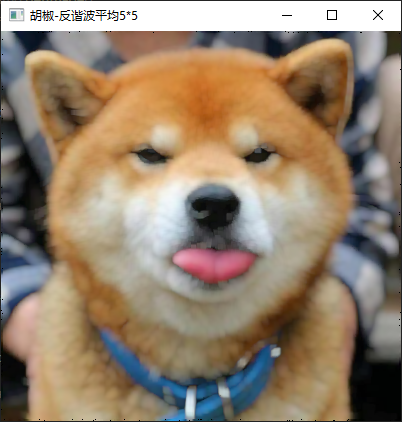

胡椒噪声
盐噪声

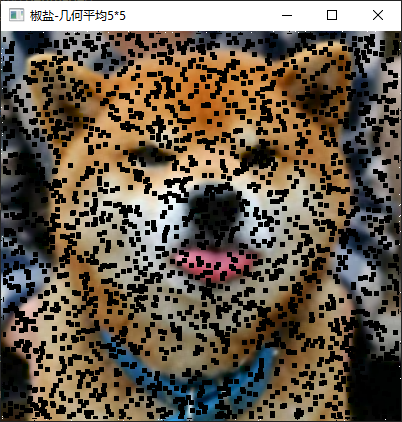

椒盐噪声
2、中值滤波
核心代码
//快速选择中值
static int quickSelect(vector<uchar>& vec, int left, int right, int target) {
int t = vec[left], l = left, r = right;
bool isLeft = true;
while (l < r) {
if (isLeft) {
while (l < r && vec[r] >= t)
r--;
vec[l] = vec[r];
}
else {
while (l < r && vec[l] < t)
l++;
vec[r] = vec[l];
}
isLeft = !isLeft;
}
vec[l] = t;
if (l < target)
return quickSelect(vec, l + 1, right, target);
else if (l > target)
return quickSelect(vec, left, l - 1, target);
return vec[l];
}
//中值计算
static uchar medianKernel(const Mat& img, int size, int i, int j, int q) {
vector<uchar> values;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
values.push_back(img.at<uchar>(r, c));
}
}
int cnt = size * size;
return quickSelect(values, 0, cnt - 1, cnt / 2);
}
实现截图
3、自适应均值滤波
核心代码
static uchar adaptiveMeanKernel(const Mat& img, int size, int i, int j, int q) {
double avg = 0, ds = 0;
uchar u = img.at<uchar>(i + size / 2, j + size / 2);
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
avg += img.at<uchar>(r, c);
}
}
avg /= size*size;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
ds += pow(avg - img.at<uchar>(r, c), 2);
}
}
double rate = q / ds;
if (rate > 1.0)
rate = 1.0;
return (int)(u - rate * (u - avg));
}
实现截图（由于自适应均值主要针对加性噪声，因此只测试高斯噪声的去噪效果）

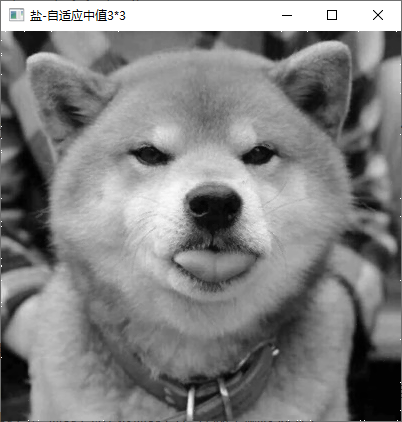

4、自适应中值滤波
核心代码
static uchar adaptiveMedianKernel(const Mat& img, int size, int i, int j, int max_size) {
vector<uchar> values;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
values.push_back(img.at<uchar>(r, c));
}
}
int cnt = size * size;
int mid = quickSelect(values, 0, cnt - 1, cnt / 2);
int min = quickSelect(values, 0, cnt - 1, 0);
int max = quickSelect(values, 0, cnt - 1, cnt - 1);
if (mid < max && min < mid) {
uchar u = img.at<uchar>(i + size / 2, j + size / 2);
return (min < u&& u < max) ? u : mid;
}
if (size == max_size || i == 0 || j == 0 || i + size + 1 >= img.rows || j + size + 1 >= img.cols)
return mid;
return adaptiveMedianKernel(img, size + 2, i - 1, j - 1, max_size);
}
实现截图
5、彩色图像均值滤波
核心代码
核心滤波处理函数filterProcess支持对彩色图像分解处理，因此与灰度图像使用相同的均值计算Kernel函数
实现截图

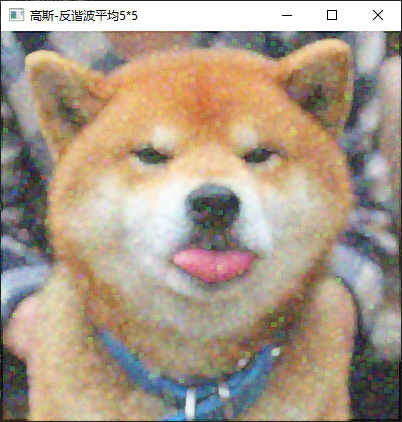

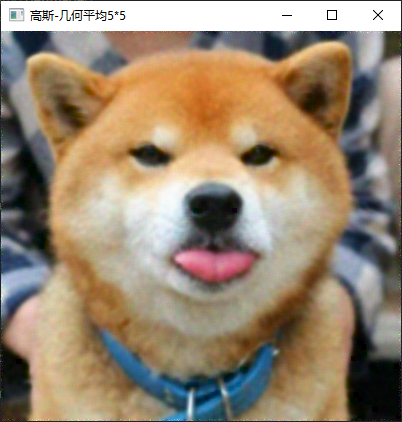

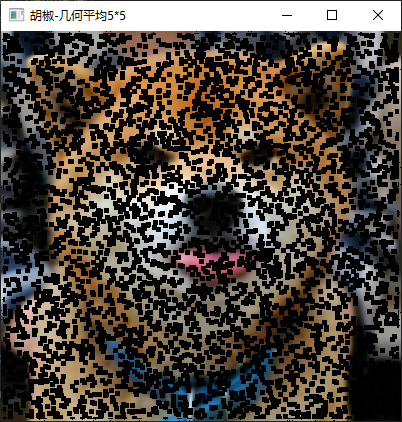

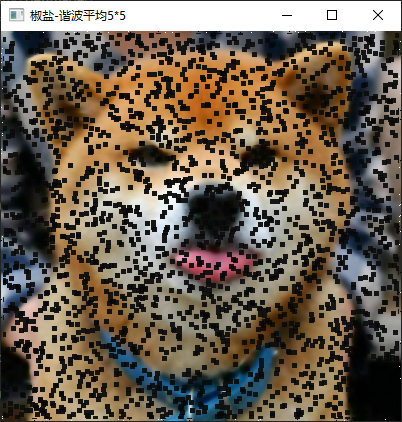

添加噪声
高斯噪声
胡椒噪声
盐噪声
椒盐噪声
四、实验中的问题
- 对于滤波器的理解不够深，耗费了很长时间加深理解关于滤波器处理噪声方面的知识。
- 由于滤波器均为手动滤波，在代码编写方面比之前的实验更难一些，也更容易碰到很多问题。
- 关于合适的自适应均值滤波的估计值，高斯噪声的均值和标准差等参数的选取方面也耗费了很多时间。
五、实验结果
源码
lab4.cpp
#include <opencv2/opencv.hpp>
#include <iostream>
#include <string>
using namespace std;
using namespace cv;

const static std::string path = "F:\\Documents\\高级图像处理\\Image\\";
//图片路径组合
string getFullPath(string name) {
return path + name;
}
//打开图片显示窗口
void openWindows(string win_name, Mat img, int x = 500, int y = 200) {
//窗口命名，指定大小，生成位置
namedWindow(win_name, WINDOW_AUTOSIZE);
moveWindow(win_name, x, y);
//生成窗口显示图片
imshow(win_name, img);
//等待键入
waitKey();
//关闭窗口
destroyWindow(win_name);
}
//统一数字输入函数
template<typename T>T inputNumber(string desc) {
system("cls");
T input;
cout << desc;
cin >> input;
cout << endl;
return input;
}
//统一图片打开函数，用于简化路径和处理打开图片错误
Mat openImage(string name, int type = 1) {
//图片读取函数，返回图像存储类（包含存储方式、存储矩阵、矩阵大小等）
Mat img = imread(getFullPath(name), type);
if (img.empty()) {
cout << "无效图片，读取失败" << endl;
exit(-1);
}
return img;
}
//图像基类
class Image {
protected:
Mat img;
public:
Mat getImage() {
return img.clone();
}
};
//彩色图像处理类
class ColorImage :public Image {
public:
ColorImage(Mat img,string name) {
this->img = img.clone();
openWindows(name, img);
}
//读取彩色图像并展示
ColorImage(string path) {
img = openImage(path, IMREAD_COLOR);
openWindows("彩色图像", img);
}
};
//灰度图像处理类
class GrayImage :public Image {
public:
GrayImage(Mat img,string name) {
this->img = img.clone();
openWindows(name, img);
}
//仅读取灰度方式读取图像并展示（IMREAD_GRAYSCALE）
GrayImage(string path) {
img = openImage(path, IMREAD_GRAYSCALE);
openWindows("灰度图像", img);
}
};
//添加噪声处理类
class Noise {
Mat src;
private:
//防止图像溢出的图像加减处理，使用saturate_cast进行限制
Mat handleImageAddition(Mat img, Mat add, bool ifadd = true) {
Mat target = img.clone();
vector<Mat> target_channels;
vector<Mat> add_channels;
split(target, target_channels);
split(add, add_channels);
for (int c = 0; c < target_channels.size(); c++) {
Mat curr = target_channels[c];
Mat cadd = add_channels[c];
for (int i = 0; i < curr.rows; i++)
for (int j = 0; j < curr.cols; j++)
curr.at<uchar>(i, j) = saturate_cast<uchar>(ifadd ? curr.at<uchar>(i, j) + cvRound(cadd.at<uchar>(i, j)) : curr.at<uchar>(i, j) - cvRound(cadd.at<uchar>(i, j)));
}
merge(target_channels, target);
return target;
}
//添加指定数值噪声(椒：0，盐：255)
Mat saltAndPepperNoise(const Mat& input, int n, int value) {
int x, y;
int row = input.rows, col = input.cols;
bool color = input.channels() > 1;
Mat target = input.clone();
//随机取位置添加指定噪声
for (int i = 0; i < n; i++) {
x = rand() % row;
y = rand() % col;
if (color) {
target.at<Vec3b>(x, y)[0] = value;
target.at<Vec3b>(x, y)[1] = value;
target.at<Vec3b>(x, y)[2] = value;
}
else {
target.at<uchar>(x, y) = value;
}
}
return target;
}
//获取随机高斯噪声图像
Mat gaussianNoise(const Mat& input, int avg, int sd) {
Mat target = Mat::zeros(input.size(), input.type());
//Opencv随机数类
RNG rng(rand());
//高斯分布的平均数或均匀分布的最小值
int a = avg;
//高斯分布的标准差或均匀分布的最大值
int b = sd;
//类型，NORMAL为高斯分布，UNIFORM为均匀分布
int distType = RNG::NORMAL;
//产生一个符合高斯分布（或均匀分布）的图像
rng.fill(target, distType, a, b);
return target;
}
public:
Noise(Image img) {
this->src = img.getImage();
}
//添加胡椒噪声
Image addPepperNoise(int n) {
Mat output = saltAndPepperNoise(src, n, 0);
string name = "胡椒噪声";
if (src.channels() == 1)
return GrayImage(output, name);
else
return ColorImage(output, name);
}
//添加盐噪声
Image addSaltNoise(int n) {
Mat output = saltAndPepperNoise(src, n, 255);
string name = "盐噪声";
if (src.channels() == 1)
return GrayImage(output, name);
else
return ColorImage(output, name);
}
//添加椒盐噪声
Image addSaltAndPepperNoise(int n) {
Mat output = saltAndPepperNoise(saltAndPepperNoise(src, n / 2, 0), n / 2, 255);
string name = "椒盐噪声";
if (src.channels() == 1)
return GrayImage(output, name);
else
return ColorImage(output, name);
}
//添加高斯分布
Image addGaussianNoise(int avg = 15, int sd = 30) {
//高斯噪声图像
Mat noise = gaussianNoise(src, avg, sd);
//噪声图像与原图像叠加
Mat output = handleImageAddition(src, noise);
string name = "高斯噪声";
if (src.channels() == 1)
return GrayImage(output, name);
else
return ColorImage(output, name);
}
};
class Filter {
protected:
Mat img;
bool color;
//对图像进行滤波处理
Mat filterProcess(const Mat& img, uchar kernel(const Mat&, int, int, int, int), int size, int q = 1) {
Mat target = img.clone();
vector<Mat> channels;
int m = size / 2;
split(target, channels);
for (Mat ch : channels) {
Mat src = ch.clone();
for (int i = src.rows - size; i >= 0; i--)
for (int j = src.cols - size; j >= 0; j--) {
ch.at<uchar>(i + m, j + m) = kernel(src, size, i, j, q);
}
}
merge(channels, target);
return target;
}
public:
Filter(Image img) {
this->img = img.getImage();
this->color = this->img.channels() != 1;
}
};
class MeanFilter :public Filter {
private:
//算术均值计算
static uchar arithmeticMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res += img.at<uchar>(r, c);
}
}
return (uchar)(res / ((double)size * size));
}
//几何均值计算
static uchar geometricMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 1;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res *= img.at<uchar>(r, c);
}
}
return (uchar)(pow(res, 1.0 / ((double)size * size)));
}
//谐波平均值计算
static uchar harmonicMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res += 1.0 / ((double)img.at<uchar>(r, c) + 1);
}
}
return (uchar)(((double)size * size) / res - 1);
}
//反谐波平均值计算
static uchar antiHarmonicMeanKernel(const Mat& img, int size, int i, int j, int q) {
double res1 = 0, res2 = 0;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
res1 += pow(img.at<uchar>(r, c), q + 1);
res2 += pow(img.at<uchar>(r, c), q);
}
}
return (uchar)(res1 / res2);
}
public:
MeanFilter(Image img) :Filter(img) {
}
//算术平均滤波
void handleArithmeticMean(int size, string type = "") {
string name = type + "算术平均";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
openWindows(name, filterProcess(img, arithmeticMeanKernel, size));
}
//几何平均滤波
void handleGeometricMean(int size, string type = "") {
string name = type + "几何平均";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
openWindows(name, filterProcess(img, geometricMeanKernel, size));
}
//谐波平均滤波
void handleHarmonicMean(int size, string type = "") {
string name = type + "谐波平均";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
openWindows(name, filterProcess(img, harmonicMeanKernel, size));
}
//反谐波平均滤波
void handleAntiHrithmeticMean(int size, int q, string type = "", bool twice = false) {
string name = type + "反谐波平均";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
Mat target = filterProcess(img, antiHarmonicMeanKernel, size, q);
if (twice)
target = filterProcess(target, antiHarmonicMeanKernel, size, -q);
openWindows(name, target);
}
static void show(string type, Image img, int size, int q = 1, bool twice = false) {
MeanFilter mf(img);
mf.handleArithmeticMean(size, type);
mf.handleGeometricMean(size, type);
mf.handleHarmonicMean(size, type);
mf.handleAntiHrithmeticMean(size, q, type, twice);
}
};
class MedianFilter :public Filter {
protected:
//快速选择中值
static int quickSelect(vector<uchar>& vec, int left, int right, int target) {
int t = vec[left], l = left, r = right;
bool isLeft = true;
while (l < r) {
if (isLeft) {
while (l < r && vec[r] >= t)
r--;
vec[l] = vec[r];
}
else {
while (l < r && vec[l] < t)
l++;
vec[r] = vec[l];
}
isLeft = !isLeft;
}
vec[l] = t;
if (l < target)
return quickSelect(vec, l + 1, right, target);
else if (l > target)
return quickSelect(vec, left, l - 1, target);
return vec[l];
}
private:
//中值计算
static uchar medianKernel(const Mat& img, int size, int i, int j, int q) {
vector<uchar> values;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
values.push_back(img.at<uchar>(r, c));
}
}
int cnt = size * size;
return quickSelect(values, 0, cnt - 1, cnt / 2);
}
public:
MedianFilter(Image img) :Filter(img) {
}
void handleMedian(int size, string type = "") {
string name = type + "中值滤波";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
openWindows(name, filterProcess(img, medianKernel, size));
}
static void show(string type, Image img, int size1, int size2) {
MedianFilter mf(img);
mf.handleMedian(size1, type);
mf.handleMedian(size2, type);
}
};
class AdaptiveMeanFilter :public MeanFilter {
private:
static uchar adaptiveMeanKernel(const Mat& img, int size, int i, int j, int q) {
double avg = 0, ds = 0;
uchar u = img.at<uchar>(i + size / 2, j + size / 2);
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
avg += img.at<uchar>(r, c);
}
}
avg /= size*size;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
ds += pow(avg - img.at<uchar>(r, c), 2);
}
}
double rate = q / ds;
if (rate > 1.0)
rate = 1.0;
return (int)(u - rate * (u - avg));
}
public:
AdaptiveMeanFilter(Image img) :MeanFilter(img) {
}
//自适应均值
void handleAdaptiveMeanKernel(int size, int q, string type = "") {
string name = type + "自适应均值";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
Mat res = filterProcess(img, adaptiveMeanKernel, size, q);
openWindows(name, res);
}
static void show(string type, Image img, int size, int q) {
AdaptiveMeanFilter mf(img);
mf.handleAdaptiveMeanKernel(size, q, type);
}
};
class AdaptiveMedianFilter :MedianFilter {
private:
//自适应中值计算
static uchar adaptiveMedianKernel(const Mat& img, int size, int i, int j, int max_size) {
vector<uchar> values;
for (int r = i + size - 1; r >= i; r--) {
for (int c = j + size - 1; c >= j; c--) {
values.push_back(img.at<uchar>(r, c));
}
}
int cnt = size * size;
int mid = quickSelect(values, 0, cnt - 1, cnt / 2);
int min = quickSelect(values, 0, cnt - 1, 0);
int max = quickSelect(values, 0, cnt - 1, cnt - 1);
if (mid < max && min < mid) {
uchar u = img.at<uchar>(i + size / 2, j + size / 2);
return (min < u&& u < max) ? u : mid;
}
if (size == max_size || i == 0 || j == 0 || i + size + 1 >= img.rows || j + size + 1 >= img.cols)
return mid;
return adaptiveMedianKernel(img, size + 2, i - 1, j - 1, max_size);
}
public:
AdaptiveMedianFilter(Image img) :MedianFilter(img) {
}
void handleAdaptiveMedianKernel(int size, int max_size, string type = "") {
string name = type + "自适应中值";
name += (char)(size + '0');
name += '*';
name += (char)(size + '0');
Mat res = filterProcess(img, adaptiveMedianKernel, size, max_size);
openWindows(name, res);
}
static void show(string type, Image img, int size, int max_size) {
AdaptiveMedianFilter mf(img);
mf.handleAdaptiveMedianKernel(size, max_size, type);
}
};
int main() {
string name = "test.jpg";
//灰度图像
GrayImage gray_img(name);
//灰度图噪声生成器
Noise noise(gray_img);
//高斯噪声
Image gaussianNoise = noise.addGaussianNoise(0, 30);
//胡椒噪声
Image pepperNoise = noise.addPepperNoise(5000);
//盐噪声
Image saltNoise = noise.addSaltNoise(5000);
//椒盐噪声
Image saltAndPepperNoise = noise.addSaltAndPepperNoise(5000);
//均值滤波
MeanFilter::show("高斯-", gaussianNoise, 5, 2);
MeanFilter::show("胡椒-", pepperNoise, 5, 2);
MeanFilter::show("盐-", saltNoise, 5, -2);
MeanFilter::show("椒盐-", saltAndPepperNoise, 5, 2, true);
//中值滤波
MedianFilter::show("高斯-", pepperNoise, 5, 9);
MedianFilter::show("胡椒-", pepperNoise, 5, 9);
MedianFilter::show("盐-", saltNoise, 5, 9);
MedianFilter::show("椒盐-", saltAndPepperNoise, 5, 9);
//自适应均值滤波
AdaptiveMeanFilter::show("高斯-", gaussianNoise, 7, 10000);
//自适应中值滤波
AdaptiveMedianFilter::show("高斯-", pepperNoise, 3, 7);
AdaptiveMedianFilter::show("胡椒-", pepperNoise, 3, 7);
AdaptiveMedianFilter::show("盐-", saltNoise, 3, 7);
AdaptiveMedianFilter::show("椒盐-", saltAndPepperNoise, 7, 7);
//彩色图像
ColorImage color_img(name);
//彩色图噪声生成器
Noise c_noise(color_img);
//高斯噪声
Image c_gaussianNoise = c_noise.addGaussianNoise(0, 30);
//胡椒噪声
Image c_pepperNoise = c_noise.addPepperNoise(5000);
//盐噪声
Image c_saltNoise = c_noise.addSaltNoise(5000);
//椒盐噪声
Image c_saltAndPepperNoise = c_noise.addSaltAndPepperNoise(5000);
//均值滤波
MeanFilter::show("高斯-", c_gaussianNoise, 5, 2);
MeanFilter::show("胡椒-", c_pepperNoise, 5, 2);
MeanFilter::show("盐-", c_saltNoise, 5, -2);
MeanFilter::show("椒盐-", c_saltAndPepperNoise, 5, 2, true);
return 0;
}
