【蓝桥杯-单片机设计与开发】5.时钟DS1302
1.官方底层驱动代码
/*
程序说明: DS1302驱动程序
软件环境: Keil uVision 4.10
硬件环境: CT107单片机综合实训平台 8051,12MHz
日 期: 2011-8-9
*/
#include <reg52.h>
#include <intrins.h>
sbit SCK=P1^7;
sbit SDA=P2^3;
sbit RST = P1^3; // DS1302复位
void Write_Ds1302_Byte(unsigned char temp)
{
unsigned char i;
for (i=0;i<8;i++)
{
SCK=0;
SDA=temp&0x01;
temp>>=1;
SCK=1;
}
}
void Write_Ds1302( unsigned char address,unsigned char dat )
{
RST=0;
_nop_();
SCK=0;
_nop_();
RST=1;
_nop_();
Write_Ds1302_Byte(address);
Write_Ds1302_Byte(dat);
RST=0;
}
unsigned char Read_Ds1302 ( unsigned char address )
{
unsigned char i,temp=0x00;
RST=0;
_nop_();
SCK=0;
_nop_();
RST=1;
_nop_();
Write_Ds1302_Byte(address);
for (i=0;i<8;i++)
{
SCK=0;
temp>>=1;
if(SDA)
temp|=0x80;
SCK=1;
}
RST=0;
_nop_();
RST=0;
SCK=0;
_nop_();
SCK=1;
_nop_();
SDA=0;
_nop_();
SDA=1;
_nop_();
return (temp);
}

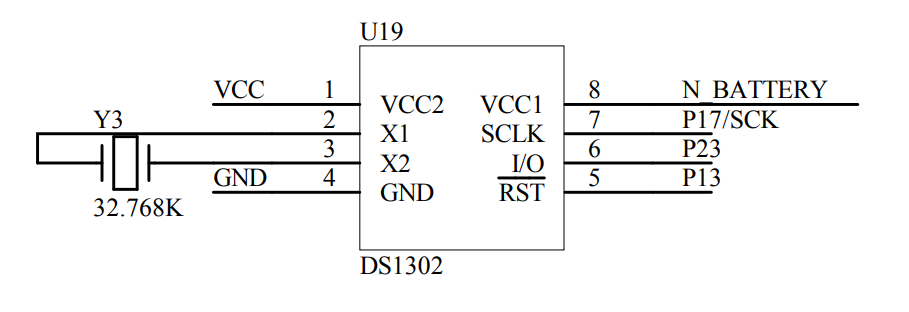

2.原理图
单独接一个32.768K晶振,通过3个IO口进行数据传递。

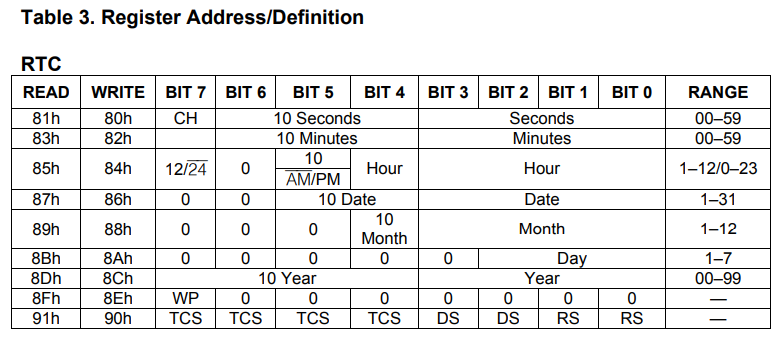

3.芯片手册
实时时钟计数秒、分钟、小时、月份的日期、月份、日期、周和带闰年的年,补偿有效期至 2100。
(1)读写实现
初始化时,写入时间初始值,后续读取数值,即可得到时间。
有写保护WP=0,写保护关闭,WP=1,写保护打开。
值得注意的是,不论写入数据还是读取数据都是BCD码。
BCD码就是用4位二进制数表示0~9,这里要注意一下,4位二进制的BCD码是没有办法表示10的,如果需要表示10,那么就是0001 0000.
比如BCD码 0x10->10(十进制),0x89->89.
4.代码实现
RTC.c
#include "stc15f2k60s2.h"
#include "ds1302.h"
unsigned char time[6]={0x55,0x59,0x23};
void Timer_init()
{
unsigned char i,add;
Write_Ds1302_Byte(0x8e,0x00);
add=0x80;
for(i=0;i<7;i++)
{
Write_Ds1302_Byte(add,time[i]);
add+=2;
}
Write_Ds1302_Byte(0x8e,0x80);
}
void time_get()
{
unsigned char i,add,tim1,tim2;
add=0x81;
for(i=0;i<7;i++)
{
time[i]=Read_Ds1302_Byte(add);
tim1=time[i]/16;
tim2=time[i]%16;
time[i]=tim1*10+tim2;
add+=2;
}
}
main.c
#include "stc15f2k60s2.h"
#include "display.h"
#include "hc138.h"
#include "rtc.h"
void main(void)
{
init0();
Timer2Init();
Timer_init();
while(1)
{
time_get();
smgdat[0]=time[2]/10;
smgdat[1]=time[2]%10;
smgdat[2]=20;
smgdat[3]=time[1]/10;
smgdat[4]=time[1]%10;
smgdat[5]=20;
smgdat[6]=time[0]/10;
smgdat[7]=time[0]%10;
}
}
