[mysql]索引优化

索引失效（避免）

CREATE TABLE staffs(
id INT PRIMARY KEY AUTO_INCREMENT,
`name` VARCHAR(24)NOT NULL DEFAULT'' COMMENT'姓名',
`age` INT NOT NULL DEFAULT 0 COMMENT'年龄',
`pos` VARCHAR(20) NOT NULL DEFAULT'' COMMENT'职位',
`add_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT'入职时间'
)CHARSET utf8 COMMENT'员工记录表';
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('z3',22,'manager',NOW());
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('July',23,'dev',NOW());
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('2000',23,'dev',NOW());

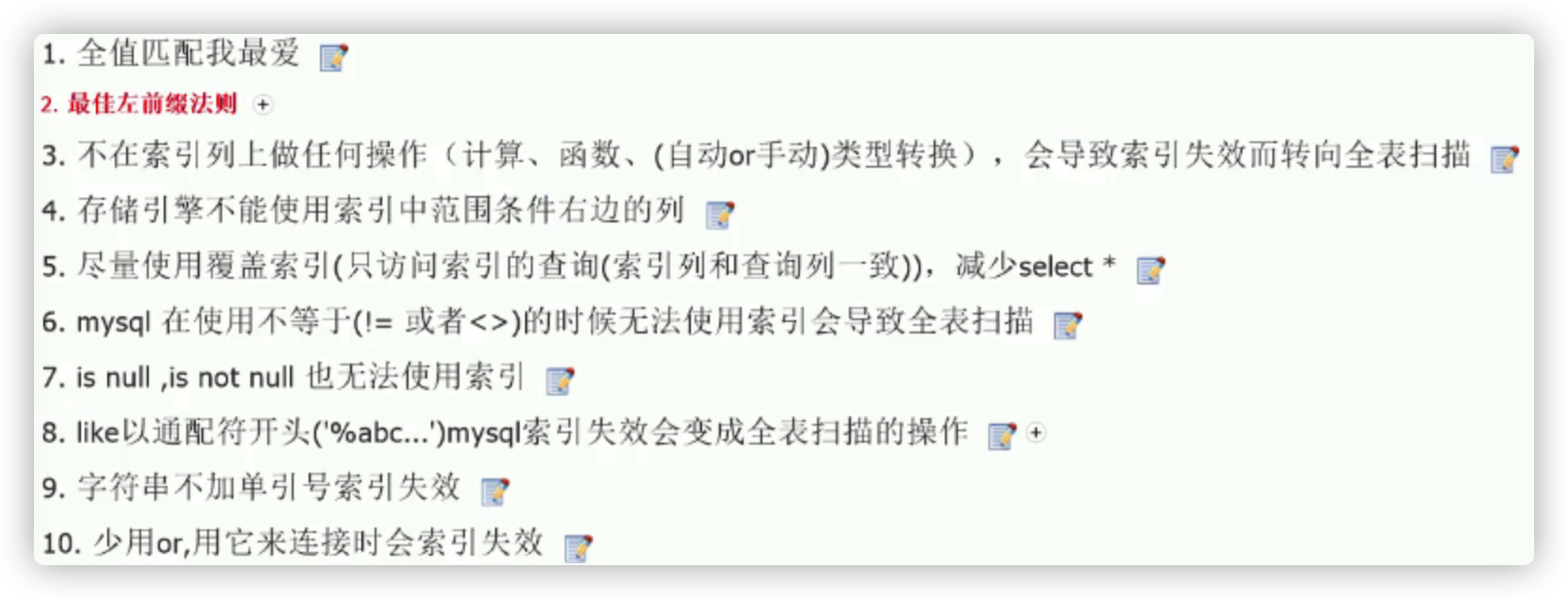

索引失效的情况

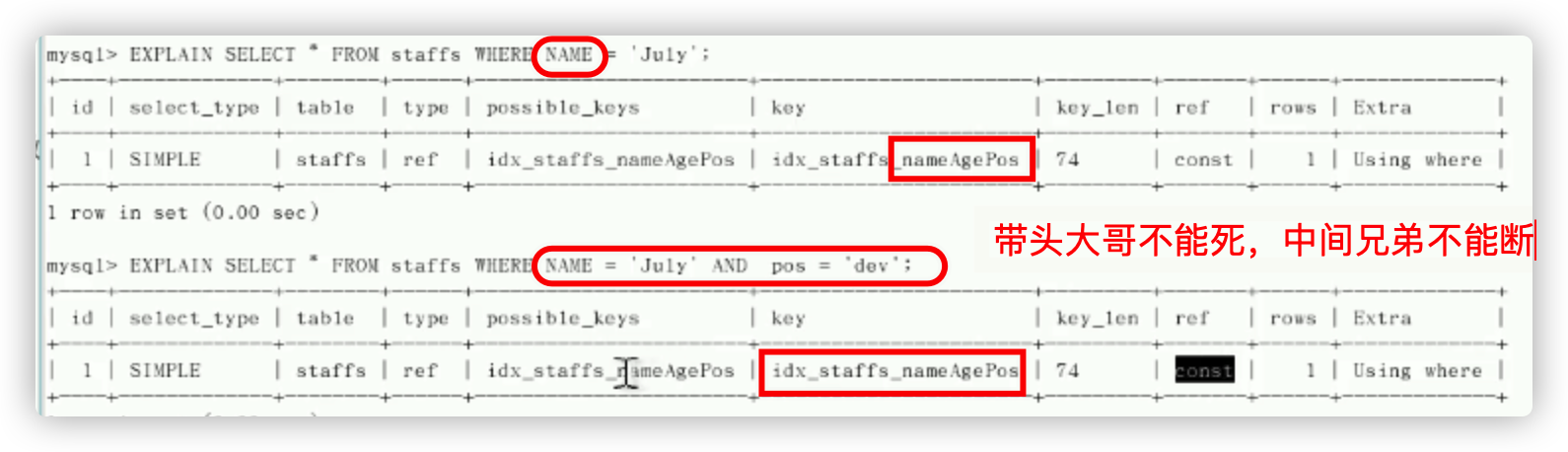

1最佳左前缀法则

解释：如果索引是多字段的复合索引，要遵守最佳左前缀法则。指的是查询从索引的最左前列开始并且不跳过索引中的字段。
口诀：带头大哥不能死，中间兄弟不能断。
索引：idx_staffs_nameAgePos索引

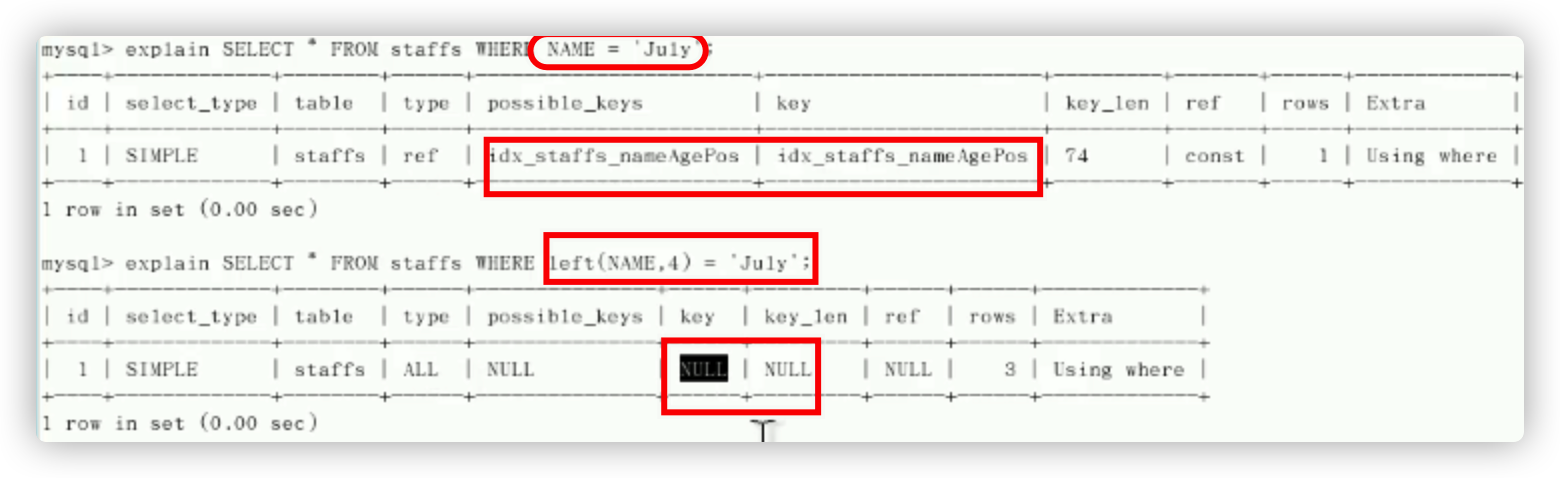

2索引列上不操作（计算、函数、（自动or手动）类型转换）

查询结果一致，但是一个用到索引，另外一个没有用的索引。

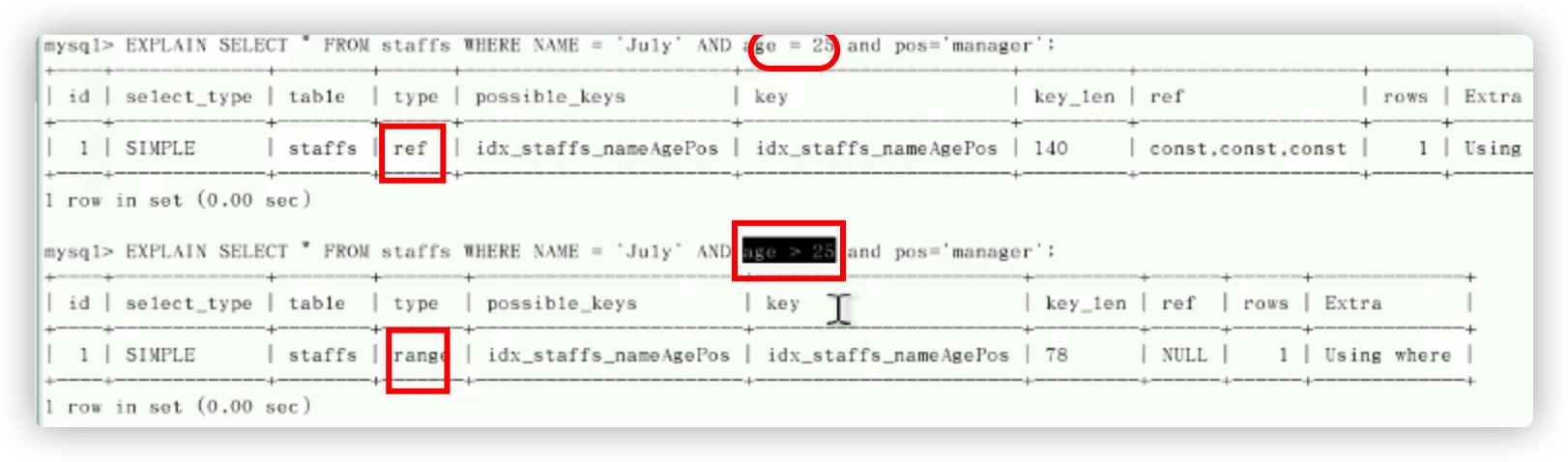

3范围之后全失效

即：age后面的列失效了

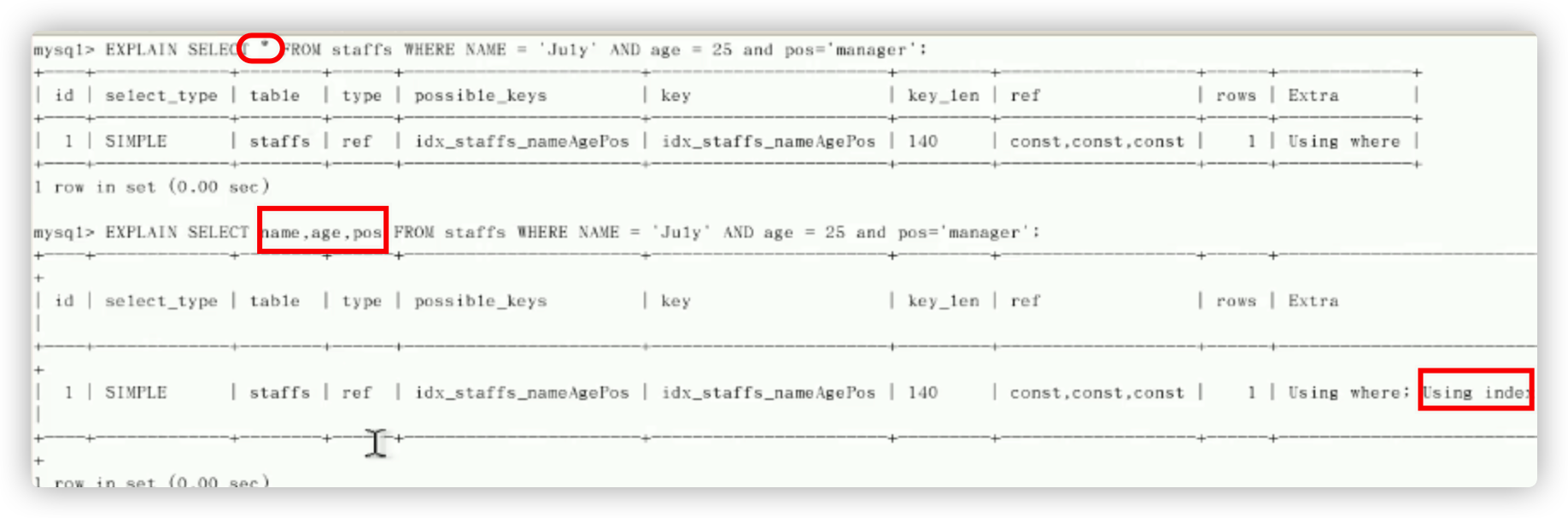

4覆盖索引尽量用

尽量使用索引覆盖（只访问索引的查询（索引列和查询列一致）），减少select *

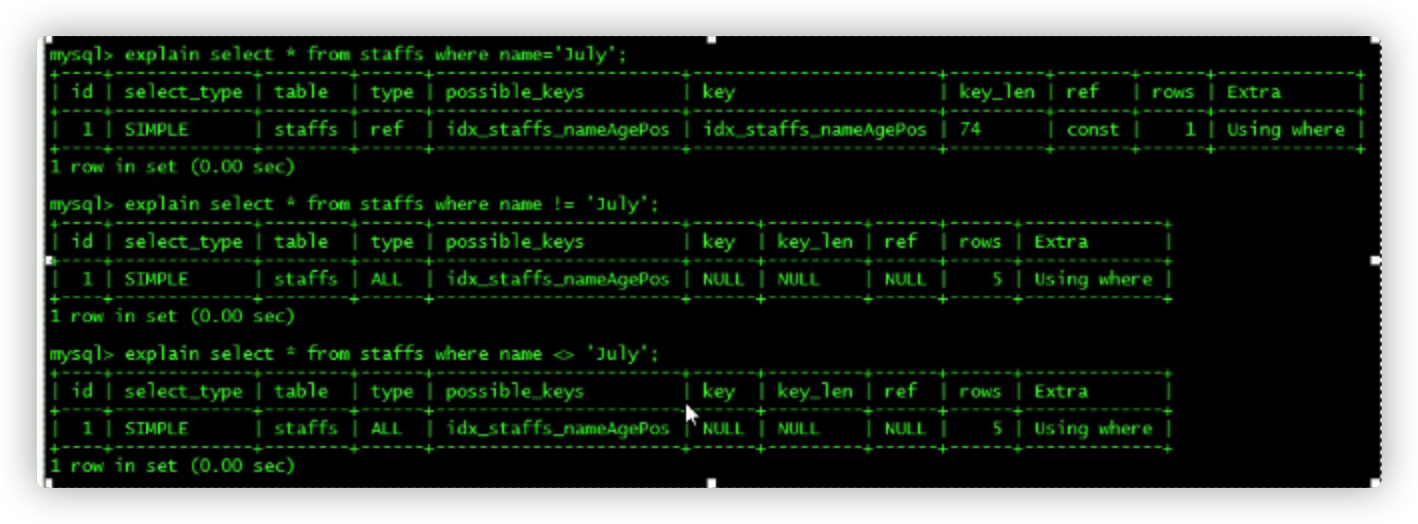

5不等有时会失效

使用 != <>时

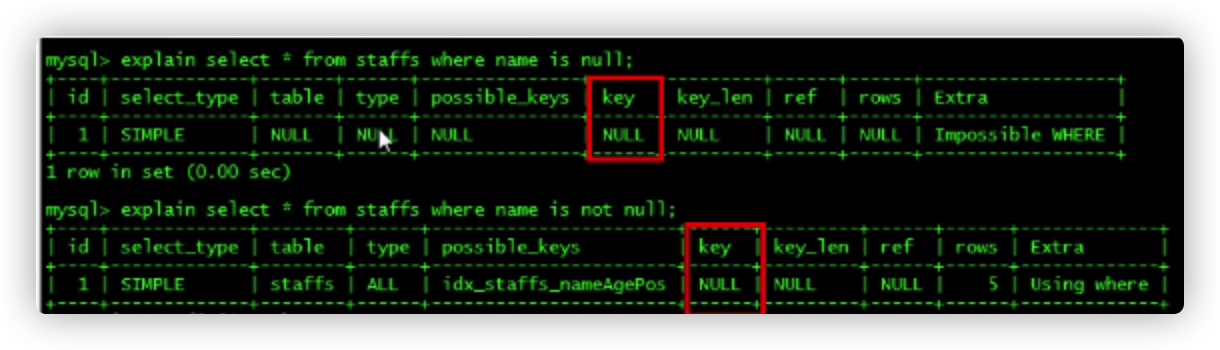

6is null，is not noll 也无法使用索引

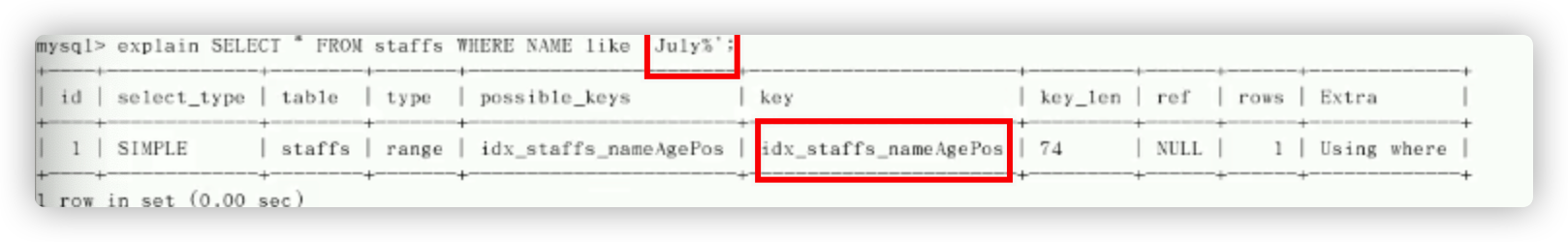

7like百分加右边

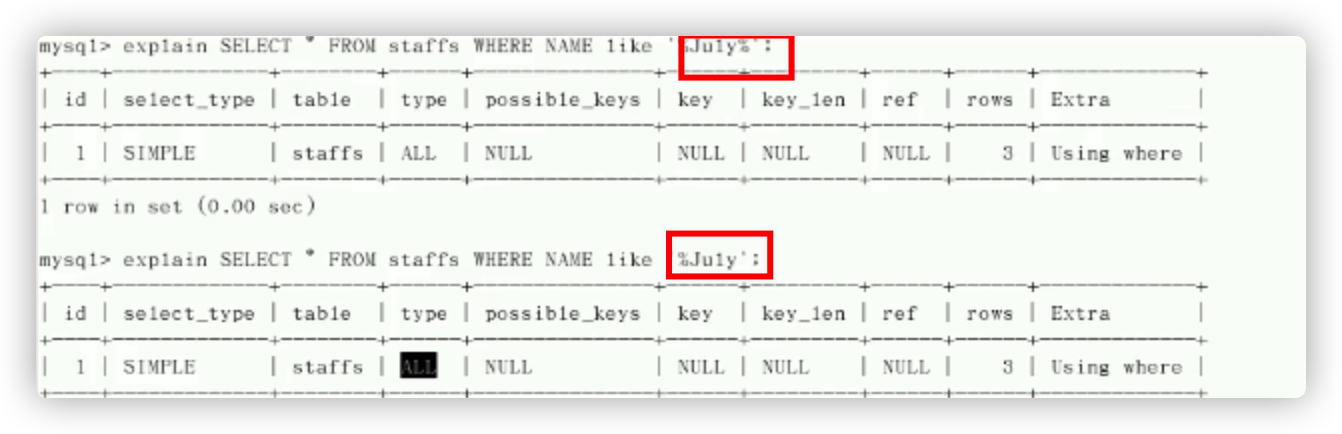

左边与两边key为null
加右边
解决like '‘%字符串%’' 时索引不被使用的方法？

CREATE TABLE `tbl_user`(
`id` INT(11) NOT NULL AUTO_INCREMENT,
`name` VARCHAR(20) DEFAULT NULL,
`age`INT(11) DEFAULT NULL,
`email` VARCHAR(20) DEFAULT NULL,
PRIMARY KEY(`id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

INSERT INTO tbl_user(`name`,`age`,`email`)VALUES('1aa1',21,'a@163.com');
INSERT INTO tbl_user(`name`,`age`,`email`)VALUES('2bb2',23,'b@163.com');
INSERT INTO tbl_user(`name`,`age`,`email`)VALUES('3cc3',24,'c@163.com');
INSERT INTO tbl_user(`name`,`age`,`email`)VALUES('4dd4',26,'d@163.com');

#j建立索引
CREATE INDEX idx_user_nameAge ON tbl_user(name,age);
#覆盖索引
mysql> EXPLAIN SELECT name,age FROM tbl_user WHERE name LIKE '%aa%';
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
| id | select_type | table    | partitions | type  | possible_keys | key              | key_len | ref  | rows | filtered | Extra                    |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
|  1 | SIMPLE      | tbl_user | NULL       | index | NULL          | idx_user_nameAge | 68      | NULL |    4 |    25.00 | Using where; Using index |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
#覆盖索引
 EXPLAIN SELECT name FROM tbl_user WHERE name LIKE '%aa%';
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
| id | select_type | table    | partitions | type  | possible_keys | key              | key_len | ref  | rows | filtered | Extra                    |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
|  1 | SIMPLE      | tbl_user | NULL       | index | NULL          | idx_user_nameAge | 68      | NULL |    4 |    25.00 | Using where; Using index |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
#覆盖索引 id主键
mysql> mysql> EXPLAIN NAME,age,id FROM tbl_OM tbl_user WHERE name LIKE '%aa%';
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
| id | select_type | table    | partitions | type  | possible_keys | key              | key_len | ref  | rows | filtered | Extra                    |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+
|  1 | SIMPLE      | tbl_user | NULL       | index | NULL          | idx_user_nameAge | 68      | NULL |    4 |    25.00 | Using where; Using index |
+----+-------------+----------+------------+-------+---------------+------------------+---------+------+------+----------+--------------------------+

#email没有索引，索引失效
mysql> EXPLAIN SELECT NAME,age,id,email FROM tbl_user WHERE name LIKE '%aa%';
+----+-------------+----------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table    | partitions | type | possible_keys | key  | key_len | ref  | rows | filtered | Extra       |
+----+-------------+----------+------------+------+---------------+------+---------+------+------+----------+-------------+
|  1 | SIMPLE      | tbl_user | NULL       | ALL  | NULL          | NULL | NULL    | NULL |    4 |    25.00 | Using where |
+----+-------------+----------+------------+------+---------------+------+---------+------+------+----------+-------------+

**口诀：覆盖索引保两边

8字符要加单引号

SELECT * from staffs WHERE name=2000
SELECT * from staffs WHERE name='2000'

#使用‘’减少了类型转换
mysql> EXPLAIN SELECT * from staffs WHERE name='2000'
    -> ;
+----+-------------+--------+------------+------+----------------------+----------------------+---------+-------+------+----------+-------+
| id | select_type | table  | partitions | type | possible_keys        | key                  | key_len | ref   | rows | filtered | Extra |
+----+-------------+--------+------------+------+----------------------+----------------------+---------+-------+------+----------+-------+
|  1 | SIMPLE      | staffs | NULL       | ref  | idx_staff_nameAgePos | idx_staff_nameAgePos | 74      | const |    1 |   100.00 | NULL  |
+----+-------------+--------+------------+------+----------------------+----------------------+---------+-------+------+----------+-------+
1 row in set, 1 warning (0.00 sec)
#如果不使用‘’减少了类型转换，索引会失效
mysql> EXPLAIN SELECT * from staffs WHERE name=2000;
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+
| id | select_type | table  | partitions | type | possible_keys        | key  | key_len | ref  | rows | filtered | Extra       |
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+
|  1 | SIMPLE      | staffs | NULL       | ALL  | idx_staff_nameAgePos | NULL | NULL    | NULL |    3 |    33.33 | Using where |
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+
1 row in set, 3 warnings (0.00 sec)

9少用or，用or会带来失效

mysql> EXPLAIN SELECT * FROM staffs WHERE `name`='July' OR `name`='z3';
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+
| id | select_type | table  | partitions | type | possible_keys        | key  | key_len | ref  | rows | filtered | Extra       |
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+
|  1 | SIMPLE      | staffs | NULL       | ALL  | idx_staff_nameAgePos | NULL | NULL    | NULL |    3 |    66.67 | Using where |
+----+-------------+--------+------------+------+----------------------+------+---------+------+------+----------+-------------+

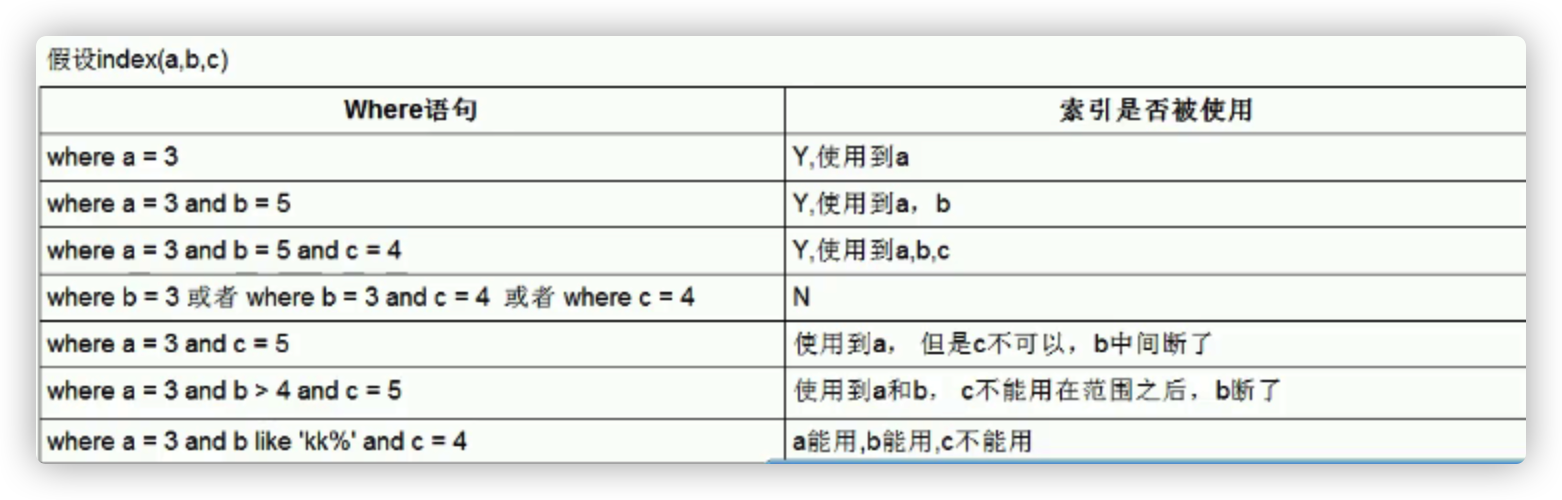

小总结练习

加强练习

create table test03(
id int primary key not null auto_increment,
c1 char(10),
c2 char(10),
c3 char(10),
c4 char(10),
c5 char(10));

insert into test03(c1,c2,c3,c4,c5) values ('a1','a2','a3','a4','a5');
insert into test03(c1,c2,c3,c4,c5) values ('b1','b2','b3','b4','b5');
insert into test03(c1,c2,c3,c4,c5) values ('c1','c2','c3','c4','c5');
insert into test03(c1,c2,c3,c4,c5) values ('d1','d2','d3','d4','d5');
insert into test03(c1,c2,c3,c4,c5) values ('e1','e2','e3','e4','e5');

create index idx_test03_c1234 on test03(c1,c2,c3,c4);

#一
#最好按照混合索引顺序
#1 2 4 3(用到了全字段)
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' AND `c4` = 'a4' AND `c3` = 'a3';

# 4 3 2 1（用到了全字段）
EXPLAIN SELECT * FROM `test03` WHERE `c4` = 'a4' AND `c3` = 'a3' AND `c2` = 'a2' AND `c1` = 'a1';

#二
#用到了三个， 1  2 常量级别，3 位range ，4失效（range后面全失效）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' AND `c3` > 'a3' AND `c4` = 'a4';

#三
#用到了4个， mysql的优化器会优化sql
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' AND `c4` > 'a4' AND `c3` = 'a3';
+----+-------------+--------+------------+-------+------------------+------------------+---------+------+------+----------+-----------------------+
| id | select_type | table  | partitions | type  | possible_keys    | key              | key_len | ref  | rows | filtered | Extra                 |
+----+-------------+--------+------------+-------+------------------+------------------+---------+------+------+----------+-----------------------+
|  1 | SIMPLE      | test03 | NULL       | range | idx_test03_c1234 | idx_test03_c1234 | 124     | NULL |    1 |   100.00 | Using index condition |
+----+-------------+--------+------------+-------+------------------+------------------+---------+------+------+----------+-----------------------+

#四
#c1 c2用到了 c3也算用到了没有统计到结果中（key_len中）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' AND `c4` = 'a4' ORDER BY `c3`;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
| id | select_type | table  | partitions | type | possible_keys    | key              | key_len | ref         | rows | filtered | Extra                 |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
|  1 | SIMPLE      | test03 | NULL       | ref  | idx_test03_c1234 | idx_test03_c1234 | 62      | const,const |    1 |    20.00 | Using index condition |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+

与上面一样（）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' ORDER BY `c3`;

#五
#用到2个，c1，c2有效，   c4失效 （出现了filesort）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c2` = 'a2' ORDER BY `c4`;

#六
#用到了
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c5` = 'a5' ORDER BY `c2`, `c3`;
#用到了（出现了 Using filesort）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c5` = 'a5' ORDER BY `c3`, `c2`;

#七
#c1 c2 c3都用到了，c1，c2用于查找，c2，c3用于排序
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND  `c2` = 'a2' ORDER BY c2, c3;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
| id | select_type | table  | partitions | type | possible_keys    | key              | key_len | ref         | rows | filtered | Extra                 |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
|  1 | SIMPLE      | test03 | NULL       | ref  | idx_test03_c1234 | idx_test03_c1234 | 62      | const,const |    1 |   100.00 | Using index condition |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
#
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND  `c2` = 'a2' ORDER BY c3, c2;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
| id | select_type | table  | partitions | type | possible_keys    | key              | key_len | ref         | rows | filtered | Extra                 |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+
|  1 | SIMPLE      | test03 | NULL       | ref  | idx_test03_c1234 | idx_test03_c1234 | 62      | const,const |    1 |   100.00 | Using index condition |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+-----------------------+

#八

#用到了c1 c2 c3三个字段，c1 c2用于查找，c2 c3用于排序
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND  `c2` = 'a2' AND `c5` = 'a5' ORDER BY c2, c3;
#与上面一样（本例子c2为常量，order by后的c2，为常量可以理解为不排序c2）
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND  `c2` = 'a2' AND `c5` = 'a5' ORDER BY c3, c2;


#九
#用到了c1， 出现了Using filesort
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c5` = 'a5' ORDER BY `c3`, `c2`;


#十（Group by）分组之前必排序
GROUP BY基本上都需要进行排序，索引优化几乎和ORDER BY一致，但是GROUP BY会有临时表的产生。
#用到了c1，
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c4` = 'a4' GROUP BY `c2`,`c3`;
#产生了 filesort ， temporary
EXPLAIN SELECT * FROM `test03` WHERE `c1` = 'a1' AND `c4` = 'a4' GROUP BY `c3`,`c2`;

总结：一般性建议

对于单值索引，尽量选择针对当前query过滤性更好的索引。
在选择复合索引的时候，当前query中过滤性最好的字段在索引字段顺序中，位置越靠前越好。
在选择组合索引的时候，尽可能选择能够包含当前query中的where子句中更多字段的索引。
尽可能通过分析统计信息和调整query的写法来达到选择合适索引的目的。

口诀总结

全值匹配我最爱，最左前缀要遵守;
带头大哥不能死，中间兄弟不能断; ;
索引列上少计算，范围之后全失效;
LIKE百分写最右，覆盖索引不写星;
不等空值还有or，索引失效要少用;
