【CAS】CAS Management （七）

Cas-Management介绍

　　cas-management也简称为service-management可以理解为服务管理。
　　cas为我们提供了对service的管理平台，通过UI界面进行操作管理

　　官方也提供了具体的配置文档

　　项目地址：cas-management

　　本例使用的版本是 5.3.x

项目运行

　　1、下载 cas-management-overlay，阅读README.md

　　2、启动cas服务，【CAS】CAS介绍与安装（一） - H__D - 博客园

　　3、打包 managenment项目，命令：build.cmd package

　　4、新建目录 src\main\resources

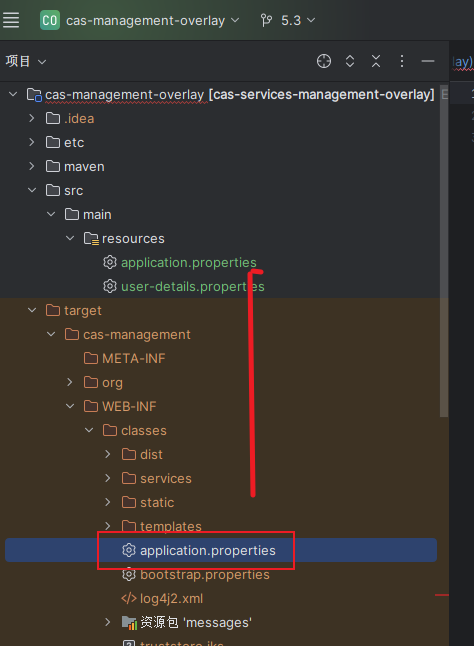

　　5、\target\cas-management\WEB-INF\classes\application.properties文件，拷贝的 resources目录中
　　　　

　　　　修改application.properties文件

##
# CAS Thymeleaf Views
#
spring.thymeleaf.cache=false
spring.thymeleaf.mode=HTML
spring.thymeleaf.order=1

##
# Embedded CAS Tomcat Container
#
server.context-path=/cas-management
#server.port=8444
server.ssl.key-store=file:/etc/cas/thekeystore
server.ssl.key-store-password=changeit
server.ssl.key-password=changeit

##
# Log4J Configuration
#
server.context-parameters.isLog4jAutoInitializationDisabled=true
# logging.config=file:/etc/cas/log4j2.xml

##
# CAS Server
cas.server.name=https://localhost:8443
cas.server.prefix=${cas.server.name}/cas

##
# CAS Authentication Attributes
#
cas.authn.attributeRepository.stub.attributes.uid=uid
cas.authn.attributeRepository.stub.attributes.givenName=givenName
cas.authn.attributeRepository.stub.attributes.eppn=eppn


mgmt.serverName=https://localhost:${server.port}

##
# CAS Web Application Config
#
server.session.timeout=1800
server.session.cookie.http-only=true
server.session.tracking-modes=COOKIE

##
# CAS Cloud Bus Configuration
# Please leave spring.cloud.bus.enabled set to false
#
spring.cloud.bus.enabled=false

#Indicates that systemPropertiesOverride can be used.
# Set to false to prevent users from changing the default accidentally. Default true.
spring.cloud.config.allow-override=true

# External properties should override system properties.
spring.cloud.config.override-system-properties=false

# When allowOverride is true, external properties should take lowest priority, and not override any
# existing property sources (including local config files).
spring.cloud.config.override-none=false

##
# Actuator Endpoint Security Defaults
#
endpoints.sensitive=true
endpoints.enabled=false
endpoints.actuator.enabled=false

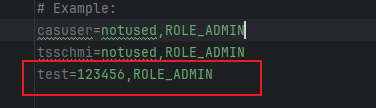

　　6、在\target\cas-management\WEB-INF\classes目录中，找到user-details.properties，复制到resources目录中

　　7、运行项目，命令：build.cmd run

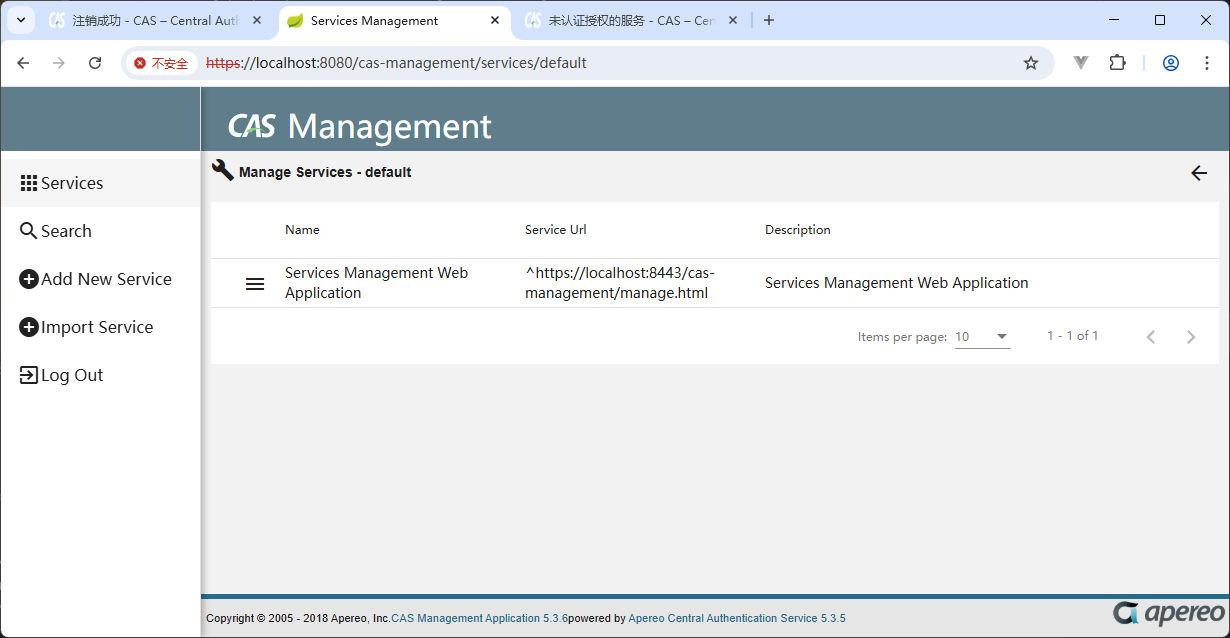

　　8、访问，地址：https://localhost:8080/cas-management

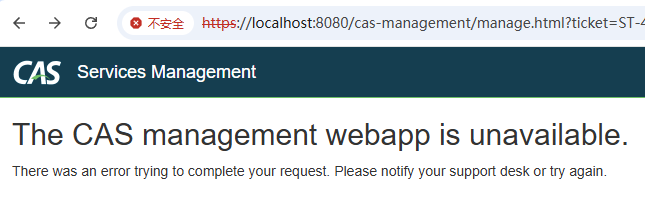

错误解决

问题1：证书未导入JDK

　　　　报错：

2025-04-03 00:20:47,851 ERROR [org.apereo.cas.util.HttpUtils] - <sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target>
javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
        at sun.security.ssl.Alert.createSSLException(Unknown Source) ~[?:1.8.0_341]
        at sun.security.ssl.TransportContext.fatal(Unknown Source) ~[?:1.8.0_341]
        at sun.security.ssl.TransportContext.fatal(Unknown Source) ~[?:1.8.0_341]
        at sun.security.ssl.TransportContext.fatal(Unknown Source) ~[?:1.8.0_341]
