GRE over IPSec-NAT-T

由于IPSec不支持对多播和广播数据包的加密，这样的话，使用IPSec的隧道中，动态路由协议等依靠多播和广播的协议就不能进行正常通告，所以，这时候要配合GRE隧道，GRE隧道会将多播和广播数据包封装到单播包中，再经过IPSec加密。

此外由于GRE建立的是简单的，不进行加密的×××隧道，他通过在物理链路中使用ip地址和路由穿越普通网络。所以很常见的方法就是使用IPSec对GRE进行加密，提供数据安全保证。

再运用到之前练习的IPsec穿越NAT知识，进行综合实验

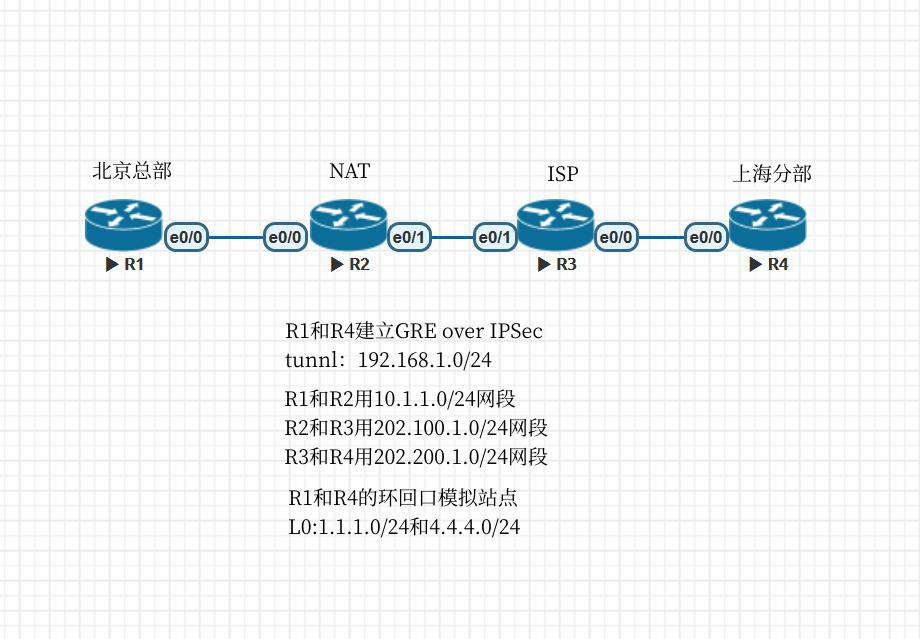

拓扑图





基本配置

R1

interface Loopback0
 ip address 1.1.1.1 255.255.255.0
interface Ethernet0/0
 ip address 10.1.1.1 255.255.255.0

ip route 0.0.0.0 0.0.0.0 10.1.1.254



R2

interface Ethernet0/0
 ip address 10.1.1.254 255.255.255.0
interface Ethernet0/1
 ip address 202.100.1.1 255.255.255.0

ip route 0.0.0.0 0.0.0.0 202.100.1.254



R3

interface Ethernet0/0
 ip address 202.200.1.254 255.255.255.0
interface Ethernet0/1
 ip address 202.100.1.254 255.255.255.0

R4

interface Loopback0
 ip address 4.4.4.4 255.255.255.0
interface Ethernet0/0
 ip address 202.200.1.1 255.255.255.0

ip route 0.0.0.0 0.0.0.0 202.200.1.254





NAT配置

interface Ethernet0/0
 ip address 10.1.1.254 255.255.255.0
 ip nat inside
 ip virtual-reassembly in

interface Ethernet0/1
 ip address 202.100.1.1 255.255.255.0
 ip nat outside
 ip virtual-reassembly in

access-list 1 permit any
ip nat inside source list 1 interface Ethernet0/1 overloa



配置ipsec

R1

crypto isakmp policy 10
 encr 3des
 hash md5
 authentication pre-share
 group 2
crypto isakmp key ipsec address 0.0.0.0

crypto ipsec transform-set ipsec esp-3des esp-md5-hmac
 mode tunnel

crypto map ipsec 10 ipsec-isakmp
 set peer 202.200.1.1
 set transform-set ipsec
 match address ipsec

ip access-list extended ipsec              #此处配置的IPSec保护的感兴趣流量为GRE流量
 permit gre any any

R4

crypto isakmp policy 10
 encr 3des
 hash md5
 authentication pre-share
 group 2
crypto isakmp key ipsec address 0.0.0.0

crypto ipsec transform-set ipsec esp-3des esp-md5-hmac
 mode tunnel

crypto map ipsec 10 ipsec-isakmp
 set peer 202.100.1.1
 set transform-set ipsec
 match address ipsec

ip access-list extended ipsec
 permit gre any any

调用map

R1

interface Ethernet0/0
 ip address 10.1.1.1 255.255.255.0
 crypto map ipsec

R4

 interface Ethernet0/0
 ip address 202.200.1.1 255.255.255.0
 crypto map ipsec



GRE和OSPF配置

R1

interface Tunnel0
 ip address 192.168.1.1 255.255.255.0
 tunnel source Ethernet0/0
 tunnel destination 202.200.1.1

router ospf 100
 router-id 1.1.1.1
 network 1.1.1.0 0.0.0.255 area 0
 network 192.168.1.0 0.0.0.255 area 0

R4

interface Tunnel0
 ip address 192.168.1.4 255.255.255.0
 tunnel source Ethernet0/0
 tunnel destination 10.1.1.1                                   #这里要目标地址必须是R1的接口地址，GRE被IPSec包裹，如果地址也NAT地址，R1无法识别

router ospf 100
 router-id 4.4.4.4
 network 4.4.4.0 0.0.0.255 area 0
 network 192.168.1.0 0.0.0.255 area 0

############此时应该已经建立ospf邻接

R1#show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface
4.4.4.4           0   FULL/  -        00:00:30    192.168.1.4     Tunnel0
可以发现已经建立成功，是通过隧道学习的

R1#show ip route ospf
O        4.4.4.4 [110/1001] via 192.168.1.4, 00:27:00, Tunnel0



在R1上查看ipsec状态，发现端口是4500经过NAT转换

R1#show crypto session
Crypto session current status

Interface: Ethernet0/0
Session status: UP-ACTIVE
Peer: 202.200.1.1 port 4500
  IKEv1 SA: local 10.1.1.1/4500 remote 202.200.1.1/4500 Active
  IPSEC FLOW: permit 47 0.0.0.0/0.0.0.0 0.0.0.0/0.0.0.0
        Active SAs: 2, origin: crypto map

 R1#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst             src             state          conn-id status
202.200.1.1     10.1.1.1        QM_IDLE           1004 ACTIVE

测试ping 4.4.4.4 完成实验

R1#ping 4.4.4.4 source l0 repeat 10
Type escape sequence to abort.
Sending 10, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
!!!!!!!!!!
Success rate is 100 percent (10/10), round-trip min/avg/max = 6/6/7 ms

在R2上查看NAT转换

R2#show ip nat translations
Pro Inside global      Inside local       Outside local      Outside global
gre 202.100.1.1:0      10.1.1.1:0         202.200.1.1:0      202.200.1.1:0
udp 202.100.1.1:4500   10.1.1.1:4500      202.200.1.1:4500   202.200.1.1:4500
