数据集成工具—DataX
@
目录
DataX
DataX 是阿里巴巴集团内被广泛使用的离线数据同步工具/平台，实现包括 MySQL、Oracle、SqlServer、Postgre、HDFS、Hive、ADS、HBase、TableStore(OTS)、MaxCompute(ODPS)、DRDS 等各种异构数据源之间高效的数据同步功能。
DataX的安装及使用
DataX不需要依赖其他服务，直接上传、解压、配置环境变量即可
也可以直接在windows上解压DataX开源地址： https://github.com/alibaba/DataX
DataX的使用

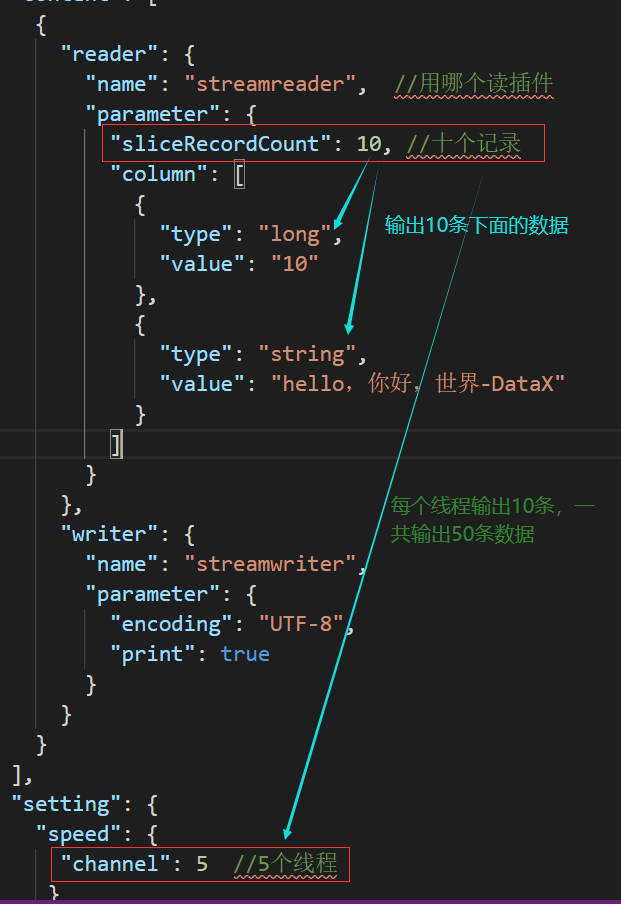

stream2stream
编写配置文件stream2stream.json
{
"job": {
"content": [
{
"reader": {
"name": "streamreader",
"parameter": {
"sliceRecordCount": 10,
"column": [
{
"type": "long",
"value": "10"
},
{
"type": "string",
"value": "hello，你好，世界-DataX"
}
]
}
},
"writer": {
"name": "streamwriter",
"parameter": {
"encoding": "UTF-8",
"print": true
}
}
}
],
"setting": {
"speed": {
"channel": 5
}
}
}
}
执行同步任务62
datax.py stream2stream.json
执行结果
mysql2mysql
需要新建student2数据库，并创建student表
编写配置文件mysql2mysql.json
{
"job": {
"content": [
{
"reader": {
"name": "mysqlreader",
"parameter": {
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz",
"last_mod"
],
"splitPk": "age",
"connection": [
{
"table": [
"student"
],
"jdbcUrl": [
"jdbc:mysql://master:3306/student"
]
}
]
}
},
"writer": {
"name": "mysqlwriter",
"parameter": {
"writeMode": "insert",
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz",
"last_mod"
],
"preSql": [
"truncate student2"
],
"connection": [
{
"jdbcUrl": "jdbc:mysql://master:3306/student2?useUnicode=true&characterEncoding=utf8",
"table": [
"student2"
]
}
]
}
}
}
],
"setting": {
"speed": {
"channel": 6
}
}
}
}
执行同步任务
datax.py mysql2mysql.json
mysql2hdfs
写hive跟hdfs时一样的
编写配置文件mysql2hdfs.json
{
"job": {
"content": [
{
"reader": {
"name": "mysqlreader",
"parameter": {
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz",
"last_mod"
],
"splitPk": "age",
"connection": [
{
"table": [
"student"
],
"jdbcUrl": [
"jdbc:mysql://master:3306/student"
]
}
]
}
},
"writer": {
"name": "hdfswriter",
"parameter": {
"defaultFS": "hdfs://master:9000",
"fileType": "text",
"path": "/user/hive/warehouse/datax.db/students",
"fileName": "student",
"column": [
{
"name": "id",
"type": "bigint"
},
{
"name": "name",
"type": "string"
},
{
"name": "age",
"type": "INT"
},
{
"name": "gender",
"type": "string"
},
{
"name": "clazz",
"type": "string"
},
{
"name": "last_mod",
"type": "string"
}
],
"writeMode": "append",
"fieldDelimiter": ","
}
}
}
],
"setting": {
"speed": {
"channel": 6
}
}
}
}
HBase2hdfs
{
"job": {
"setting": {
"speed": {
"channel": 1
}
},
"content": [
{
"reader": {
"name": "hbase11xreader",
"parameter": {
"hbaseConfig": {
"hbase.zookeeper.quorum": "master:2181"
},
"table": "stu2",
"encoding": "utf-8",
"mode": "normal",
"column": [
{
"name": "rowkey",
"type": "string"
},
{
"name": "cf1: age",
"type": "string"
},
{
"name": "cf1: age",
"type": "string"
},
{
"name": "cf2:gender",
"type": "string"
},
{
"name": "cf2:clazz",
"type": "string"
},
{
"name": "cf2:last_mod",
"type": "string"
}
],
"range": {
"startRowkey": "",
"endRowkey": "",
"isBinaryRowkey": true
}
}
},
"writer": {
"name": "hdfswriter",
"parameter": {
"defaultFS": "hdfs://master:9000",
"fileType": "text",
"path": "/user/hive/warehouse/dataxdb.db/uu1",
"fileName": "uu.txt",
"column": [
{
"name": "rk",
"type": "string"
},
{
"name": "id",
"type": "string"
},
{
"name": "age",
"type": "int"
},
{
"name": "gender",
"type": "string"
},
{
"name": "clazz",
"type": "string"
},
{
"name": "last_mod",
"type": "string"
}
],
"writeMode": "append",
"fieldDelimiter": ","
}
}
}
]
}
}
hbase2mysql
{
"job": {
"content": [
{
"reader": {
"name": "hbase11xreader",
"parameter": {
"hbaseConfig": {
"hbase.zookeeper.quorum": "master:2181"
},
"table": "student",
"encoding": "utf-8",
"mode": "normal",
"column": [
{
"name": "rowkey",
"type": "string"
},
{
"name": "cf1:name",
"type": "string"
},
{
"name": "cf1:age",
"type": "string"
},
{
"name": "cf1:gender",
"type": "string"
},
{
"name": "cf1:clazz",
"type": "string"
}
],
"range": {
"startRowkey": "",
"endRowkey": "",
"isBinaryRowkey": false
}
}
},
"writer": {
"name": "mysqlwriter",
"parameter": {
"writeMode": "insert",
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz"
],
"preSql": [
"truncate student2"
],
"connection": [
{
"jdbcUrl": "jdbc:mysql://master:3306/student2?useUnicode=true&characterEncoding=utf8",
"table": [
"student2"
]
}
]
}
}
}
],
"setting": {
"speed": {
"channel": 6
}
}
}
}
mysql2hbase
mysql中的student表需将id改为user_id，并将id_name设为主键，并将所有字段的类型改为string
hbase需先创建score表：create 'score','cf1'
{
"job": {
"content": [
{
"reader": {
"name": "mysqlreader",
"parameter": {
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz",
"last_mod"
],
"splitPk": "id",
"connection": [
{
"table": [
"student"
],
"jdbcUrl": [
"jdbc:mysql://master:3306/student"
]
}
]
}
},
"writer": {
"name": "hbase11xwriter",
"parameter": {
"hbaseConfig": {
"hbase.zookeeper.quorum": "master:2181"
},
"table": "stu2",
"mode": "normal",

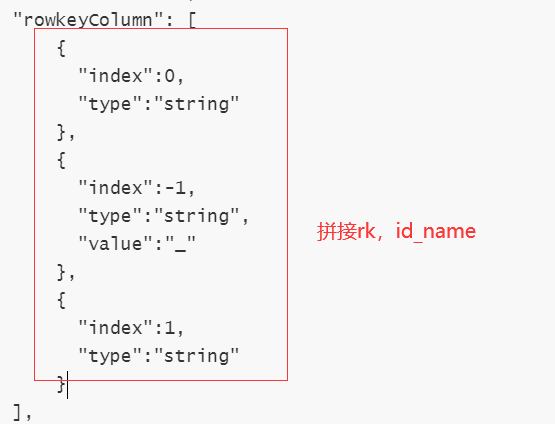

"rowkeyColumn": [
{
"index":0,
"type":"string"
},
{
"index":-1,
"type":"string",
"value":"_"
},
{
"index":1,
"type":"string"
}
],
"column": [
{
"index":0,
"name": "cf1:user_id",
"type": "string"
},
{
"index":1,
"name": "cf1:name",
"type": "string"
},
{
"index":2,
"name": "cf1:age",
"type": "string"
},
{
"index":3,
"name": "cf2:gender",
"type": "string"
},
{
"index":4,
"name": "cf2:clazz",
"type": "string"
},
{
"index":5,
"name": "cf2:last_mod",
"type": "string"
}
]
}
}
}
],
"setting": {
"speed": {
"channel": 5
}
}
}
}
mysql2Phoenix
在Phoenix中创建STUDENT表
CREATE TABLE IF NOT EXISTS STUDENT (
ID VARCHAR NOT NULL PRIMARY KEY,
NAME VARCHAR,
AGE BIGINT,
GENDER VARCHAR ,
CLAZZ VARCHAR
);
编写配置文件MySQLToPhoenix.json
{
"job": {
"setting": {
"speed": {
"channel": 3
},
"errorLimit": {
"record": 0,
"percentage": 0.02
}
},
"content": [
{
"reader": {
"name": "mysqlreader",
"parameter": {
"username": "root",
"password": "123456",
"column": [
"id",
"name",
"age",
"gender",
"clazz"
],
"splitPk": "id",
"connection": [
{
"table": [
"student"
],
"jdbcUrl": [
"jdbc:mysql://master:3306/student?useSSL=false"
]
}
]
}
},
"writer": {
"name": "hbase11xsqlwriter",
"parameter": {
"batchSize": "256",
"column": [
"ID",
"NAME",
"AGE",
"GENDER",
"CLAZZ"
],
"hbaseConfig": {
"hbase.zookeeper.quorum": "master,node1,node2",
"zookeeper.znode.parent": "/hbase"
},
"nullMode": "skip",
"table": "STUDENT"
}
}
}
]
}
}
HDFSToHBase
将students.txt数据上传至HDFS的
/data/student1/目录在HBase中创建datax表：
create 'datax','cf1'
{
"job": {
"setting": {
"speed": {
"channel": 3
},
"errorLimit": {
"record": 0,
"percentage": 0.02
}
},
"content": [
{
"reader": {
"name": "hdfsreader",
"parameter": {
"path": "/data/student1/",
"defaultFS": "hdfs://master:9000",
"column": [
{
"index": 0,
"type": "string"
},
{
"index": 1,
"type": "string"
},
{
"index": 2,
"type": "string"
},
{
"index": 3,
"type": "string"
},
{
"index": 4,
"type": "string"
},
{
"index": 5,
"type": "string"
}
],
"fileType": "text",
"encoding": "UTF-8",
"fieldDelimiter": ","
}
},
"writer": {
"name": "hbase11xwriter",
"parameter": {
"hbaseConfig": {
"hbase.zookeeper.quorum": "master,node1,node2"
},
"table": "datax",
"mode": "normal",
"rowkeyColumn": [
{
"index": 0,
"type": "string"
},
{
"index": -1,
"type": "string",
"value": "_"
},
{
"index": 1,
"type": "string"
}
],
"column": [
{
"index": 2,
"name": "cf1:age",
"type": "string"
},
{
"index": 3,
"name": "cf1:gender",
"type": "string"
},
{
"index": 4,
"name": "cf1:clazz",
"type": "string"
},
{
"index": 5,
"name": "cf1:ts",
"type": "string"
}
],
"versionColumn": {
"index": 5
},
"encoding": "utf-8"
}
}
}
]
}
}
