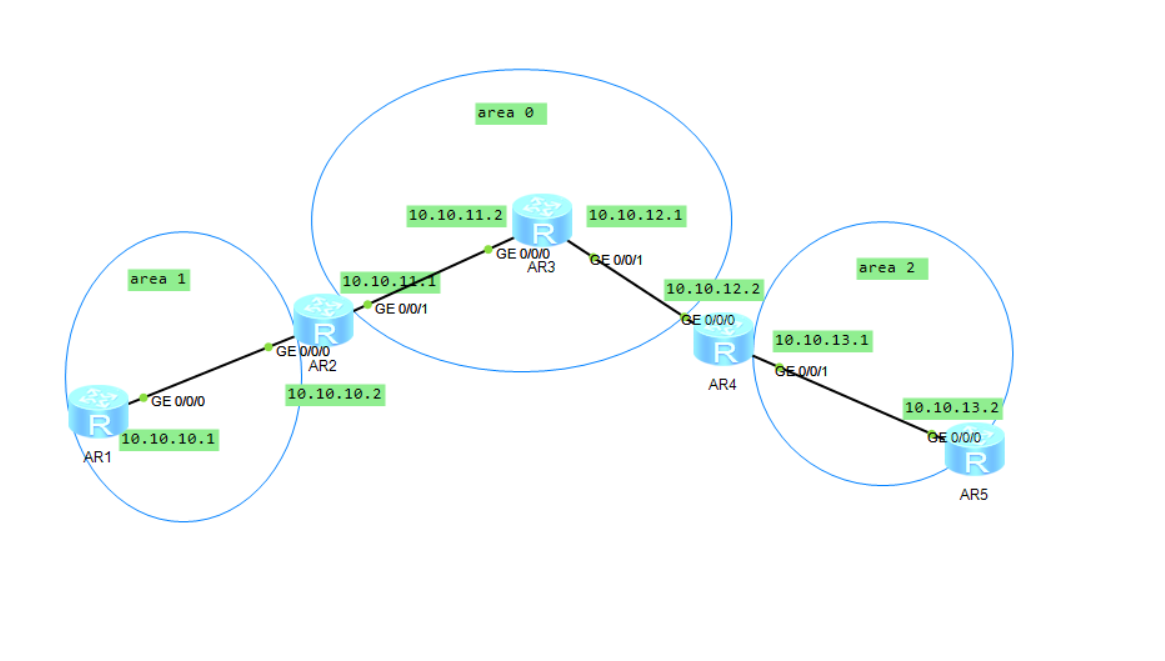

OSPF实验

R1配置
sysname R1
interface GigabitEthernet0/0/0
ip address 10.0.12.1 255.255.255.0
interface GigabitEthernet0/0/1
ip address 10.0.13.1 255.255.255.0
interface GigabitEthernet0/0/2
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
interface LoopBack1
ip address 11.11.11.11 255.255.255.0

将网段宣告在
ospf 1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 10.0.12.1 0.0.0.0
network 10.0.13.1 0.0.0.0
network 11.11.11.11 0.0.0.0

R2的配置
sysname R2
interface Serial4/0/0
ip address 10.0.23.2 255.255.255.0
interface Serial4/0/1
interface GigabitEthernet0/0/0
ip address 10.0.24.2 255.255.255.0
interface GigabitEthernet0/0/1
ip address 10.0.12.2 255.255.255.0
interface LoopBack0
ip address 2.2.2.2 255.255.255.255

将网段宣告在
ospf 1
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 10.0.12.2 0.0.0.0
network 10.0.23.2 0.0.0.0
area 0.0.0.1
network 10.0.24.2 0.0.0.0

R3配置
sysname R3
interface Serial4/0/0
ip address 10.0.23.3 255.255.255.0
interface Serial4/0/1
link-protocol ppp
interface GigabitEthernet0/0/0
ip address 10.0.35.3 255.255.255.0
interface GigabitEthernet0/0/1
ip address 10.0.13.3 255.255.255.0
interface LoopBack0
ip address 3.3.3.3 255.255.255.255
将网段宣告在
ospf 1
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 10.0.13.3 0.0.0.0
network 10.0.23.3 0.0.0.0
area 0.0.0.2
network 10.0.35.3 0.0.0.0
R4配置
sysname R4
interface GigabitEthernet0/0/0
ip address 10.0.24.4 255.255.255.0
interface LoopBack0
ip address 4.4.4.4 255.255.255.255
interface LoopBack1
ip address 44.44.44.44 255.255.255.0
将网段宣告在
ospf 1
area 0.0.0.1
network 4.4.4.4 0.0.0.0
network 10.0.24.4 0.0.0.0
network 44.44.44.44 0.0.0.0
R5配置
sysname R5
interface GigabitEthernet0/0/0
ip address 10.0.35.5 255.255.255.0
interface GigabitEthernet0/0/1
interface LoopBack0
ip address 5.5.5.5 255.255.255.255
interface LoopBack1
ip address 55.55.55.55 255.255.255.0

将网段宣告在
ospf 1
area 0.0.0.2
network 5.5.5.5 0.0.0.0
network 10.0.35.5 0.0.0.0
network 55.55.55.55 0.0.0.0
